Parker Denison 701-00600-8 Maintenance-Proven Spare Part

Overview

Parker Denison 701-00600-8 Maintenance-Proven Spare Part for Factory Uptime

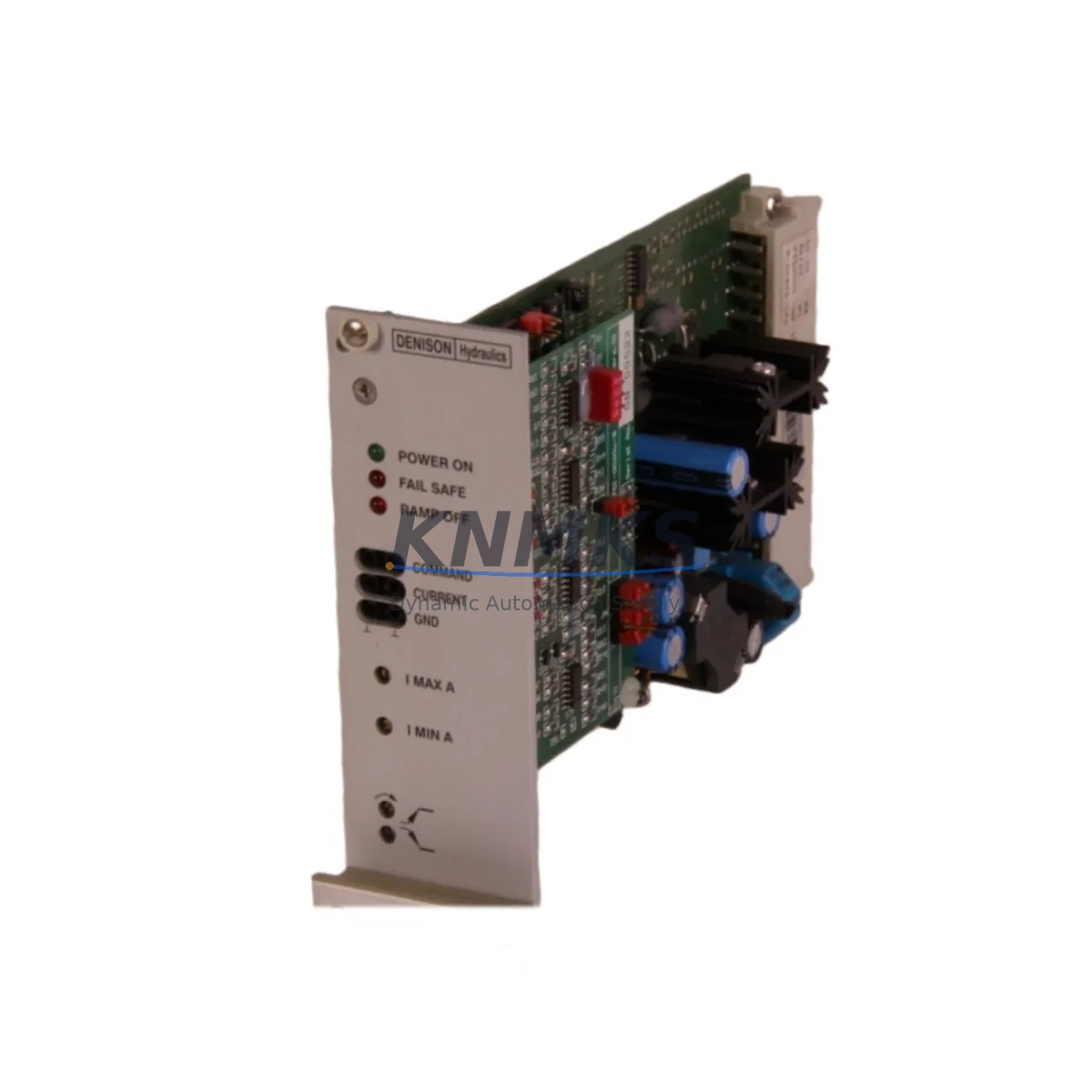

The Parker Denison 701-00600-8 is an original Gold Cup series proportional amplifier card engineered for precision control of variable displacement hydraulic pumps and motors in demanding industrial environments. As a direct OEM-compatible replacement, this card is a critical spare for maintenance engineers managing hydraulic power units, press lines, injection molding machines, and continuous-duty industrial systems where unplanned downtime carries significant operational cost.

Maintenance and procurement engineers working with Parker Denison Gold Cup hydraulic systems understand that the proportional amplifier card is the nerve center of closed-loop pressure and flow control. When this card fails — whether due to voltage transients, contamination ingress, or component aging — the entire hydraulic axis becomes inoperable. Stocking the 701-00600-8 as a verified spare eliminates the multi-week lead time risk associated with sourcing this card reactively during a breakdown event.

Each unit supplied by KNMKS is sourced through established industrial channels, subjected to functional verification prior to shipment, and backed by a support terms confirmed by quotation covering manufacturing defects and operational failures under normal service conditions. This ensures that when your maintenance team pulls the card from the shelf during an emergency, it performs to specification from the first power-on.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 701-00600-8 proportional amplifier card in a Gold Cup hydraulic system is rarely an isolated task. A thorough site inspection during the replacement window significantly reduces the risk of repeat failures and unplanned shutdowns. Maintenance engineers should treat this event as an opportunity to audit the entire hydraulic control circuit.

Begin with the 24 VDC power supply feeding the amplifier card. Voltage ripple, inadequate current capacity, or a failing power supply module can stress the card’s internal circuitry and cause premature failure of the replacement unit. Verify supply voltage under load and check for transient spikes using a scope if available.

Inspect the command signal wiring between the PLC analog output module and the amplifier card input terminals. Shielding integrity, ground loops, and signal cable routing near high-voltage conductors are common sources of noise that degrade proportional control accuracy and can damage sensitive input stages. If the system uses a Parker Denison or third-party PLC analog output card, confirm that the output range matches the amplifier’s expected input specification.

Check the feedback signal path. Many Gold Cup systems use a linear position transducer or pressure transducer to close the control loop. Inspect transducer wiring, connector condition, and signal integrity. A faulty feedback signal will cause the replacement amplifier card to hunt or saturate, mimicking a card failure even when the new unit is fully functional.

Review the terminal block connections on the amplifier card cage. Loose or corroded terminals are a frequent cause of intermittent faults in hydraulic control panels. Re-torque all connections and apply contact enhancer where appropriate. If the system includes a signal isolator between the PLC and the amplifier, inspect the isolator for proper output range and power supply health — a degraded isolator can introduce offset errors that are difficult to diagnose without isolating each component.

For systems with a Parker Denison proportional valve driver or servo valve amplifier in the same control cabinet, inspect those cards simultaneously. Hydraulic axis faults often involve multiple control components, and replacing only the amplifier card while leaving a marginal valve driver in service can result in a second failure within weeks. Similarly, check any associated fuse holders and protection fuses on the 24 VDC rail — a blown fuse that caused the original card failure must be investigated for root cause before the replacement is powered up.

If the hydraulic system is integrated into a broader PLC or DCS architecture, verify that the analog I/O channel assigned to this axis is functioning correctly after card replacement. Run a manual ramp test from the controller to confirm the hydraulic actuator responds linearly across the full command range before returning the system to automatic mode.

Site Replacement Workflow

Step 1 — Isolate and de-energize. Follow your site LOTO procedure. Isolate the 24 VDC control power to the amplifier card cage before removing the 701-00600-8. Confirm zero energy state with a calibrated meter.

Step 2 — Document existing configuration. Photograph or record all potentiometer settings, DIP switch positions, and jumper configurations on the failed card before removal. The 701-00600-8 may have gain, ramp, dither, and offset adjustments that must be replicated on the replacement unit to restore original system behavior.

Step 3 — Remove and inspect. Extract the card from its slot. Inspect the card edge connector and the mating socket for contamination, bent pins, or corrosion. Clean the socket with contact cleaner if required.

Step 4 — Configure the replacement. Transfer all potentiometer and switch settings from your documentation to the new 701-00600-8 before installation. Do not power the card with factory-default settings in a live hydraulic system — unexpected actuator movement can result.

Step 5 — Install and power up. Seat the replacement card firmly. Restore control power and monitor the system for correct initialization. Check for fault indicators on the card and on the PLC I/O status display.

Step 6 — Commission and verify. Perform a controlled ramp test. Verify actuator response, check for oscillation or instability, and fine-tune gain and ramp settings as needed. Log the commissioning results for your maintenance records.

This structured replacement workflow minimizes the risk of secondary damage, reduces total downtime from fault detection to production restart, and ensures the replacement 701-00600-8 is correctly configured for your specific application.

Spare Parts Support FAQ

Q1: Is the 701-00600-8 a direct drop-in replacement for the original Parker Denison card?
Yes. The 701-00600-8 supplied by KNMKS is an original or OEM-equivalent unit matched to the Gold Cup series specification. It is designed for direct installation into the existing card cage without mechanical or electrical modification, provided the system wiring and configuration settings are correctly transferred from the failed unit.

Q2: What does the support terms confirmed by quotation cover, and how is a support terms claim handled?
The support terms confirmed by quotation cover functional failures attributable to manufacturing defects or component quality under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or contamination. To initiate a support terms claim, contact KNMKS at [email protected] with the order reference and a description of the failure. Replacement or repair is arranged on a case-by-case basis with minimal lead time impact.

Q3: How should the 701-00600-8 be stored as a long-term spare?
Store the card in its original anti-static packaging in a dry, temperature-controlled environment (10–40°C, <70% RH non-condensing). Avoid storage near strong magnetic fields or in areas subject to vibration. Inspect the card annually for connector oxidation and re-bag with fresh desiccant if the original packaging has been opened. Properly stored, the card maintains full functionality for 5+ years in reserve stock.

Q4: Can KNMKS support long-term or repeat supply of the 701-00600-8 for multi-site maintenance programs?
Yes. KNMKS maintains ongoing sourcing relationships for Parker Denison Gold Cup series components and can support blanket orders, scheduled releases, and multi-site spare parts programs. Contact [email protected] or call +86 18359268345 to discuss volume pricing, lead time commitments, and consignment stock arrangements tailored to your maintenance schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Other Brands
Assorted Brands

Model / Series

701-00600-8
Assorted Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: Other Brands 701-00600-8
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
