NOVELLUS 15-274468-00 Migration-Ready Base Chuck Mount for Legacy CVD Systems

Overview

NOVELLUS 15-274468-00 Migration-Ready Base Chuck Mount for Legacy CVD Systems

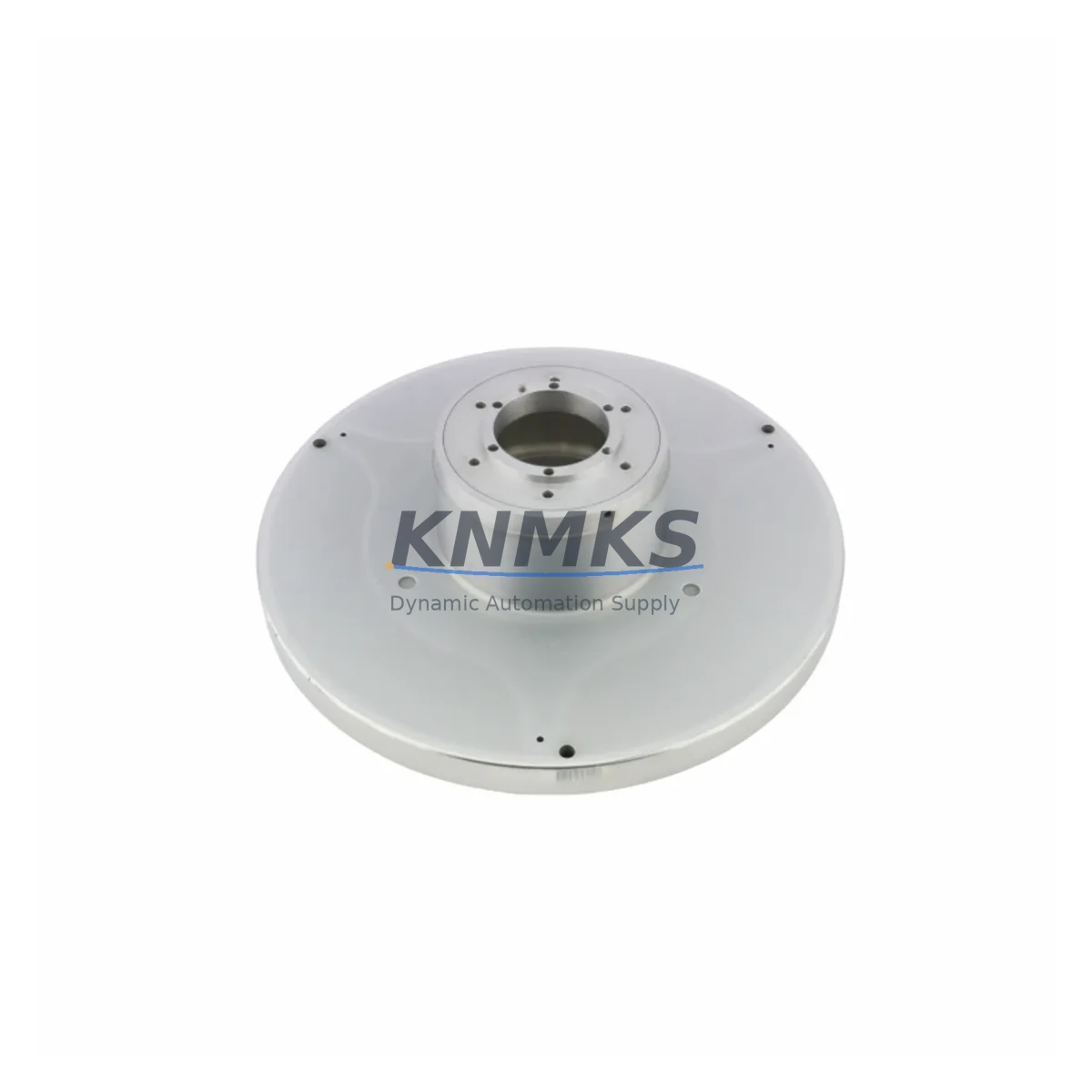

The NOVELLUS 15-274468-00 Base Chuck Mount is a migration-ready replacement component engineered for NW40 Chemical Vapor Deposition (CVD) process chambers. As semiconductor fabs and advanced materials facilities face increasing pressure to extend the operational life of legacy NOVELLUS CVD platforms, the 15-274468-00 serves as a critical structural and functional interface between the wafer chuck assembly and the chamber base. This component directly replaces the discontinued N-7557-019 and cross-references 01232-KA44-0001 and 1874A0306, enabling facilities to restore full chamber functionality without committing to a full system replacement.

When planning a retrofit around the 15-274468-00, engineers must verify several key parameters before installation. Power supply capacity to the chuck assembly should be confirmed against the original NW40 chamber specification, particularly if the facility has upgraded its RF generator or bias supply since original commissioning. Terminal block wiring and grounding paths at the chamber base interface must be inspected for corrosion or thermal fatigue, especially in high-cycle production environments. Backplane connector alignment and torque specifications for the mount fasteners are critical to maintaining vacuum integrity and preventing micro-arcing during plasma ignition. Module addressing within the chamber controller — typically managed through the NOVELLUS system software — should be validated post-installation to ensure the chuck assembly is correctly recognized by the process recipe management layer. If the facility is running updated process software, firmware compatibility between the chuck control board and the base mount’s embedded sensor interface must be confirmed before the first process run.

HMI screen configurations tied to chuck position feedback and temperature monitoring may require recalibration after the 15-274468-00 is installed, particularly if the replacement unit carries a revised sensor harness routing compared to the original N-7557-019. Communication links between the chuck assembly and the chamber’s main control PLC — often running over a proprietary serial or DeviceNet protocol in legacy NW40 installations — should be tested under simulated process conditions before returning the chamber to production. Physical installation space within the chamber base cavity must be confirmed, as some field-modified NW40 systems have non-standard bracket configurations that may require adapter plates or modified standoff heights.

In broader retrofit planning, the 15-274468-00 is frequently sourced alongside complementary NW40 chamber components. Facilities undertaking a full chamber refurbishment often simultaneously address the NOVELLUS NW40 RF Match Network, the chamber lid assembly, and the gas distribution ring to minimize future unplanned downtime. The chuck lift mechanism and its associated pneumatic actuator assembly are also common co-replacement items, as wear patterns on the base mount and lift components tend to correlate in high-volume production environments. For facilities migrating process control from legacy NOVELLUS proprietary controllers to modern DCS or SCADA platforms, the 15-274468-00’s compatibility with updated I/O modules and signal conditioning hardware should be verified with the system integrator before finalizing the retrofit bill of materials.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful NW40 chamber retrofit built around the NOVELLUS 15-274468-00 Base Chuck Mount requires a structured approach to component sequencing and system validation. Facilities should begin by auditing the existing chamber base for mechanical wear, vacuum seal integrity, and electrical grounding continuity before the replacement unit is installed. In parallel, the RF match network — a frequent co-failure component in aging NW40 systems — should be inspected and bench-tested, as degraded match network performance can mask underlying chuck assembly issues and lead to misdiagnosis.

The chamber’s gas distribution ring and showerhead assembly are additional components that experienced retrofit teams address during the same maintenance window as the 15-274468-00 replacement, minimizing the number of chamber openings required over a 12-month period. For facilities running multi-chamber cluster tools, the NW40 transfer module interface and robot end-effector calibration should be re-verified after any base chuck mount replacement, as dimensional tolerances at the chuck surface directly affect wafer placement accuracy and yield.

Signal isolation between the chuck assembly’s embedded thermocouple and the chamber controller’s analog input card is a frequently overlooked step in legacy system retrofits. Installing a signal isolator or barrier at the I/O interface point protects the controller from ground loop interference introduced during the mechanical replacement process. Programming cable access for firmware updates to the chuck control board should be confirmed before the chamber is sealed, as post-installation firmware updates through the chamber wall are not supported on standard NW40 configurations.

Downtime Control During System Migration

Minimizing unplanned downtime during a 15-274468-00 Base Chuck Mount replacement requires pre-staging all replacement components, tools, and documentation before the chamber is taken offline. Facilities should prepare a pre-verified spare unit with all sensor harnesses pre-routed and connector terminations inspected, allowing the physical swap to be completed within a single maintenance shift. The original process recipe files and chuck address configuration parameters should be backed up from the chamber controller before any hardware is disturbed, ensuring that the control system can be restored to a known-good state if unexpected software issues arise during recommissioning.

Maintaining field control continuity during the retrofit is particularly important in facilities where the NW40 chamber is part of a larger cluster tool or integrated process flow. Coordinating the maintenance window with upstream and downstream process steps — including lithography, etch, and metrology — reduces the cascading impact of chamber downtime on overall fab throughput. Post-installation, a structured commissioning sequence covering vacuum leak check, chuck temperature ramp verification, plasma ignition test, and process recipe dry run should be completed before the chamber is returned to production. This sequence, combined with a pre-shipment functional test performed on the 15-274468-00 prior to dispatch, significantly reduces the risk of extended downtime due to component defects discovered during installation.

Retrofit Support FAQ

Q: Does the NOVELLUS 15-274468-00 directly replace the N-7557-019 without chamber modification?
A: In standard NW40 chamber configurations, the 15-274468-00 is a direct mechanical and functional replacement for the N-7557-019. Field-modified systems with non-standard bracket configurations may require adapter plates; dimensional verification is recommended before ordering.

Q: What commissioning steps are required after installing the 15-274468-00?
A: Post-installation commissioning should include vacuum leak verification, chuck module address confirmation in the chamber controller, HMI sensor calibration, plasma ignition test, and a process recipe dry run. Firmware version compatibility between the chuck control board and the chamber controller should also be confirmed.

Q: Is pre-shipment testing performed on the 15-274468-00 before dispatch?
A: Yes. Each unit undergoes functional inspection and verification testing prior to shipment. All units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional performance under normal operating conditions.

Q: What is the typical lead time and stock availability for the 15-274468-00?
A: Stock units are available for prompt dispatch. Lead times vary based on current inventory levels; contact our team for real-time availability confirmation. We maintain buffer stock of high-demand NW40 spare parts to support urgent retrofit and breakdown recovery requirements.
