NOVELLUS 15-127072-01 Maintenance-Proven Spare Part for Factory Uptime

Overview

NOVELLUS 15-127072-01 Maintenance-Proven Spare Part for Factory Uptime

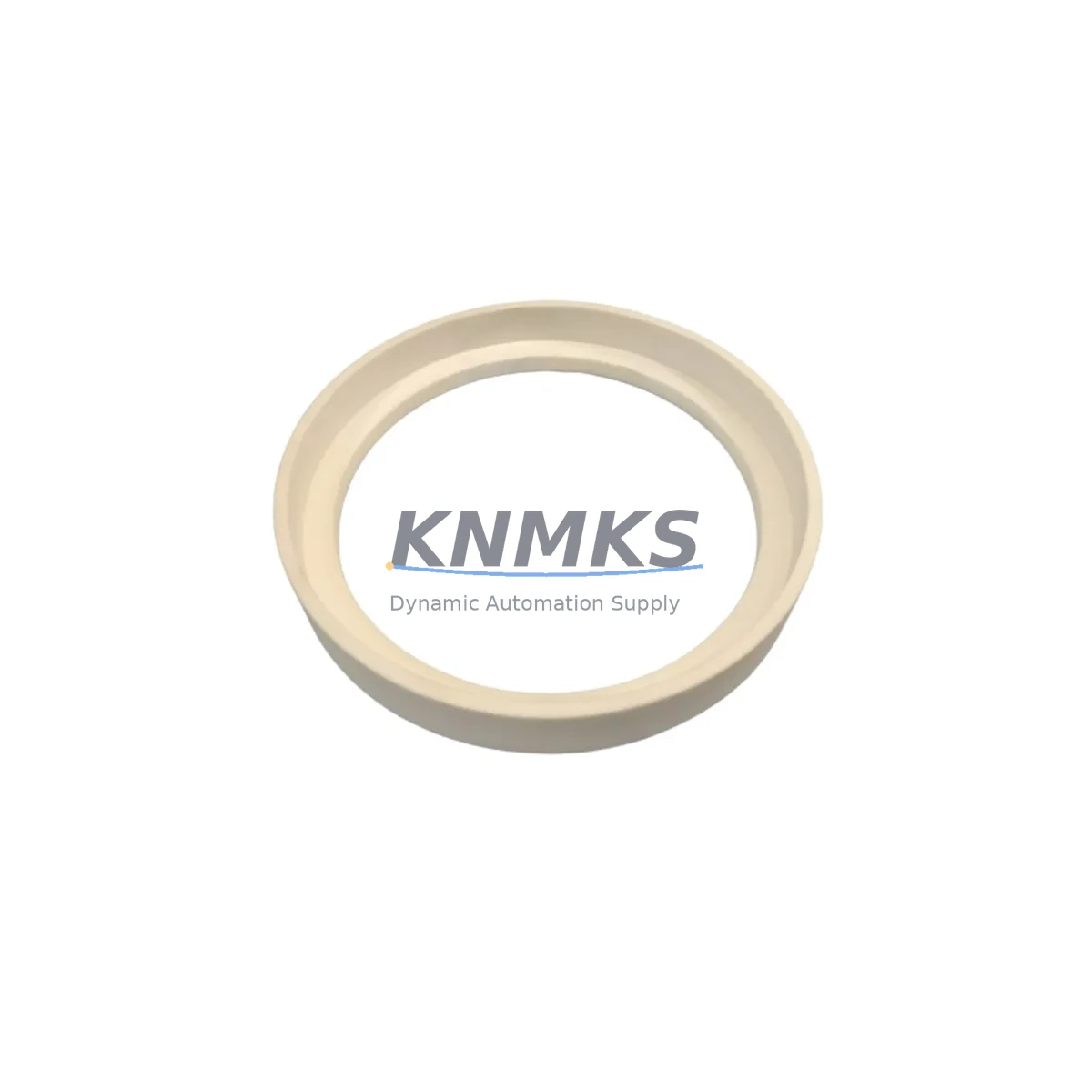

The NOVELLUS 15-127072-01 is an original CVD chamber ring engineered for continuous operation in SPEED and VECTOR chemical vapor deposition systems. Cross-referenced as 0360-1026C, 91610263, VIPC610, and 02-057663-00, this spare part is a critical consumable in semiconductor fabrication environments where unplanned downtime carries significant production cost. Sourced from verified supply channels, each unit is inspected and tested prior to shipment, backed by a support terms confirmed by quotation.

For maintenance engineers managing CVD tool fleets, the 15-127072-01 chamber ring is a scheduled replacement item that directly impacts process uniformity, deposition rate stability, and chamber conditioning cycles. Procurement engineers sourcing this part should confirm cross-reference compatibility against their tool’s BOM before ordering. KNMKS maintains buffer stock to support both emergency replacement and planned annual maintenance programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the NOVELLUS 15-127072-01 chamber ring, a thorough chamber inspection is essential to prevent repeat failures and protect adjacent components. Maintenance engineers should treat this replacement as an opportunity to audit the full process module.

Begin by inspecting the chamber liner and susceptor assembly for deposition buildup, warping, or cracking — these components share the same thermal and chemical exposure cycle as the ring and often require co-replacement. Check the RF match network and power delivery cables for signs of arcing, insulation degradation, or loose terminations, as RF anomalies frequently accelerate chamber component wear.

Verify the condition of the gas distribution faceplate or showerhead — blocked or eroded holes directly affect deposition uniformity and can mask the root cause of process drift that triggered the ring replacement. Inspect all O-ring seals and vacuum fittings at the chamber body interface; a compromised seal will cause leak-up failures during pump-down and invalidate the replacement effort.

For tools integrated into automated fab lines, confirm that the wafer handling robot end-effector clearances remain within spec after reinstallation — dimensional variation in replacement rings can affect wafer placement accuracy. Review the temperature controller and thermocouple connections at the chamber base; thermal runaway events are a known risk when chamber geometry changes after a ring swap.

Finally, cross-check the process controller recipe parameters — particularly pressure setpoints, gas flow ratios, and RF power ramp profiles — against the tool’s baseline after chamber reassembly. Logging a conditioning run and comparing it to the pre-maintenance baseline is best practice before returning the tool to production.

Maintaining a minimum of one spare 15-127072-01 unit on-site is recommended for any fab running SPEED or VECTOR tools at high utilization. Pairing this with a stocked set of chamber O-rings, a spare showerhead, and a replacement susceptor cover creates a complete emergency kit capable of restoring the tool to process-ready status within a single shift.

Site Replacement Workflow

Step 1 — Confirm Cross-Reference: Verify that your tool’s BOM lists 15-127072-01, 0360-1026C, 91610263, VIPC610, or 02-057663-00. All are valid identifiers for this chamber ring. If your documentation references only one of these numbers, confirm with your process engineer before proceeding.

Step 2 — Vent and Safe-State the Chamber: Follow your site’s lockout/tagout procedure. Vent the chamber to atmosphere, confirm RF power is isolated, and allow the chamber to cool to safe handling temperature before opening.

Step 3 — Remove the Worn Ring: Document the existing ring’s condition with photographs before removal. Note any asymmetric deposition patterns, cracks, or erosion zones — this data supports root cause analysis and helps optimize the next PM interval.

Step 4 — Clean the Chamber Interface: Wipe down the chamber body seating surface with an appropriate cleanroom-compatible solvent. Inspect the mating surfaces for damage. Replace any O-rings at this interface as a matter of course.

Step 5 — Install the 15-127072-01: Handle the new ring with clean gloves in a cleanroom environment. Seat it evenly, confirm alignment with the chamber body reference features, and torque any fasteners to the OEM specification.

Step 6 — Pump Down and Leak Check: Perform a standard pump-down sequence and verify base pressure is achieved within the expected timeframe. A slow pump-down indicates a seal issue that must be resolved before proceeding.

Step 7 — Conditioning Run: Execute the chamber conditioning recipe per your process documentation. Compare the conditioning endpoint data to your baseline. Only release the tool to production after the conditioning run meets spec.

This workflow minimizes tool downtime, ensures process integrity, and protects the investment in the replacement part. KNMKS technical support is available to assist with compatibility questions during the replacement process.

Spare Parts Support FAQ

Q1: Is the NOVELLUS 15-127072-01 compatible with both SPEED and VECTOR CVD platforms?
Yes. The 15-127072-01 chamber ring is designed for use in NOVELLUS SPEED and VECTOR CVD systems. Cross-references 0360-1026C, 91610263, VIPC610, and 02-057663-00 are all valid identifiers for this part across different tool generations. Always verify against your tool’s current BOM or contact KNMKS with your tool serial number for confirmation.

Q2: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms confirmed by quotation cover manufacturing defects and dimensional non-conformance identified upon receipt or during initial installation. It does not cover damage resulting from improper handling, installation errors, or process misuse. To initiate a support terms claim, contact [email protected] with your order number, part number, and a description of the issue. KNMKS will arrange inspection and replacement or credit as appropriate.

Q3: How should I manage inventory for this part to avoid emergency procurement delays?
For fabs running SPEED or VECTOR tools at high utilization, a minimum stock of one to two units of 15-127072-01 is recommended. Track consumption against your PM schedule and reorder when stock falls to one unit. KNMKS offers scheduled replenishment agreements for customers with predictable consumption cycles, reducing lead time risk and ensuring continuity of supply for long-lifecycle tool programs.

Q4: What pre-shipment testing is performed on the 15-127072-01 before delivery?
Each unit undergoes dimensional inspection and visual quality review prior to shipment. Units are packaged in cleanroom-compatible materials to prevent contamination during transit. A certificate of conformance is available upon request. For customers requiring additional functional verification, KNMKS can arrange third-party inspection or provide detailed inspection records from the supply chain.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Other Brands
Assorted Brands

Model / Series

15-127072-01 0360-1026C, 91610263 VIPC610 02-057663-00
Assorted Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: Other Brands 15-127072-01 0360-1026C, 91610263 VIPC610 02-057663-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
