NORGREN 2636000-0246 Maintenance-Proven Spare Part for Factory Uptime

Overview

NORGREN 2636000-0246 Maintenance-Proven Spare Part for Factory Uptime

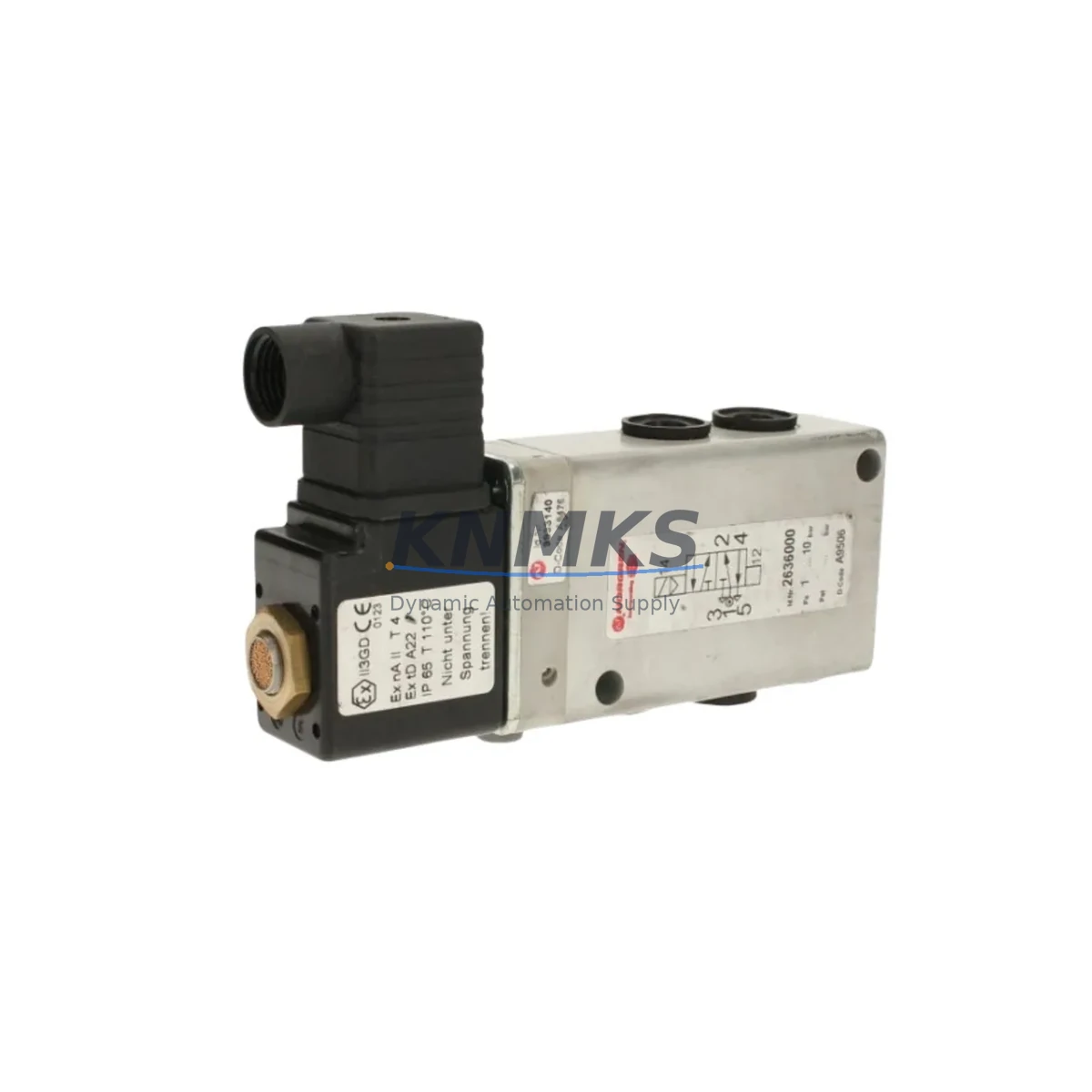

The NORGREN 2636000-0246 is a 5/2-way single solenoid directional control valve from the Excelon Series 26 platform — a workhorse component in pneumatic automation circuits across automotive assembly, food processing, packaging lines, and general industrial machinery. Maintaining a verified stock of this valve is a foundational element of any proactive maintenance program where pneumatic actuator control is critical to production continuity. When this valve fails or degrades, the downstream actuator loses directional authority, causing immediate line stoppage. Fast replacement with a pre-tested, original-specification spare is the fastest path to restoring factory uptime.

This spare is sourced to original NORGREN specifications, pre-shipment tested for solenoid response, spool travel, and port sealing integrity, and dispatched with a support terms confirmed by quotation covering manufacturing defects under normal operating conditions. Whether you are building a 12-month buffer stock, responding to an unplanned failure, or executing a scheduled annual overhaul, the 2636000-0246 is available for rapid dispatch to minimize your mean time to repair (MTTR).

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 2636000-0246 valve is flagged during routine pneumatic circuit inspection or fails during production, the replacement event is an opportunity to audit the entire pneumatic sub-system for latent faults. Maintenance engineers should simultaneously inspect the NORGREN B07-200-A1KG Series 07 filter-regulator-lubricator (FRL) unit supplying the manifold — a degraded FRL delivering contaminated or under-pressured air is frequently the root cause of premature valve spool wear. Check the Series 26 sub-base manifold for cracked ports, worn O-ring seats, and correct torque on valve mounting screws; a damaged manifold will cause the replacement valve to fail prematurely.

Inspect the solenoid coil connector and DIN 43650 plug for moisture ingress, corroded pins, or loose retention clips — coil connector faults account for a significant proportion of apparent valve failures that are actually electrical in origin. Verify the 24 VDC supply rail voltage at the coil terminals under load; voltage drop caused by undersized cable runs or a failing 24 VDC SITOP or equivalent DIN-rail power supply will cause intermittent solenoid actuation that mimics a faulty valve. If the valve is controlled via a PLC digital output module — such as a Siemens S7-300/S7-1200 DO module — confirm the output channel is not in fault state and that the output current rating is sufficient for the coil load.

For manifold-mounted multi-valve assemblies, also check adjacent valves in the bank for cross-port leakage, and inspect the pneumatic actuator cylinder served by this valve for worn piston seals that may be causing excessive back-pressure. Where the valve interfaces with a NORGREN Series 40 or Series 63 cylinder, confirm cushion adjustment and end-of-stroke sensor alignment. Maintaining a minimum buffer of two 2636000-0246 units per production line, alongside one spare FRL assembly and a set of manifold O-ring kits, is recommended practice for facilities targeting sub-4-hour MTTR on pneumatic faults.

Site Replacement Workflow

Step 1 — Isolation: Isolate the pneumatic circuit at the nearest lockable ball valve upstream of the manifold. Exhaust residual pressure via the manual override button on the adjacent valve or through the actuator bleed port. Confirm zero pressure with a gauge before proceeding.

Step 2 — Electrical isolation: De-energize the solenoid coil by disabling the relevant PLC output or isolating the 24 VDC supply to the valve island. Tag out per site LOTO procedure.

Step 3 — Valve removal: Disconnect the DIN 43650 coil connector. Remove the two mounting screws securing the 2636000-0246 to the Series 26 sub-base. Withdraw the valve body carefully to avoid dislodging the sub-base O-rings.

Step 4 — Sub-base inspection: Inspect the sub-base port O-rings for deformation or damage. Replace O-rings from the manifold seal kit if any wear is evident. Clean the sub-base mating face.

Step 5 — Installation: Position the replacement 2636000-0246 onto the sub-base, aligning the port pattern. Torque mounting screws to the NORGREN-specified value (typically 1.2–1.5 Nm for Series 26). Reconnect the DIN 43650 connector, ensuring the retention clip engages fully.

Step 6 — Commissioning: Restore pneumatic supply gradually. Re-energize the PLC output and confirm correct actuator directional response. Check for port leakage with leak-detection spray. Log the replacement in the site CMMS with the new valve serial number and installation date.

This workflow is compatible with direct replacement of any previously installed 2636000-0246 unit without modification to the manifold base, wiring, or PLC program, ensuring zero-downtime changeover when a pre-tested spare is available on-site.

Spare Parts Support FAQ

Q1: Is the 2636000-0246 a direct drop-in replacement for the unit currently installed on my Series 26 manifold?
Yes. The 2636000-0246 is designed for direct sub-base mounting on NORGREN Excelon Series 26 manifold bases. No modification to the manifold, wiring, or PLC configuration is required, provided the installed unit carries the same part number. Always verify the coil voltage suffix matches your site’s 24 VDC (or AC) supply before installation.

Q2: What pre-shipment testing is performed on each unit?
Each 2636000-0246 spare is tested for solenoid coil continuity and energization response, spool travel and return-spring function, and port-to-port leak integrity under pressure before dispatch. A test record is available on request. Units are packaged to prevent transit damage to the coil connector and port faces.

Q3: What is the support terms coverage and how is a claim initiated?
All units carry a support terms confirmed by quotation from the date of dispatch, covering manufacturing defects under normal operating conditions. Support requests are initiated by contacting [email protected] with the order reference, installation date, and a brief description of the fault. Replacement units are dispatched on a return-and-replace basis following fault verification.

Q4: Can you support long-term supply agreements or annual blanket orders for this part?
Yes. For facilities requiring guaranteed stock availability across a 12-month maintenance cycle, we support blanket purchase orders and scheduled release agreements. Contact [email protected] or call +86 18359268345 to discuss volume pricing, lead-time commitments, and consignment stock options tailored to your planned maintenance schedule.
