MTL Instruments MTL831C Migration-Ready Signal Isolator

Overview

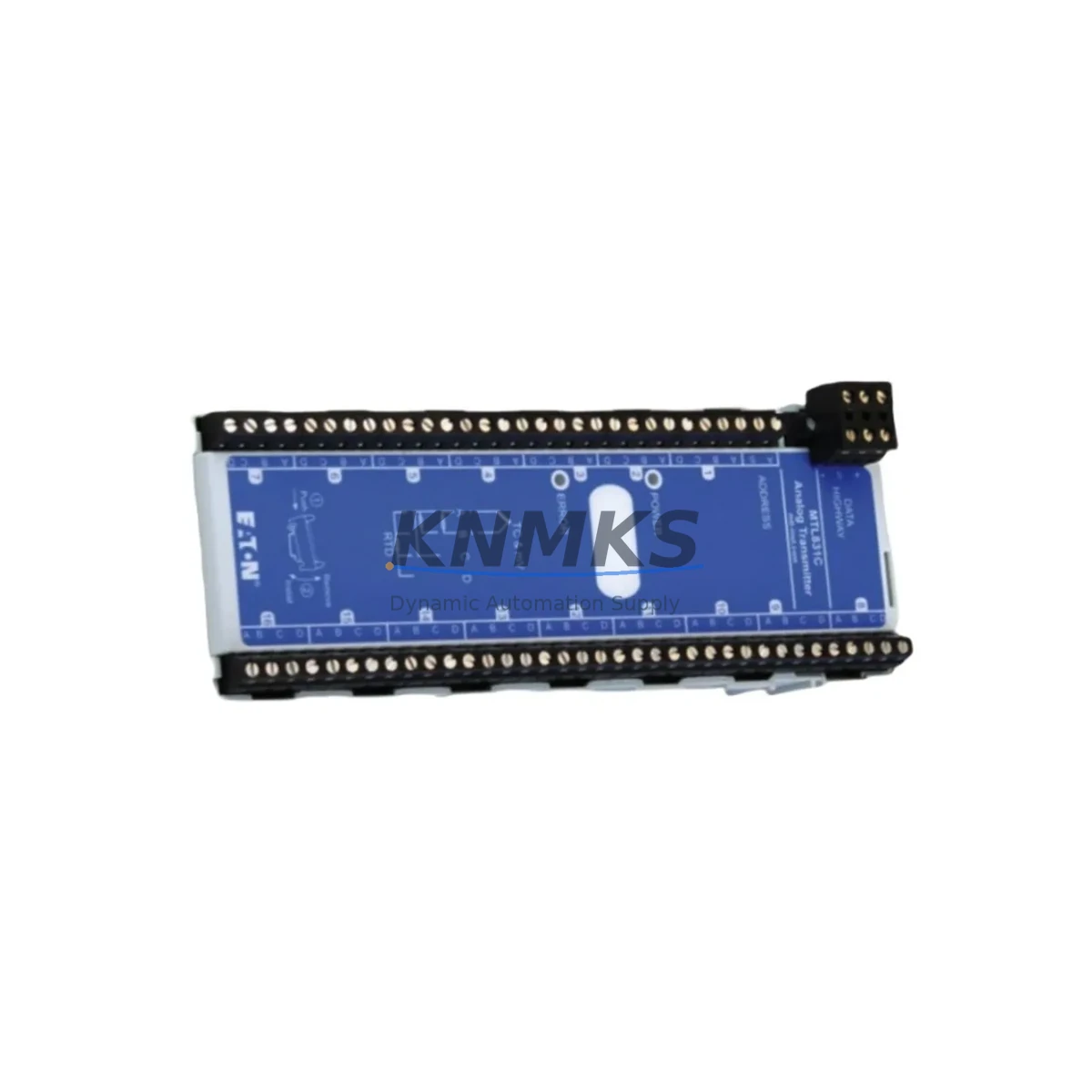

MTL Instruments MTL831C Migration-Ready Signal Isolator: Legacy System Retrofit and Compatibility Upgrade

The MTL Instruments MTL831C is a HART-transparent, loop-powered 4–20 mA signal isolator engineered to serve as a direct migration solution for aging MTL800 Series installations. As industrial facilities face increasing pressure to modernize legacy control architectures—whether driven by discontinued spare parts, obsolete communication protocols, or end-of-life DCS platforms—the MTL831C provides a validated, low-risk upgrade path that preserves existing wiring infrastructure while delivering improved signal integrity and long-term supportability.

For maintenance engineers and automation project managers tasked with replacing discontinued MTL800 Series isolators, the MTL831C eliminates the need for full panel redesigns. Its DIN rail mounting footprint is compatible with standard 35 mm rails already installed in most legacy control cabinets, and its terminal block layout closely mirrors the original MTL800 pinout, significantly reducing rewiring time during scheduled maintenance windows or emergency replacements.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the MTL831C into a legacy control environment requires a structured pre-installation assessment. Before removing the existing MTL800 Series module, engineers should document the current loop current draw, confirm the available power supply headroom from the existing 24 VDC panel supply, and photograph the original terminal wiring for reference. In installations where the MTL800 was paired with an MTL5000 Series Zener barrier or galvanic isolator, the MTL831C can be installed in the same marshalling position without disturbing adjacent barrier modules.

For facilities running Honeywell TDC 3000 or Experion PKS platforms, the MTL831C’s HART transparency allows the existing DCS I/O card—such as an HC900 analog input module—to pass HART commands directly to field instruments without requiring a dedicated HART multiplexer upgrade. This is particularly valuable in brownfield projects where the control room infrastructure is being retained while field instrumentation is being modernized.

In Siemens S7-300 or S7-400 based systems, where analog signal conditioning is handled through SM 331 or SM 334 I/O modules, the MTL831C can be inserted into the signal path between the field transmitter and the PLC analog input without any program modification, provided the loop impedance budget is verified. Similarly, in ABB System 800xA environments, the MTL831C supports transparent HART communication to the S800 I/O family, enabling field device diagnostics through the asset management layer.

When the retrofit scope includes I/O expansion—for example, adding new measurement points to an existing Yokogawa CENTUM VP or CS 3000 system—the MTL831C can be deployed alongside MTL5500 Series isolators in a mixed-generation marshalling cabinet, allowing incremental expansion without full cabinet replacement. The module’s compact 12.5 mm width ensures that high-density installations remain feasible even in space-constrained junction boxes or existing DIN rail sections with limited clearance.

For projects involving communication protocol migration from 4–20 mA analog to FOUNDATION Fieldbus or PROFIBUS PA, the MTL831C serves as an interim solution during phased migration, maintaining analog signal continuity on legacy loops while new fieldbus segments are commissioned in parallel. This approach allows production to continue uninterrupted during the transition period, with individual loops cut over to the new protocol as validation is completed.

Installation space confirmation is a critical step often overlooked in retrofit planning. The MTL831C’s 99 mm height and 12.5 mm width should be verified against the available DIN rail section, particularly in cabinets where cable management ducts or adjacent terminal blocks may restrict module insertion. A pre-installation mockup using the physical module is recommended for tight installations before the scheduled maintenance window begins.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy system retrofit. The MTL831C’s plug-and-replace design philosophy directly addresses this requirement by eliminating the need for panel rewiring, program modification, or DCS configuration changes in the majority of MTL800 Series replacement scenarios.

To protect existing program logic during the replacement, the original PLC or DCS program should be backed up to an offline storage medium before any hardware changes are made. For Rockwell Automation ControlLogix or CompactLogix platforms, this means exporting the current project file from Studio 5000 and verifying the backup against the live program checksum. For Siemens TIA Portal projects, a full project archive including hardware configuration should be saved before the maintenance window opens.

Field control continuity can be maintained during the module swap by placing the affected control loop in manual mode at the DCS operator station before disconnecting the MTL800 module. This prevents the control output from driving to a limit state during the brief period when the analog signal is interrupted. Once the MTL831C is installed and the loop is re-terminated, the signal should be verified at the DCS I/O card before returning the loop to automatic control.

For critical loops where even momentary signal interruption is unacceptable, a temporary bypass using a portable loop calibrator—such as a Fluke 709H or equivalent HART communicator—can be used to inject a substitute 4–20 mA signal into the DCS input while the isolator is being replaced. This technique is particularly applicable in continuous process industries such as refining, chemical, or power generation where loop availability requirements are stringent.

Post-installation commissioning should include a full-range loop calibration check (0%, 25%, 50%, 75%, 100% of span), verification of HART communication if applicable, confirmation of HMI tag display and alarm setpoints, and a functional test of any interlock or safety logic associated with the loop. All commissioning results should be documented in the plant maintenance management system to support future audit and compliance requirements.

Each MTL831C unit supplied by KNMKS is subject to pre-shipment functional verification testing, including loop current accuracy, isolation resistance, and HART signal integrity checks. This factory acceptance testing reduces the risk of commissioning failures and supports the goal of completing the replacement within a single planned maintenance window.

Retrofit Support FAQ

Q1: Is the MTL831C a confirmed direct replacement for all MTL800 Series variants?
The MTL831C is a validated replacement for the core MTL800 Series signal isolator range, including the MTL826, MTL828, and MTL830 variants. For specific sub-variants with non-standard terminal configurations or extended temperature ratings, please provide the full part number for confirmation before ordering. KNMKS technical support can cross-reference your existing part number against the MTL831C specification sheet to confirm compatibility.

Q2: What wiring changes are required during installation?
In most MTL800 Series replacement scenarios, no wiring changes are required. The MTL831C uses the same 2-wire loop-powered connection topology and compatible screw terminal block. Engineers should verify conductor gauge (0.2–2.5 mm²), confirm terminal torque to 0.5 Nm, and check that the existing cable ferrules are in good condition before re-termination. If the original installation used non-standard wiring practices, a wiring diagram review is recommended before the maintenance window.

Q3: Has the MTL831C been tested for HART communication compatibility with legacy DCS platforms?
Yes. The MTL831C is HART 5, 6, and 7 transparent, meaning it passes HART signals without modification or attenuation. It has been verified compatible with HART multiplexers and asset management systems from major DCS vendors including Honeywell, Emerson, ABB, and Yokogawa. If your DCS uses a proprietary HART interface card, KNMKS can provide a pre-shipment HART loop test report on request.

Q4: What does the support terms confirmed by quotation cover, and what is the lead time?
All MTL831C units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each unit is shipped with a functional verification test report. Standard lead time from confirmed order is 3–7 business days for in-stock units. For urgent replacement requirements, expedited shipping options are available. Contact [email protected] or call +86 18359268345 to confirm current stock availability and delivery schedule.
