KRB 1F144-0-LED-NC-US0E Maintenance-Proven Spare Part

Overview

KRB 1F144-0-LED-NC-US0E Maintenance-Proven Spare Part for Factory Uptime

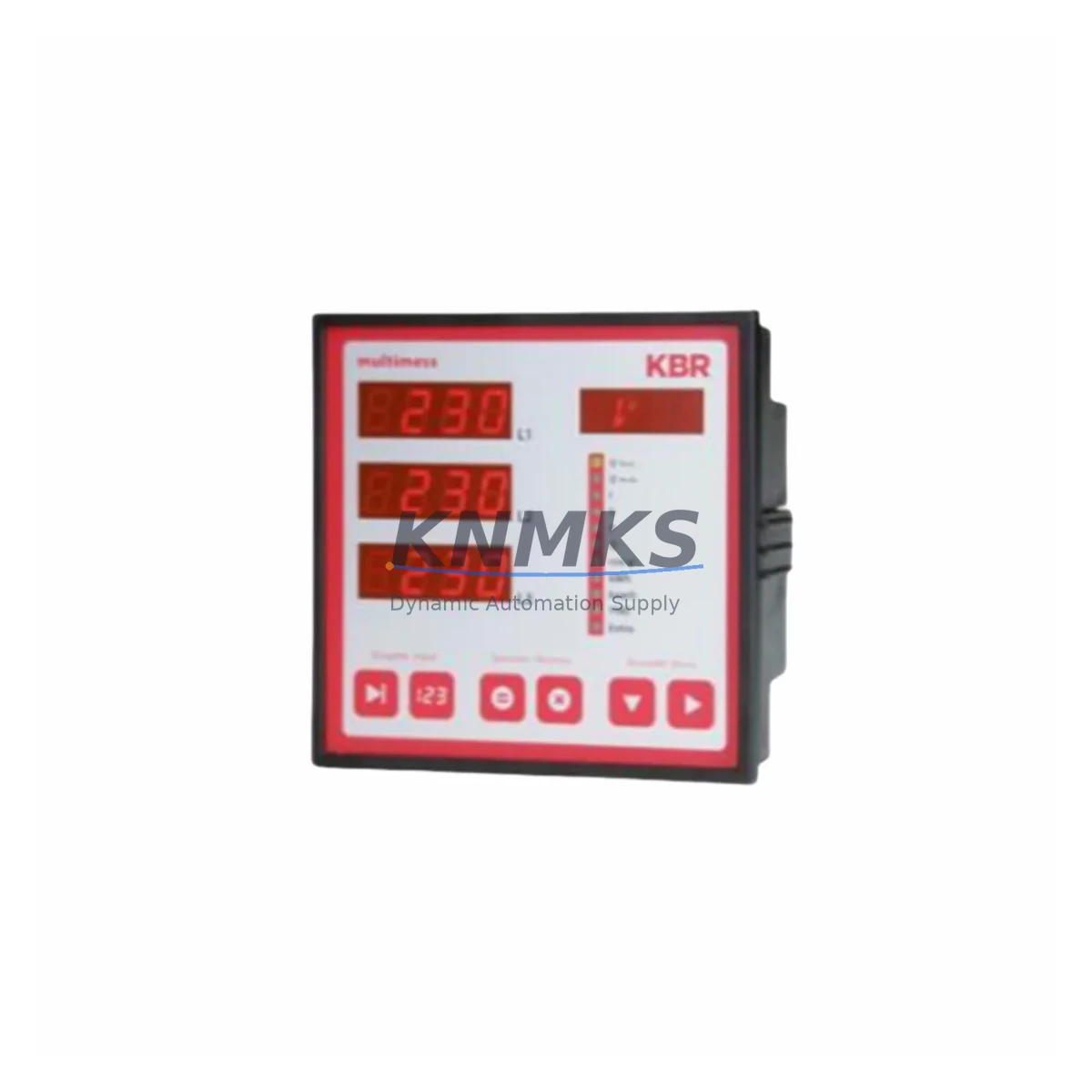

The KRB 1F144-0-LED-NC-US0E is a DIN 144 panel-mount energy meter designed for continuous duty in industrial power monitoring applications. As a maintenance-proven spare part, it supports fast drop-in replacement in metering panels, MCC cabinets, and distribution boards where uninterrupted energy measurement is critical to production continuity. With a normally closed (NC) relay output and LED pulse interface, this unit integrates directly into existing SCADA, BMS, and PLC-based energy management systems without rewiring or firmware reconfiguration.

Sourced as an original KRB component, the 1F144-0-LED-NC-US0E is pre-tested before shipment and backed by a support terms confirmed by quotation. Multi-region stock availability ensures fast dispatch for both emergency replacements and scheduled annual maintenance outages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 1F144-0-LED-NC-US0E during a scheduled outage or emergency callout, maintenance engineers should treat the swap as an opportunity for a full metering circuit inspection. Begin by verifying the auxiliary power supply feeding the meter — a degraded or out-of-tolerance supply voltage is a common root cause of premature meter failure and display anomalies. Check the current transformer (CT) secondary wiring for loose terminals, insulation breakdown, or incorrect polarity, as CT open-circuit conditions can damage both the meter and downstream protection relays.

Inspect the RS-485 communication cable and termination resistors connecting the 1F144 to the SCADA or BMS gateway. Corroded terminals or missing bus termination frequently cause intermittent Modbus RTU read errors that are misdiagnosed as meter faults. If the panel uses a KRB RS-485 to Ethernet converter or a third-party protocol gateway, verify firmware compatibility with the replacement unit’s register map.

The NC relay output circuit should be tested under load before the panel is returned to service. Confirm that the relay output wiring to the downstream PLC digital input or alarm annunciator is intact and that the NC contact logic is correctly interpreted by the control system — particularly if the site uses a Siemens S7-1200 or S7-300 DI module for pulse counting or demand alarm integration. Check the pulse LED output connection to any external energy pulse counter or sub-metering concentrator for correct polarity and signal level.

During the cabinet inspection, also verify the condition of the DIN rail terminal blocks adjacent to the meter, the miniature circuit breaker (MCB) protecting the meter auxiliary supply, and any surge protection device (SPD) on the supply line. For sites with high harmonic distortion, consider whether a line filter or signal isolator upstream of the meter is warranted to protect the replacement unit and extend its service life. Documenting these findings in the site maintenance log supports long-term spare parts planning and reduces repeat failures.

Site Replacement Workflow

Step 1 — Isolation: De-energize the metering circuit at the upstream MCB. Confirm isolation with a calibrated voltage tester on all supply terminals before opening the panel door.

Step 2 — Documentation: Photograph the existing wiring layout, terminal labels, and Modbus address/baud rate settings displayed on the outgoing meter. Record the CT ratio and VT ratio programmed in the unit.

Step 3 — Removal: Disconnect all rear terminals in sequence (supply, CT inputs, relay output, RS-485). Release the panel-mount clips and withdraw the 1F144 unit from the DIN 144 cutout.

Step 4 — Installation: Insert the replacement KRB 1F144-0-LED-NC-US0E into the cutout. Reconnect terminals in reverse order, torquing to the manufacturer’s specification. Restore CT ratio, VT ratio, Modbus address, and baud rate settings to match the documented values.

Step 5 — Commissioning: Re-energize the circuit and verify display readings against a reference clamp meter. Confirm RS-485 communication is restored in the SCADA/BMS and that the NC relay and LED pulse outputs are functioning correctly.

Step 6 — Handover: Update the panel schedule and maintenance log with the replacement date, new unit serial number, and support terms expiry. Retain the removed unit for failure analysis if required.

This workflow minimizes downtime to under 30 minutes for a prepared maintenance team and ensures full system compatibility is maintained without software changes or recalibration of the upstream energy management system.

Spare Parts Support FAQ

Q1: Is the KRB 1F144-0-LED-NC-US0E a direct drop-in replacement for other 1F144 series variants?
Yes, within the KRB 1F144 DIN 144 series, units sharing the same panel cutout, supply voltage range, and communication interface are dimensionally and electrically compatible. However, always verify the relay output logic (NC vs NO) and pulse output type (LED vs transistor) against the original specification before installation, as these parameters affect downstream wiring and PLC input configuration.

Q2: What pre-shipment testing is performed on this spare part?
Each unit undergoes functional verification including display operation, measurement accuracy check, relay output continuity, LED pulse output, and RS-485 communication response before dispatch. A test report is available on request. The support terms confirmed by quotation cover manufacturing defects and covers return or replacement at no additional cost.

Q3: How should I manage long-term inventory for 1F144 series meters in an aging installation?
For sites with 10 or more 1F144 units, we recommend holding a minimum of 10% buffer stock (at least 1–2 units) on-site for emergency replacement. Given the DIN 144 form factor’s continued use across industrial metering panels, long-term supply continuity is supported. Contact our team for blanket order agreements and scheduled replenishment to lock in pricing and guarantee availability.

Q4: Can this meter be used in a new installation, or is it only suitable as a replacement?
The KRB 1F144-0-LED-NC-US0E is fully suitable for both new panel builds and replacement applications. Its wide-range universal supply input (AC 85–265 V) and standard DIN 144 form factor make it compatible with a broad range of industrial panel designs. For new installations, confirm the CT ratio, communication protocol, and relay output logic requirements with your system integrator before ordering.
