KOOLTRONIC 604521-L5D1-01 Fail-Safe Enclosure Cooling

Overview

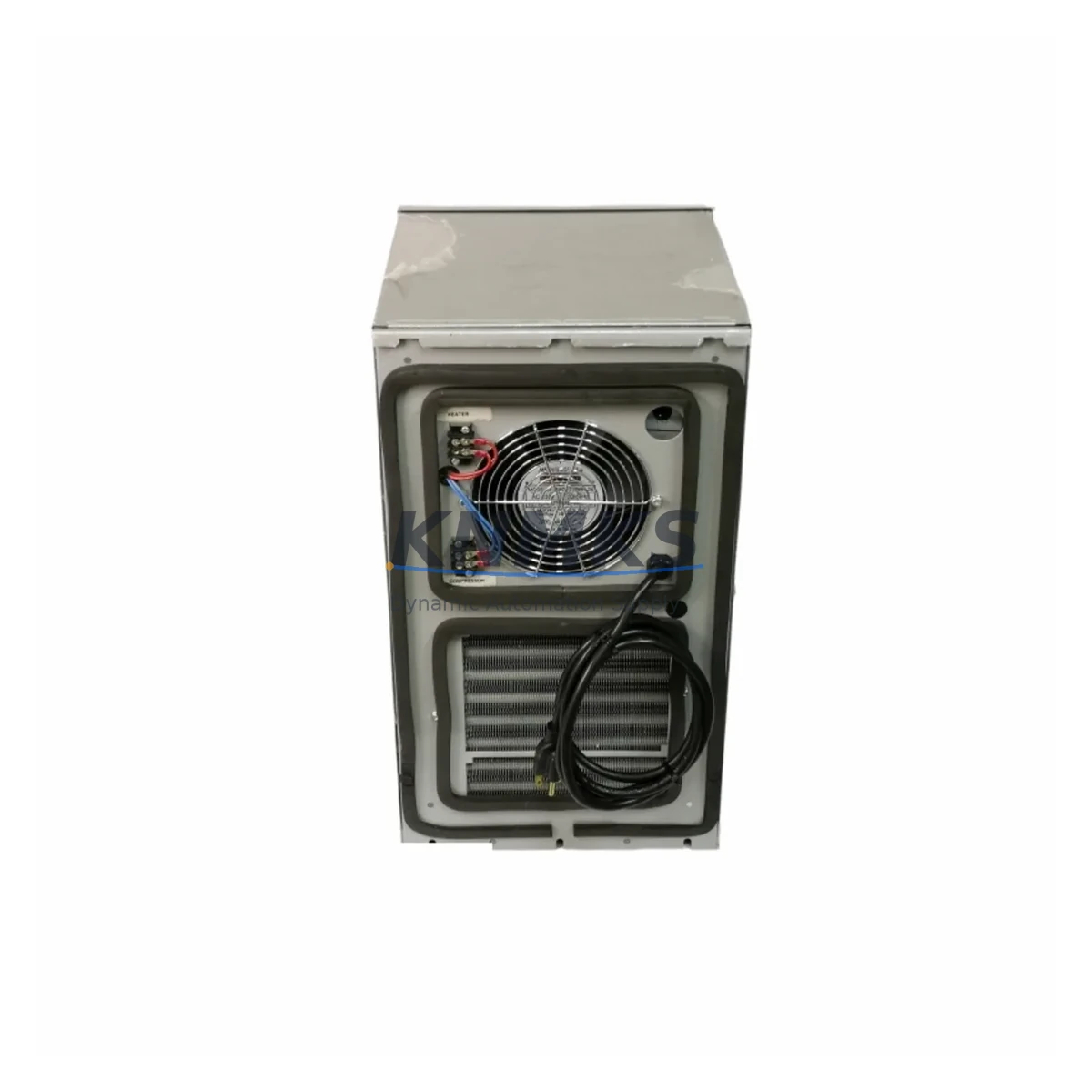

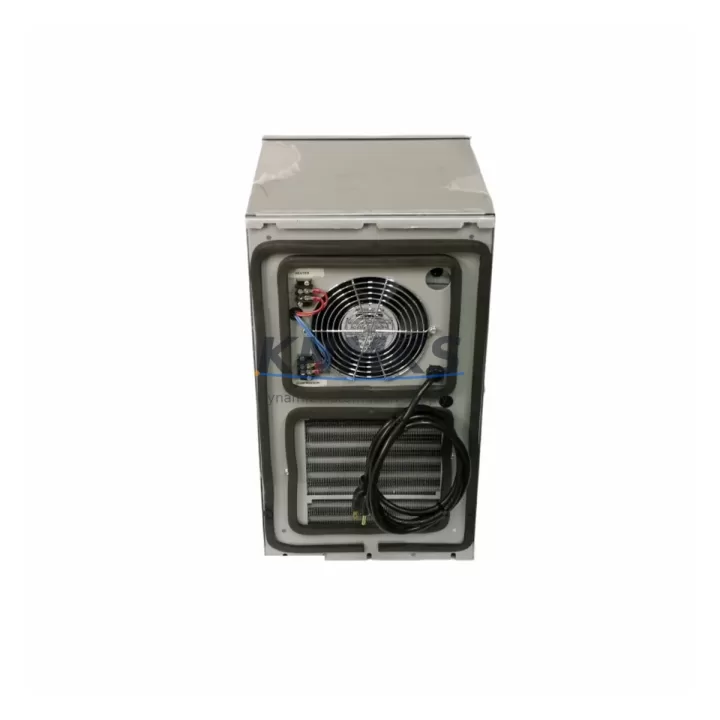

KOOLTRONIC 604521-L5D1-01 Fail-Safe Enclosure Cooling for Critical Industrial Control Reliability

In continuous production environments where control cabinet overheating can cascade into unplanned shutdowns, the KOOLTRONIC 604521-L5D1-01 (K2NA Series) industrial panel air conditioner delivers the thermal management precision that safety-critical installations demand. Engineered for demanding field conditions — including high electromagnetic interference, heavy dust ingress, elevated ambient temperatures, mechanical vibration, and moisture-laden atmospheres — this unit maintains stable cabinet interior temperatures to protect PLCs, drives, safety relays, and communication modules from heat-induced failure.

The 604521-L5D1-01 operates on R134A refrigerant, a low-global-warming-potential refrigerant widely accepted in industrial and process automation applications. Its sealed, closed-loop cooling circuit prevents contaminated ambient air from entering the enclosure, preserving the integrity of sensitive electronics and eliminating particulate-driven degradation of terminal blocks, bus bars, and PCB surfaces. This closed-loop design is especially critical in petrochemical, mining, metallurgical, and port automation environments where airborne contaminants are a persistent threat to control system longevity.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Effective thermal management of an industrial control cabinet is never a single-component solution. The KOOLTRONIC 604521-L5D1-01 is most effective when deployed as part of a coordinated cabinet protection strategy. In high-load automation panels, heat dissipation from variable frequency drives (VFDs) and servo amplifiers can exceed the capacity of passive ventilation alone. Pairing this cooling unit with properly rated cabinet door seals and EMC gaskets ensures that the closed-loop cooling benefit is not undermined by gaps in enclosure integrity.

Within the same control cabinet, 24VDC SITOP power supply modules (such as Siemens SITOP PSU100S or equivalent industrial DIN-rail PSUs) generate significant heat under continuous load. Stable cabinet temperature directly reduces thermal stress on these power supplies, extending their MTBF and reducing the risk of voltage drift that can trigger nuisance trips in downstream safety relays. Similarly, Siemens S7-300 or S7-1500 series CPU modules installed in the same panel benefit from consistent ambient temperature, as processor thermal throttling and memory errors are strongly correlated with elevated cabinet temperatures.

For cabinets incorporating Phoenix Contact or Weidmüller surge protection devices (SPDs) on signal and power lines, maintaining low cabinet temperatures preserves the clamping performance of MOV-based surge arresters, which degrade faster under sustained heat. In safety interlock circuits using Pilz PNOZ or Schmersal safety relay modules, thermal stability is a prerequisite for consistent response times and reliable de-energize-to-trip (DTT) behavior. The 604521-L5D1-01 provides the thermal baseline that makes these safety-critical components perform to specification across the full production shift.

In communication-intensive panels housing PROFIBUS DP repeaters, PROFINET switches, or Modbus RTU gateways, elevated temperatures accelerate connector oxidation and increase bit-error rates. Consistent cooling from the 604521-L5D1-01 protects communication infrastructure and reduces the risk of intermittent fieldbus faults that are notoriously difficult to diagnose during live production.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hazardous area control rooms and marshalling cabinets, the 604521-L5D1-01 maintains safe operating temperatures for intrinsically safe barriers, zener barriers, and galvanic isolators. Overheating in these enclosures can compromise IS certification compliance and create latent ignition risks. The closed-loop design prevents flammable vapors from being drawn into the cabinet.

Power Generation & Substation Automation: Protection relay panels and RTU cabinets in power plants and substations are subject to high ambient temperatures and significant heat from current transformers and relay coils. The K2NA Series cooling unit ensures that IEC 61850-compliant protection IEDs and SCADA communication modules remain within their rated operating temperature range, preserving trip accuracy and grid protection integrity.

Mining & Mineral Processing: Underground and surface mining control panels face extreme dust loading, vibration, and temperature cycling. The sealed cooling circuit of the 604521-L5D1-01 prevents abrasive mineral dust from contaminating drive control boards and PLC I/O modules, reducing unplanned downtime on conveyor, crusher, and hoisting systems.

Water & Wastewater Treatment: Pump station MCC panels and SCADA outstations in water treatment facilities operate in high-humidity, corrosive environments. Consistent enclosure cooling prevents condensation on PCBs and terminal strips, reducing ground fault incidents and protecting chlorine dosing and UV disinfection control circuits.

Metallurgy & Steel Production: Rolling mill and furnace control cabinets experience radiant heat loads far exceeding standard industrial norms. The 604521-L5D1-01 provides active cooling capacity to offset radiant heat ingress, protecting thyristor drive controllers and pyrometer signal conditioning modules from thermal runaway.

Port & Marine Automation: Crane PLC panels and shipboard automation cabinets in salt-laden, high-humidity environments benefit from the sealed cooling circuit, which prevents salt fog ingress that would otherwise accelerate corrosion of copper bus bars, relay contacts, and PCB traces.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the KOOLTRONIC 604521-L5D1-01?
A: All units carry a support terms confirmed by quotation from the date of shipment. Coverage includes manufacturing defects, refrigerant circuit integrity, and electrical component failures under normal operating conditions. Support requests are supported with direct technical assistance and replacement unit dispatch.

Q2: What pre-shipment testing is performed on each unit?
A: Every 604521-L5D1-01 undergoes a full functional test cycle including cooling performance verification, refrigerant leak detection, electrical insulation resistance check, and operational current draw measurement before dispatch. Test records are available upon request for quality audit purposes.

Q3: Is this unit a direct drop-in replacement for existing K2NA Series installations?
A: Yes. The 604521-L5D1-01 is designed as a compatible replacement within the KOOLTRONIC K2NA Series platform. Mounting dimensions, refrigerant type, and electrical interface are consistent with the K2NA Series standard, enabling field replacement without panel modification. Always verify voltage and cooling capacity ratings against your specific installation requirements before fitment.

Q4: What is the long-term supply availability for this part?
A: We maintain dedicated stock buffers for the 604521-L5D1-01 to support long-lifecycle industrial installations where OEM lead times may be extended. Our procurement strategy targets a minimum 12-month forward stock position for critical spare parts, ensuring continuity of supply for planned maintenance programs and emergency replacement scenarios.
