KINT 3402121100 Maintenance-Proven Spare Part for Factory Uptime

Overview

KINT 3402121100 Maintenance-Proven Spare Part for Factory Uptime

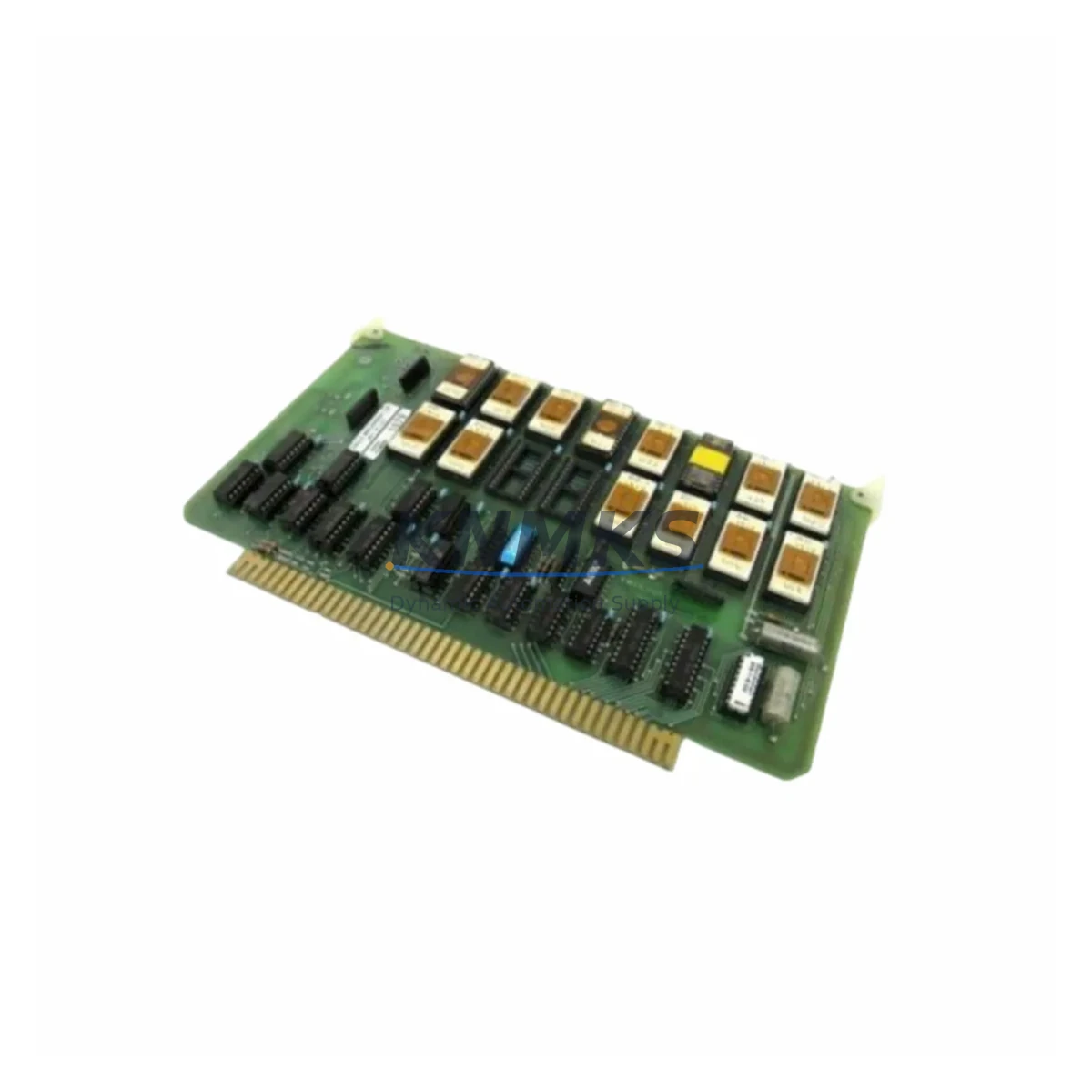

The KINT 3402121100 is an original PCB control board engineered for the 640-34021210XD series automation platform, covering variants 640-34021210XD-1BA and 640-34021210XD-2BA. Designed for continuous industrial operation, this board serves as a critical spare in drive control cabinets, motor management panels, and process automation enclosures across manufacturing, energy, and heavy industry sectors. Maintaining a verified stock of the KINT 3402121100 is a proven strategy for minimizing unplanned downtime and protecting production continuity during scheduled outages, emergency replacements, and annual maintenance windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a KINT 3402121100 PCB control board is flagged during routine cabinet inspection or fault isolation, maintenance engineers should treat the replacement as an opportunity to audit the full electrical circuit. The 640-34021210XD control board interfaces directly with the drive’s power supply section, I/O signal routing, and communication backplane. A board failure is frequently preceded or accompanied by stress on adjacent components.

During replacement, engineers should verify the condition of the 24 VDC control power supply module feeding the board — undervoltage or ripple on the control rail is a common root cause of PCB logic faults. Inspect the input/output terminal blocks and signal wiring harnesses for loose crimps, corrosion, or insulation breakdown, particularly in high-vibration or high-humidity environments. The relay output modules on the same control bus should be tested for contact wear, especially if the board failure was accompanied by erratic output switching.

For systems using fieldbus or serial communication, check the RS-485 or PROFIBUS communication interface card seated on the backplane — a damaged control board can corrupt communication registers and cause cascading faults in the PLC or DCS upstream. If the 640-series drive is integrated into a larger automation cell, the HMI operator panel should be power-cycled and its parameter backup verified after board replacement to ensure drive parameters are correctly restored.

Additionally, inspect the DC bus fuse and protection fuse array within the drive cabinet. A shorted PCB can blow protection fuses silently, leaving the replacement board exposed to the same fault condition. Signal isolators on analog input channels (4–20 mA or 0–10 V) should also be checked for drift or saturation, as these are often overlooked during emergency replacements but are a frequent source of recurring faults post-repair.

Stocking the KINT 3402121100 alongside a spare gate driver board and a set of control terminal covers for the 640-34021210XD enclosure is recommended for sites running continuous production shifts, where a second failure within the same maintenance window would be operationally unacceptable.

Site Replacement Workflow

Step 1 — Isolation: De-energize the drive cabinet and verify zero-voltage on the DC bus using a calibrated meter. Lock out / tag out (LOTO) per site safety procedure before opening the enclosure.

Step 2 — Documentation: Photograph the existing wiring layout, connector positions, and DIP switch or jumper settings on the outgoing KINT 3402121100 board before removal. This is critical for restoring the exact configuration on the replacement unit.

Step 3 — Board Removal: Disconnect all ribbon cables, signal connectors, and power headers in sequence. Remove the PCB from its mounting standoffs or backplane slot. Note any visible burn marks, swollen capacitors, or damaged traces for root-cause documentation.

Step 4 — Compatibility Verification: Confirm the replacement board’s part number (3402121100) and variant suffix (-1BA or -2BA) matches the original. Verify firmware revision compatibility if the drive uses a parameterized control board.

Step 5 — Installation and Restoration: Seat the new board, reconnect all connectors, and restore DIP switch or jumper settings per the documented configuration. Re-energize in stages — control power first, then main power — monitoring for fault codes on the drive display or HMI.

Step 6 — Functional Test: Run a no-load test cycle, verify I/O response, confirm communication link status, and log the replacement in the site maintenance record. Update the spare parts inventory to trigger reorder of the consumed KINT 3402121100 unit.

Spare Parts Support FAQ

Q1: Is the KINT 3402121100 an original part or a compatible substitute?
The KINT 3402121100 supplied by KNMKS is an original spare part — not a third-party compatible or refurbished unit. Each board is function-tested prior to shipment and covered by a support terms confirmed by quotation from the date of delivery.

Q2: How do I confirm compatibility between the -1BA and -2BA variants before ordering?
The variant suffix (-1BA or -2BA) typically denotes a hardware revision or regional configuration of the 640-34021210XD series. Provide your existing board’s full part number and nameplate data when placing your order, and our technical team will confirm cross-compatibility or recommend the correct variant for your application.

Q3: What is the recommended inventory strategy for the KINT 3402121100 in a continuous production environment?
For sites operating 24/7 or running critical processes, we recommend maintaining a minimum of one KINT 3402121100 board on-site as a hot spare. Sites with multiple 640-34021210XD drives in service should consider a 1:5 or 1:3 spare ratio depending on drive criticality and acceptable downtime tolerance. KNMKS supports long-term supply agreements to ensure consistent availability.

Q4: Can KNMKS support emergency or expedited orders for the KINT 3402121100?
Yes. KNMKS maintains multi-region stock of the KINT 3402121100 to support emergency dispatch. Expedited shipping options are available globally. Contact [email protected] or call +86 18359268345 to confirm stock availability and arrange priority fulfillment.
