KAWASAKI 50978-3621L05 Maintenance-Proven Spare Part for Factory Uptime

Overview

KAWASAKI 50978-3621L05 Maintenance-Proven Spare Part for Factory Uptime

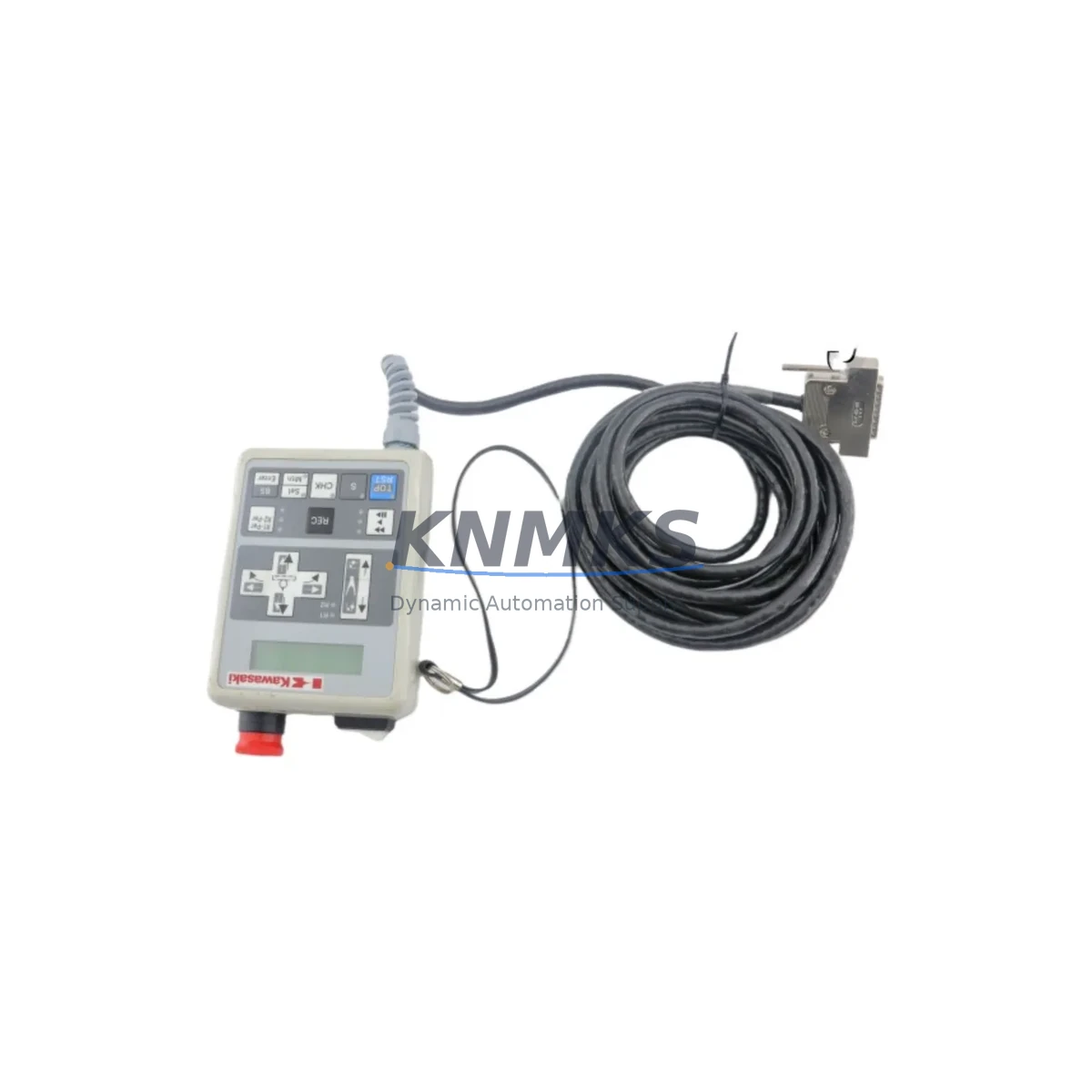

The KAWASAKI 50978-3621L05 is an original teach pendant designed for the PX32J and compatible PX-series industrial robots. As a maintenance-proven spare part, it is a critical component for facilities that depend on KAWASAKI robotic systems for continuous production. Whether you are managing a scheduled annual overhaul, responding to an unplanned fault, or building a strategic spare parts buffer, having a verified replacement unit on hand is the single most effective way to minimize mean time to repair (MTTR) and protect factory uptime.

This unit carries alternate part numbers 9090-00639 and ESB-YSB4080AB500-01, which are commonly referenced in KAWASAKI robot maintenance manuals and OEM spare parts lists. Each unit shipped by KNMKS is pre-tested against functional benchmarks before dispatch and backed by a support terms confirmed by quotation, giving maintenance engineers and procurement teams confidence in both quality and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A teach pendant failure on a KAWASAKI PX32J robot immediately halts all manual jogging, program editing, and fault-reset operations — effectively taking the robot offline until a replacement is available. Maintenance engineers who have experienced this scenario understand that a single unplanned downtime event can cost far more than maintaining a spare pendant in the cabinet.

When replacing or inspecting the 50978-3621L05, a thorough site review should extend beyond the pendant itself. The robot controller power supply unit (typically a 24 VDC regulated supply within the KAWASAKI controller cabinet) should be checked for output voltage stability, as an unstable supply can cause intermittent pendant communication errors that mimic a faulty pendant. The teach pendant cable assembly — including the spiral cable and the controller-side connector — is a high-wear item that should be inspected for insulation damage, especially in high-cycle welding or press-tending applications.

The E-stop relay module within the controller is another component that maintenance teams should verify during a pendant replacement event. If the E-stop circuit has been tripping intermittently, the relay contacts may be worn and should be replaced concurrently to avoid a repeat fault. Similarly, the safety I/O board inside the controller cabinet — which processes signals from the pendant’s deadman switch and E-stop — should be inspected for loose terminal connections and signs of heat stress.

For facilities running multiple PX32J units on the same production line, it is also advisable to audit the DeviceNet or Ethernet communication module connected to the robot controller, as network-layer faults can sometimes be misdiagnosed as pendant hardware failures. Keeping a spare I/O expansion module and a set of controller fuses (both primary and secondary protection fuses for the servo drive circuits) in the local spare parts kit rounds out a comprehensive maintenance strategy for KAWASAKI PX-series installations.

Procurement engineers should note that KAWASAKI teach pendants for legacy PX-series controllers are subject to OEM end-of-life risk. KNMKS maintains stock specifically to support facilities that cannot migrate to newer robot generations on short notice, providing a reliable alternative supply channel with consistent lead times and pre-tested units.

Site Replacement Workflow

Step 1 — Isolate and power down: Follow your site LOTO (Lockout/Tagout) procedure. De-energize the KAWASAKI controller and confirm zero-energy state before disconnecting the teach pendant cable.

Step 2 — Document current configuration: Before removing the old pendant, record any custom key assignments or parameter settings that may be stored locally. Back up the robot program to an external device via the controller’s USB or memory card interface.

Step 3 — Disconnect and inspect: Remove the pendant cable connector from the controller panel. Inspect the connector pins and cable sheath. If the cable shows wear, replace the cable assembly at the same time to avoid a repeat callout.

Step 4 — Install the 50978-3621L05: Connect the replacement pendant. Verify the connector is fully seated and the locking collar is engaged. Re-energize the controller and confirm the pendant powers on and communicates correctly with the robot CPU.

Step 5 — Functional verification: Perform a jog test in T1 mode at reduced speed. Confirm E-stop function, deadman switch response, and program display. Log the replacement in your CMMS with the new unit’s serial number and the support terms confirmed by quotation start date.

Step 6 — Update spare parts register: Order a replacement spare to restore your buffer stock. KNMKS supports repeat procurement with consistent availability and the same pre-tested, warranted supply standard.

Spare Parts Support FAQ

Q1: Is the 50978-3621L05 compatible with KAWASAKI PX-series robots other than the PX32J?
The 50978-3621L05 is primarily specified for the PX32J. Compatibility with other PX-series variants depends on the controller generation and firmware version. Contact KNMKS with your full robot model and controller serial number for a compatibility confirmation before ordering.

Q2: How does KNMKS verify the condition of spare teach pendants before shipment?
Each unit undergoes a functional pre-shipment test covering power-on, display, keypad response, E-stop circuit continuity, and communication handshake. Units that do not pass all checks are not dispatched. A test report is available on request.

Q3: What is the support terms coverage and what does it include?
All units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical impact. KNMKS provides direct after-sales support for support requests.

Q4: Can KNMKS support long-term or repeat procurement for facilities with multiple KAWASAKI robots?
Yes. KNMKS specializes in long-term spare parts supply for industrial automation systems, including legacy and end-of-life KAWASAKI components. Facilities managing fleets of PX-series robots can discuss blanket order arrangements and reserved stock agreements directly with our sales team.
