Kawasaki 50817-0096L05 Migration-Ready Teach Pendant for Legacy Control Systems

Overview

Kawasaki 50817-0096L05 Migration-Ready Teach Pendant for Legacy Control Systems

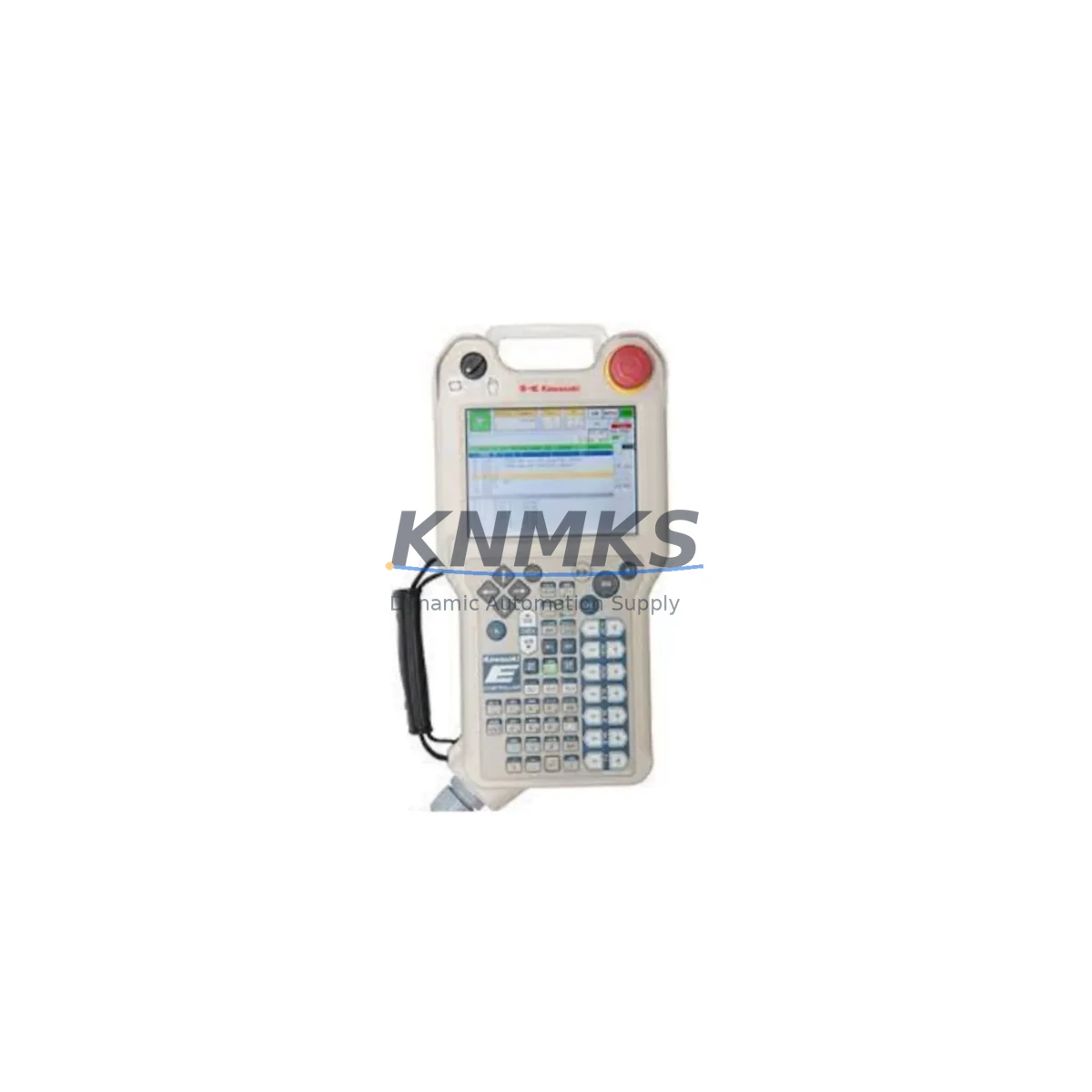

The Kawasaki 50817-0096L05 teach pendant is a migration-ready replacement unit engineered for industrial facilities operating legacy Kawasaki D-Series and E-Series robot controllers. As automation lines age and OEM support windows close, maintaining operational continuity depends on sourcing verified, wiring-compatible pendant units that integrate without requiring controller reprogramming or hardware modification. The 50817-0096L05 is designed precisely for this scenario — a direct drop-in replacement that preserves existing program logic, retains HMI screen layouts, and supports the communication protocols native to the D/E-Series control platform.

For maintenance engineers managing multi-robot cells, the pendant’s compatibility with the D-Series controller backplane means no address remapping is required during swap-out. The 26-pin connector interface matches the original wiring harness, eliminating the need for custom cable adapters or terminal block rewiring. Before installation, technicians should verify the controller firmware revision — units running firmware below AS 7.0 may require a patch prior to pendant recognition. This step is critical in minimizing unplanned downtime during the replacement procedure.

In retrofit planning scenarios where the broader control cabinet is being modernized, the 50817-0096L05 is frequently deployed alongside the Kawasaki D-Series controller main CPU board and the E-Series I/O expansion rack to maintain signal continuity across the updated system. Where communication protocol migration is involved — particularly transitions from RS-232 serial links to Ethernet/IP — the pendant’s onboard diagnostics interface supports real-time link status monitoring, reducing the risk of silent communication failures during commissioning. Engineers integrating Kawasaki FS-series or RS-series robot arms into modernized cells have confirmed compatibility with the 50817-0096L05 pendant when operating under D/E-Series controller supervision.

Power supply capacity is a key pre-installation checkpoint. The D/E-Series controller’s 24VDC pendant supply rail must be verified to deliver stable output under load before connecting the replacement unit. Voltage sag during pendant boot can trigger false fault codes that mask the actual system state. A Kawasaki-compatible 24VDC DIN-rail power supply module rated at a minimum of 3A is recommended for controller cabinets where the original PSU is more than eight years old.

Installation space confirmation is straightforward — the 50817-0096L05 retains the same physical form factor as the original D/E-Series pendant, including the cable strain relief bracket mounting points and the controller-side pendant port cover. No panel cutout modification is required. The pendant cable length is compatible with standard 6-meter and 10-meter routing configurations used in most D/E-Series robot cell layouts.

For facilities managing a broader spare parts lifecycle program, the 50817-0096L05 is typically stocked alongside the Kawasaki E-Series teach pendant cable assembly and the D-Series emergency stop relay module to ensure a complete replacement kit is available for rapid field response. Maintaining a minimum 90-day buffer stock of these components is recommended for production lines where robot downtime directly impacts throughput KPIs.

All units are pre-shipment tested against Kawasaki D/E-Series controller communication handshake protocols and ship with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 50817-0096L05 into an existing Kawasaki robot cell requires a structured pre-migration checklist. Begin by documenting the current controller firmware version and the AS language program revision stored on the D/E-Series CPU. Back up all robot programs, tool data, and I/O assignments to an external storage device before disconnecting the original pendant. This protects against data loss in the event of an unexpected controller reset during the swap procedure.

Next, inspect the pendant port on the controller for pin corrosion or mechanical damage — a common issue in cells operating in high-humidity or coolant-mist environments. Clean the port contacts with an appropriate electrical contact cleaner before connecting the 50817-0096L05. Verify that the Kawasaki D-Series I/O terminal block wiring is correctly labeled and that all field device signals are documented, as these will need to be confirmed operational after the pendant is online.

In cells where the control cabinet also houses a Kawasaki PC-based programming interface or a third-party HMI panel linked to the robot controller via DeviceNet or Profibus, confirm that the pendant replacement does not alter the controller’s network node address. The 50817-0096L05 does not modify controller network configuration, but a controller restart triggered during pendant initialization may temporarily drop the network link, requiring a manual reconnect on the HMI side.

For multi-robot lines where a Kawasaki E-Series master controller supervises multiple slave units, the pendant swap should be performed during a scheduled maintenance window with all supervised robots placed in hold state. This prevents unintended motion commands from propagating through the cell during the replacement procedure.

Downtime Control During System Migration

Minimizing downtime during a teach pendant replacement on a Kawasaki D/E-Series system begins with preparation. A complete pre-swap checklist — covering firmware version, program backup, I/O documentation, power supply verification, and communication link status — reduces the active swap window to under 30 minutes in most field scenarios.

The 50817-0096L05’s plug-and-play compatibility with the D/E-Series controller means no re-teaching of robot positions is required after installation, provided the original program files are intact and the controller memory has not been cleared. HMI screen layouts and operator interface configurations remain unchanged, allowing production staff to resume normal operation without retraining.

For facilities with strict OEE targets, maintaining a pre-tested spare 50817-0096L05 unit on-site eliminates the lead time variable entirely. Combined with a stocked Kawasaki D-Series emergency stop relay module and a verified pendant cable assembly, a complete pendant system can be restored within a single shift, keeping unplanned downtime within acceptable limits.

Post-installation, run the controller’s built-in diagnostic cycle to confirm all axes respond correctly to pendant jog commands before returning the robot to automatic mode. Log the replacement date, firmware version, and technician sign-off in the maintenance record for support terms and audit purposes.

Retrofit Support FAQ

Q: Is the Kawasaki 50817-0096L05 a direct replacement for the original D-Series teach pendant?
A: Yes. The 50817-0096L05 uses the same 26-pin connector interface and physical form factor as the original D/E-Series pendant. No wiring modification or panel cutout change is required for installation.

Q: What firmware version is required for compatibility?
A: Kawasaki AS firmware version 7.0 or above is recommended. Controllers running earlier firmware revisions should be updated prior to pendant installation to ensure full communication handshake recognition.

Q: Is pre-shipment testing included?
A: Yes. Every 50817-0096L05 unit is tested against Kawasaki D/E-Series controller communication protocols before shipment. A test report is available upon request. The unit ships with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability?
A: Units are maintained availability confirmed by RFQ for immediate dispatch. Standard lead time is 3–7 business days depending on destination. For urgent requirements, expedited shipping options are available. Contact [email protected] or +86 18359268345 to confirm current inventory levels before placing an order.
