INDUSTRONIC 341-720-300 12 DAL 03 Migration-Ready Analog Line Card

Overview

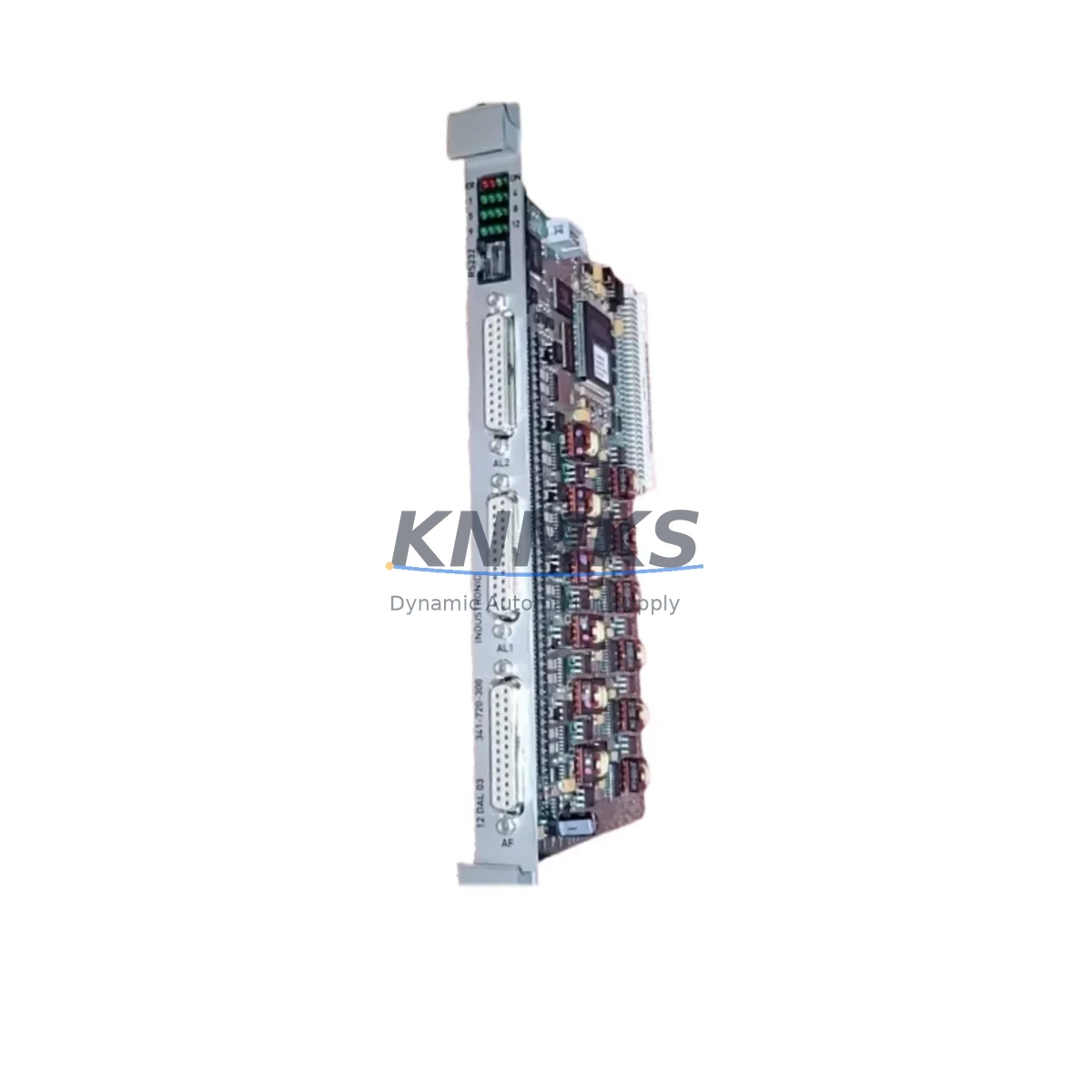

INDUSTRONIC 341-720-300 12 DAL 03 Migration-Ready Analog Line Card for Legacy PA/PAGA Control Systems

The INDUSTRONIC 341-720-300 12 DAL 03 is a migration-ready analog line card engineered for direct replacement in legacy public address and general alarm (PA/PAGA) systems. As industrial facilities face increasing pressure to modernize aging control infrastructure, this module provides a reliable, wiring-compatible upgrade path that minimizes downtime and preserves existing system architecture. Whether you are managing a planned retrofit or responding to an unplanned component failure, the 341-720-300 12 DAL 03 is designed to restore system integrity with minimal intervention.

INDUSTRONIC PA/PAGA systems are widely deployed across offshore platforms, petrochemical plants, LNG terminals, power generation facilities, and marine vessels. The 341-720-300 12 DAL 03 analog line card serves as a critical interface between the central control unit and field-connected speaker lines, monitoring line impedance, detecting faults, and ensuring audio signal integrity across supervised zones. When this card reaches end-of-life or fails in service, sourcing a verified replacement with confirmed firmware compatibility is essential to maintaining system certification and operational continuity.

Before installing the 341-720-300 12 DAL 03, engineers should confirm several key parameters. Power supply capacity within the control cabinet must be verified to ensure the existing INDUSTRONIC power module — such as those in the 341-series rack — can support the replacement card without derating. Terminal wiring assignments on the analog line card connector must be mapped against the original installation drawings, as pin configurations can vary between firmware revisions. Backplane slot addressing should be confirmed against the system configuration file to ensure the replacement card is recognized at the correct logical address by the central controller.

Program logic compatibility is another critical checkpoint. The INDUSTRONIC system controller retains zone configuration, priority routing, and fault-handling routines that reference specific card slot assignments. Introducing a replacement 341-720-300 12 DAL 03 without verifying these parameters can result in zone mismatches or alarm routing errors. HMI screen mappings tied to analog line status indicators should also be reviewed, particularly in facilities where the INDUSTRONIC HMI panel displays real-time line supervision data for operator awareness.

Communication link integrity between the analog line card and the system bus must be validated post-installation. In multi-rack INDUSTRONIC configurations, the 341-720-300 12 DAL 03 communicates status and fault data upstream to the system controller via the internal rack bus. Any interruption in this link — caused by incorrect slot seating, firmware mismatch, or bus termination errors — will generate supervisory faults that may trigger false alarms or suppress valid alerts. Firmware version alignment between the replacement card and the installed system baseline is therefore a mandatory pre-commissioning step.

Installation space confirmation is straightforward for direct slot replacements within the existing INDUSTRONIC rack, but facilities undertaking broader control cabinet upgrades should account for rack depth, card guide clearance, and front-panel access requirements. Where the original rack is being replaced as part of a wider modernization project, compatibility with the INDUSTRONIC 341-series backplane and associated I/O expansion modules must be confirmed before procurement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the INDUSTRONIC 341-720-300 12 DAL 03 requires a structured approach that accounts for the interdependencies within the broader PA/PAGA control architecture. In a typical INDUSTRONIC installation, the analog line card operates within a populated 341-series rack alongside the system controller module, power supply card, and digital I/O expansion cards. Each of these components must be assessed for compatibility before the retrofit proceeds.

The power supply module within the rack is the first point of review. INDUSTRONIC 341-series power cards are rated for specific total card loads, and adding or replacing an analog line card may affect the power budget if the existing supply is already operating near capacity. Engineers should pull the rack load calculation from the original commissioning documentation and verify headroom before installation.

Terminal block wiring on the analog line card connects to field speaker line circuits, which in PA/PAGA systems are supervised for open-circuit and short-circuit faults. The 341-720-300 12 DAL 03 uses a standard terminal arrangement, but site-specific wiring modifications made during original installation — such as added series resistors for line balancing or external fault detection relays — must be documented and replicated on the replacement card. Failure to account for these field modifications is a common source of post-replacement supervisory faults.

Where the retrofit is part of a broader control cabinet upgrade, engineers may also be working with INDUSTRONIC amplifier modules, zone selector cards, and remote microphone interface units that share the same system bus. The 341-720-300 12 DAL 03 must be recognized by the system controller as a valid card type at the assigned slot address. If the system controller firmware has been updated since the original installation, a compatibility check against the card’s firmware revision is required before energizing the rack.

For facilities also upgrading their HMI infrastructure, INDUSTRONIC operator panels that display analog line status — including line fault indicators, zone active signals, and supervision status — must be reconfigured if card slot assignments change during the retrofit. This is particularly relevant in multi-rack systems where the 341-720-300 12 DAL 03 may be relocated to a different physical slot as part of a rack consolidation exercise.

Signal isolation requirements should also be reviewed. In installations where the PA/PAGA system interfaces with a third-party fire and gas detection system or a distributed control system (DCS), signal isolators on the analog line card outputs may be required to prevent ground loops or signal interference. These isolators are typically installed in the field junction box rather than on the card itself, but their presence affects the line supervision parameters that the 341-720-300 12 DAL 03 monitors.

Downtime Control During System Migration

Minimizing downtime during replacement of the INDUSTRONIC 341-720-300 12 DAL 03 begins with pre-staging the replacement card before the maintenance window opens. This includes verifying the firmware version, confirming the slot address assignment, and preparing a printed copy of the terminal wiring diagram for the specific rack position being serviced. Where the system supports hot-swap or supervised card removal, the replacement sequence should be planned to maintain alarm coverage on adjacent zones throughout the procedure.

Before removing the original card, the system controller should be placed in maintenance mode if the INDUSTRONIC platform supports this function. This prevents supervisory faults generated by the card removal from propagating to the alarm management system or triggering false evacuations. The original program logic — including zone routing tables, priority assignments, and fault response routines — should be backed up from the system controller before any hardware changes are made.

Post-installation commissioning should follow a structured sequence: power-on self-test verification, slot address confirmation via the system controller diagnostic interface, zone supervision status check across all connected speaker lines, and a functional audio test on each zone served by the replacement card. HMI displays should be monitored throughout commissioning to confirm that status indicators update correctly and that no residual fault conditions remain active.

For facilities where the PA/PAGA system is safety-critical — such as offshore platforms operating under IEC 61511 or NORSOK S-001 requirements — the post-replacement functional test must be documented and signed off by the responsible engineer before the system is returned to operational status. KNMKS can provide pre-shipment test documentation for the 341-720-300 12 DAL 03 to support this process.

Retrofit Support FAQ

Q: Is the INDUSTRONIC 341-720-300 12 DAL 03 a direct drop-in replacement for the original card?
A: Yes, the 341-720-300 12 DAL 03 is designed as a direct slot replacement for the corresponding position in the INDUSTRONIC 341-series rack. Terminal wiring is compatible with original field connections. Firmware version alignment with the installed system baseline should be confirmed before commissioning to ensure full functional compatibility.

Q: What commissioning steps are required after installing the replacement card?
A: After installation, confirm the slot address is correctly recognized by the INDUSTRONIC system controller, verify line supervision status on all connected speaker circuits, perform a functional audio test on each zone, and check HMI status displays for correct indication. In safety-critical applications, document the commissioning results and obtain sign-off from the responsible engineer before returning the system to service.

Q: How is the 341-720-300 12 DAL 03 tested before shipment?
A: Each unit undergoes functional testing prior to dispatch. A test report is available on request. Units are shipped with protective packaging to prevent transit damage. Contact [email protected] to request test documentation or to confirm current stock availability and lead time.

Q: What support terms coverage applies to the INDUSTRONIC 341-720-300 12 DAL 03?
A: A support terms confirmed by quotation is provided, covering manufacturing defects and functional failure under normal operating conditions. Support requests should be submitted to [email protected] with the order reference and a description of the fault condition. KNMKS will arrange inspection and replacement or repair as appropriate under the support terms terms.
