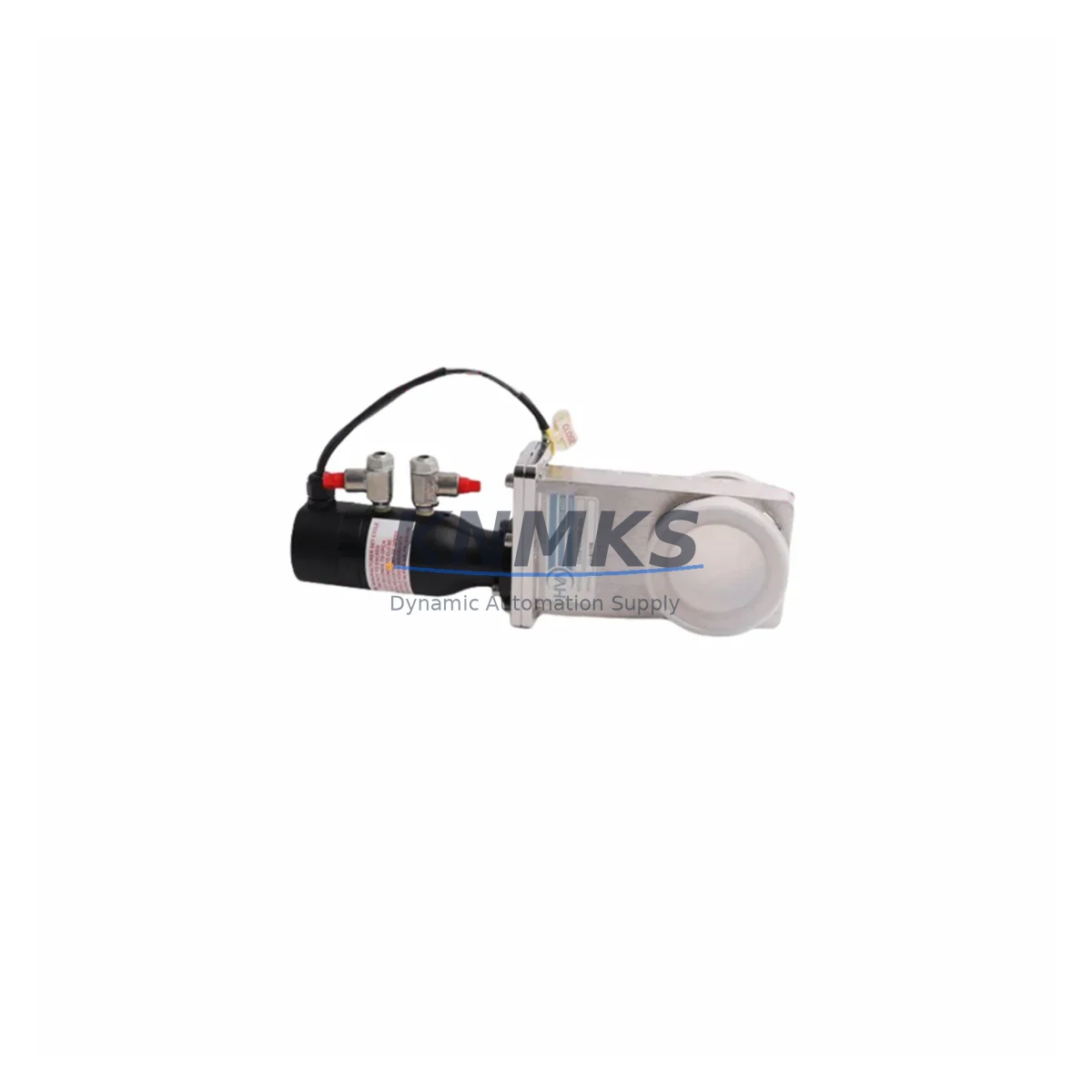

HVA 11210-0203RS-001 Migration-Ready Gate Valve RS Series

Overview

HVA 11210-0203RS-001 Migration-Ready Gate Valve RS Series: Legacy System Retrofit & Compatibility Upgrade

The HVA 11210-0203RS-001 is a migration-ready gate valve engineered for direct replacement and retrofit integration within RS Series legacy fluid control and industrial automation systems. Designed to address the growing challenge of end-of-life valve procurement, this unit delivers a verified drop-in upgrade path for aging control infrastructure — minimizing downtime, preserving existing piping layouts, and maintaining process continuity during planned or emergency maintenance windows.

Industrial facilities operating legacy RS Series control loops frequently encounter obsolescence-driven procurement gaps. The HVA 11210-0203RS-001 resolves this by providing a pre-tested, stainless steel gate valve that matches the original dimensional envelope, pressure rating, and actuation interface of the discontinued OEM part. Whether you are executing a scheduled outage retrofit, responding to an unplanned valve failure, or modernizing a control cabinet as part of a broader system upgrade, this unit ships from multi-region stock to support fast global dispatch.

Before installation, engineering teams should verify the following parameters against the existing system documentation: supply pressure capacity and line pressure rating, terminal wiring and actuator signal compatibility (4–20 mA or discrete I/O), flange or threaded connection standard (ANSI/DIN), valve body orientation and flow direction marking, and available installation clearance within the control cabinet or process skid. For systems integrating the HVA 11210-0203RS-001 alongside HVA RS Series actuator modules or HVA positioner assemblies, confirm that the actuator mounting bracket pattern and stem travel specification are aligned before commissioning.

In broader retrofit projects, this gate valve is commonly deployed alongside HVA RS Series ball valves for isolation duty, HVA pneumatic actuator kits for automated open/close control, HVA limit switch assemblies for position feedback to the DCS or PLC, and HVA solenoid valve manifolds for pilot signal distribution. Where the legacy system includes a HART-enabled positioner or fieldbus-connected valve controller, verify firmware version compatibility and re-map the valve tag address in the control system configuration before returning the loop to service. HMI faceplate graphics referencing the original valve tag should be updated to reflect the replacement unit’s I/O address and alarm setpoints.

All units are pre-shipment tested for seat leakage, stem torque, and pressure integrity in accordance with IEC 60534 and API 598 acceptance criteria. A support terms confirmed by quotation is included from the date of shipment, covering manufacturing defects under normal operating conditions. Multi-region inventory is maintained to support emergency replacement timelines across Asia-Pacific, Europe, and the Americas.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the HVA 11210-0203RS-001 into an existing automation system requires a structured retrofit plan that accounts for both mechanical and control system interfaces. Begin by pulling the original P&ID and valve data sheet to confirm the nominal pipe size, pressure class, and end connection type. If the legacy system uses a pneumatic actuator, verify that the HVA actuator mounting kit — typically an ISO 5211 compliant bracket — matches the stem square or keyway dimension of the replacement valve.

For control cabinet installations, check the available rail space and confirm that the HVA RS Series solenoid valve manifold supplying pilot air to the actuator is rated for the same supply pressure as the original assembly. Where the system includes a HART positioner or Profibus PA valve controller, the device tag and physical device address must be re-commissioned in the asset management system after replacement. HVA limit switch boxes mounted on the actuator yoke provide discrete position feedback (open/close) to the DCS I/O card — confirm that the existing cable gland size and conduit entry thread match the replacement unit.

In multi-valve skid applications, the HVA 11210-0203RS-001 is frequently installed alongside HVA RS Series check valves for backflow prevention, HVA pressure relief valves for overpressure protection, and HVA Y-strainers upstream of the gate valve to protect the seat from particulate contamination. Ensure that the upstream strainer mesh size is appropriate for the process fluid and that the strainer is cleaned before returning the loop to service. Where the original system used a globe valve for throttling duty in the same loop, confirm that the gate valve replacement is used exclusively for isolation — not flow control — to avoid seat damage from partial-open operation.

Downtime Control During System Migration

Minimizing process downtime during gate valve replacement requires pre-staging all replacement components before the maintenance window opens. For the HVA 11210-0203RS-001, this means confirming stock availability and lead time in advance, pre-assembling the actuator and limit switch assembly on the bench, and pre-configuring the positioner or solenoid valve to match the original signal range and fail-safe position.

During the outage, isolate the affected loop using upstream and downstream block valves, depressurize and drain the line, and document the original valve orientation and wiring before disconnection. Retain the original wiring labels and terminal block assignments to accelerate reconnection. After mechanical installation, perform a bench-level seat leak test before returning the valve to service. Loop calibration — including zero and span adjustment on any associated positioner — should be completed with the process fluid at operating temperature and pressure before handing the loop back to operations.

To protect the original control program logic, do not modify PLC or DCS function block parameters during the valve replacement unless a firmware or I/O address change is required. If the replacement valve introduces a new device tag or I/O address, update the control system configuration in a staging environment first and validate against the original loop test procedure before downloading to the live controller. HMI alarm setpoints and interlock logic referencing the original valve tag should be reviewed and updated as part of the management of change (MOC) process.

Retrofit Support FAQ

Q1: Is the HVA 11210-0203RS-001 a direct drop-in replacement for the original RS Series gate valve?
In most RS Series applications, yes — the HVA 11210-0203RS-001 is dimensionally compatible with the original OEM envelope. However, customers should verify the end connection standard (ANSI vs. DIN), pressure class, and actuator mounting pattern against the original valve data sheet before ordering. Our technical team can assist with cross-reference confirmation.

Q2: What pre-shipment testing is performed on each unit?
Every HVA 11210-0203RS-001 undergoes seat leakage testing, stem torque verification, and hydrostatic shell testing in accordance with IEC 60534 and API 598 acceptance criteria. A test certificate is available upon request. All units ship with a support terms confirmed by quotation covering manufacturing defects under normal operating conditions.

Q3: How do I confirm wiring and signal compatibility with my existing DCS or PLC?
Refer to the original I/O list and loop diagram for the valve tag being replaced. Confirm that the actuator signal type (discrete 24 VDC, 4–20 mA, or fieldbus) matches the HVA positioner or solenoid valve specification. If the original system used a HART-enabled positioner, the replacement unit must be configured with the same HART device tag and PV range before loop commissioning.

Q4: What is the typical lead time and stock availability?
The HVA 11210-0203RS-001 is maintained in multi-region stock to support emergency replacement timelines. Standard orders ship within 3–5 business days from the nearest regional warehouse. For urgent requirements, contact our sales team to confirm real-time stock levels and expedited dispatch options. Blanket order agreements are available for customers with recurring replacement needs.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Other Brands
Assorted Brands

Model / Series

11210-0203RS-001
Assorted Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: Other Brands 11210-0203RS-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
