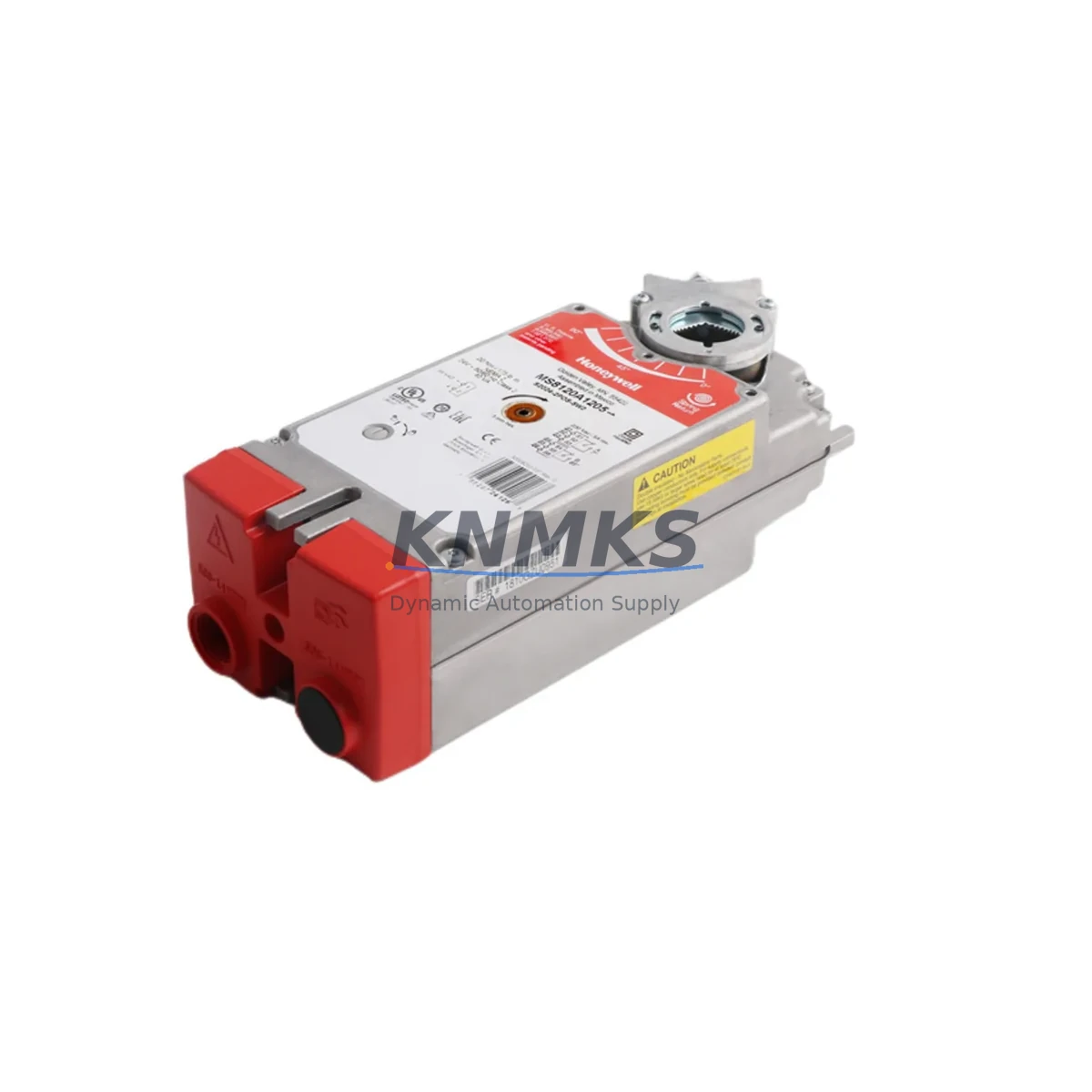

Honeywell MS8120A1205 Migration-Ready Actuator for S2024 Series

Overview

Honeywell MS8120A1205 Migration-Ready Actuator for S2024 Series: Legacy HVAC System Retrofit & Upgrade

The Honeywell MS8120A1205 (S2024-2POS-SW2) is a spring return damper actuator engineered for 2-position control in commercial and industrial HVAC applications. As legacy building automation systems (BAS) age and original equipment reaches end-of-life, the MS8120A1205 serves as a verified migration-ready replacement for discontinued actuator models across air handling units (AHUs), variable air volume (VAV) boxes, exhaust dampers, and mixed-air control assemblies.

For facilities engineers and controls contractors managing aging infrastructure, sourcing a compatible, in-stock replacement that eliminates re-engineering time is critical. The MS8120A1205 is stocked and pre-tested to reduce retrofit risk, minimize downtime, and maintain control continuity across existing wiring and panel layouts.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or discontinued damper actuator in an operating facility requires careful pre-planning to avoid extended downtime and control disruptions. When integrating the MS8120A1205 into an existing BAS or DDC panel, engineers should begin by auditing the control cabinet layout. In many legacy installations, the actuator’s auxiliary switch (SW2) is wired directly into the AHU fan interlock circuit — a detail that is frequently undocumented in as-built drawings. Confirm this wiring path before disconnecting the original unit.

Power supply verification is equally important. Many older HVAC control panels share a single 24 VAC transformer across multiple actuators, relay coils, and control modules. Adding or replacing an actuator without checking available VA capacity can cause transformer overload and intermittent control faults. If the existing transformer is marginal, a dedicated Honeywell AT72D or equivalent 40 VA class 2 transformer should be installed in parallel.

For facilities running a Honeywell Excel 5000 or WEBs AX controller platform, the MS8120A1205 connects to discrete digital output (DO) points. Confirm the DO point assignment in the controller database and verify that the BAS graphics (HMI screens) reflect the correct damper tag and status feedback from the SW2 switch. Outdated HMI graphics that reference the legacy actuator model number may require a minor tag update in the SCADA or BAS front-end.

In VAV terminal unit retrofits, the MS8120A1205 is commonly paired with a Honeywell TB7220 or similar zone controller. Verify that the zone controller’s output voltage and current rating are compatible with the actuator’s inrush and holding current. For AHU mixed-air damper applications, the actuator may operate alongside a Honeywell MP953 pneumatic-to-electric transducer in hybrid pneumatic/electric control systems — confirm that the electric override circuit is correctly wired before commissioning.

Where multiple damper actuators are being replaced in a single retrofit project — for example, in a rooftop unit with separate supply, return, and exhaust dampers — consider replacing all actuators simultaneously to standardize the installed base and simplify future maintenance. Companion actuators such as the Honeywell MS4120F1210 (modulating, 0–10 V) may be required for supply air dampers on the same AHU where proportional control is specified.

All replacement units are pre-tested prior to shipment. Each MS8120A1205 is functionally verified for spring return operation, auxiliary switch continuity, and terminal integrity before packaging. Units are shipped with original manufacturer documentation where available, and KNMKS provides a support terms confirmed by quotation from the date of shipment.

Downtime Control During System Migration

Minimizing downtime during a damper actuator replacement is achievable with structured pre-work. Before scheduling the physical swap, obtain the existing wiring diagram or photograph the terminal block connections on the legacy actuator. Document the damper’s normal operating position (normally open or normally closed) and confirm the spring return direction matches the MS8120A1205 configuration.

For critical air handling systems that cannot be taken offline during occupied hours, plan the replacement during a scheduled maintenance window or low-occupancy period. The MS8120A1205’s direct-coupled mounting eliminates the need for linkage adjustment, significantly reducing installation time compared to older crank-arm actuator designs. In most cases, a trained technician can complete the physical swap, re-termination, and functional test within 30–60 minutes per actuator.

After installation, perform a manual override test (if the actuator includes a manual release) to confirm damper blade movement before restoring power. Apply 24 VAC and verify that the actuator drives to the commanded position and that the SW2 auxiliary switch changes state at end of travel. Confirm the BAS point reads correctly and that any associated fan interlock or alarm logic responds as expected. Log the replacement in the facility’s maintenance management system (CMMS) with the new unit’s serial number and installation date to support future support requests and lifecycle tracking.

Stocking a spare MS8120A1205 on-site is recommended for facilities with multiple identical actuators, as it eliminates lead time risk during emergency failures and supports a rapid mean-time-to-repair (MTTR) target.

Retrofit Support FAQ

Q1: Is the MS8120A1205 a direct drop-in replacement for my existing S2024-series actuator?
In most cases, yes. The MS8120A1205 (S2024-2POS-SW2) is designed as a form-fit-function replacement within the S2024 product family. Verify shaft diameter, fail-safe direction, and auxiliary switch wiring before installation. No mechanical re-engineering is typically required for standard duct-mounted applications.

Q2: What commissioning steps are required after installation?
After mounting and re-terminating field wiring, apply 24 VAC and confirm the actuator drives to the energized position. Verify the SW2 switch output at end of travel using a multimeter. Check the BAS controller point status and confirm HMI feedback is correct. No software configuration is required on the actuator itself — all commissioning is performed at the controller and BAS level.

Q3: Does KNMKS provide pre-shipment testing and support terms coverage?
Yes. Every MS8120A1205 unit is functionally tested before shipment to verify spring return operation, terminal integrity, and auxiliary switch continuity. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Contact [email protected] for support requests or technical support.

Q4: What if my legacy actuator used a different wiring configuration or terminal layout?
Minor wiring differences between legacy and replacement actuators are common in retrofit projects. KNMKS technical support can assist with terminal mapping and wiring adaptation guidance. In most cases, the existing field wiring can be re-terminated directly to the MS8120A1205 terminal block without additional components. If a wiring adapter or interposing relay is required, our team will advise accordingly prior to shipment.
