Honeywell EC7830A1066 Migration-Ready Burner Control

Overview

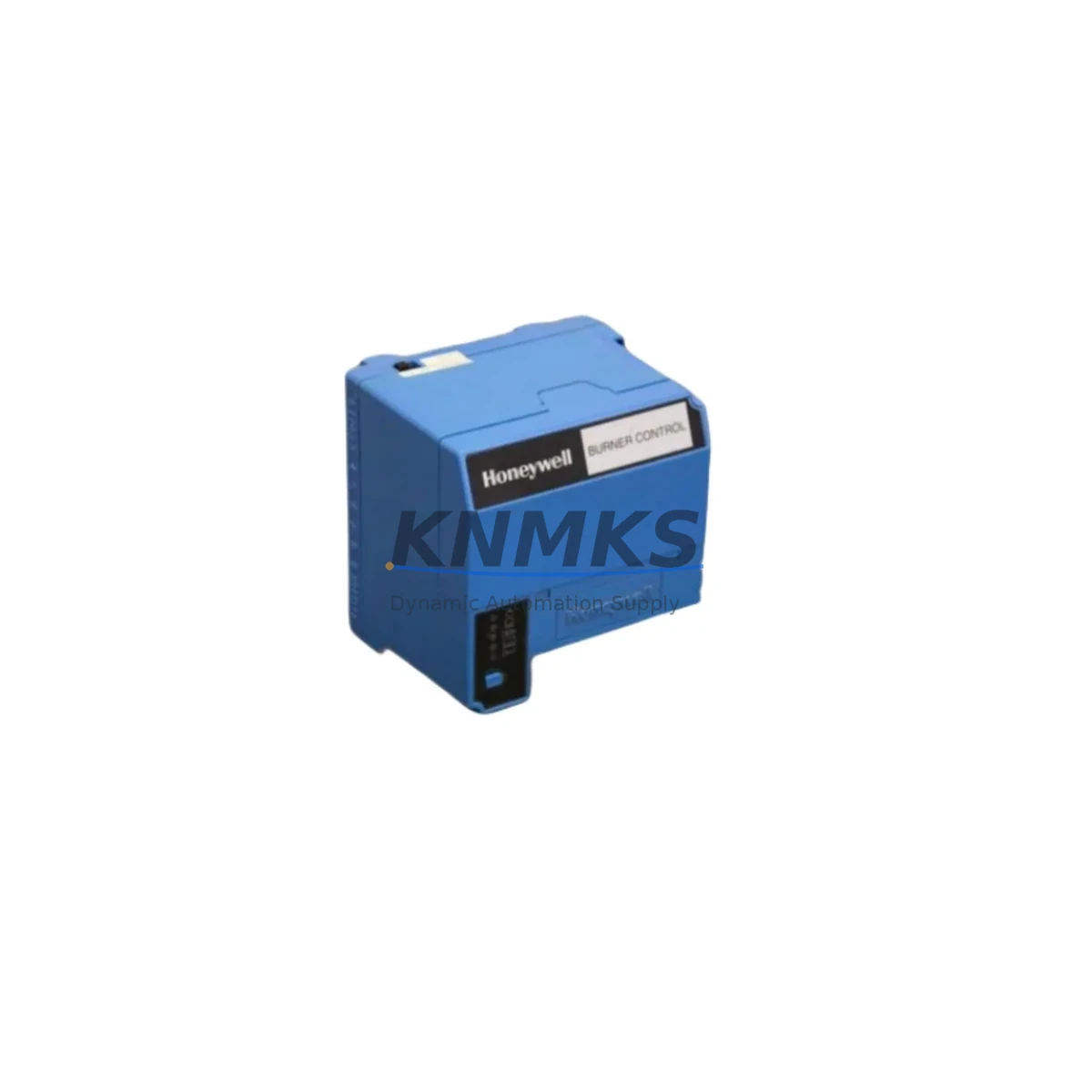

Honeywell EC7830A1066 Migration-Ready Burner Control for Legacy Control Systems

The Honeywell EC7830A1066 is a direct-replacement burner control module engineered for seamless migration from aging EC7800 Series installations. Designed for industrial combustion management applications in petrochemical plants, power generation facilities, district heating systems, and process manufacturing environments, this module delivers the same proven flame supervision, ignition sequencing, and safety interlock logic as the original unit — without requiring rewiring, reprogramming, or panel redesign.

When an EC7800 Series burner control reaches end-of-life or fails in service, unplanned downtime can cascade across an entire production line. The EC7830A1066 is stocked specifically to support emergency replacement scenarios and planned maintenance windows alike. Before installation, engineers should verify terminal block compatibility, confirm that the existing wiring harness matches the EC7830A1066 pin-out, and check that the burner management system’s flame detector — typically a UV or infrared sensor — is compatible with the module’s input signal range. Firmware version alignment is not required for this hardware-generation replacement, but the local HMI display configuration should be reviewed to confirm that alarm codes and status indicators map correctly to the new module’s output logic.

In retrofit planning, the EC7830A1066 is frequently deployed alongside the Honeywell EC7850A1054 primary control and the S7800A1142 Keyboard Display Module, which provides operator-level diagnostics and fault history access without a separate programming terminal. For installations where the control cabinet also houses a Honeywell RM7800L1018 burner management relay module, the EC7830A1066 can be integrated into the same DIN-rail assembly, preserving the original panel footprint and minimizing installation space conflicts. Where communication to a supervisory SCADA or DCS layer is required, the S7999D1024 Dynamic Display or a compatible Modbus gateway module can be added to the control loop without modifying the EC7830A1066’s base wiring.

For sites running legacy Fireye or Siemens LFL burner controls alongside Honeywell equipment, cross-platform migration requires careful attention to interlock wiring, purge timing parameters, and flame signal amplifier gain settings. The EC7830A1066’s internal sequencing logic follows NFPA 85 and EN 298 safety standards, making it a compliant drop-in for most European and North American combustion safety frameworks. All units shipped by KNMKS are pre-tested against factory acceptance criteria and include a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful EC7830A1066 retrofit begins with a thorough audit of the existing control cabinet. Technicians should document the current subbase model — the EC7800 Series uses dedicated subbases that must match the replacement module — and confirm that the power supply rail delivers the correct 120 VAC or 240 VAC input as specified for the installed configuration. Where the cabinet also contains a Honeywell Q7800B Wiring Subbase or a Q7800A1005 subbase assembly, the EC7830A1066 plugs directly into the existing base without adapter plates or bracket modifications.

For multi-burner installations, each EC7830A1066 operates as an independent control node. If the plant’s DCS communicates with burner controls via a Honeywell S7810M Modbus Module or an equivalent serial gateway, the module address assignment must be confirmed before commissioning to avoid address conflicts on the RS-485 bus. I/O expansion for auxiliary interlocks — high-limit thermostats, gas pressure switches, and combustion air proving switches — connects through the existing terminal strip without rewiring, provided the original EC7800 wiring diagram is used as the reference document.

Where the retrofit scope extends beyond the burner control itself, engineers frequently replace the Honeywell R7847C1023 Rectification Amplifier or the R7849A1023 UV Amplifier at the same time to eliminate aging flame detection components that could generate nuisance trips after the new control module is installed. Replacing the amplifier alongside the EC7830A1066 ensures that the entire flame supervision chain is renewed in a single maintenance window, reducing the probability of a secondary failure within the confirmed support period.

Downtime Control During System Migration

Minimizing combustion system downtime during an EC7830A1066 swap requires pre-staging the replacement module, downloading and archiving the existing HMI configuration, and preparing a rollback plan in case the new module requires parameter adjustment. Because the EC7830A1066 is a plug-in replacement for the EC7800 subbase, the physical swap can typically be completed in under 30 minutes by a qualified combustion technician.

Before removing the legacy module, the technician should record all active fault codes from the S7800A Keyboard Display Module and photograph the terminal wiring for reference. After installing the EC7830A1066, the purge timing sequence should be verified against the original burner data sheet, and the flame signal strength should be measured at the amplifier output to confirm that the detector is operating within the module’s acceptance window. If the plant’s safety management system requires a functional safety test (proof test) after any burner control replacement, the EC7830A1066’s built-in self-check routines support lockout verification without additional test equipment.

KNMKS ships all EC7830A1066 units with pre-shipment functional testing completed, reducing the risk of DOA failures during a planned maintenance window. Units are packaged in anti-static, shock-resistant packaging suitable for international air freight and long-distance ground transport to remote plant sites.

Retrofit Support FAQ

Q: Is the EC7830A1066 a direct replacement for all EC7800 Series variants?
A: The EC7830A1066 is compatible with EC7800 Series subbases. However, subbase model verification is essential before ordering — confirm whether your installation uses a Q7800A or Q7800B subbase, as the module’s plug-in connector is keyed to the subbase generation. Contact KNMKS with your existing subbase model number for confirmation before purchase.

Q: Does the replacement module require reprogramming or parameter re-entry?
A: The EC7830A1066 does not require software programming. Timing parameters such as purge duration and trial-for-ignition period are set via internal DIP switches or jumper configuration, consistent with the original EC7800 design. The S7800A Keyboard Display Module can be used to verify and adjust these parameters after installation.

Q: What pre-shipment testing does KNMKS perform on the EC7830A1066?
A: Each unit undergoes functional power-on testing, lockout sequence verification, and flame signal input simulation before dispatch. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: What is the typical lead time and stock availability?
A: KNMKS maintains stock of the EC7830A1066 for immediate dispatch. Standard international shipping lead time is 3–7 business days depending on destination. Express air freight options are available for emergency replacement requirements. Contact admin@knmks.com or +86 18359268345 for current stock confirmation and shipping quotes.
