Honeywell C7076A1015 Maintenance-Proven Spare Part for Factory Uptime

Overview

Honeywell C7076A1015 Maintenance-Proven Spare Part for Factory Uptime

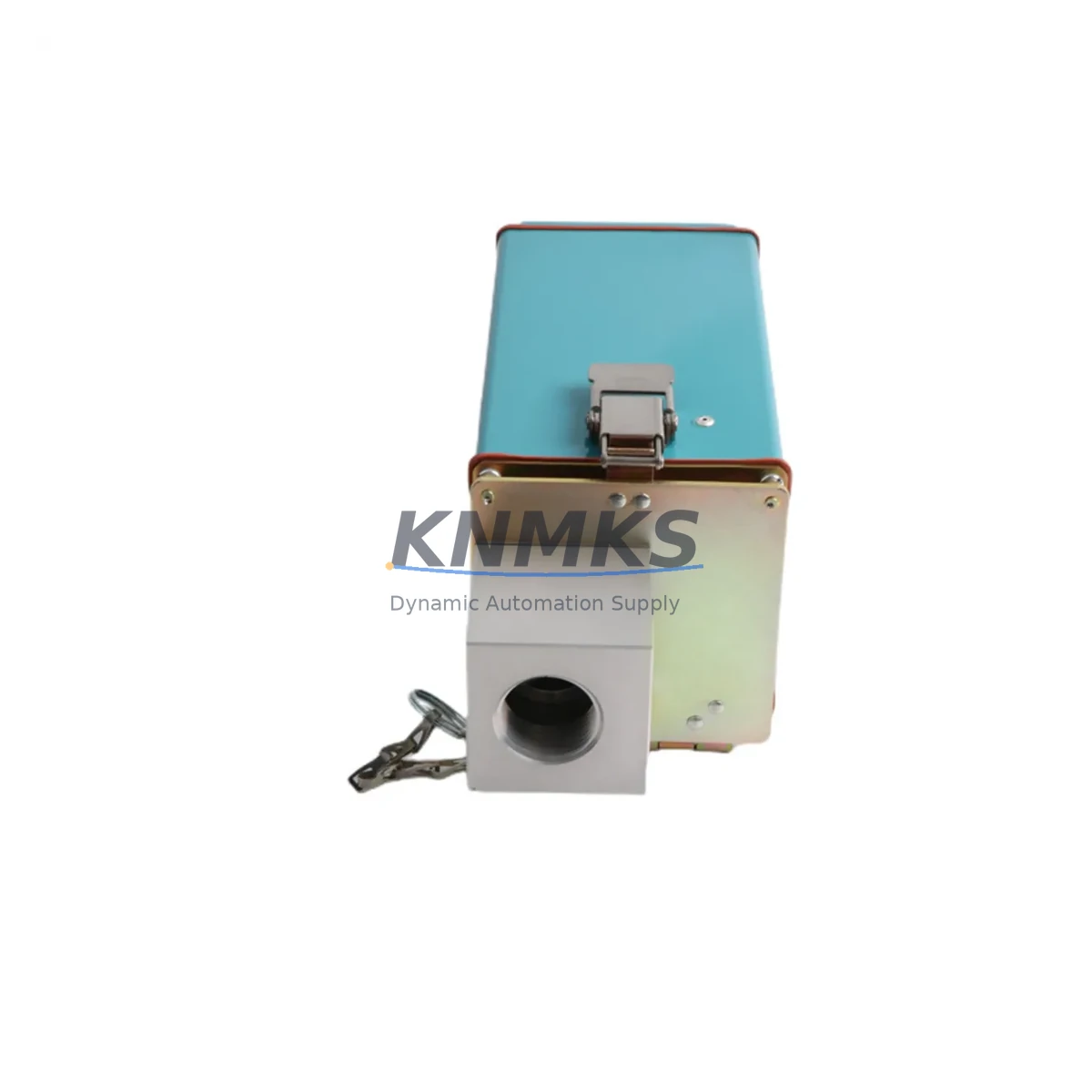

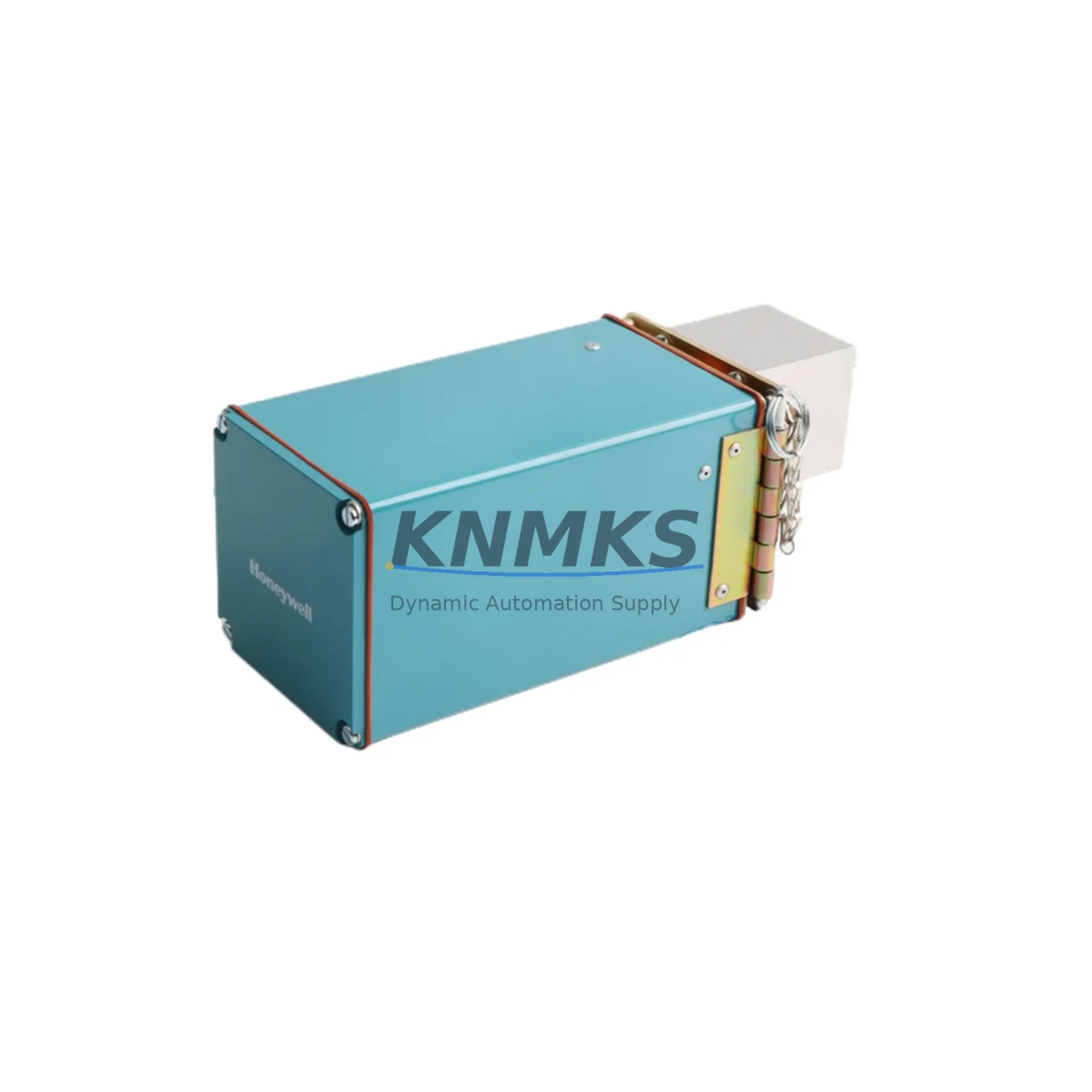

The Honeywell C7076A1015 is a UV flame sensor designed for continuous-duty burner management systems (BMS) in industrial heating, boiler, and combustion control applications. As a direct replacement within the Honeywell C7076 series, this spare part enables maintenance engineers to restore flame detection circuits rapidly — minimizing unplanned downtime and keeping production lines operational. Stocked and pre-tested before dispatch, the C7076A1015 is a critical component in any industrial spare parts inventory where combustion safety and system uptime are non-negotiable.

For facilities operating Honeywell Tradeline or RM7800 series burner management controllers, the C7076A1015 provides a verified, drop-in replacement that eliminates compatibility risk. Its ultraviolet sensing element is factory-calibrated to detect the UV radiation signature of gas and oil flames, making it suitable for boiler rooms, process heaters, kilns, and industrial furnaces. Procurement engineers sourcing long-term supply can rely on our support terms confirmed by quotation and documented test records for each unit shipped.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the C7076A1015 UV flame sensor during scheduled maintenance or emergency fault recovery, a thorough inspection of the surrounding combustion control circuit is essential to prevent repeat failures and ensure safe recommissioning. Maintenance engineers should treat this replacement as an opportunity to audit the full flame detection and burner management loop.

Begin by verifying the condition of the Honeywell R7847 or R7849 amplifier module, which processes the UV signal from the C7076A1015. A degraded amplifier can cause nuisance shutdowns even with a new sensor installed. Next, inspect the RM7800 series burner management relay — check for contact wear, error history, and firmware version compatibility with the replacement sensor. If the BMS cabinet has been in service for more than five years, consider proactive replacement of the Q7800A or Q7800B subbase to eliminate intermittent connection faults.

Wiring integrity is equally critical. Inspect the shielded signal cable between the sensor and amplifier for insulation breakdown, moisture ingress, or mechanical damage from heat cycling. Verify that terminal block connections at the BMS panel are torqued to specification and free of oxidation. For facilities using Honeywell S7800A or S7810A display modules, confirm that fault codes are cleared and that the HMI is reading live flame signal strength after sensor installation.

In multi-burner installations, cross-check the C7076D or C7076E variants on adjacent burner trains — if one sensor has failed, others in the same vintage may be approaching end of service life. Stocking a minimum of two C7076A1015 units per facility is a widely adopted practice among industrial maintenance teams to support rapid swap-out during annual turnarounds or unplanned outages. Procurement teams should also confirm availability of compatible sight pipe assemblies and gasket kits to avoid installation delays when the sensor port requires cleaning or resealing.

Site Replacement Workflow

Step 1 — Isolate and Lock Out: Follow site LOTO procedures. Shut down the burner, confirm flame-out via BMS status, and isolate power to the flame scanner circuit at the control panel.

Step 2 — Remove the Existing Sensor: Disconnect the signal cable connector from the C7076A1015. Unscrew the sensor from the sight pipe fitting. Inspect the sight pipe for soot, debris, or lens fouling — clean thoroughly before installing the replacement unit.

Step 3 — Install the C7076A1015: Thread the new sensor into the sight pipe to the manufacturer’s specified torque. Reconnect the signal cable, ensuring the shield is properly grounded at the amplifier end only to prevent ground loops.

Step 4 — Verify Amplifier and BMS Settings: Confirm that the R7847/R7849 amplifier sensitivity is set per the original commissioning record. Do not adjust sensitivity settings without reference to the original BMS design documentation.

Step 5 — Recommission and Test: Restore power, initiate a controlled burner start, and verify that the BMS transitions through the ignition sequence to steady-state flame-on status. Confirm UV signal strength is within the acceptable range on the S7800A display or equivalent diagnostic tool. Log the replacement in the site maintenance record.

This workflow supports a target replacement time of under 60 minutes for trained technicians, enabling rapid recovery from combustion system faults with minimal production impact.

Spare Parts Support FAQ

Q1: Is the C7076A1015 compatible with all RM7800 series burner management systems?
The C7076A1015 is designed for use with Honeywell RM7800 series controllers and compatible R7847/R7849 amplifiers. Always verify the amplifier model and sensitivity range against your original BMS commissioning documentation before installation. If your system uses an older R4795 or R7795 amplifier, consult the Honeywell compatibility matrix or contact our technical team before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every C7076A1015 unit is functionally tested for UV response and electrical continuity before dispatch. Units are shipped with individual test records. Our support terms confirmed by quotation cover manufacturing defects and verified functional failures under normal operating conditions.

Q3: How should the C7076A1015 be stored as a spare part?
Store in original packaging in a dry, temperature-controlled environment (0°C to 40°C) away from direct UV light sources, which can degrade the sensing element over time. Inspect packaging integrity annually. Recommended maximum shelf storage before installation is 3 years from manufacture date.

Q4: Can you support long-term or repeat procurement for this part?
Yes. We maintain ongoing stock of C7076 series components to support annual maintenance contracts, turnaround planning, and emergency procurement. Contact admin@knmks.com or +86 18359268345 to discuss volume pricing, lead times, and consignment stock arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

C7076A1015

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Honeywell C7076A1015
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
