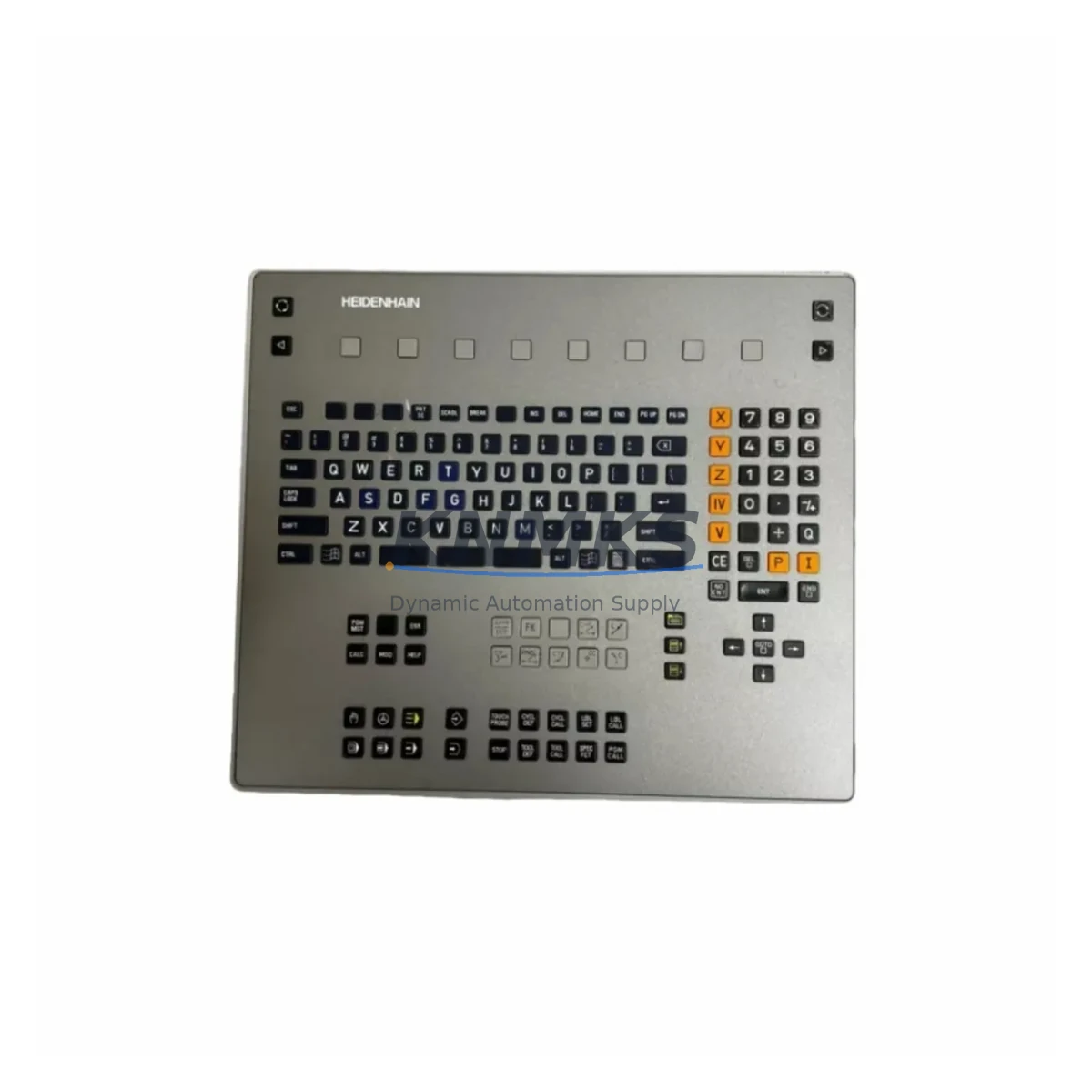

HEIDENHAIN iTNC530 532524-01 Migration-Ready Keyboard Panel: Legacy CNC System Retrofit and Compatibility Upgrade

The HEIDENHAIN iTNC530 532524-01 is a precision operator keyboard panel engineered for the iTNC 530 contouring control platform — one of the most widely deployed CNC controller families in precision machining environments worldwide. As original iTNC 530 installations age past their service lifecycle, maintenance engineers and retrofit planners face increasing pressure to source verified replacement keyboard panels that preserve operator familiarity, maintain program logic continuity, and eliminate costly retraining cycles. The 532524-01 addresses this need directly: it is a migration-ready, drop-in compatible keyboard panel designed to restore full operator interface functionality without requiring changes to the underlying NC program structure or PLC ladder logic.

In legacy CNC retrofit projects, the operator keyboard panel is often the first component to show wear — key membrane degradation, encoder contact failure, and connector oxidation are common failure modes after 10–15 years of continuous shift operation. Replacing the 532524-01 panel restores tactile key response, function key mapping, and axis direction input accuracy, all of which are critical for maintaining machining precision and reducing operator error during manual data input (MDI) cycles. Because the iTNC 530 platform uses a proprietary keyboard bus protocol, only verified OEM-compatible panels such as the 532524-01 can guarantee full key-code mapping without firmware patching.

Retrofit planners integrating the 532524-01 into existing iTNC 530 control cabinets should confirm the following before installation: the 24 VDC panel supply rail capacity at the control cabinet backplane, the keyboard ribbon cable connector type (15-pin or 25-pin depending on the iTNC 530 software version), and the firmware revision of the main control unit — typically displayed at boot as iTNC 530 34049x-xx or 60642x-xx. Panels installed on mismatched firmware revisions may exhibit partial key-map failures or axis inhibit errors that require a service technician reset via the HEIDENHAIN Service Tool. Where the control cabinet also houses a HEIDENHAIN TE 530 or TE 535 machine operating panel, the keyboard panel replacement should be coordinated with the MOP to avoid address conflicts on the shared operator bus.

For facilities running multi-axis machining centers with HEIDENHAIN ERN 1387 or LC 415 linear encoders, the keyboard panel replacement is typically performed during a planned encoder calibration window to minimize total machine downtime. The 532524-01 can be swapped in under 45 minutes by a qualified service technician familiar with the iTNC 530 cabinet layout, provided the replacement panel has been pre-tested and the NC program backup has been verified on the HEIDENHAIN TNC Data Transfer utility prior to the maintenance window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful iTNC 530 keyboard panel retrofit requires a structured approach that accounts for the interdependencies between the operator interface, the NC control unit, and the machine tool’s PLC environment. Before ordering the 532524-01, maintenance planners should audit the full operator station assembly: this typically includes the HEIDENHAIN BF 150 or BF 250 visual display unit, the TE 530 machine operating panel (MOP), and the associated HEIDENHAIN CC 422 or CC 424 controller board housed in the control cabinet. Each of these components shares the operator bus, and a degraded keyboard panel can introduce intermittent communication errors that are misdiagnosed as controller board faults.

In multi-axis retrofit scenarios — particularly on 5-axis machining centers where the iTNC 530 manages simultaneous interpolation across X, Y, Z, A, and B axes — the keyboard panel’s axis direction keys and feed rate override potentiometer must be validated against the machine’s PLC axis inhibit logic after replacement. Facilities that have customized their PLC ladder programs to include operator panel interlocks should review the PLC source code (accessible via the HEIDENHAIN PLC Editor) to confirm that key-code assignments remain consistent with the replacement panel’s firmware mapping.

For control cabinets that also house HEIDENHAIN PWM 9 or UE 2xx power modules, the 24 VDC supply rail should be load-tested before the keyboard panel swap to ensure adequate current headroom. If the cabinet also includes a HEIDENHAIN SE 660 safety module or an external E-stop relay chain, the safety circuit should be verified in bypass mode during the panel swap to prevent inadvertent machine enable signals. After installation, a full MDI test cycle — including spindle speed override, axis jog, and program block search — should be completed before returning the machine to production.

Downtime Control During System Migration

Minimizing unplanned downtime during an iTNC 530 keyboard panel replacement begins with pre-migration preparation. The NC program library should be backed up to an external storage device using the HEIDENHAIN TNC Data Transfer utility at least 24 hours before the maintenance window. The machine’s current tool table, datum table, and PLC parameter file should also be archived, as these are stored in the control unit’s battery-backed SRAM and can be affected by power cycling during the panel swap.

During the physical swap, the control cabinet should be de-energized at the main isolator, and the keyboard ribbon cable should be disconnected and reconnected with care to avoid pin damage on the proprietary connector. The replacement 532524-01 panel should be pre-inspected for shipping damage and connector integrity before installation. Once powered up, the iTNC 530 will perform a self-test sequence; any keyboard bus error codes (typically displayed as error 3xxx or 4xxx in the iTNC error log) should be resolved before the machine is returned to the operator.

For facilities with tight production schedules, a parallel swap strategy — where the replacement panel is pre-configured and tested on a bench setup before the live machine swap — can reduce in-machine installation time to under 30 minutes. This approach also allows the service technician to validate key-map integrity and firmware compatibility before the production machine is taken offline, further reducing the risk of extended downtime due to compatibility issues.

Retrofit Support FAQ

Q1: Is the iTNC530 532524-01 a direct drop-in replacement for the original HEIDENHAIN keyboard panel?
Yes. The 532524-01 is an OEM-equivalent replacement for the original iTNC 530 keyboard panel. It uses the same proprietary keyboard bus interface and connector pinout, and requires no firmware patching or PLC modification for standard iTNC 530 installations. Firmware version compatibility (34049x-xx or 60642x-xx) should be confirmed before installation.

Q2: What pre-shipment testing is performed on the 532524-01?
Each unit undergoes a full functional test prior to dispatch, including key-map validation, connector integrity check, and power supply input verification. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can the 532524-01 be used with a HEIDENHAIN TNC 640 or iTNC 426 control unit?
No. The 532524-01 is specifically designed for the iTNC 530 platform. The TNC 640 and iTNC 426 use different keyboard bus protocols and connector configurations. For TNC 640 or iTNC 426 applications, a platform-specific keyboard panel must be sourced. Contact our technical team for cross-platform replacement guidance.

Q4: What is the typical lead time and stock availability for the 532524-01?
We maintain multi-region stock of the iTNC530 532524-01 to support emergency replacement and planned maintenance schedules. Fast global dispatch is available, with typical lead times of 3–7 business days depending on destination. For urgent requirements, expedited shipping options are available — contact [email protected] or call +86 18359268345 for real-time stock confirmation.
