GE VME7671-42000A Migration-Ready SBC for Legacy Control Systems

Overview

GE VME7671-42000A Migration-Ready SBC for Legacy Control Systems

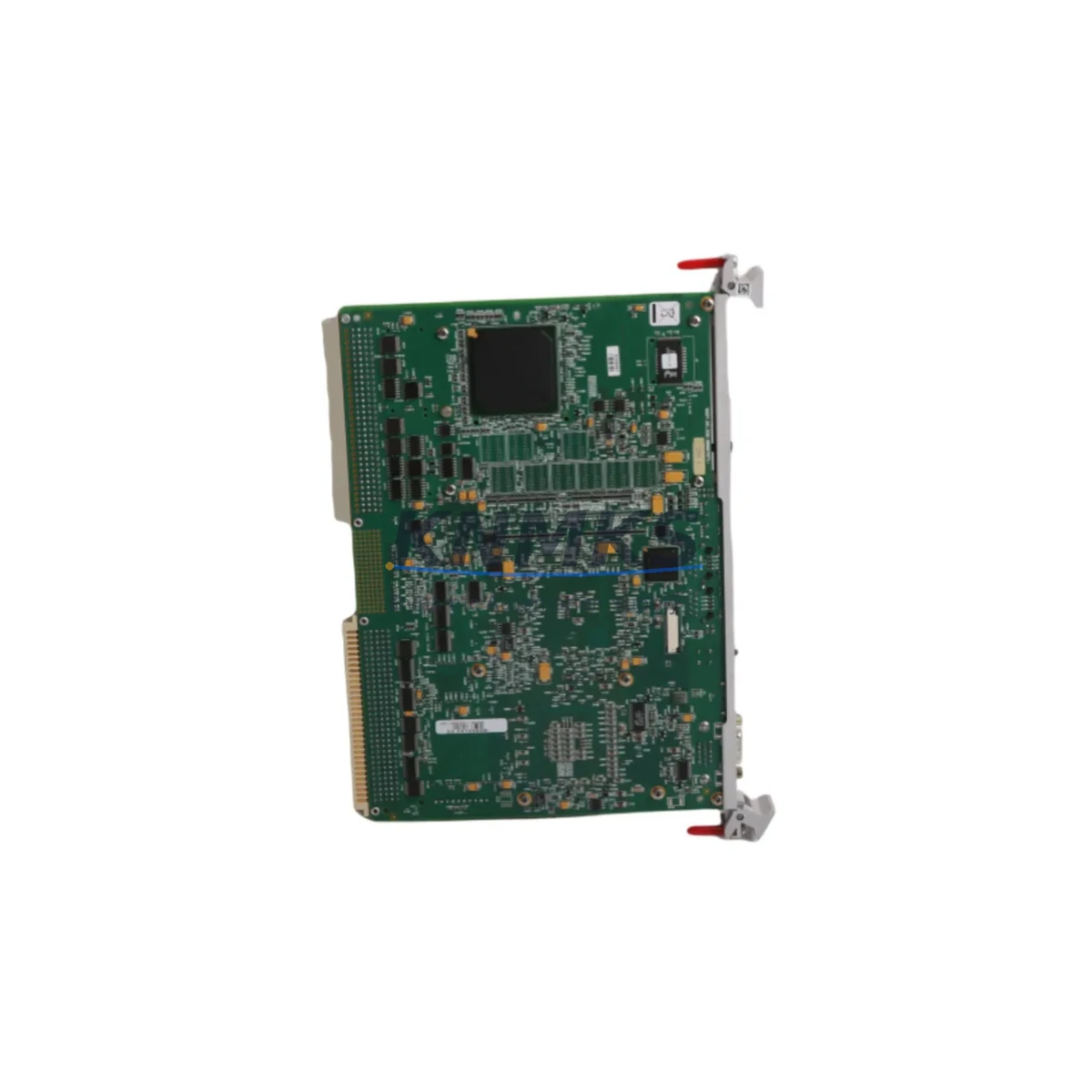

The GE VME7671-42000A (part number 605-064676-005) is a VMEbus Single Board Computer engineered for direct replacement of end-of-life VME7671 Series boards deployed across legacy industrial control architectures. As GE Intelligent Platforms progressively phases out first-generation VME7671 hardware, facilities running aging distributed control systems, SCADA platforms, and process automation racks face mounting pressure to source verified replacement modules before OEM support windows close entirely. The VME7671-42000A addresses this gap with a migration-ready design that preserves backplane pinout compatibility, retains the original VME64 bus interface, and supports the same operating environment as the predecessor board — enabling engineers to execute controlled retrofits without rewriting core application logic or redesigning the control cabinet.

Each unit shipped by KNMKS undergoes pre-shipment functional verification covering power rail integrity, bus arbitration, memory addressing, and I/O channel response. Stock is maintained in forward inventory to support urgent replacement orders, with dispatch typically within 1–2 business days. All units carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful VME7671-42000A retrofit begins well before the physical board swap. Engineers should first audit the existing VME chassis — typically a GE Intelligent Platforms VME6U-series rack — to confirm available slot positions, backplane revision, and power supply headroom. The VME7671-42000A draws power from the VME backplane’s +5 VDC and ±12 VDC rails; if the installed power supply module is already operating near capacity due to co-located I/O boards, a power budget review is mandatory before proceeding.

Wiring and termination review is equally critical. The board interfaces with field I/O through a rear-panel transition module connected via the P2 backplane connector. Inspect the transition module’s terminal blocks and ribbon connectors for corrosion or mechanical fatigue — particularly in systems that have been in continuous service for more than a decade. If the transition module itself is degraded, sourcing a compatible GE Intelligent Platforms rear transition module concurrently with the SBC replacement will prevent secondary failures during commissioning.

Communication link continuity must be preserved throughout the migration. The VME7671-42000A supports Ethernet and serial interfaces (RS-232/RS-422), matching the predecessor board’s connectivity profile. However, IP addresses, serial port parameters, and network node identifiers must be re-configured on the replacement board before it is placed into service. In systems where the SBC communicates upstream to a SCADA server or DCS historian via a dedicated communication module — such as a GE Intelligent Platforms VMIVME-7807 or a third-party VMEbus network interface card — the communication link parameters should be documented and staged in advance to minimize reconfiguration time during the maintenance window.

For facilities running mixed-generation control architectures, the VME7671-42000A may coexist in the same chassis with legacy analog I/O modules, digital I/O boards, and signal conditioning cards. Module address assignments — set via onboard DIP switches or jumper blocks — must be verified against the existing address map to prevent bus conflicts. If the control program references specific module addresses in its ladder logic or function block diagrams, those references must be validated against the replacement board’s address configuration before the system is returned to automatic mode.

HMI screen validation is a frequently underestimated step. After the board swap, all operator interface panels — whether GE Fanuc QuickPanel units or third-party HMI terminals — should be cycled through their full display sequence to confirm that data tags, alarm setpoints, and trend displays are reading correctly from the new board. Any discrepancies in tag mapping or communication timeouts should be resolved before the system is released for production operation.

Downtime Control During System Migration

Minimizing unplanned downtime during a VME7671-42000A swap requires a structured pre-outage preparation protocol. Before the maintenance window opens, engineers should create a full backup of the application program stored on the legacy board — including all PLC ladder logic, function block diagrams, configuration parameters, and calibration data. Where the board hosts a real-time operating system image, a verified firmware backup should be prepared on a separate storage medium.

The physical swap itself should be executed with the VME chassis powered down and isolated from field power. After seating the VME7671-42000A in the target slot, verify backplane connector engagement before applying power. On initial power-up, monitor the board’s status LEDs and system diagnostic outputs to confirm normal boot sequence completion before loading the application program.

To protect original program logic, load the backed-up application image onto the replacement board rather than attempting to reconstruct the program from documentation. This approach eliminates transcription errors and preserves the exact parameter set that was validated during the original system commissioning. Once the program is loaded, perform a controlled I/O verification — verifying each input and output channel against the field device — before transferring control from manual override to automatic mode.

For systems where continuous process control is required, coordinate the migration window with production scheduling to align with planned shutdowns or low-demand periods. A staged approach — where the replacement board is pre-configured and bench-tested before the maintenance window — can reduce the active outage period to the minimum time required for physical installation and final I/O verification.

Retrofit Support FAQ

Q1: Is the VME7671-42000A a direct drop-in replacement for all VME7671 Series variants?
The VME7671-42000A is designed as a functional replacement for VME7671 Series boards sharing the same backplane interface and power requirements. However, variant suffixes within the VME7671 family may indicate differences in memory configuration, I/O channel count, or firmware revision. Confirm the full part number — including the 605-064676-005 reference — against your existing board’s label before ordering. KNMKS technical support can assist with cross-reference verification prior to purchase.

Q2: What pre-shipment testing is performed on each unit?
Every VME7671-42000A dispatched by KNMKS undergoes functional verification covering power rail integrity, VME bus arbitration, memory read/write cycles, and communication interface response. Units that do not pass all test criteria are quarantined and not shipped. Test records are retained and available upon request for quality-critical applications.

Q3: How should I handle firmware compatibility between the legacy board and the VME7671-42000A?
Firmware versions between the original VME7671 and the VME7671-42000A may differ. Before commissioning, obtain the firmware image validated for the VME7671-42000A hardware revision and load it using the board’s supported programming interface. Do not attempt to load legacy firmware images intended for earlier hardware revisions, as this may result in boot failures or undefined behavior. Contact KNMKS for guidance on firmware sourcing if the validated image is not available from your existing documentation set.

Q4: What does the support terms confirmed by quotation cover, and what is the stock availability?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of dispatch. It does not cover damage resulting from incorrect installation, overvoltage, or unauthorized modification. KNMKS maintains forward inventory of the VME7671-42000A to support urgent replacement requirements, with standard dispatch within 1–2 business days. For high-volume or scheduled maintenance programs, contact KNMKS to discuss reserved stock arrangements.
