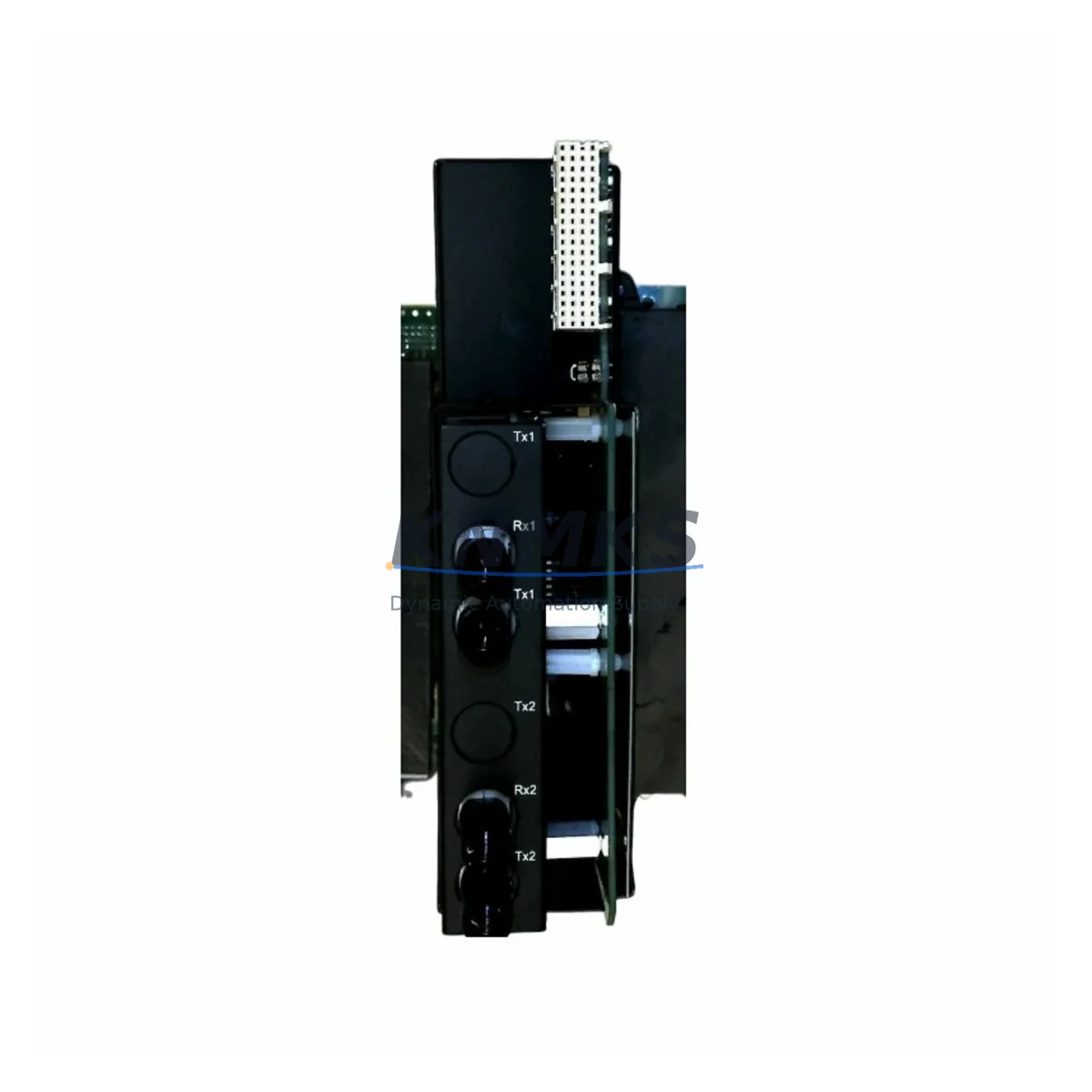

GE UR73FH Migration-Ready Protection Relay for UR Series

Overview

GE UR73FH Migration-Ready Protection Relay for Legacy Control Systems

The GE UR73FH is a high-performance protection relay module designed for the GE UR Series platform — one of the most widely deployed protection and control architectures in power generation, petrochemical, and utility substation environments. As aging UR Series installations approach end-of-support milestones, the UR73FH has become a critical spare part for facilities managing legacy relay panels, protection schemes, and SCADA-integrated control systems. Whether you are replacing a failed module, building a long-term spare parts inventory, or executing a phased protection system upgrade, the UR73FH delivers the compatibility, reliability, and serviceability your operation demands.

The UR73FH functions as a direct replacement for legacy UR Series relay modules, maintaining backward compatibility with existing UR chassis backplanes, terminal wiring, and communication configurations. Engineers undertaking a protection relay retrofit must verify several critical parameters before commissioning: power supply input voltage range (typically 24–250 V DC or 100–240 V AC depending on the power module variant), terminal block wiring assignments, rear-panel connector pinouts, and the relay’s assigned module address within the UR chassis. The UR73FH retains the same physical form factor as its predecessors, which significantly reduces installation time and eliminates the need for panel cutout modifications or new cable harnesses.

Firmware compatibility is a key consideration in any UR Series relay replacement. The UR73FH supports the current GE EnerVista UR Setup software suite, and field engineers should confirm the firmware version loaded on the replacement module matches or is compatible with the existing protection settings file. In most cases, the original .urs settings file can be uploaded directly to the UR73FH without modification, preserving all protection element settings, logic equations, FlexLogic configurations, and communication parameters. This is particularly important in installations where the relay interfaces with a GE UR Series communications module (such as the UR9FH or UR6FH) via the UR chassis backplane, or where the relay reports to a SCADA system over IEC 61850 GOOSE messaging or DNP3 protocol.

In multi-relay protection panels, the UR73FH is commonly installed alongside complementary UR Series components including the GE UR Power Supply module, GE UR Digital I/O module, and GE UR Analog Input module. When replacing a single relay in a populated chassis, engineers must confirm that the chassis backplane can support the UR73FH’s power draw without exceeding the total chassis power budget. The UR Series chassis backplane distributes both power and inter-module communication, so any module substitution should be validated against the chassis loading specification before energization.

For facilities migrating from older GE Multilin relay platforms — including the SR series or earlier UR generations — the UR73FH provides a structured upgrade path that preserves existing panel wiring, CT/VT secondary circuits, and binary I/O connections. Migration planning should include a full review of the existing protection coordination study to confirm that the UR73FH’s protection element library covers all required functions. In most transmission and distribution protection applications, the UR73FH’s comprehensive element set — including distance, differential, overcurrent, and directional elements — exceeds the capability of the modules it replaces, providing an opportunity to enhance protection coverage without additional hardware.

Communication link continuity is another priority during UR Series relay replacement. If the existing installation uses a GE UR Ethernet communications card or fiber-optic inter-relay communications, the replacement UR73FH must be configured with the same IP address, subnet mask, and GOOSE dataset mappings as the original module before being placed in service. Failure to replicate the communication configuration can result in loss of protection interlocks, SCADA alarm suppression, or inter-relay blocking scheme failures — all of which represent unacceptable risks in live substation environments.

HMI screen updates are often overlooked during relay replacement projects. If the facility uses a GE UR Series front-panel HMI or an EnerVista Viewpoint Monitoring workstation, the replacement relay’s device template and data model should be verified against the existing HMI configuration to ensure that all metering displays, event records, and alarm annunciations function correctly after commissioning. This step is especially important in installations where the HMI is used by operations staff for real-time protection status monitoring.

All UR73FH units supplied by KNMKS undergo pre-shipment functional testing, including power-up verification, communication port validation, and protection element response checks. Each unit is shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Our inventory is maintained to support both emergency replacement orders and planned maintenance programs, with typical lead times suitable for both urgent dispatch and scheduled outage windows.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful UR73FH retrofit begins with a thorough site survey of the existing protection panel. Engineers should document the current chassis slot assignments, confirm the power supply module (such as the GE UR Power Supply 3A or 5A variant) has sufficient headroom to support the replacement module, and photograph all rear-panel terminal wiring before disconnection. The UR Series chassis backplane carries both DC power rails and high-speed inter-module communication links, so any module removal must be performed with the chassis de-energized unless the installation supports hot-swap procedures.

Terminal wiring adaptation is straightforward for direct UR73FH replacements, as the rear-panel connector layout is consistent across the UR Series platform. However, engineers should verify CT and VT secondary circuit polarity, confirm binary input threshold voltages match the site’s control voltage (typically 24 V DC, 48 V DC, 110 V DC, or 125 V DC), and check that binary output contact ratings are appropriate for the connected trip and alarm circuits. If the existing installation uses a GE UR Analog Input module for RTD or thermocouple monitoring, the analog channel assignments should be cross-referenced against the replacement relay’s settings file to ensure correct mapping.

For sites integrating the UR73FH into a broader control system upgrade — for example, migrating from a legacy DCS to a modern GE Mark VIe control platform or adding IEC 61850 station bus connectivity — the relay’s communication module slot should be populated with the appropriate GE UR Ethernet or fiber communications card before commissioning. This avoids the need for a second outage to add communication capability after the relay is in service. Similarly, if the site uses a GE UR GPS time synchronization module for COMTRADE event record timestamping, the replacement relay should be configured to accept IRIG-B or IEEE 1588 PTP time signals from the existing time source.

Downtime Control During System Migration

Minimizing protection system downtime during a UR73FH replacement requires careful pre-outage preparation. The most effective approach is to pre-configure the replacement relay offline using the EnerVista UR Setup software, loading the existing .urs settings file and verifying all protection element settings, FlexLogic equations, and communication parameters before the outage window begins. This reduces in-panel commissioning time to a physical swap, wiring reconnection, and final functional test — typically achievable within a two-to-four hour planned outage window for a single relay replacement.

Where the protection scheme includes inter-relay blocking or permissive tripping via GOOSE messaging or hardwired pilot channels, the replacement relay’s communication configuration must be validated before the outage to ensure that protection interlocks are restored immediately upon energization. In installations where the UR73FH participates in a bus differential or transformer differential scheme alongside other UR Series relays, the differential element restraint and operate characteristics should be verified against the existing coordination study before the replacement relay is placed in service.

Post-replacement commissioning should include a staged functional test of all protection elements, binary I/O, metering channels, and communication links before the protected equipment is returned to service. KNMKS recommends retaining the removed relay as a temporary spare until the replacement has completed a full operational cycle, providing a fallback option in the event of an unexpected commissioning issue. All UR73FH units are pre-tested prior to shipment to minimize the risk of commissioning delays caused by module defects.

Retrofit Support FAQ

Q: Is the GE UR73FH a direct drop-in replacement for my existing UR Series relay module?
A: Yes. The UR73FH is designed for direct installation into standard GE UR Series chassis slots. The rear-panel terminal block layout, backplane connector, and physical dimensions are consistent with the UR Series platform, eliminating the need for panel modifications or new wiring harnesses in most replacement scenarios.

Q: Can I upload my existing protection settings file to the UR73FH?
A: In most cases, yes. The UR73FH is compatible with settings files created in GE EnerVista UR Setup. Engineers should verify that the firmware version on the replacement module supports the settings file version, and review any firmware release notes for changes to protection element behavior or FlexLogic syntax before uploading.

Q: What pre-shipment testing is performed on each UR73FH unit?
A: Every UR73FH unit supplied by KNMKS undergoes power-up verification, communication port functional testing, and protection element response checks before dispatch. Units are shipped with a test report and are covered by a support terms confirmed by quotation against manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and do you maintain stock?
A: KNMKS maintains inventory of the GE UR73FH to support both emergency replacement orders and planned maintenance programs. Units are available for immediate dispatch. Contact our team at [email protected] or +86 18359268345 to confirm current stock levels and arrange shipment.

© 2026 KNMKS. All rights reserved. Original Source: https://knmks.com | Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

General Electric
Assorted Brands

Model / Series

UR73FH
Assorted Series

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: General Electric UR73FH
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
