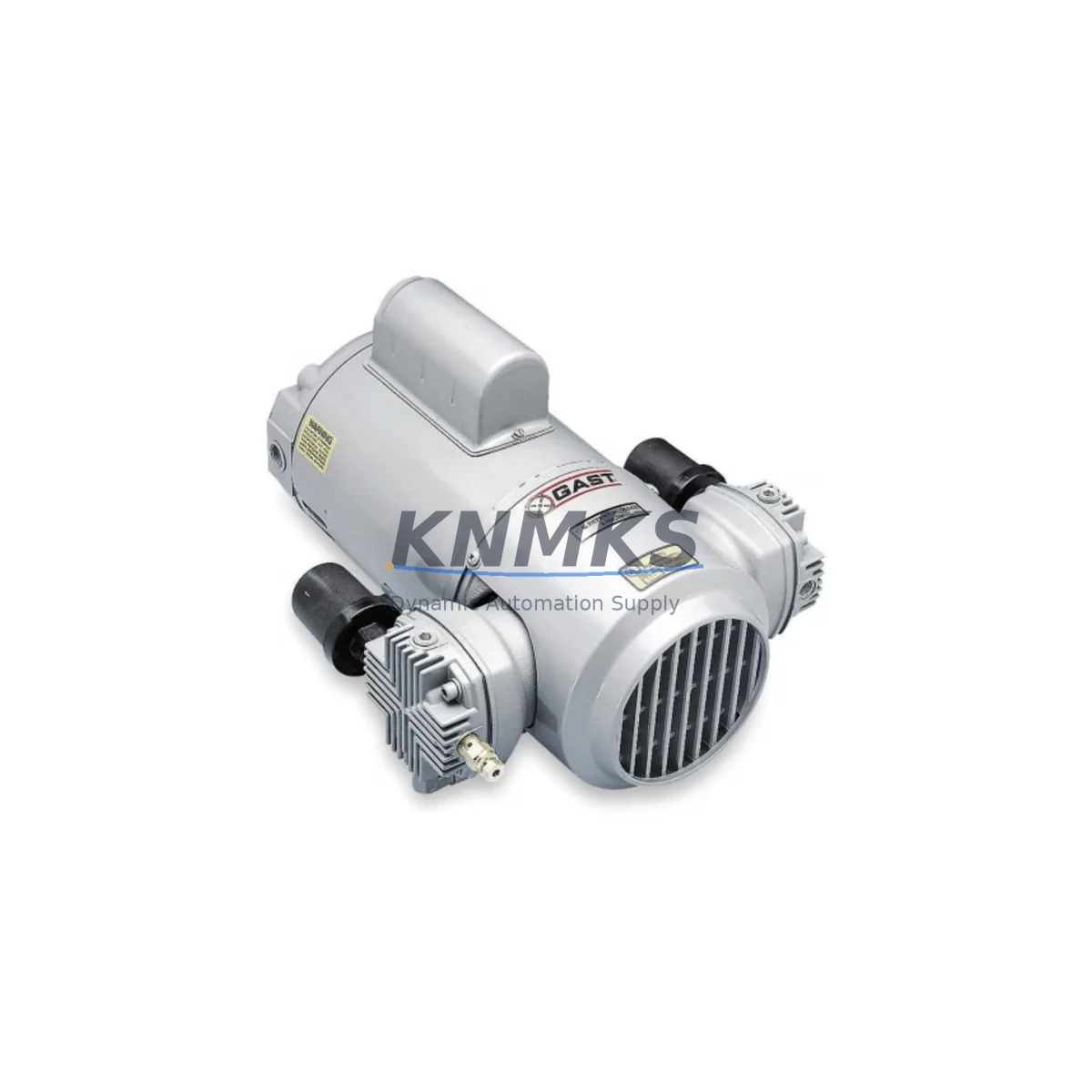

GAST 4LCB-10-M450X Migration-Ready Compressor/Vacuum Pump

Overview

GAST 4LCB-10-M450X Migration-Ready Compressor/Vacuum Pump: Legacy System Retrofit & Upgrade

The GAST 4LCB-10-M450X is an oil-less piston compressor and vacuum pump engineered for direct retrofit into legacy pneumatic control systems, aging production lines, and industrial automation cabinets where the original 4LCB Series unit has reached end-of-life or has been discontinued. As OEM supply chains tighten and legacy spare parts become increasingly difficult to source, the 4LCB-10-M450X provides a verified, migration-ready replacement that minimizes engineering rework, reduces downtime risk, and extends the operational life of existing installations by years.

Designed for applications in medical equipment, laboratory instrumentation, food processing, environmental monitoring, and general industrial automation, this compressor delivers consistent pressure and vacuum performance without the maintenance burden of oil-lubricated alternatives. Its compact footprint and standardized mounting pattern make it a preferred choice for system integrators and maintenance engineers managing multi-site retrofit programs across aging control infrastructure.

When planning a retrofit around the 4LCB-10-M450X, engineers must confirm several critical parameters before committing to installation. Power supply capacity is the first checkpoint — verify that the existing cabinet power rail can support the motor’s rated current draw under full load, particularly in systems where multiple pneumatic actuators share a common supply. Terminal wiring must be reviewed against the original unit’s connection diagram; while the 4LCB-10-M450X maintains dimensional and port compatibility with the legacy 4LCB Series, local wiring standards and conduit routing may require minor adaptation. Mounting space confirmation is essential, especially in compact control cabinets where adjacent components such as relay modules, terminal blocks, or signal isolators leave limited clearance.

For systems integrated with PLC-based control platforms, the compressor’s on/off control signal interface should be validated against the existing digital output module’s voltage and current specifications. In installations where the compressor is managed by a legacy controller — such as older Allen-Bradley SLC 500 or Siemens S5 series PLCs — the control wiring path through intermediate relay panels must be preserved or re-mapped to the replacement unit’s terminal layout. If the system includes a pressure transducer or vacuum sensor feeding back to an analog input module, sensor calibration and signal scaling should be re-verified post-installation to ensure accurate process control.

Firmware and software compatibility is not a concern for the compressor itself, but the broader control system context matters. HMI screens displaying compressor status, alarm states, or runtime hours may reference tag names or I/O addresses tied to the original unit’s wiring. Before cutover, document all relevant PLC tags, ladder logic rungs, and HMI faceplates associated with the compressor control loop. This preparation ensures that the migration can be completed within a planned maintenance window without requiring unplanned program edits during live commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the GAST 4LCB-10-M450X into an existing automation system requires a structured pre-installation audit. Begin by mapping the compressor’s role within the broader pneumatic circuit — identify all downstream actuators, solenoid valves, pressure regulators, and flow control components that depend on the unit’s output. In multi-zone systems, a single compressor may serve several independent control loops, each with its own pressure setpoint managed through dedicated pressure regulators or proportional valves.

Within the control cabinet, the compressor’s power feed typically passes through a motor protection relay or circuit breaker sized to the original unit’s full-load amperage. When installing the 4LCB-10-M450X, confirm that the existing protective device rating remains appropriate for the replacement motor’s specifications. If the cabinet also houses a GAST 4HCD Series compressor or a GAST 1LAA Series vacuum pump serving a parallel process, ensure that the combined load does not exceed the cabinet’s power distribution capacity.

For systems where the compressor interfaces with a PLC digital output module — such as a Siemens ET 200SP digital output module or an Allen-Bradley 1734 POINT I/O digital output module — verify the output module’s switching capacity against the compressor motor’s inrush current. Inrush current during motor start can be 3–6 times the rated running current, and undersized output relays or solid-state outputs may require an intermediate contactor or relay panel to protect the I/O hardware.

If the system includes a pressure transducer or vacuum switch feeding back to an analog input module, recalibrate the sensor after installation to account for any minor differences in the replacement unit’s pressure-flow characteristics. In systems using a GAST 4AM Series air motor or similar pneumatic actuator downstream, confirm that the 4LCB-10-M450X’s flow rate and pressure rating are sufficient to maintain actuator cycle times within the original process specification.

Document all wiring changes, updated terminal assignments, and revised PLC tag mappings in the system’s as-built drawings before returning the line to production. This documentation discipline is critical for future maintenance cycles and ensures that the next technician on-site has accurate reference material.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern during any compressor retrofit. For the GAST 4LCB-10-M450X, the mechanical swap itself is typically straightforward — the matched mounting pattern and port layout eliminate the need for custom fabrication or extended mechanical rework. The critical path for downtime reduction lies in pre-migration preparation and post-installation commissioning efficiency.

Before the maintenance window opens, complete a full backup of the PLC program, including all data blocks, function blocks, and HMI project files. Identify and document every rung or function block that references the compressor’s control output, status feedback, alarm, or runtime accumulator. If the system uses a GAST 4LCB Series runtime counter implemented in the PLC program, reset or re-initialize the counter logic to reflect the new unit’s zero-hour baseline.

During the physical swap, maintain control continuity for any parallel processes that do not depend on the compressor being replaced. If the system architecture allows, isolate the compressor’s pneumatic circuit using manual shutoff valves to preserve pressure in downstream accumulators and avoid disrupting adjacent control loops. After mechanical installation, perform a controlled startup sequence — energize the motor, verify rotation direction, check for abnormal vibration or noise, and confirm that pressure builds to setpoint within the expected time frame.

Post-installation, run the system through at least one complete process cycle under supervision before returning to unattended operation. Verify that all PLC status bits, HMI alarm states, and process interlocks respond correctly to the replacement unit’s actual operating behavior. Log the commissioning results, including measured pressure, vacuum level, motor current, and cycle time, as the baseline reference for future preventive maintenance intervals.

With proper pre-migration planning, the physical installation and commissioning of the 4LCB-10-M450X can typically be completed within a single planned maintenance shift, keeping total system downtime well within acceptable limits for most production environments.

Retrofit Support FAQ

Q1: Is the GAST 4LCB-10-M450X a direct drop-in replacement for all legacy 4LCB Series compressors?
The 4LCB-10-M450X is designed as a migration-ready replacement for the GAST 4LCB Series, sharing the same mounting footprint and port configuration. However, engineers should verify the specific motor voltage, frequency, and power rating against the original unit’s nameplate data before installation, as regional variants may differ. Confirm tubing fitting sizes and types to avoid requiring adapters at the port connections.

Q2: What pre-shipment testing is performed on the 4LCB-10-M450X?
Each unit undergoes functional verification prior to shipment, including motor run-in, pressure and vacuum performance confirmation, and leak testing at the port connections. Units are shipped with protective port caps to prevent contamination during transit. A support terms confirmed by quotation cover manufacturing defects and performance deviations from published specifications under normal operating conditions.

Q3: How should I handle wiring adaptation if the original unit used a different terminal configuration?
Review the 4LCB-10-M450X wiring diagram against the original unit’s terminal layout before beginning the swap. In most cases, the motor power terminals (L1, L2, L3 for three-phase, or L and N for single-phase) follow standard conventions and can be re-terminated directly. If the original installation used a custom terminal block or DIN rail adapter, retain the existing wiring infrastructure and adapt only the final connection to the replacement motor’s terminal block. Document all changes in the system’s as-built wiring diagrams.

Q4: What is the stock availability and lead time for the GAST 4LCB-10-M450X?
The 4LCB-10-M450X is maintained availability confirmed by RFQ to support urgent retrofit and emergency replacement requirements. Standard orders are processed and dispatched within 1–3 business days. For large-quantity orders or multi-site retrofit programs requiring guaranteed allocation, contact the sales team in advance to confirm inventory reservation. All units are covered by a support terms confirmed by quotation from the date of shipment.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Other Brands
Assorted Brands

Model / Series

4LCB-10-M450X
Assorted Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: Other Brands 4LCB-10-M450X
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
