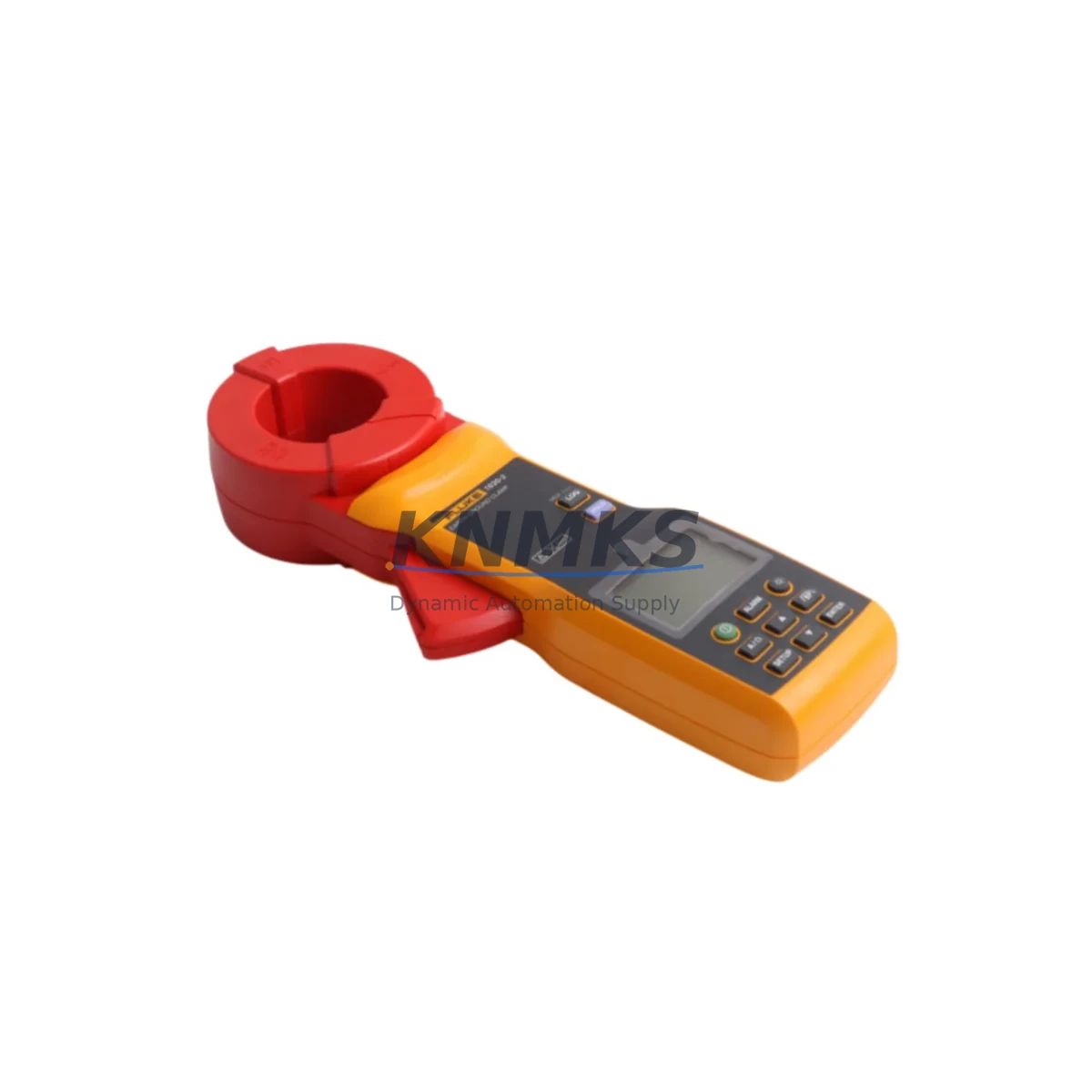

Fluke 1630-2FC Migration-Ready Earth Ground Clamp

Overview

Fluke 1630-2FC Migration-Ready Earth Ground Clamp: Legacy System Retrofit and Compatibility Upgrade

The Fluke 1630-2FC is a migration-ready earth ground clamp engineered as a direct, field-verified replacement for discontinued Fluke 1630 and 1625 Series ground testers. Designed for industrial maintenance teams managing aging electrical infrastructure, the 1630-2FC delivers a seamless upgrade path without requiring changes to existing test procedures, grounding electrode configurations, or safety documentation. Whether you are retiring a Fluke 1625 GEO Earth Tester or decommissioning a legacy 1630 clamp from a substation panel, the 1630-2FC integrates into your existing workflow with minimal requalification effort.

The unit supports a measurement range of 0.1 Ω to 1500 Ω with a jaw opening of 32 mm, making it compatible with standard ground ring conductors and bonding straps found in legacy control cabinets, motor control centers (MCCs), and distribution switchgear. Its Fluke Connect (FC) wireless interface allows real-time data logging to the Fluke CNX 3000 wireless system or compatible Fluke Connect-enabled multimeters such as the Fluke 3000 FC Series, eliminating the need for manual transcription during multi-point grounding surveys.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the Fluke 1630-2FC into a broader grounding verification program for legacy automation systems, maintenance engineers must account for the full measurement ecosystem. In facilities running Siemens SIMATIC S7-300 or Allen-Bradley SLC 500 control platforms, grounding integrity directly affects analog I/O signal accuracy and communication bus stability. A compromised ground reference can introduce noise into 4–20 mA current loops, corrupt RS-485 Modbus RTU signals, and trigger nuisance faults in PROFIBUS DP segments.

During retrofit planning, the 1630-2FC is typically deployed alongside the Fluke 1760 Power Quality Recorder to correlate ground impedance anomalies with power quality events logged at the MCC or distribution panel. For facilities using the Fluke 435-II Series II Power Quality and Energy Analyzer, the FC wireless link allows simultaneous ground resistance trending and harmonic distortion monitoring without requiring a second technician at the panel.

In control cabinet upgrades involving replacement of legacy 24 VDC power supply modules — such as migrating from a Siemens SITOP PSU100S to a Phoenix Contact QUINT-PS — verifying chassis ground continuity with the 1630-2FC before energizing the new supply prevents ground loop faults that can damage sensitive I/O modules. Similarly, when replacing legacy Weidmüller or Phoenix Contact terminal blocks during a cabinet rewire, the 1630-2FC confirms that new PE (protective earth) terminations meet IEC 60364 continuity thresholds before the system is returned to service.

For sites performing communication protocol migration from DeviceNet or ControlNet to EtherNet/IP, proper grounding of the new managed Ethernet switches and media converters is critical. The 1630-2FC provides a fast, non-intrusive verification method that does not require disconnecting the ground conductor, minimizing disruption to adjacent live circuits during the migration window.

Downtime Control During System Migration

Minimizing production downtime during grounding system upgrades requires a structured pre-commissioning verification sequence. The Fluke 1630-2FC supports a non-intrusive clamp-on measurement method that allows ground resistance readings to be taken on energized systems without breaking the ground conductor — a critical advantage when working on live MCCs or active distribution panels where de-energization is not operationally feasible.

Before beginning any retrofit, document baseline ground resistance values at all electrode connection points using the 1630-2FC. These baseline readings serve as the acceptance benchmark for post-retrofit verification and protect the original control program logic from being blamed for faults caused by grounding deficiencies. When replacing legacy PLCs or I/O racks — such as migrating from a GE Fanuc Series 90-30 to a newer platform — confirming that the new rack’s chassis ground reads below 1 Ω relative to the facility ground grid ensures that the replacement hardware operates within its specified EMC immunity envelope.

All units supplied by KNMKS are pre-shipment tested and verified against factory calibration standards before dispatch. This pre-shipment testing protocol ensures that the 1630-2FC arrives on-site ready for immediate deployment, reducing the commissioning window and protecting against measurement errors caused by transit damage or calibration drift. Combined with a support terms confirmed by quotation covering manufacturing defects and calibration integrity, the 1630-2FC provides the reliability assurance required for critical infrastructure maintenance programs.

Retrofit Support FAQ

Q1: Is the Fluke 1630-2FC a direct replacement for the discontinued Fluke 1630?
Yes. The 1630-2FC uses the same clamp-on measurement principle, identical jaw opening (32 mm), and the same 0.1–1500 Ω measurement range as the original Fluke 1630. No changes to test procedures or acceptance criteria are required. The addition of Fluke Connect wireless is backward-compatible — the unit operates in standalone mode if FC pairing is not used.

Q2: What commissioning steps are required after installation?
Verify jaw closure on the target ground conductor, confirm the conductor diameter is within the 32 mm jaw capacity, and perform a reference measurement on a known-good ground point to validate calibration. If using Fluke Connect, pair the unit with your FC-compatible device before beginning the survey. No firmware update is required for standard operation.

Q3: Can the 1630-2FC be used on energized grounding systems without disconnecting the conductor?
Yes. The clamp-on design allows non-intrusive measurement on energized ground conductors. The unit is rated for use in CAT III 300 V environments, making it suitable for use in industrial control panels, MCCs, and distribution switchgear without requiring system de-energization.

Q4: What support terms and supply terms does KNMKS offer?
All Fluke 1630-2FC units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and calibration integrity. Units are pre-shipment tested before dispatch. We maintain in-stock inventory to support urgent replacement requirements and long-term spare parts programs. Contact [email protected] or +86 18359268345 for volume pricing and lead time confirmation.
