Flowserve 3200MD-28-D6-E-04-40-0G-00 Migration-Ready Positioner

Overview

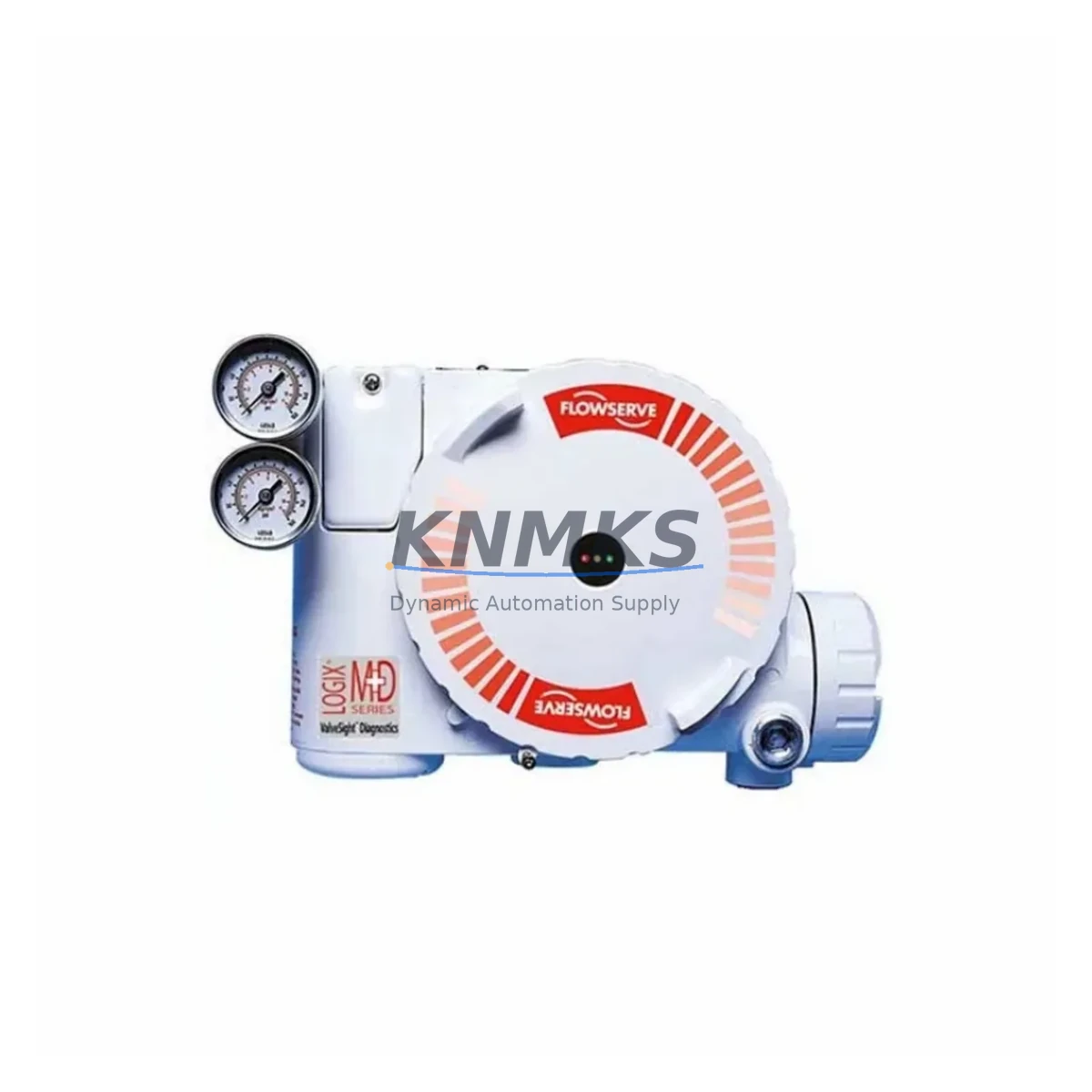

Flowserve 3200MD-28-D6-E-04-40-0G-00 Migration-Ready Positioner for Legacy Control Systems

The Flowserve 3200MD-28-D6-E-04-40-0G-00 is a migration-ready smart valve positioner engineered for direct replacement of discontinued and end-of-life units within the 3200MD Series platform. Designed for industrial process control environments where legacy DCS and PLC architectures remain in active service, this positioner delivers a verified drop-in upgrade path without requiring full control loop redesign or valve actuator replacement. For facilities managing aging automation infrastructure — including systems originally commissioned on Emerson DeltaV, Honeywell Experion, or Yokogawa CENTUM platforms — the 3200MD-28-D6-E-04-40-0G-00 provides a reliable, field-proven migration solution backed by a support terms confirmed by quotation and pre-shipment functional testing.

Before initiating a positioner swap, engineers must confirm several critical compatibility parameters. Power supply capacity at the field junction box should be verified against the positioner’s 4–20 mA HART loop requirements, ensuring the existing cable run and barrier isolator can sustain the minimum loop voltage without signal degradation. Terminal wiring assignments on the legacy unit must be mapped against the 3200MD-28-D6-E-04-40-0G-00 terminal block layout; in most 3200MD Series installations, the supply, feedback, and limit switch terminals retain compatible pinouts, but site-specific wiring documentation should always be cross-referenced before disconnection. Actuator mounting interface dimensions — including the feedback shaft coupling and NAMUR bracket pattern — should be confirmed to match the existing actuator yoke to avoid mechanical rework during installation.

For installations integrated into a HART-enabled asset management system such as Emerson AMS Device Manager or ABB Asset Vision, the positioner’s device descriptor (DD) file version must be validated against the host system’s library. Firmware version compatibility between the 3200MD-28-D6-E-04-40-0G-00 and the site’s handheld communicator — typically a Emerson 475 Field Communicator or equivalent HART-compatible device — should be confirmed prior to commissioning to ensure full parameter access and auto-calibration functionality. Where the legacy positioner was configured with custom characterization curves or split-range settings, these parameters must be re-entered during the commissioning phase using the handheld or host system interface.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 3200MD-28-D6-E-04-40-0G-00 into an existing control loop requires a structured pre-installation audit of the surrounding automation architecture. In most legacy process plants, the positioner interfaces with a broader ecosystem of field instruments and control hardware that must be assessed before the replacement unit is installed.

The field power distribution panel feeding the valve positioner loop should be reviewed to confirm that the 24 VDC or 120 VAC supply rail — often shared with other field transmitters and solenoid valve assemblies — has sufficient current headroom for the replacement unit. Where the existing installation includes a Pepperl+Fuchs or MTL HART multiplexer for multi-drop asset monitoring, the multiplexer’s polling configuration may need to be updated to recognize the new device tag and HART address assigned to the 3200MD-28-D6-E-04-40-0G-00.

In control cabinets where the positioner signal is routed through a signal isolator or I/O module — such as a Weidmüller ACT20P signal conditioner or a Phoenix Contact MINI Analog I/O module — the isolator’s input impedance and loop resistance budget must be recalculated to account for the replacement positioner’s electrical characteristics. For systems using a Siemens S7-300 or S7-400 PLC with analog input cards, the AI module’s channel configuration in STEP 7 or TIA Portal should be verified to ensure the 4–20 mA input range and HART pass-through settings remain correctly mapped after the device swap.

Where the legacy positioner was connected to an HMI faceplate — for example, a Siemens TP700 or Allen-Bradley PanelView terminal displaying valve position feedback — the HMI tag database and screen object bindings should be reviewed to confirm that the position feedback signal scaling and alarm setpoints remain valid after the replacement. In distributed I/O architectures using a Profibus DP or FOUNDATION Fieldbus segment, the GSD or DD file for the new positioner must be imported into the engineering workstation before the device can be recognized on the network segment.

For installations where the positioner is mounted on a rotary actuator driving a butterfly or ball valve, the feedback shaft adapter and travel stop settings must be confirmed against the actuator’s mechanical travel range. A Flowserve Logix 500 or Logix 3200 series positioner previously installed on the same actuator yoke will typically share the same NAMUR mounting pattern, simplifying the mechanical exchange. However, the pneumatic tubing connections to the actuator’s open and close ports should be inspected and re-sealed during the swap to prevent air leakage that could affect positioning accuracy during commissioning.

Downtime Control During System Migration

Minimizing process downtime during a positioner replacement requires careful pre-staging of the replacement unit and a clearly defined switchover sequence agreed upon with the operations team. The 3200MD-28-D6-E-04-40-0G-00 should be bench-tested and pre-configured — including HART tag assignment, travel calibration range entry, and action direction setting — before it is brought to the field, so that the on-site installation window is limited to mechanical mounting, wiring reconnection, and final auto-calibration.

Where the process loop cannot be taken fully offline, a partial bypass strategy using a manual handwheel override on the actuator allows the valve to be held in a safe position while the positioner is exchanged. The existing positioner’s configuration parameters — including split-range settings, tight shutoff threshold, and position alarm limits — should be documented using a HART communicator before disconnection, so that these values can be re-entered into the replacement unit without relying on memory or incomplete site records.

After mechanical installation and wiring reconnection, the auto-calibration routine on the 3200MD-28-D6-E-04-40-0G-00 should be initiated via the HART communicator or host asset management system. The calibration sequence will automatically determine the valve’s full open and full closed travel limits, set the zero and span, and verify the feedback signal linearity across the full stroke. Once calibration is confirmed, a step response test — commanding the valve from 0% to 25%, 50%, 75%, and 100% in sequence — should be performed to verify positioning accuracy and response time before the loop is returned to automatic control. This structured commissioning approach protects the original program logic in the DCS or PLC, avoids unplanned process upsets, and ensures that the control loop is returned to service with verified performance.

Retrofit Support FAQ

Q: Is the 3200MD-28-D6-E-04-40-0G-00 a direct replacement for my existing Flowserve 3200MD Series positioner?
A: Yes. The 3200MD-28-D6-E-04-40-0G-00 is designed as a form-fit-function replacement for discontinued units within the 3200MD Series. The NAMUR mounting interface, M20 conduit entry, and 4–20 mA HART signal loop are compatible with standard 3200MD Series installations. Minor wiring verification is recommended before reconnection.

Q: What commissioning steps are required after installation?
A: After mechanical mounting and wiring reconnection, initiate the auto-calibration routine via a HART-compatible communicator or your host asset management system. The positioner will automatically determine travel limits and set zero/span. A step response test across the full valve stroke is recommended before returning the loop to automatic control. Total commissioning time is typically under 30 minutes for a standard single-acting actuator installation.

Q: Can I use my existing HART handheld communicator to configure this positioner?
A: Yes, provided your communicator supports HART 7 or is backward-compatible. The Emerson 475 Field Communicator and most current-generation HART handhelds are compatible. Ensure the device descriptor (DD) file for the 3200MD-28-D6-E-04-40-0G-00 is loaded on your communicator before attempting configuration. If the DD file is not available, contact your asset management system vendor for the latest library update.

Q: What does the support terms confirmed by quotation cover, and how is stock availability managed?
A: The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing including loop calibration verification and leak testing before dispatch. Stock is maintained across regional distribution hubs to support urgent replacement requirements. Contact [email protected] or +86 18359268345 to confirm current inventory availability and lead time for your specific quantity requirement.
