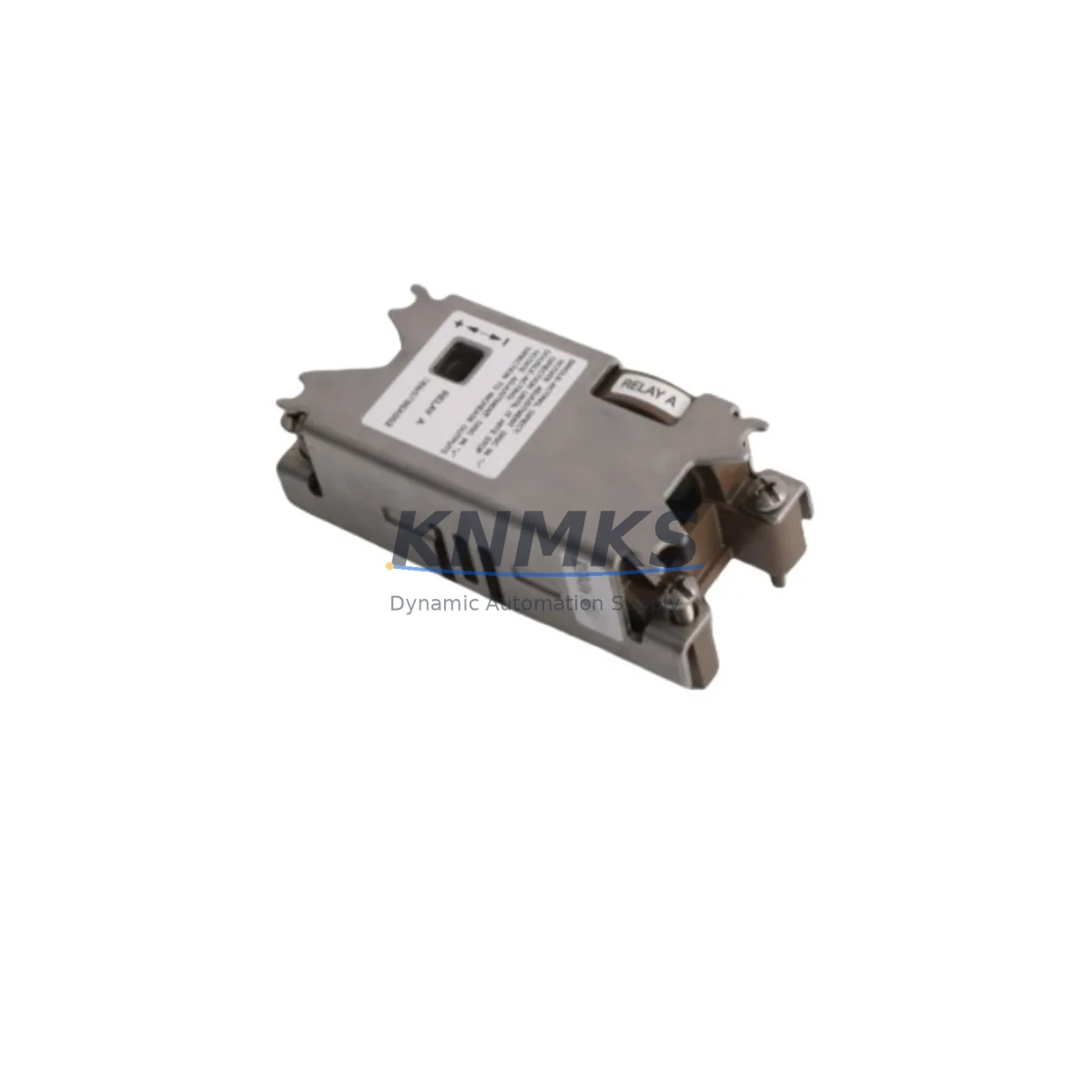

Fisher 38B5786X112 Migration-Ready Pneumatic Relay

Overview

Fisher 38B5786X112 Migration-Ready Pneumatic Relay for Legacy Control Systems

The Fisher 38B5786X112 is a single-acting pneumatic relay module engineered for the DVC6000 series digital valve controller platform. As legacy DCS and SIS architectures age into end-of-life cycles, plant engineers and maintenance teams increasingly rely on verified drop-in replacements like the 38B5786X112 to extend the operational life of existing control loops without triggering full positioner changeouts. This relay is a direct functional equivalent for obsolete or worn relay assemblies within the DVC6000 and DVC6010 positioner families, making it a first-choice spare for turnaround planning, emergency restocking, and long-cycle maintenance programs.

When planning a relay replacement within an active control loop, engineers must confirm several critical parameters before committing to a swap. Supply pressure range compatibility is the first checkpoint — the 38B5786X112 is rated for instrument air supply between 1.4 and 10 bar (20–145 psi), consistent with standard DVC6000 operating envelopes. Terminal block wiring on the positioner body does not require modification, as the relay mounts internally to the DVC6000 housing and interfaces directly with the existing pneumatic manifold. Technicians should verify that the positioner’s feedback assembly, including the travel sensor and the FIELDVUE DVC6000 main electronics module, remains undisturbed during relay removal and reinstallation to avoid recalibration drift.

For sites running HART-enabled positioners integrated into a DeltaV or AMS Device Manager environment, relay replacement does not affect the HART communication link or device descriptor (DD) mapping. However, a full auto-calibration sequence using the ValveLink software or AMS Suite is strongly recommended post-installation to re-establish the relay’s output characterization and confirm actuator response curves. Sites using the DVC6020 or DVC6030 variants with double-acting actuators should note that the 38B5786X112 is specific to single-acting configurations — double-acting applications require the corresponding relay assembly for that positioner subtype.

In broader retrofit scenarios — particularly where aging Fisher DVC5000 or DVC2000 positioners are being migrated to the DVC6000 platform — the 38B5786X112 becomes part of a larger bill of materials. A typical migration kit for a single valve station may also include the DVC6000 mounting bracket assembly, a replacement feedback arm and magnet assembly, updated pneumatic tubing fittings, and a HART 375 or 475 field communicator for on-site configuration. Where the existing actuator uses a Fisher 667 or 657 diaphragm actuator, the positioner-to-actuator interface must be re-verified for yoke compatibility and travel range before the relay is commissioned.

Control cabinet upgrades that incorporate DVC6000 positioners alongside Rosemount 3051 pressure transmitters or Fisher 249 level sensors benefit from standardized HART loop architecture, reducing the complexity of multi-device calibration during commissioning. In these environments, the 38B5786X112 relay’s consistent output performance is essential to maintaining loop gain stability across the full actuator travel range. Sites with older pneumatic signal infrastructure — particularly those still running 3–15 psi analog positioners — should plan for I/P transducer removal and signal rewiring as part of the migration scope, as the DVC6000 platform operates exclusively on digital HART or FOUNDATION Fieldbus signals.

Downtime exposure during relay replacement is typically limited to the duration of the valve isolation and positioner removal sequence. With pre-staged tooling and a verified replacement unit on hand, experienced technicians can complete a relay swap within a single maintenance window of two to four hours, including post-installation calibration. Pre-shipment functional testing of the 38B5786X112 against DVC6000 test fixtures is performed prior to dispatch, and each unit ships with a support terms confirmed by quotation covering manufacturing defects and relay performance under specified operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 38B5786X112 into an existing automation system requires a structured pre-retrofit assessment. Begin by auditing the positioner nameplate data on all DVC6000 units in the affected control loop to confirm relay subtype and actuator action. Where the existing installation includes a Fisher 667 diaphragm actuator paired with a DVC6010 positioner, the relay swap can proceed without actuator disassembly, provided the feedback arm and magnet assembly remain within calibrated travel limits.

For control cabinets housing multiple positioners alongside Rosemount 3051C differential pressure transmitters and Fisher 249B level sensors, the relay replacement should be sequenced to avoid simultaneous loop interruptions. HART multiplexers or AMS Device Manager scan cycles should be paused during the swap to prevent false device alerts from propagating to the DCS. After reinstallation, re-enable the HART scan and verify that the DVC6000 device tag, loop current, and travel feedback signal are correctly reported in the DeltaV or Honeywell Experion historian.

Sites planning broader I/O expansion or control system migration from legacy Siemens S5 or Allen-Bradley PLC-5 platforms to modern S7-300 or ControlLogix architectures should treat the 38B5786X112 relay replacement as an opportunity to standardize positioner firmware versions across the valve train. Coordinating relay restocking with a broader spare parts lifecycle review — covering items such as DVC6000 main electronics boards, HART 475 field communicators, and pneumatic supply regulators — reduces the risk of unplanned outages during the transition period.

Downtime Control During System Migration

Minimizing production downtime during a relay replacement requires pre-staging all materials and verifying the replacement unit before the maintenance window opens. The 38B5786X112 ships pre-tested and ready for installation, eliminating the need for bench verification on site. To protect existing program logic and HMI faceplate configurations, the DCS control mode for the affected loop should be switched to manual prior to valve isolation, with the setpoint held at the last stable process value. This prevents integrator windup or output bumps from propagating to downstream equipment during the positioner offline period.

Where the valve is installed in a critical service — such as a reactor feed or compressor surge control loop — a bypass valve or manual handwheel override should be engaged before positioner removal. After relay installation and pneumatic reconnection, a bench stroke test using a HART 475 communicator or ValveLink laptop connection allows the technician to verify full travel response and relay output linearity before returning the loop to automatic control. HMI graphics should be reviewed post-commissioning to confirm that valve position feedback, travel deviation alerts, and partial stroke test schedules are correctly mapped to the reinstalled positioner.

For multi-valve migration projects, staggering relay replacements across maintenance shifts — rather than executing all swaps simultaneously — preserves process continuity and allows each loop to be individually verified before the next is taken offline. This approach, combined with pre-shipment testing and a support terms confirmed by quotation on each 38B5786X112 unit, provides a structured risk mitigation framework for plant engineers managing legacy system modernization under tight turnaround schedules.

Retrofit Support FAQ

Q: Is the Fisher 38B5786X112 a direct drop-in replacement for the relay assembly in my existing DVC6000 positioner?
A: Yes. The 38B5786X112 is designed as a direct internal replacement for the single-acting relay assembly within the DVC6000 and DVC6010 positioner families. No external piping or wiring modifications are required. A post-installation auto-calibration via ValveLink or AMS Suite is recommended to confirm relay output characterization.

Q: Will replacing the relay affect my HART communication link or DCS device mapping?
A: No. The relay is a pneumatic output component and does not interact with the HART electronics module or device descriptor. Your DeltaV, AMS, or Honeywell Experion device tag and loop configuration remain intact. Resume the HART scan after installation and verify travel feedback signal integrity before returning to automatic control.

Q: What is the lead time and inventory availability for the 38B5786X112?
A: KNMKS maintains stock of the Fisher 38B5786X112 for immediate dispatch. Orders confirmed before the daily cut-off are typically shipped same day or next business day. Contact [email protected] or call +86 18359268345 to confirm current inventory levels and lead time for your required quantity.

Q: Does the 38B5786X112 carry a support terms, and what does it cover?
A: Yes. Each unit is covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and relay performance under the specified supply pressure and temperature operating conditions. Pre-shipment functional testing is performed on every unit prior to dispatch to ensure out-of-box reliability.
