Emerson TREXLHPNAWS1S Maintenance-Proven Spare Part for Factory Uptime

Overview

Emerson TREXLHPNAWS1S Maintenance-Proven Spare Part for Factory Uptime

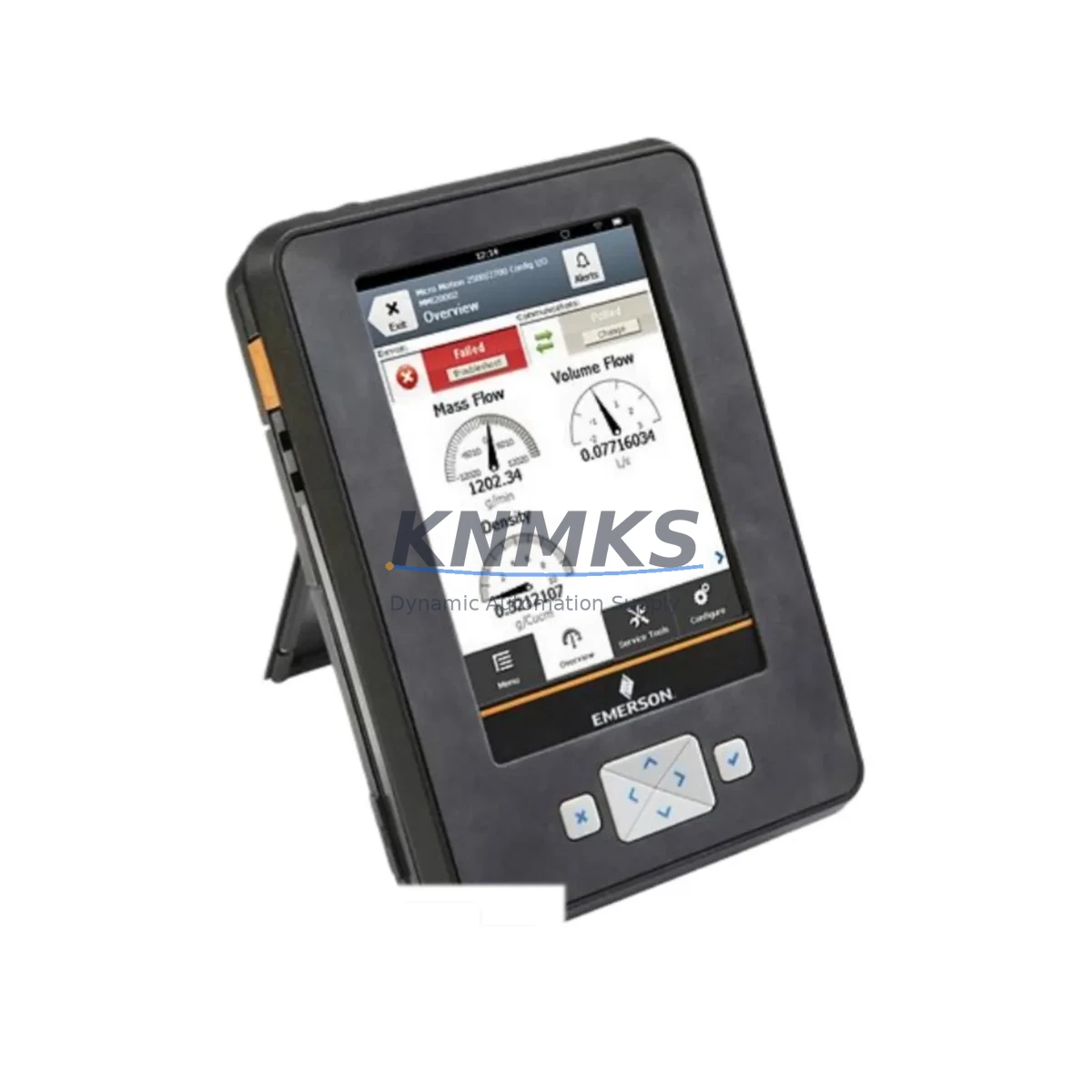

The Emerson TREXLHPNAWS1S is the AMS Trex Device Communicator Plus — a rugged, intrinsically safe handheld field communicator engineered for HART and FOUNDATION Fieldbus instrument configuration, diagnostics, and loop testing in demanding industrial environments. As a maintenance-proven spare part, the TREXLHPNAWS1S supports continuous plant uptime by enabling field technicians to commission, troubleshoot, and verify smart instruments without interrupting the process loop. Whether deployed in petrochemical refineries, power generation facilities, water treatment plants, or discrete manufacturing lines, this communicator is a critical tool in every instrumentation engineer’s spare parts cabinet.

KNMKS supplies the TREXLHPNAWS1S as an original, factory-sourced spare with full functional verification prior to shipment. Each unit undergoes pre-delivery testing covering HART communication integrity, Fieldbus segment connectivity, display function, keypad response, wireless module activation, and battery charge capacity. A support terms confirmed by quotation is included with every unit, covering manufacturing defects and communication failures under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning around the TREXLHPNAWS1S requires a systems-level view of the instrumentation loop and control cabinet. When a field communicator is flagged for replacement during a scheduled outage or annual calibration cycle, maintenance engineers should treat the event as an opportunity to audit the broader measurement and control chain.

Begin with the transmitter side: Emerson Rosemount 3051 pressure transmitters, 644 temperature transmitters, and 8732 magnetic flowmeter converters are the most common HART devices configured via the TREXLHPNAWS1S. Verify that each transmitter’s loop wiring is intact, terminal connections are torqued to specification, and that 4–20 mA signal integrity is confirmed with a calibrated loop calibrator before reconnecting the communicator.

On the power supply side, inspect the 24 VDC instrument power supply feeding the HART loop. Aging power supplies — particularly those in cabinets exceeding 10 years of service — can introduce ripple that degrades HART signal quality. If the TREXLHPNAWS1S reports intermittent communication errors, a failing instrument power supply or a degraded HART modem filter is often the root cause rather than the communicator itself.

For FOUNDATION Fieldbus segments, check the FF segment terminator, FF power conditioner, and any segment couplers in the H1 trunk. A faulty terminator or an improperly loaded segment will prevent the TREXLHPNAWS1S from establishing stable communication even when the communicator hardware is fully functional. Emerson’s DeltaV I/O cards and FF linking devices should also be inspected for firmware currency and physical connector condition.

In control cabinets where the TREXLHPNAWS1S is used for loop testing, ensure that HART multiplexers, signal isolators (such as Phoenix Contact or Pepperl+Fuchs HART isolators), and terminal blocks are free of corrosion and rated for the ambient temperature of the installation. Fuse holders protecting the 24 VDC instrument bus should be checked for continuity and replaced on a 3-year cycle as a preventive measure.

For wireless deployments, the WirelessHART gateway — typically an Emerson 1420 or 781 gateway — should be confirmed as online and within firmware compliance before deploying the TREXLHPNAWS1S in wireless mode. Wireless network health, including mesh node count and update rate, directly affects the communicator’s ability to read and write device parameters over the air.

Procurement engineers should maintain a minimum of one TREXLHPNAWS1S unit in the site spare parts inventory for every 200 HART or FF instruments under management. Given the communicator’s role in emergency fault isolation and rapid loop restoration, a stockout during an unplanned shutdown carries significant production risk. KNMKS offers long-term supply agreements and priority allocation for sites with high instrument density.

Site Replacement Workflow

Step 1 – Verify Compatibility: Confirm the replacement TREXLHPNAWS1S carries the same hardware revision and wireless option (AWS1S suffix = WirelessHART + Bluetooth + NiMH battery) as the unit being retired. Check the Emerson AMS Device Manager version installed on site to ensure the communicator firmware is compatible.

Step 2 – Pre-Replacement Backup: If the outgoing unit contains custom device descriptions (DDL/EDDL files) or saved calibration records, export these to the AMS Device Manager database before decommissioning. The TREXLHPNAWS1S supports USB data transfer for configuration backup.

Step 3 – Physical Swap: Power down the communicator, disconnect from the HART loop or FF segment, and remove the battery for transport in hazardous areas per site EHS procedures. Install the replacement unit, charge the battery to full capacity, and perform a self-test sequence.

Step 4 – Communication Verification: Connect to a known-good HART device (e.g., Rosemount 3051) and confirm tag read, PV display, and write access. For FF, connect to a segment and verify device list population and parameter read/write.

Step 5 – Return to Service: Log the replacement in the CMMS (e.g., SAP PM or Maximo), update the spare parts register, and submit the retired unit for evaluation or disposal per Emerson’s end-of-life guidance.

This workflow minimizes loop downtime to under 30 minutes for a trained instrumentation technician and eliminates the risk of misconfiguration during the transition.

Spare Parts Support FAQ

Q1: Is the TREXLHPNAWS1S compatible with older HART revision 5 devices still in service?
Yes. The AMS Trex Device Communicator Plus supports HART revisions 5, 6, and 7 simultaneously. It automatically negotiates the correct revision when connecting to legacy transmitters, making it fully backward compatible with older Rosemount, Fisher, and Yokogawa HART instruments without any configuration change.

Q2: What is included in KNMKS’s support terms confirmed by quotation for the TREXLHPNAWS1S?
The support terms confirmed by quotation cover manufacturing defects, communication module failures, display malfunctions, and battery capacity degradation below 70% of rated capacity under normal operating conditions. It does not cover physical damage from drops, liquid ingress beyond IP54 rating, or unauthorized firmware modifications. Support requests are processed within 5 business days with advance replacement available for critical sites.

Q3: How should sites manage TREXLHPNAWS1S inventory to avoid stockouts during unplanned shutdowns?
Industry best practice recommends a 1:200 ratio of field communicators to managed HART/FF instruments, with a minimum of one unit per control room regardless of instrument count. For sites with multiple process units or 24/7 operations, a two-unit minimum is advisable — one active, one charged and ready in the spare parts cabinet. KNMKS offers blanket purchase orders and consignment stock arrangements for high-volume sites.

Q4: Can the TREXLHPNAWS1S be used to configure non-Emerson HART devices?
Yes. The TREXLHPNAWS1S supports universal HART communication and includes a library of device descriptions (DDL/EDDL) for major instrument manufacturers including ABB, Endress+Hauser, Yokogawa, Honeywell, and Siemens. For devices not in the onboard library, generic HART communication (PV, SV, loop current, percent range) remains available, and custom DDL files can be loaded via USB from the Emerson FieldComm Group library.
