Emerson Fisher 38B6041X082 Maintenance-Proven Spare Part

Overview

Emerson Fisher 38B6041X082 Maintenance-Proven Spare Part for Factory Uptime

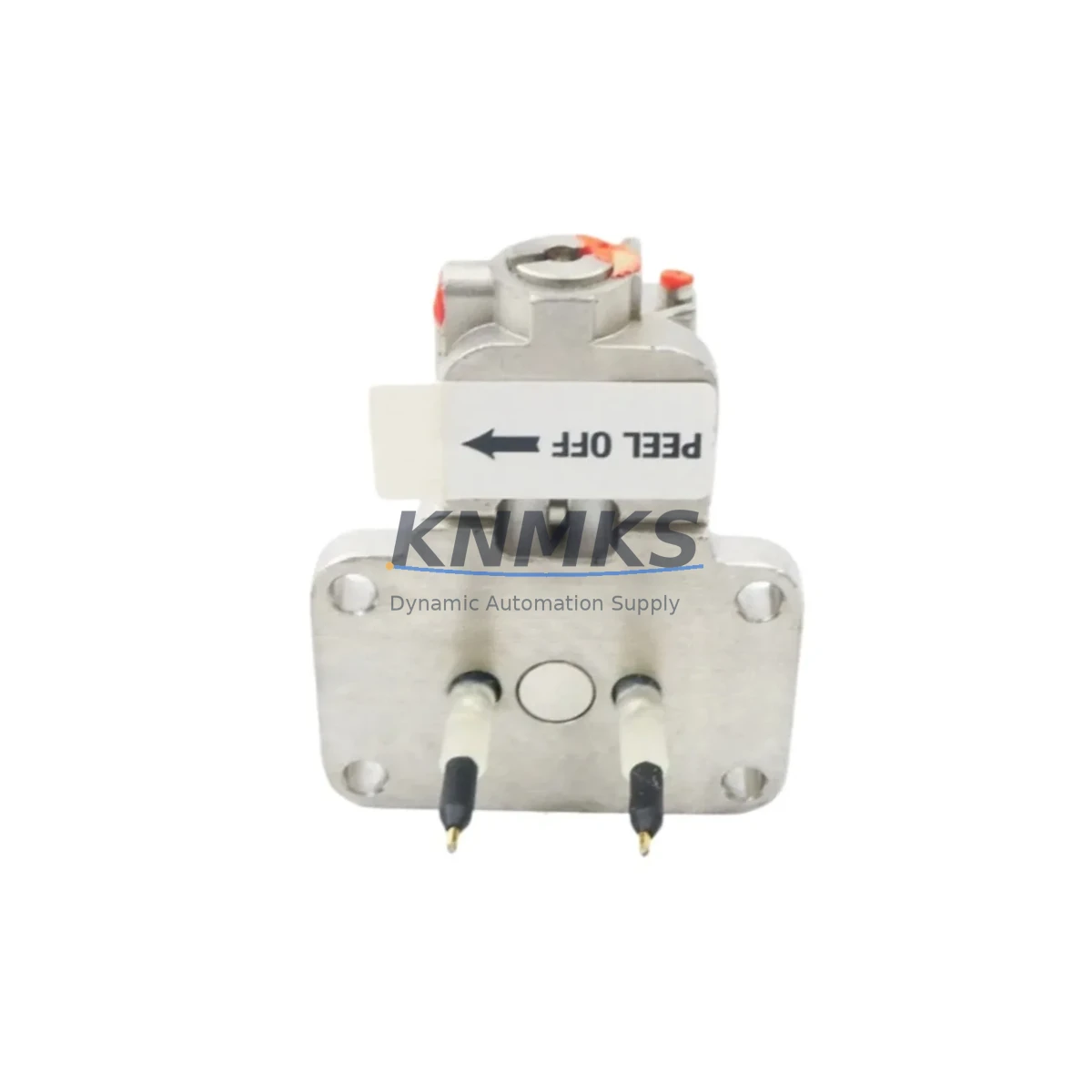

The Emerson Fisher 38B6041X082 is an original I/P Converter Kit engineered for the Fieldvue DVC Series digital valve controllers, including the DVC6200, DVC6100, and DVC2000 families. This spare part is a critical component in pneumatic control valve positioner assemblies across energy, petrochemical, power generation, and continuous process manufacturing environments. Sourced directly from authorized supply channels, the 38B6041X082 is tested prior to dispatch and backed by a support terms confirmed by quotation, ensuring your maintenance team can restore valve control loops with confidence and minimal downtime.

For maintenance engineers managing aging DCS or PLC-driven control loops, the I/P converter is one of the highest-wear components in a valve positioner assembly. Signal drift, zero-point shift, and mechanical fatigue in the I/P stage are among the most common root causes of valve response deviation. Stocking the 38B6041X082 as a certified spare eliminates the lead-time risk associated with emergency procurement and supports a proactive maintenance posture aligned with ISO 55000 asset management principles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 38B6041X082 I/P Converter Kit in a Fieldvue DVC positioner, a thorough site inspection of the surrounding control loop is essential to prevent repeat failures and ensure stable valve response after recommissioning. Maintenance engineers should treat this replacement as an opportunity to audit the full pneumatic and electrical signal chain.

Begin with the 4–20 mA signal wiring at the field junction box and marshalling cabinet. Corroded terminals, loose ferrules, or undersized cable cross-sections can introduce signal noise that accelerates I/P converter wear. Verify loop resistance is within the DVC’s specified range and check for ground loops that may cause zero-point drift. If the positioner is connected via HART communication, confirm that the HART modem or multiplexer port is functioning correctly — a degraded HART signal can mask early I/P performance issues during routine diagnostics.

Inspect the instrument air supply to the positioner. Contaminated or wet air is a leading cause of premature I/P converter failure. Check the upstream air filter-regulator assembly (such as the Fisher 67CFR or equivalent) for moisture accumulation, blocked filter elements, and correct set pressure. A supply pressure outside the 1.4–7.0 bar operating range will directly affect I/P output accuracy. If the control valve is part of a critical shutdown or modulating service, also verify the condition of the solenoid valve in the supply line — a leaking solenoid can cause spurious valve movement during the replacement window.

For DVC6200 units with the advanced diagnostics module, download a valve signature before and after the I/P replacement to establish a baseline for future predictive maintenance. Review the friction, dead band, and supply pressure readings in AMS Device Manager or ValveLink software. If the positioner is mounted on a rotary actuator, also inspect the feedback linkage and travel sensor — a worn feedback arm can produce erratic position signals that are often misdiagnosed as I/P converter faults.

In the same maintenance window, assess the condition of the DVC terminal box gasket and cable gland seals. Moisture ingress into the electronics module is a common secondary failure mode in outdoor or wash-down environments. If the unit is installed in a classified hazardous area, verify that all conduit seals and Ex-d fittings remain intact after the repair. Finally, check the positioner mounting bracket and actuator stem connector for mechanical wear — loose mounting hardware can introduce vibration-induced signal instability that shortens the service life of the replacement I/P kit.

Site Replacement Workflow

Replacing the 38B6041X082 I/P Converter Kit in the field follows a structured sequence to minimize control loop downtime and ensure safe recommissioning:

1. Isolate the control loop: Place the DCS or PLC output in manual mode. Confirm the valve is in its fail-safe position before breaking the pneumatic supply connection.
2. Depressurize and vent: Isolate and vent the instrument air supply to the positioner. Confirm zero pressure at the positioner supply port before opening the housing.
3. Document current configuration: Record the DVC configuration parameters (travel calibration, PID tuning, alert setpoints) using ValveLink or AMS Device Manager. This protects against configuration loss during the replacement.
4. Remove and replace the I/P kit: Follow Fisher bulletin 62.1:DVC6200 for the correct torque sequence and O-ring replacement procedure. Install the 38B6041X082 kit with new O-rings supplied in the kit. Do not reuse old O-rings.
5. Restore air supply and perform zero/span calibration: Reconnect the instrument air supply and perform a full auto-calibration using the HART communicator or ValveLink software. Verify that the valve strokes smoothly across the full travel range.
6. Return to automatic control: Confirm stable 4–20 mA loop current, correct HART response, and normal valve position feedback before returning the loop to automatic mode in the DCS or PLC.
7. Log the replacement: Record the part number, installation date, and post-replacement calibration data in the CMMS (e.g., SAP PM, Maximo) to support future maintenance planning and support terms tracking.

This workflow is compatible with both hot-swap maintenance during reduced-load periods and planned turnaround replacement strategies. The 38B6041X082 is a direct OEM replacement that requires no hardware modification to the DVC housing, reducing the risk of installation error and ensuring full compatibility with existing actuator and valve body assemblies.

Spare Parts Support FAQ

Q1: Is the 38B6041X082 compatible with all Fieldvue DVC6200 variants, including SIS and partial stroke testing configurations?
The 38B6041X082 I/P Converter Kit is designed for the standard Fieldvue DVC6200 positioner platform. Compatibility with SIS (Safety Instrumented System) variants such as the DVC6200 SIS should be confirmed against the specific device nameplate and Fisher documentation, as SIS-rated units may have additional certification requirements for replacement parts. Contact our technical team with your full device model number for confirmation before ordering.

Q2: What is included in the support terms confirmed by quotation, and how is a support terms claim processed?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes functional testing before dispatch. To initiate a support terms claim, contact [email protected] with the order number, installation date, and a description of the failure mode. Replacement or refund is processed within 5–7 business days of claim verification.

Q3: Can this spare part be stocked long-term, and what are the recommended storage conditions?
Yes. The 38B6041X082 is suitable for long-term spare parts inventory. Store in original packaging in a dry, temperature-controlled environment (0°C to 40°C, relative humidity below 75% non-condensing). Avoid exposure to direct sunlight, corrosive atmospheres, or strong electromagnetic fields. Inspect O-ring condition before installation if the part has been stored for more than 24 months.

Q4: Do you support long-term supply agreements for critical spare parts?
Yes. KNMKS offers long-term supply commitments for maintenance-critical components including the 38B6041X082 and related Fieldvue DVC spare parts. Frame agreements with scheduled delivery, reserved stock allocation, and fixed pricing are available for procurement teams managing annual maintenance budgets or turnaround planning. Contact [email protected] or +86 18359268345 to discuss your requirements.
