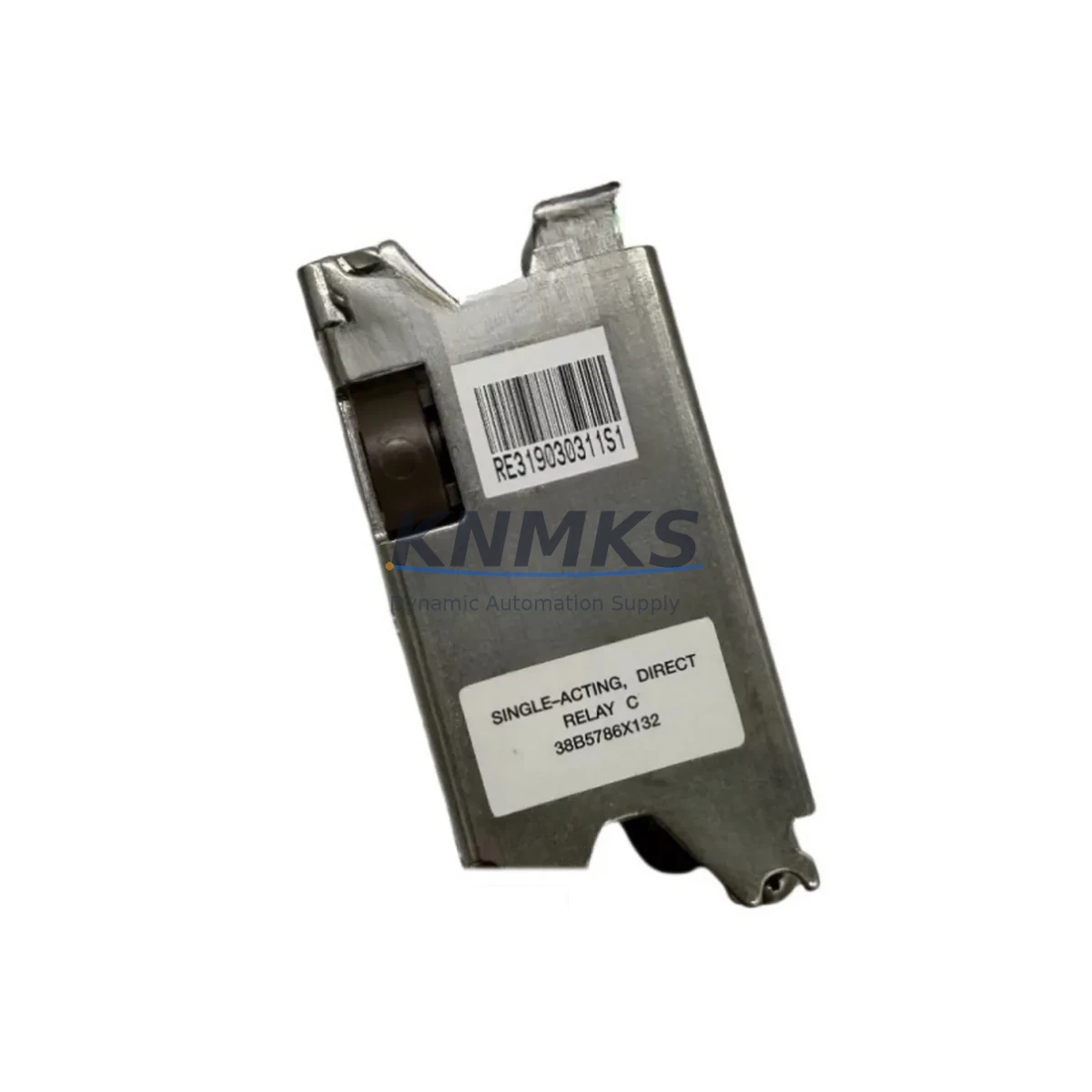

Emerson 38B5786X132 Fail-Safe Pneumatic Relay

Overview

Emerson 38B5786X132 Fail-Safe Pneumatic Relay: Fault Protection and Critical Industrial Field Reliability

The Emerson 38B5786X132 is a precision-engineered fail-safe pneumatic relay designed for deployment in the most demanding industrial control environments. Purpose-built for compatibility with Fisher 3582 and Fisher 3610 valve positioners, this relay serves as a critical signal transmission and amplification component within pneumatic control loops — ensuring that valve positioning commands are executed accurately, consistently, and without interruption even under adverse field conditions.

In continuous production facilities — including petrochemical refineries, thermal power stations, metallurgical plants, water treatment infrastructure, and port logistics systems — control loop integrity is non-negotiable. A single relay failure can cascade into valve misoperation, process deviation, emergency shutdown, or unplanned downtime. The 38B5786X132 is engineered to eliminate these risks through robust mechanical construction, tight signal fidelity, and proven compatibility with Emerson’s Fisher positioner platform.

This relay is specifically designed to handle the signal amplification demands of high-cycle valve applications, where repeated actuation under variable supply pressure can degrade lesser components. Its internal diaphragm assembly maintains consistent output pressure ratios across the full operating range, preventing signal drift that could otherwise cause valve hunting, overshoot, or failure to reach setpoint — all of which represent serious safety and process quality risks in critical interlock and modulating control applications.

In high electromagnetic interference environments — such as those found near variable frequency drives, large motor starters, arc furnaces, or high-voltage switchgear — pneumatic relay performance can be compromised by induced vibration or electrical noise affecting associated instrumentation. The 38B5786X132’s all-pneumatic signal path eliminates susceptibility to EMI-induced signal corruption, making it an ideal choice for control cabinets installed in electrically noisy industrial zones. When paired with a Fisher 3582 positioner and a properly shielded I/P transducer such as the Fisher 567 or Fisher 546, the complete pneumatic signal chain delivers exceptional noise immunity from the controller output to the final control element.

Dust ingress, moisture condensation, and corrosive atmospheres present in mining operations, coastal port facilities, and chemical processing plants demand components with superior environmental sealing. The 38B5786X132 is constructed to withstand these conditions, maintaining reliable operation where inferior relays would suffer diaphragm degradation, seat erosion, or internal corrosion. For installations in particularly aggressive environments, pairing this relay with a Fisher 3610J positioner — which offers enhanced environmental protection — provides a complete, field-proven solution for outdoor or wash-down service.

Surge protection within the control cabinet is equally important. While the 38B5786X132 itself operates in the pneumatic domain, the upstream instrumentation — including 4–20 mA signal loops, HART communicators, and DCS analog output cards — must be protected from voltage transients. Integrating surge protection devices on the I/P transducer signal wiring, alongside the 38B5786X132 in the positioner assembly, ensures that the entire control chain from the DCS to the valve actuator remains protected against power line disturbances and lightning-induced surges.

Thermal management within control enclosures is another critical reliability factor. Excessive cabinet temperatures accelerate diaphragm aging in pneumatic components and degrade the calibration stability of associated instruments. The 38B5786X132’s operating temperature range accommodates the thermal profiles of well-designed industrial control panels, and its low internal heat generation contributes to overall cabinet thermal balance. For high-ambient installations, combining this relay with proper cabinet ventilation or air conditioning — and ensuring that companion components such as the Fisher 3582 positioner are within their rated temperature envelope — is essential for long-term reliability.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable valve control in critical industrial applications depends not on a single component, but on a carefully integrated system of instrumentation, signal conditioning, and protective devices working in concert. The Emerson 38B5786X132 pneumatic relay occupies a central role in this architecture, but its performance is maximized when the surrounding control cabinet is properly equipped.

At the positioner level, the Fisher 3582 positioner provides the primary signal conversion and valve positioning function, with the 38B5786X132 relay amplifying its pneumatic output to drive larger actuators or to provide the pressure gain required for fast-response applications. For digital valve control architectures, the Fisher 3610 FIELDVUE positioner integrates HART or FOUNDATION Fieldbus communication, enabling remote diagnostics and partial stroke testing — a key safety requirement in SIL-rated interlock loops.

On the signal input side, the Fisher 546 or Fisher 567 I/P transducer converts the 4–20 mA control signal from the DCS or safety PLC into a proportional pneumatic signal, which is then processed by the positioner and amplified by the 38B5786X132 relay. Protecting the 4–20 mA wiring with dedicated signal surge arresters — particularly in outdoor installations or facilities with frequent lightning activity — prevents transient damage to the I/P transducer and maintains loop integrity.

Air supply quality is equally critical. Installing a Fisher 67CFR filter regulator upstream of the positioner assembly ensures that the pneumatic supply to the 38B5786X132 is clean, dry, and regulated to the correct pressure. Contaminated or wet instrument air is a leading cause of diaphragm and seat wear in pneumatic relays, and a properly maintained filter regulator dramatically extends service life. For critical applications, a redundant air supply with automatic switchover — using a volume booster or air accumulator tank — provides additional protection against supply interruption.

In safety instrumented systems, the complete valve assembly — comprising the Fisher actuator, 3582 or 3610 positioner, 38B5786X132 relay, and associated solenoid valve — must be validated as a functional safety unit. Solenoid valves from the ASCO Series 327 or equivalent, installed in the pneumatic signal path, provide the de-energize-to-trip function required for SIL 2 or SIL 3 safety loops, ensuring that the valve moves to its safe position on demand regardless of the state of the control system.

Critical Industrial Safety Applications

The Emerson 38B5786X132 pneumatic relay is deployed across a wide spectrum of critical industrial applications where valve control reliability directly impacts process safety and operational continuity.

In petrochemical and refining facilities, this relay supports the precise flow control of hydrocarbons, steam, and process gases through modulating control valves. Its fail-safe characteristics are essential in emergency depressurization and blowdown systems, where valve response time and reliability are safety-critical. The relay’s resistance to the high-temperature, high-vibration environment of a refinery control valve station makes it a preferred choice for long-term, low-maintenance service.

In thermal and nuclear power generation, feedwater control valves, steam bypass valves, and turbine inlet valves rely on pneumatic positioners and relays to maintain precise control under rapidly changing load conditions. The 38B5786X132’s ability to maintain accurate output pressure under varying supply conditions ensures that these critical valves respond correctly to control signals even during grid disturbances or load rejection events.

In mining and mineral processing, slurry control valves, tailings pond discharge valves, and reagent dosing valves operate in environments characterized by extreme dust, vibration, and corrosive chemical exposure. The robust construction of the 38B5786X132 makes it well-suited for these demanding conditions, where frequent maintenance access is difficult and component reliability is paramount.

In water and wastewater treatment infrastructure, the relay supports the control of influent, effluent, and chemical dosing valves in facilities that must operate continuously to meet public health and environmental compliance requirements. Unplanned valve failures in these applications can result in regulatory violations, environmental incidents, and public health risks — making the reliability of every component in the control loop a matter of public safety.

In metallurgical and steel production facilities, the relay is used in cooling water control, gas flow regulation, and hydraulic pressure control applications where high temperatures and heavy vibration are constant operating conditions. Its compatibility with Fisher positioners widely deployed in these industries ensures straightforward integration and spare parts availability.

In port and marine applications, including ship loading arms, ballast control systems, and offshore platform process valves, the relay’s corrosion resistance and wide operating temperature range support reliable operation in salt-laden, high-humidity environments where electronic components would require additional protection.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the Emerson 38B5786X132?
All 38B5786X132 units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. This support terms covers manufacturing defects, functional failure under normal operating conditions, and dimensional non-conformance with OEM specifications. In the event of a support terms claim, KNMKS will arrange replacement or repair at no additional cost to the customer.

Q2: What pre-shipment testing is performed on each unit?
Every 38B5786X132 relay undergoes a 100% functional inspection prior to dispatch. This includes verification of diaphragm integrity, seat sealing performance, output pressure ratio accuracy, and dimensional conformance. Units that do not meet OEM specifications are rejected and not shipped. A test report is available upon request for critical applications.

Q3: Is the 38B5786X132 compatible with both Fisher 3582 and Fisher 3610 positioners?
Yes. The 38B5786X132 is a direct OEM-equivalent replacement relay for both the Fisher 3582 and Fisher 3610 positioner series. It is also compatible with other Fisher positioner models that use the same relay interface. If you are unsure about compatibility with a specific positioner model or serial number range, please contact our technical team at [email protected] with your positioner nameplate details for confirmation before ordering.

Q4: Can KNMKS support long-term and emergency spare parts requirements?
KNMKS maintains dedicated inventory of the 38B5786X132 and related Fisher positioner components to support both planned maintenance programs and emergency breakdown situations. We offer expedited shipping for urgent requirements and can work with customers to establish consignment stock or blanket order arrangements for facilities with high valve populations. Our supply chain is structured to ensure continuity of supply for critical spare parts, minimizing the risk of extended downtime due to parts unavailability.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Emerson
Assorted Brands

Model / Series

38B5786X132
Assorted Series

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: Emerson 38B5786X132
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
