Consilium 5100070-02A Maintenance-Proven Spare Part for Factory Uptime

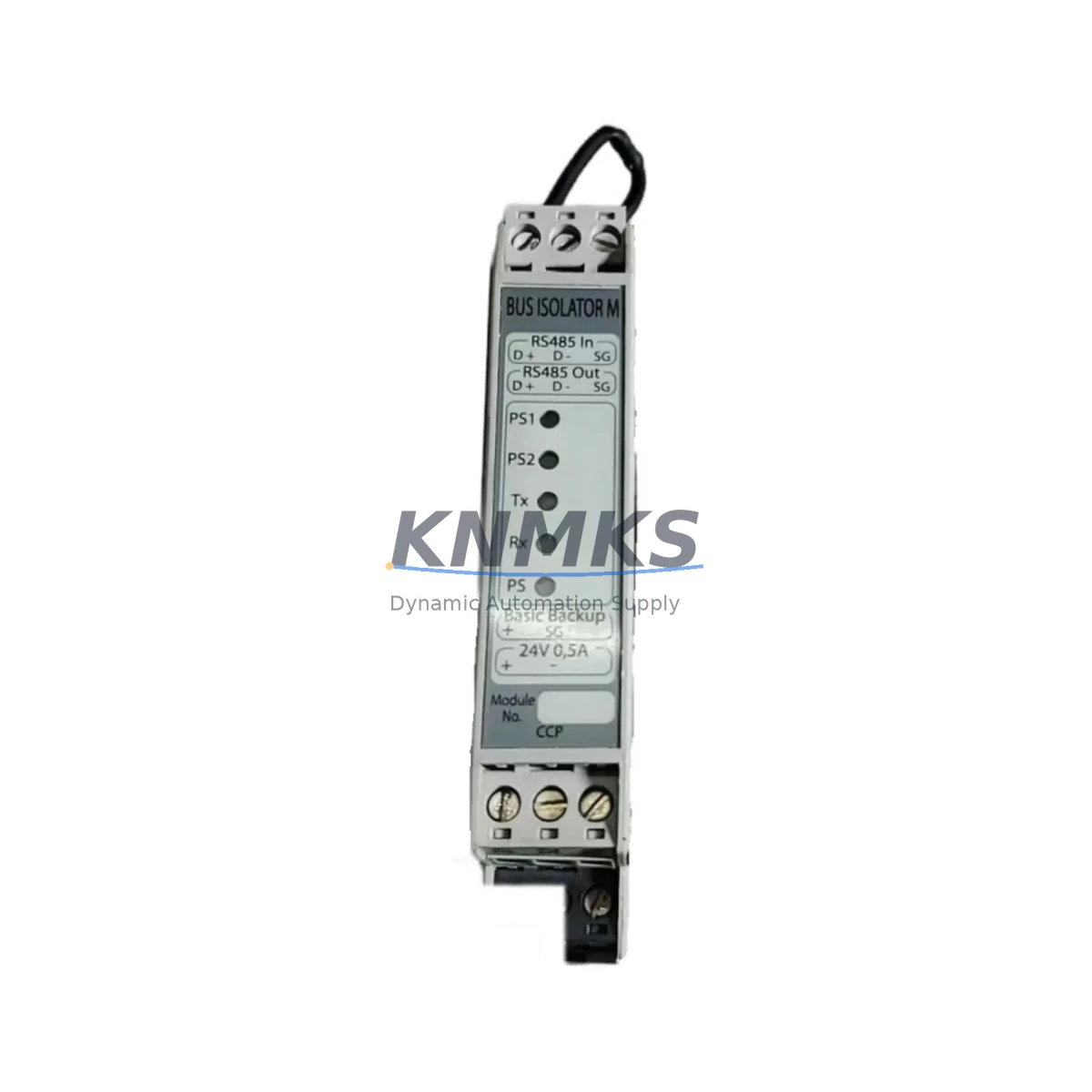

The Consilium 5100070-02A is an original bus isolator module engineered for the Consilium 5100 Series fire detection and industrial safety control systems. Designed to isolate short-circuit faults on the detection loop, this module is a critical spare part for maintenance engineers responsible for continuous plant protection and system uptime. Whether you are managing a scheduled annual overhaul, responding to an emergency fault condition, or building a strategic spare parts inventory, the 5100070-02A delivers the reliability and compatibility that industrial environments demand.

Bus isolator modules such as the 5100070-02A play a decisive role in fault containment. When a short circuit occurs on a detection loop segment, the isolator automatically disconnects the affected section while keeping the remainder of the loop fully operational. This behavior is essential in large-scale industrial facilities — refineries, offshore platforms, chemical plants, and marine vessels — where a single loop fault must never cascade into a full system shutdown. Sourcing a verified original replacement from a reliable supplier ensures that this protective function is restored without compromise.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a Consilium 5100 Series installation goes well beyond replacing a single bus isolator. When a 5100070-02A is flagged for replacement during a routine control cabinet inspection or an emergency fault response, experienced maintenance engineers treat it as a trigger to audit the surrounding electrical circuit and associated components.

Begin by verifying the Consilium 5100 Series loop power supply module — typically a dedicated 24 V DC panel-mount unit — to confirm that output voltage and ripple are within specification. A degraded power supply is frequently the root cause of repeated isolator trips and premature module failure. At the same time, inspect the 5100 Series main control panel itself: check the CPU board status LEDs, confirm that all zone cards are seated correctly, and review the event log for recurring fault codes that may indicate systemic wiring issues rather than an isolated module defect.

On the detection loop, examine the addressable detector bases and sounder bases connected to the affected segment. Corroded terminals, loose wiring, or water ingress into a detector base can create intermittent short-circuit conditions that repeatedly stress the isolator. Replace any suspect bases as part of the same maintenance window to prevent recurrence. Also inspect the loop wiring terminal blocks within the cabinet — loose or oxidized terminations are a common source of transient faults that the isolator must absorb.

For systems with remote I/O or interface modules — such as the Consilium 5100 Series relay output module used for HVAC shutdown, damper control, or suppression system activation — verify that all relay contacts are clean and that the module firmware version is compatible with the current panel software revision. Outdated firmware can cause communication errors that mimic loop faults.

Where the 5100 Series panel interfaces with a building management system or a vessel’s integrated alarm system via RS-485 or Modbus communication cards, confirm that the communication module is functioning correctly and that the cable shielding is intact. EMI-induced noise on the communication bus can generate false fault signals that complicate fault isolation diagnostics.

Finally, review the cabinet’s fuse and circuit protection inventory. The 5100070-02A operates within a protected loop circuit, but the upstream fuses protecting the panel power input and the loop driver circuits should be inspected and replaced on a scheduled basis — typically every three to five years — regardless of apparent condition. Maintaining a stock of the correct fuse ratings alongside the 5100070-02A in your spare parts cabinet eliminates a common source of extended downtime during emergency repairs.

Site Replacement Workflow

Replacing the Consilium 5100070-02A on-site is a straightforward procedure when the correct spare is available and the replacement workflow is followed systematically. Begin by isolating the affected loop at the main control panel using the panel’s built-in loop isolation command — this prevents the panel from generating nuisance alarms during the physical replacement. Document the existing wiring connections with a photograph before disconnecting any terminals, as the loop polarity and device addressing must be preserved exactly.

Remove the faulty isolator module from its mounting position, taking care to note the loop segment address if the module is addressable. Install the 5100070-02A replacement, reconnect the loop wiring to the correct terminals, and verify that the terminal screws are torqued to the manufacturer’s specification. Re-enable the loop at the panel and observe the system status for a minimum of five minutes to confirm that no residual fault conditions are present.

For sites transitioning from an older Consilium isolator variant to the 5100070-02A, confirm that the replacement module’s firmware and hardware revision are compatible with the installed panel software version before committing to a bulk purchase. KNMKS supplies the 5100070-02A with pre-shipment functional testing and full documentation, reducing the risk of compatibility issues discovered during a live maintenance window. Each unit is shipped with a support terms confirmed by quotation, providing procurement engineers with the assurance needed to justify inventory investment and long-term supply agreements.

Spare Parts Support FAQ

Q1: Is the Consilium 5100070-02A compatible with all 5100 Series panel revisions?
The 5100070-02A is designed for use across the Consilium 5100 Series addressable detection loop architecture. For installations using early-generation 5100 panels, we recommend confirming the panel firmware version with your system documentation or contacting our technical team before ordering. KNMKS can assist with compatibility verification prior to shipment.

Q2: What is the recommended spare parts inventory quantity for a large industrial site?
For facilities with more than four detection loops, maintenance best practice recommends holding a minimum of two 5100070-02A units per control panel as on-site critical spares. Sites with harsh environments — high humidity, vibration, or chemical exposure — should consider increasing this buffer to four units per panel to support emergency replacement without waiting for resupply.

Q3: How does KNMKS verify the condition of the 5100070-02A before shipment?
Every 5100070-02A unit supplied by KNMKS undergoes pre-shipment functional inspection, including visual examination, electrical continuity verification, and packaging integrity check. Units are shipped with original or equivalent protective packaging. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: Can KNMKS support long-term supply agreements for the 5100070-02A?
Yes. KNMKS specializes in long-term spare parts supply for industrial automation and safety systems, including legacy and end-of-life Consilium components. We maintain stock continuity programs for critical spare parts and can provide scheduled delivery agreements to support annual maintenance planning cycles. Contact our team at [email protected] or +86 18359268345 to discuss your site’s requirements.
