Bussmann 500NHG3B Maintenance-Proven Spare Part for Factory Uptime

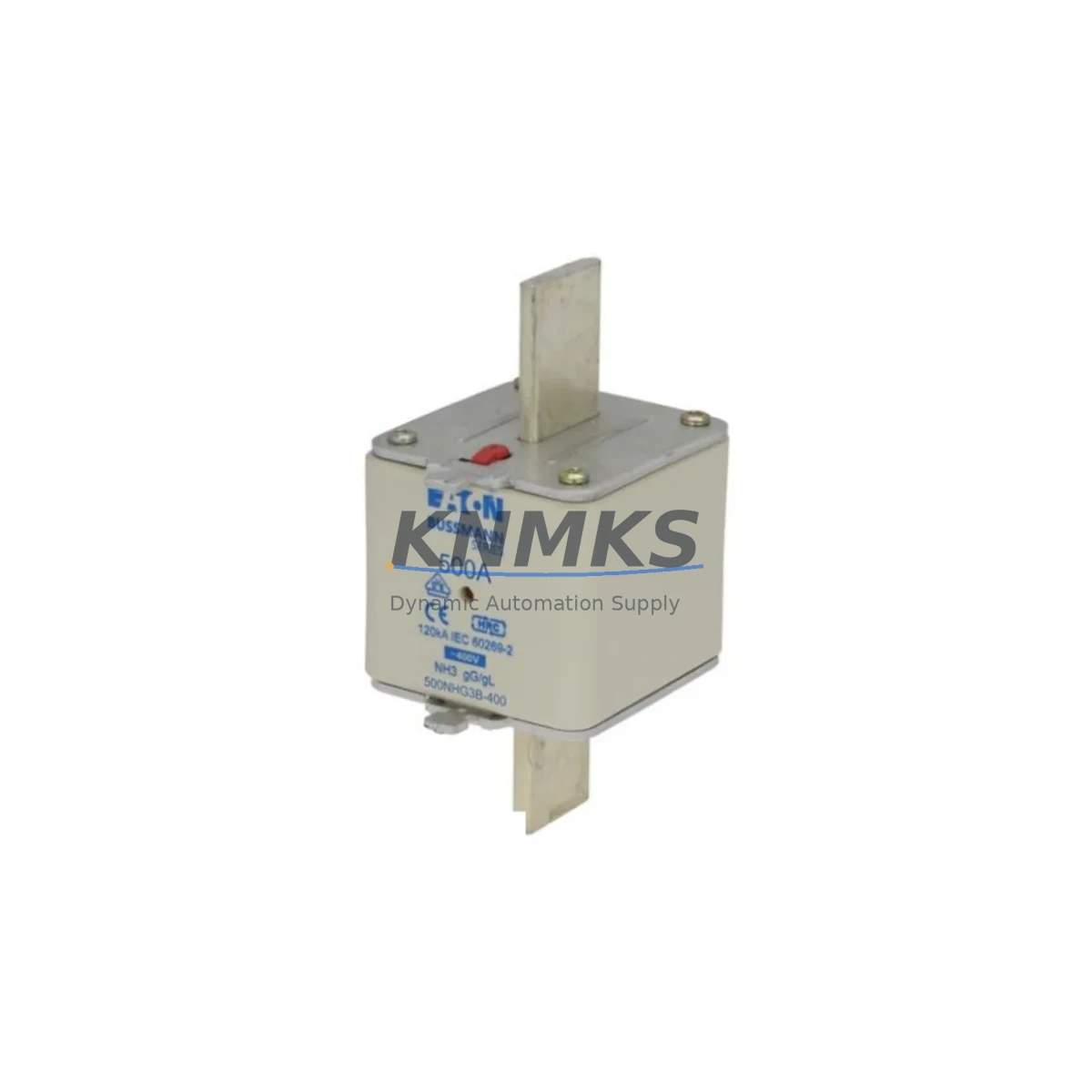

The Bussmann 500NHG3B is an NH Size 3 fuse holder rated at 500A / 690V AC, engineered for high-current distribution panels, motor control centers (MCCs), and industrial switchgear cabinets. Manufactured to DIN 43620 standards, this fuse holder is a direct original spare for Bussmann NH series protection systems widely deployed across European and Asia-Pacific industrial installations. Whether you are executing a planned annual shutdown, responding to an unplanned trip, or building a proactive spare parts buffer, the 500NHG3B delivers the dimensional accuracy, contact integrity, and thermal performance required to restore panel protection without system modification.

Sourced directly from authorized supply channels, each unit undergoes pre-shipment electrical continuity and insulation resistance testing. All stock is covered by a support terms confirmed by quotation from the date of dispatch, supporting your maintenance team’s accountability requirements and procurement audit trails.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 500NHG3B fuse holder is flagged during a control cabinet inspection — whether due to contact discoloration, thermal stress marks, or a blown NH3 fuse event — experienced maintenance engineers know that replacing the holder in isolation is rarely sufficient. A thorough site assessment should extend to the surrounding electrical circuit to prevent repeat failures and ensure the panel returns to full operational integrity.

Begin by verifying the NH Size 3 fuse links seated in the holder. Bussmann’s NH3 fuse range (such as the LV NH3 gG series) should be inspected for signs of thermal fatigue or end-cap loosening. If the fuse has operated under sustained overload, the upstream busbar connection and copper conductor terminations should be torque-checked against manufacturer specifications — loose connections are a leading cause of localized heating that accelerates fuse holder degradation.

For panels feeding motor loads, check the associated motor protection relay or overload relay (e.g., Bussmann or compatible Eaton PKZ/PKZM series) to confirm trip settings remain calibrated to the actual motor FLA. In multi-feeder distribution boards, inspect adjacent NH Size 1 or NH Size 2 fuse holders (such as the Bussmann 160NHG1B or 250NHG2B) for similar wear patterns — thermal stress in one section of a busbar often indicates systemic issues across the panel.

Where the 500NHG3B protects a variable frequency drive (VFD) or soft-starter input circuit, also verify the integrity of the input line reactor or EMC filter. These components absorb harmonic currents that can cause nuisance fuse operations and accelerate contact wear in the holder. If the panel includes a PLC or DCS I/O power supply rail, confirm that the 24VDC SMPS feeding the control circuit (e.g., a Phoenix Contact or Siemens SITOP unit) is within voltage tolerance — a degraded power supply can mask the root cause of a fuse event.

For facilities running legacy systems, consider stocking a 3-pole NH Size 3 fuse base assembly alongside individual single-pole holders to enable faster swap-out during emergency shutdowns. Pairing the 500NHG3B with appropriately rated NH3 fuse links, insulated fuse puller tools, and phase barrier inserts in your maintenance kit reduces mean time to repair (MTTR) and supports safe live-panel working procedures.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout (LOTO): De-energize the incoming supply to the affected panel section. Apply LOTO per site safety procedures. Verify absence of voltage on all three phases using a calibrated voltage tester before opening the panel door.

Step 2 — Fuse Removal: Use an insulated NH fuse puller to extract the NH Size 3 fuse link from the 500NHG3B holder. Inspect the fuse for rupture indicators. Record the fuse rating and catalog number for replacement ordering.

Step 3 — Holder Inspection and Removal: Examine the 500NHG3B contact clips, insulating body, and busbar connection lugs. If contact surfaces show pitting deeper than 0.5mm, arc erosion, or cracked insulation, proceed with holder replacement. Disconnect busbar connections and remove the holder from its mounting position.

Step 4 — New Holder Installation: Mount the replacement 500NHG3B in the same orientation. Torque busbar connection bolts to the specified value (refer to Bussmann installation datasheet). Confirm DIN 43620 dimensional alignment with adjacent holders.

Step 5 — Fuse Reinsertion and Energization: Insert a new, correctly rated NH Size 3 fuse link. Restore power in sequence. Monitor panel temperature and current draw for the first 15 minutes of operation. Log the replacement in the site maintenance register with date, technician ID, and part number.

This workflow supports system compatibility with existing NH series panel infrastructure, eliminates the need for busbar modification, and maintains the original protection coordination designed into the installation — minimizing both downtime and re-commissioning risk.

Spare Parts Support FAQ

Q1: Is the 500NHG3B a direct drop-in replacement for older Bussmann NH Size 3 holders?
Yes. The 500NHG3B conforms to DIN 43620 NH Size 3 dimensional standards, making it dimensionally and electrically compatible with legacy Bussmann NH3 holders and equivalent holders from other DIN-compliant manufacturers. No busbar modification is required for standard panel installations.

Q2: How do you verify authenticity and condition before shipment?
Each 500NHG3B unit in our inventory undergoes pre-shipment inspection covering electrical continuity, insulation resistance, and physical dimensional checks. Units are sourced from authorized distribution channels and shipped in original or protective anti-static packaging. A support terms confirmed by quotation is provided from the dispatch date, covering manufacturing defects and contact integrity.

Q3: What is the recommended inventory strategy for NH Size 3 fuse holders in a production facility?
For facilities with 10 or more NH Size 3 positions across their panel infrastructure, a minimum buffer of 2–3 spare 500NHG3B holders is recommended. Given that NH fuse holders are long-lifecycle components (typically 15–25 years), procurement risk is low — however, obsolescence of specific catalog numbers can create extended lead times. Maintaining a small on-site buffer eliminates emergency procurement delays during unplanned outages.

Q4: Can you support long-term or repeat supply for MRO and annual shutdown programs?
Yes. We support scheduled MRO procurement, annual shutdown kitting, and blanket order arrangements for the 500NHG3B and related NH series components. Contact our team to discuss volume pricing, lead time commitments, and consignment stock options tailored to your maintenance planning cycle.
