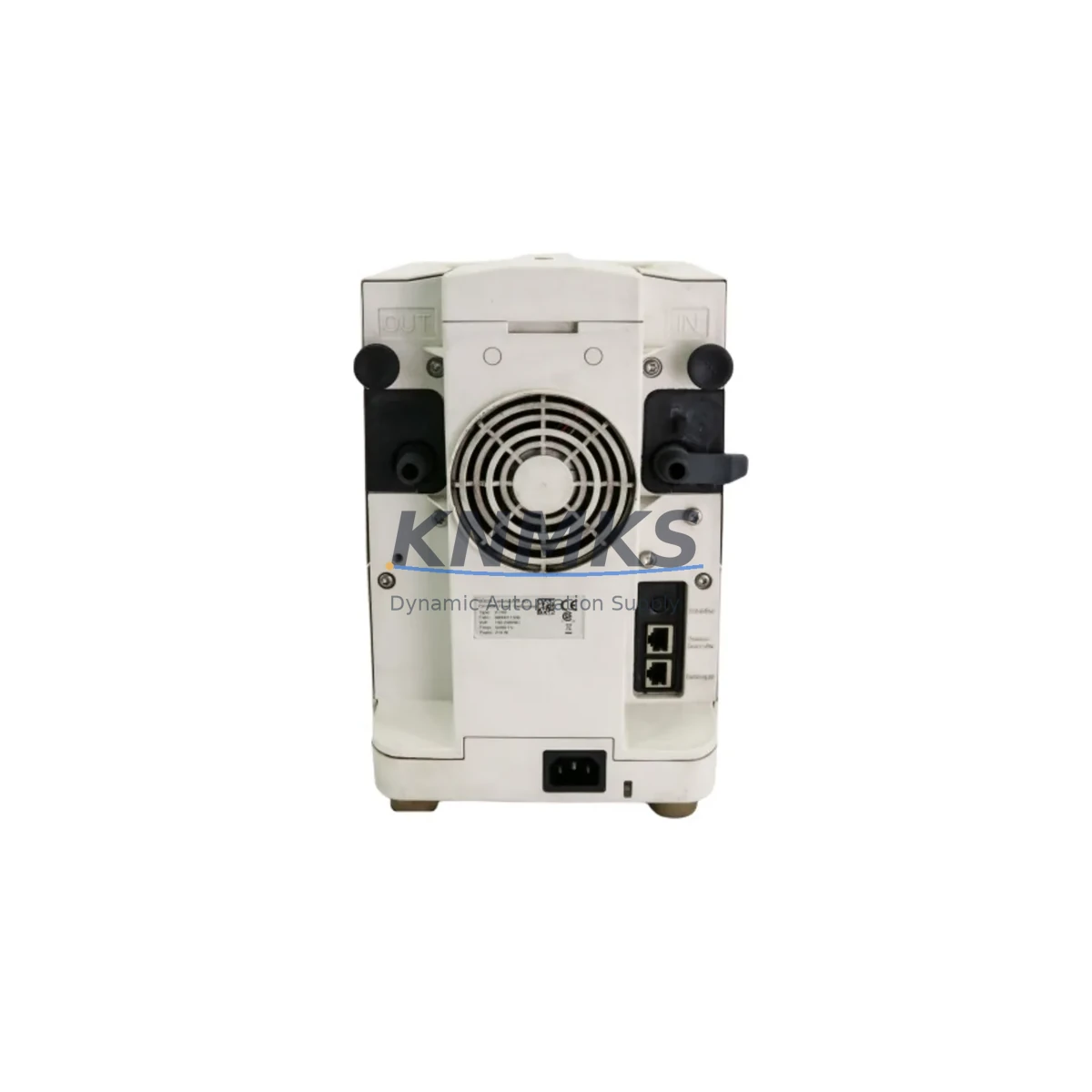

BUCHI V-700 0800011508 Migration-Ready Diaphragm Vacuum Pump

Overview

BUCHI V-700 0800011508 Migration-Ready Diaphragm Vacuum Pump for Legacy Control Systems

The BUCHI V-700 (Part No. 0800011508) is a chemically resistant, oil-free diaphragm vacuum pump engineered for seamless integration into legacy laboratory automation and rotary evaporation systems. As a migration-ready replacement unit, the V-700 is fully compatible with BUCHI Rotavapor R-100, R-200, and R-300 series evaporators, as well as older R-114 and R-144 platforms that have reached end-of-life support. Whether you are upgrading an aging vacuum circuit, replacing a failed pump in a running production line, or retrofitting a control cabinet to meet current safety and efficiency standards, the V-700 delivers a verified drop-in solution with minimal downtime and no custom engineering.

The V-700 achieves an ultimate vacuum of 2 mbar and a maximum flow rate of 1.5 m³/h, making it suitable for solvent recovery, concentration, and distillation workflows that previously relied on older BUCHI V-500 or V-600 pump models. Its PTFE-coated diaphragm and valve set ensure chemical resistance against aggressive solvents including acetone, ethanol, dichloromethane, and toluene — critical for laboratories migrating from older pump technologies that lacked adequate solvent tolerance.

Each unit ships pre-tested and includes a support terms confirmed by quotation covering manufacturing defects and component failure under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the BUCHI V-700 into an existing laboratory automation or rotary evaporation system, a structured retrofit plan is essential to protect program logic, preserve HMI screen configurations, and maintain vacuum circuit continuity. The following considerations apply to the most common migration scenarios encountered in pharmaceutical, chemical, and research laboratory environments.

Power and Electrical Compatibility: The V-700 operates on a universal 100–240 V AC input, which eliminates the voltage mismatch issues common when replacing older fixed-voltage BUCHI V-500 units. Before installation, verify the cabinet’s circuit breaker rating and confirm that the existing IEC outlet or hardwired terminal block can support the V-700’s 60 W rated power draw. If the legacy pump was wired directly to a terminal strip, a qualified electrician should install an appropriate IEC C13 outlet or rewire to the V-700’s inlet specification.

Vacuum Line and Tubing Connections: The V-700 uses standard 10 mm OD vacuum tubing connections compatible with most existing BUCHI Rotavapor R-200 and R-300 glassware assemblies. When replacing a V-500 or V-600, inspect the existing vacuum hose for chemical degradation — particularly if the system has been used with halogenated solvents. Replace with PTFE-lined tubing where necessary. The BUCHI Vacuum Controller V-850 or V-855 can be retained in the circuit to maintain automated vacuum regulation without reprogramming the control sequence.

Communication and Control Integration: Legacy BUCHI pump installations typically relied on manual vacuum adjustment via a needle valve. The V-700 supports analog 0–10 V control input and RS-232 serial communication when paired with the BUCHI V-Control interface. If the existing HMI — such as a BUCHI Interface I-300 Pro or a third-party SCADA panel — was previously configured for manual vacuum setpoints, the migration to V-700 with V-Control enables closed-loop vacuum regulation without modifying the upstream PLC program. Confirm that the HMI screen’s vacuum setpoint range (typically 10–900 mbar) aligns with the V-700’s operating envelope before commissioning.

I/O and Signal Wiring: For systems where the vacuum pump status signal feeds back into a PLC or DCS I/O module — for example, a digital input confirming pump-running status — verify that the V-700’s auxiliary output signal (dry contact relay, 24 V DC) is compatible with the existing I/O card’s input voltage range. If the legacy pump used a simple motor-run contact, a signal isolator or relay interposing module may be required to match the new output specification.

Firmware and Software Compatibility: The V-700 does not require firmware updates for standard operation. However, if the unit is integrated with a BUCHI Syncore or Multivapor system via RS-232, confirm that the host system’s communication driver supports the V-700 command set. BUCHI provides updated communication libraries for V-Control-compatible devices; request the latest version from your regional BUCHI service representative prior to commissioning.

Installation Space and Ventilation: The V-700’s exhaust port must be connected to a solvent trap or routed to a fume extraction system. In enclosed control cabinets or fume hood installations, verify that the rear clearance of at least 100 mm is maintained to prevent heat buildup. The pump’s operating temperature range of 10–40 °C must be respected; installations in high-ambient-temperature environments may require additional ventilation or relocation of the pump outside the enclosure.

Downtime Control During System Migration

Minimizing unplanned downtime during a vacuum pump replacement is a primary concern for production laboratories and continuous-process environments. The BUCHI V-700’s plug-and-play design — combined with its universal power input and standard tubing connections — enables a typical swap-out to be completed within 30–60 minutes by a trained technician, without requiring specialized tools or factory recalibration.

To protect the original process program and HMI configuration during migration, document all current vacuum setpoints, ramp rates, and interlock conditions before disconnecting the legacy pump. If the system uses a BUCHI Vacuum Controller V-850 or V-855, these parameters are stored in the controller’s non-volatile memory and will be retained through the pump replacement without reprogramming. For systems integrated with a PLC — such as a Siemens S7-300 or Allen-Bradley ControlLogix — the pump replacement does not require any PLC program modification, provided the I/O signal wiring is correctly adapted as described above.

Where continuous vacuum is operationally critical, consider scheduling the replacement during a planned maintenance window and pre-staging the V-700 unit with all required accessories — including the vacuum tubing adapter, IEC power cable, and solvent trap — before beginning the swap. Pre-testing the V-700 on a bench setup prior to installation confirms pump performance and eliminates the risk of discovering a fault during the live system cutover. All units supplied by KNMKS are pre-tested before shipment and include a factory test report confirming ultimate vacuum and flow rate performance.

Post-installation, perform a controlled vacuum ramp test with the process vessel empty before resuming normal operations. Verify that the vacuum controller’s setpoint tracking is stable and that all interlock signals — including pump-running feedback and over-temperature alarm — are correctly received by the upstream control system. Document the commissioning results and retain the factory test report for maintenance records and support terms reference.

Retrofit Support FAQ

Q1: Is the BUCHI V-700 (0800011508) a direct replacement for the V-500 and V-600?
Yes. The V-700 is the current-generation replacement for the discontinued BUCHI V-500 and V-600 diaphragm vacuum pumps. It shares the same tubing connection standard and freestanding form factor, making it a drop-in replacement in most Rotavapor R-100, R-200, and R-300 installations. Verify power supply compatibility before installation, as the V-700 uses a universal IEC C13 inlet rather than the fixed regional plug of older models.

Q2: What commissioning steps are required after installation?
After mechanical and electrical installation, connect the vacuum line and perform a closed-system leak test at the target operating vacuum (typically 20–50 mbar for standard rotary evaporation). Confirm that the vacuum controller’s setpoint is correctly received by the V-700 if using analog or RS-232 control. Run the pump unloaded for 5 minutes to verify stable operation before connecting the process vessel. Record the achieved ultimate vacuum and compare against the factory test report supplied with the unit.

Q3: Can the V-700 be wired directly to an existing terminal block in a control cabinet?
The V-700 is designed for IEC C13 power connection and is not intended for direct hardwiring to a terminal block without an appropriate outlet adapter. If the existing installation uses a hardwired connection, install a panel-mount IEC C13 outlet rated for the local supply voltage and circuit breaker rating. Consult a qualified electrician to ensure compliance with local electrical safety standards before modifying cabinet wiring.

Q4: What does the support terms confirmed by quotation cover, and what is the stock availability?
The support terms confirmed by quotation cover manufacturing defects and component failure under normal operating conditions from the date of shipment. It does not cover damage resulting from chemical incompatibility, improper installation, or operation outside the specified voltage and temperature range. KNMKS maintains in-stock inventory of the BUCHI V-700 (0800011508) to support urgent replacement requirements. Contact our sales team for current stock levels and lead time confirmation before placing your order.
