Bombardier 3EST13-149 Maintenance-Proven Spare Part

Overview

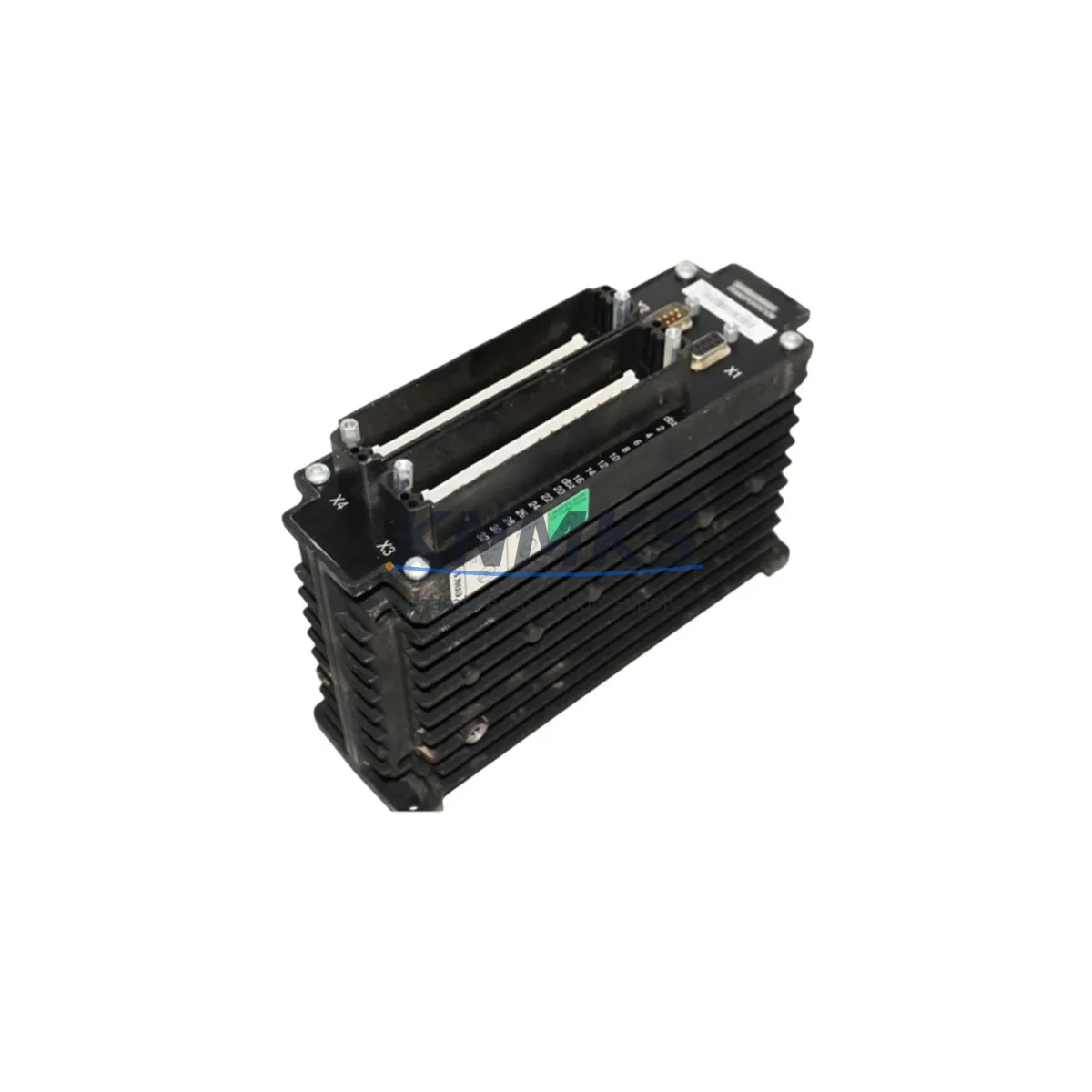

Bombardier 3EST13-149 Maintenance-Proven Spare Part for Rail Traction Uptime

The Bombardier 3EST13-149 is a critical control module within the 3EST series rail traction automation platform, engineered for demanding continuous-duty environments in rail propulsion, traction inverter control, and drive management systems. For maintenance engineers managing aging fleets or executing scheduled overhauls, sourcing a verified 3EST13-149 replacement directly determines whether a locomotive or EMU returns to service within hours or remains sidelined for days. This listing provides an original-specification 3EST13-149 spare, pre-shipment tested, backed by a support terms confirmed by quotation, and available for fast global dispatch from verified stock.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 3EST13-149 module is flagged during routine cabinet inspection or fault isolation, experienced maintenance engineers know that the traction control module rarely fails in isolation. A thorough site assessment should extend to the surrounding electrical circuit before the replacement unit is commissioned.

Start with the 3EST series backplane — connector wear, oxidized bus contacts, and backplane trace damage are common contributors to module failure and will cause a new 3EST13-149 to fault immediately if left unaddressed. Inspect the DC link capacitor bank and pre-charge resistor assembly within the traction inverter cabinet; degraded capacitors generate voltage spikes that stress control electronics over time. Verify the 24 VDC auxiliary power supply feeding the control logic rail — output ripple exceeding specification is a frequent silent cause of intermittent module resets.

Check all fiber optic communication links between the 3EST13-149 and the traction inverter IGBT gate driver boards; contaminated or cracked fiber connectors introduce latency that the module’s watchdog interprets as a communication fault. Review the digital I/O terminal blocks for loose crimps and corroded contacts, particularly on speed reference, torque command, and enable signal lines. If the system includes a Bombardier MITRAC communication module on the same backplane, confirm its firmware version is compatible with the replacement 3EST13-149 hardware revision.

For systems with an associated HMI or driver display panel, clear all stored fault codes after module replacement and perform a supervised traction test cycle before returning the vehicle to revenue service. Where signal isolation barriers are installed between the traction control cabinet and external sensors, verify isolation resistance has not degraded — a compromised isolator can inject ground loop noise that mimics sensor faults. Finally, inspect cabinet-level fusing and surge protection devices; a blown fuse or degraded MOV on the control power rail is often the root cause that precipitated the original module failure.

Site Replacement Workflow

Step 1 — Isolation: De-energize the traction cabinet following site LOTO procedures. Discharge the DC link and confirm zero voltage with a calibrated meter before opening the enclosure.

Step 2 — Documentation: Photograph the existing 3EST13-149 installation, noting cable routing, connector orientation, and any DIP switch or parameter settings visible on the module face.

Step 3 — Removal: Disconnect fiber optic links and signal connectors in sequence. Release the module retention latch and extract the 3EST13-149 from the backplane slot. Avoid flexing the backplane during extraction.

Step 4 — Inspection: Inspect the vacated backplane slot for bent pins, debris, or burn marks. Clean with dry compressed air if required.

Step 5 — Installation: Align the replacement 3EST13-149 with the backplane guide rails and seat firmly until the retention latch engages. Reconnect all signal connectors and fiber optic links. Confirm DIP switch settings match the documented configuration.

Step 6 — Commissioning: Re-energize the auxiliary supply first and confirm the module powers up without fault indication. Restore main DC link power and execute the system’s standard traction self-test sequence. Clear historical fault logs and document the replacement in the maintenance record.

This workflow minimizes downtime, preserves system compatibility, and ensures the replacement 3EST13-149 is correctly integrated before the vehicle returns to service.

Spare Parts Support FAQ

Q1: Is this 3EST13-149 an original Bombardier part or an aftermarket substitute?
This is an original-specification 3EST13-149 sourced from verified supply channels. It is not an aftermarket or remanufactured substitute. Each unit undergoes functional pre-shipment testing and ships with a support terms confirmed by quotation covering defects in materials and workmanship.

Q2: How do I confirm compatibility with my specific 3EST series cabinet configuration?
Provide your cabinet serial number, existing module hardware revision, and MITRAC or communication protocol version when placing your inquiry. Our technical team will cross-reference these details against known 3EST13-149 hardware revisions to confirm a compatible match before shipment.

Q3: Can I arrange a long-term supply agreement for multiple 3EST13-149 units?
Yes. Blanket purchase orders covering 12 to 36 months of supply are available, with agreed pricing, reserved stock allocation, and priority dispatch. This is recommended for fleet operators managing multiple vehicles with 3EST series traction systems to eliminate emergency procurement lead times.

Q4: What does the support terms confirmed by quotation cover, and what is the return process if a unit is faulty on arrival?
The support terms confirmed by quotation cover functional failure under normal operating conditions. If a unit exhibits a defect on arrival or within the confirmed support period, contact [email protected] with your order reference and a description of the fault. A replacement or documented resolution support will be arranged promptly. Units are inspected and tested before dispatch to minimize the risk of DOA shipments.
