BIRD 1210-03191 Fail-Safe RF Power Termination Load

Overview

BIRD 1210-03191 Fail-Safe RF Power Termination Load: Fault Protection for Critical Industrial RF Control

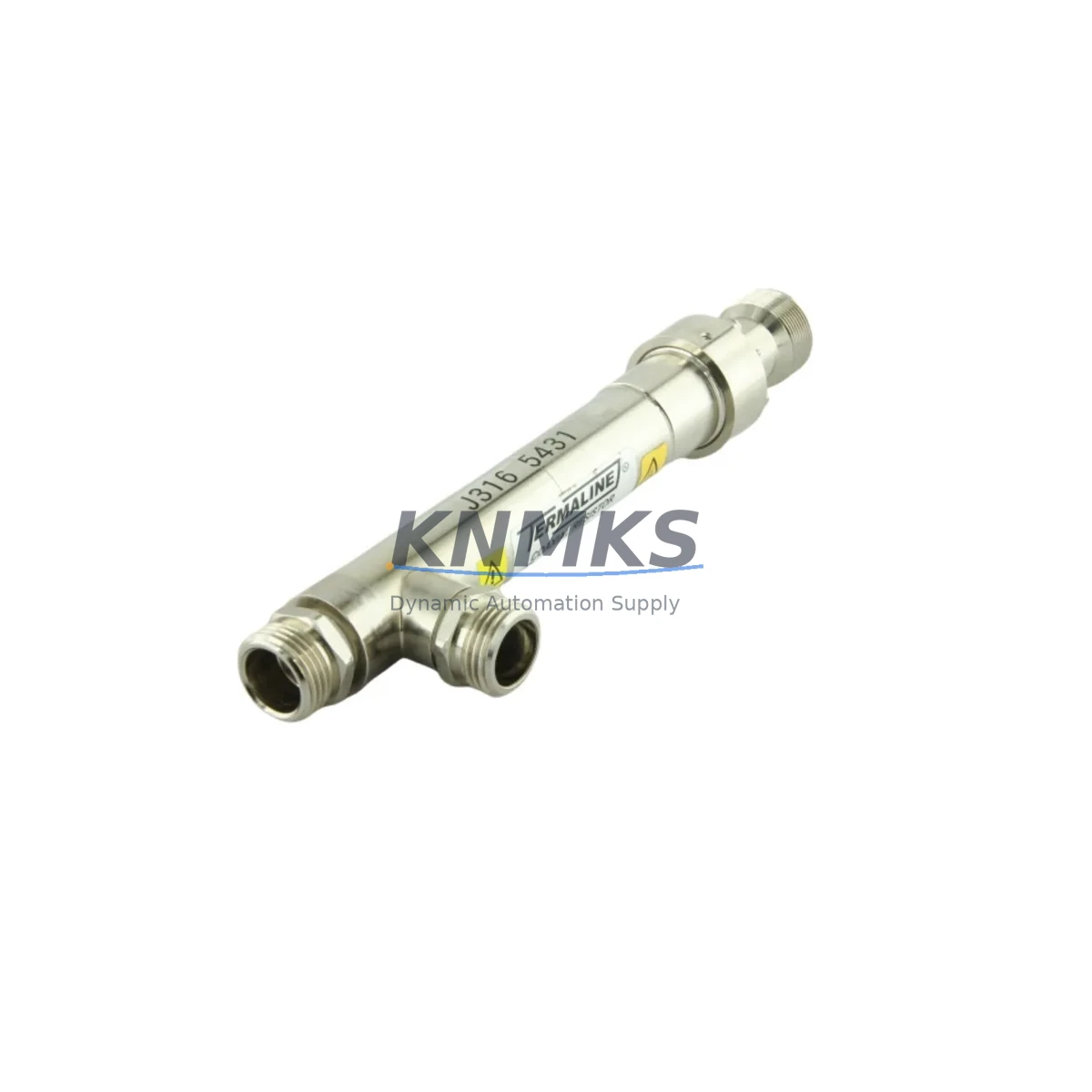

The BIRD 1210-03191 Termaline LC40 RF Power Termination Load is engineered for continuous, fail-safe operation in the most demanding industrial RF environments. Designed to absorb and dissipate high-frequency power with precision, this termination load eliminates reflected power hazards that can destabilize transmitters, corrupt control signals, and trigger unplanned shutdowns across critical production systems. Whether deployed in petrochemical process control, power generation switchgear, mining automation, or port logistics communication infrastructure, the BIRD 1210-03191 delivers the impedance stability and thermal resilience that safety-critical RF circuits demand.

In high-electromagnetic-interference environments — such as heavy motor drive cabinets, variable frequency drive (VFD) panels, and high-voltage switchyards — uncontrolled RF reflections are a primary cause of signal drift, communication anomalies, and relay misoperation. The BIRD 1210-03191 provides a precision 50-ohm matched termination that suppresses standing wave ratios, protects upstream RF sources from reflected energy, and maintains stable impedance across the full operating frequency range. This directly reduces the risk of control loop interruption, false tripping of safety interlocks, and surge-induced damage to connected instrumentation.

Built for harsh field conditions including high ambient temperature, mechanical vibration, dust ingress, and condensation exposure, the BIRD 1210-03191 maintains its rated performance without derating or recalibration. Its robust coaxial construction and thermally stable resistive element ensure consistent power dissipation even during prolonged full-load operation — a critical requirement in continuous manufacturing and 24/7 process industries where maintenance windows are rare and unplanned downtime carries severe operational and safety consequences.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the BIRD 1210-03191 termination load functions as a critical passive protection component within the RF signal chain. When a transmitter or RF source is taken offline for maintenance or fault isolation, an unterminated coaxial port creates a high-impedance open circuit that generates severe reflected waves — potentially damaging the RF amplifier output stage and corrupting adjacent instrumentation signals. Installing the BIRD 1210-03191 as a dummy load on idle ports eliminates this risk entirely.

In cabinets housing BIRD 5000-EX wattmeters or BIRD 43 thruline wattmeter elements, the 1210-03191 serves as the matched termination reference that ensures accurate forward and reflected power readings. When used alongside BIRD RF directional couplers and BIRD power sensors, it provides the stable 50-ohm reference impedance required for calibration and ongoing measurement integrity. In communication-critical applications — such as those using BIRD signal analyzers or inline RF monitoring modules — an improperly terminated port can introduce noise floors that mask real fault signals, leading to missed alarms and delayed safety responses.

For control cabinets in high-vibration environments such as mining conveyors, offshore platforms, or steel mill rolling lines, the BIRD 1210-03191’s mechanically robust construction prevents connector loosening and intermittent contact faults that would otherwise cause signal dropouts and spurious interlock trips. Paired with appropriate surge protection devices on the cabinet’s power supply rail — such as BIRD surge arrestors or equivalent coaxial lightning protectors — the 1210-03191 forms a complete front-end protection strategy for the RF subsystem within the safety control architecture.

Critical Industrial Safety Applications

Petrochemical and Refinery Process Control: In continuous distillation, catalytic cracking, and pipeline SCADA systems, RF communication links carry critical process variable data between field instruments and the distributed control system (DCS). The BIRD 1210-03191 ensures that idle RF ports in hazardous area junction boxes and control room patch panels are properly terminated, preventing reflected energy from interfering with safety instrumented system (SIS) communication channels and triggering spurious emergency shutdowns.

Power Generation and Grid Switchyards: High-voltage switchyards and generator protection panels operate in environments with extreme electromagnetic interference from bus bars, circuit breakers, and power transformers. RF termination loads such as the BIRD 1210-03191 are used to stabilize the impedance environment of protection relay communication ports, ensuring that distance protection, differential protection, and auto-reclosing schemes receive clean, uncontaminated signal references.

Mining Automation and Tunnel Communication: Underground mining operations rely on leaky feeder RF communication systems for personnel tracking, gas monitoring, and emergency evacuation signaling. The BIRD 1210-03191 provides reliable termination at amplifier repeater stations along the feeder cable, preventing standing wave buildup that would reduce coverage range and degrade voice and data quality in safety-critical communication zones.

Water Treatment and Pumping Stations: Remote pumping stations and water treatment facilities use RF telemetry to transmit flow, pressure, and chemical dosing data to central SCADA systems. Proper RF termination with the BIRD 1210-03191 prevents signal reflection artifacts from corrupting telemetry frames, which could cause incorrect pump speed commands or chemical dosing errors with direct safety implications.

Port and Maritime Logistics: Ship-to-shore crane control systems and port VHF communication infrastructure require stable RF environments to maintain reliable crane positioning data and vessel traffic management signals. The BIRD 1210-03191 is used to terminate unused antenna ports and test points in port communication racks, ensuring that active channels remain free from interference caused by impedance mismatches on adjacent ports.

Safety and Quality FAQ

Q1: What support terms does the BIRD 1210-03191 carry when purchased from KNMKS?
All BIRD 1210-03191 units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. This support terms covers manufacturing defects, electrical performance deviations from rated specifications, and connector integrity. KNMKS maintains replacement stock to support rapid support terms exchange without extended lead times.

Q2: What outgoing inspection and testing is performed before shipment?
Every BIRD 1210-03191 unit undergoes a full pre-shipment inspection protocol at KNMKS, including visual examination of the connector interface and body, impedance verification, and functional continuity testing. Units that do not meet BIRD Technologies’ original performance specifications are quarantined and not dispatched. A test record is available upon request for quality-critical procurement.

Q3: Is the BIRD 1210-03191 compatible with existing BIRD wattmeter and coupler installations?
Yes. The BIRD 1210-03191 Termaline LC40 uses a standard Type N female connector and 50-ohm impedance, making it directly compatible with BIRD 43 thruline wattmeters, BIRD directional couplers, BIRD 5000-EX power monitors, and any 50-ohm coaxial RF system. No adapters or impedance matching networks are required for standard BIRD system integration.

Q4: Can KNMKS guarantee long-term supply continuity for the BIRD 1210-03191?
KNMKS maintains dedicated buffer stock of the BIRD 1210-03191 to support ongoing maintenance programs, planned turnaround schedules, and emergency spare part requirements. For customers with annual maintenance contracts or multi-site operations, KNMKS offers reserved stock agreements to ensure supply continuity regardless of OEM lead time fluctuations. Contact our team to discuss long-term supply arrangements.
