BIHL+WIEDEMANN BWU1569 Fail-Safe AS-i Dual Master Gateway

Overview

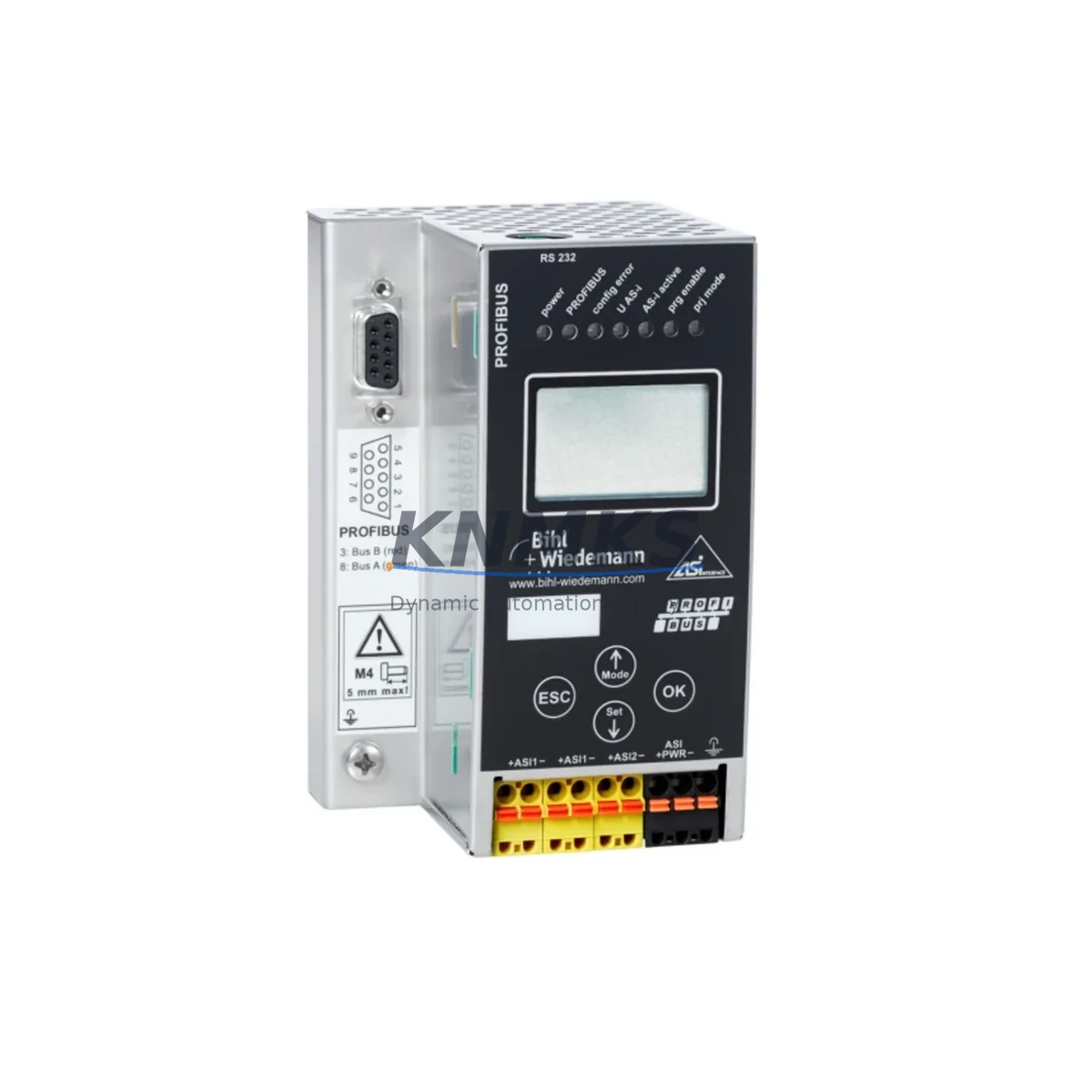

BIHL+WIEDEMANN BWU1569 Fail-Safe AS-i Dual Master Gateway: Industrial Control Reliability

The BIHL+WIEDEMANN BWU1569 is a Safety AS-i Dual Master Gateway engineered for mission-critical industrial environments where control interruption, signal drift, and unplanned downtime carry unacceptable operational and safety consequences. Designed and manufactured in Germany to IEC 62061 and EN ISO 13849-1 standards, the BWU1569 delivers SIL 2 / PLd-rated safety performance across dual AS-Interface bus segments simultaneously — making it a cornerstone component for safety-integrated control cabinets in continuous process industries.

In high-electromagnetic-interference environments such as variable-frequency drive panels, arc furnace control rooms, and heavy motor control centers, the BWU1569’s robust AS-i signal conditioning and galvanic isolation architecture suppress surge impulses and common-mode noise that would otherwise cause spurious trips or missed safety events. Its IP67-rated housing ensures reliable operation in dusty, humid, and wash-down-intensive field locations — from offshore platform junction boxes to food-grade processing lines — without compromising the integrity of the safety bus.

For control cabinets managing critical interlocks — emergency stop loops, light curtain monitoring, safety door switches, and two-hand control circuits — the BWU1569 provides deterministic cycle times and transparent diagnostics that allow maintenance engineers to identify fault conditions before they escalate into unplanned shutdowns. When paired with BIHL+WIEDEMANN BWU2797 AS-i Safety Monitor or the BWU3435 AS-i Power Supply, the gateway forms a complete, validated safety chain from field device to PLC safety CPU, eliminating the need for proprietary safety relay cascades and reducing cabinet wiring complexity by up to 70%.

In petrochemical and refinery applications, where SIL-rated shutdown systems must respond within defined reaction times, the BWU1569’s dual-master architecture ensures that a single bus fault does not compromise the entire safety loop. The gateway’s integrated diagnostics continuously monitor AS-i slave status, power supply quality, and communication health — feeding real-time fault data to the host PLC (Siemens SIMATIC S7-1500F, Rockwell GuardLogix, or Schneider Modicon M580 Safety) via PROFIBUS DP, PROFINET, or EtherNet/IP interfaces. This transparency is critical for functional safety audits and IEC 61511 lifecycle documentation.

In mining and mineral processing facilities, where vibration, thermal cycling, and high-voltage transients are constant stressors, the BWU1569’s wide operating temperature range (−25 °C to +70 °C) and conformal-coated PCB assembly maintain signal integrity across seasonal extremes. When integrated alongside BIHL+WIEDEMANN BWU2573 AS-i Segment Coupler and BWU1065 AS-i Addressing Unit, the system supports rapid field device replacement during scheduled outages — a critical capability when production windows are measured in hours, not days.

Water treatment and municipal utility operators rely on the BWU1569 to maintain continuous monitoring of pump station interlocks, valve position feedback, and chemical dosing safety circuits. In these environments, where corrosive atmospheres and condensation cycles challenge conventional terminal block wiring, the AS-i flat cable topology supported by the BWU1569 eliminates exposed connection points and reduces ingress risk. The gateway’s automatic address assignment and slave detection further accelerate commissioning during emergency replacement scenarios, minimizing mean time to restore (MTTR) for critical infrastructure.

Port and maritime automation systems — including ship-to-shore crane control, bulk material handling conveyors, and vessel mooring safety systems — benefit from the BWU1569’s ability to manage geographically distributed safety slaves across long AS-i cable runs (up to 100 m per segment, extendable with repeaters) while maintaining sub-10 ms safety response times. This makes the gateway equally suited to large-scale steel mill rolling line interlocks and compact offshore module control panels.

Every BWU1569 unit supplied by KNMKS undergoes pre-shipment functional testing, including AS-i bus communication verification, safety output response time measurement, and IP67 seal integrity check. Units are dispatched with full factory documentation, firmware version record, and a support terms confirmed by quotation covering manufacturing defects and premature component failure under normal operating conditions. Multi-region stock is maintained to support both emergency replacement orders and scheduled maintenance programs with short lead times.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust safety control cabinet built around the BWU1569 integrates multiple protective layers to guard against the full spectrum of industrial fault modes. The BIHL+WIEDEMANN BWU3435 AS-i Power Supply provides a regulated, short-circuit-protected 30 V DC bus supply with integrated data decoupling, ensuring that power fluctuations from adjacent VFD switching events do not propagate onto the AS-i data signal. For cabinets with extended cable runs or high slave counts, the BWU2573 AS-i Segment Coupler extends bus reach while maintaining signal quality and galvanic isolation between segments.

Safety I/O modules such as the BIHL+WIEDEMANN BWU2797 AS-i Safety Monitor complement the BWU1569 by independently evaluating safety slave states against configurable logic — providing a second layer of safety evaluation independent of the host PLC. For emergency stop and light curtain circuits, AS-i Safety Input Modules (e.g., BWU2260 series) connect directly to the AS-i flat cable, eliminating conventional safety relay wiring and reducing potential single-point wiring failures. Cabinet thermal management is supported by integrating temperature monitoring slaves on the same AS-i bus, enabling the BWU1569 to report over-temperature conditions before thermal shutdown occurs. Surge protection devices installed at cabinet entry points — coordinated with the AS-i power supply’s internal protection — complete a layered defense against lightning-induced transients and switching surges common in outdoor substations and port crane installations.

Critical Industrial Safety Applications

Petrochemical & Refinery: The BWU1569 manages SIL 2 emergency shutdown (ESD) loops for pump stations, compressor interlocks, and pressure relief valve monitoring. Its deterministic response time and IEC 61511-compatible architecture support functional safety lifecycle documentation and third-party safety audits.

Electric Power Generation & Transmission: In turbine control panels and high-voltage switchgear rooms, the gateway’s EMI immunity and IP67 rating maintain safety bus integrity despite high-frequency switching transients and partial discharge events from adjacent HV equipment.

Mining & Mineral Processing: Conveyor belt emergency stop systems, crusher interlock circuits, and underground ventilation safety loops rely on the BWU1569’s wide temperature tolerance and vibration resistance to maintain continuous protection in harsh underground and open-pit environments.

Water & Wastewater Treatment: Pump station safety interlocks, chemical dosing system emergency stops, and UV disinfection system safety circuits benefit from the gateway’s corrosion-resistant IP67 housing and AS-i flat cable topology, which eliminates exposed terminal connections in humid, chemically aggressive environments.

Metallurgy & Steel Production: Rolling mill emergency stop loops, ladle crane safety systems, and furnace interlock circuits operate in extreme thermal and electromagnetic environments where the BWU1569’s robust signal conditioning and wide operating temperature range are essential for uninterrupted safety function.

Port & Maritime Automation: Ship-to-shore crane safety systems, bulk material handling conveyor interlocks, and vessel mooring control panels use the BWU1569’s long cable reach and dual-master redundancy to maintain safety coverage across large, geographically distributed installations.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the BWU1569?
Every BWU1569 supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and component failures under normal operating conditions. Support requests are supported with replacement dispatch and full technical documentation to minimize site downtime.

Q2: What pre-shipment testing does each unit undergo?
Each BWU1569 undergoes functional pre-shipment testing including AS-i bus communication verification across both master channels, safety output response time measurement against SIL 2 timing requirements, and IP67 seal integrity verification. A test record and firmware version log accompany each shipment.

Q3: Is the BWU1569 compatible with third-party PLCs and safety systems?
Yes. The BWU1569 supports PROFIBUS DP, PROFINET, and EtherNet/IP host interfaces, making it compatible with Siemens SIMATIC S7-1500F, Rockwell GuardLogix, Schneider Modicon M580 Safety, and other major safety PLC platforms. AS-i Safety at Work slaves from multiple manufacturers are supported on the same bus segment.

Q4: Can KNMKS support long-term and emergency supply requirements?
KNMKS maintains multi-region stock of the BWU1569 to support both scheduled maintenance programs and emergency replacement orders. For critical infrastructure operators requiring guaranteed supply continuity, long-term supply agreements and priority dispatch arrangements are available. Contact [email protected] or +86 18359268345 for supply planning support.
