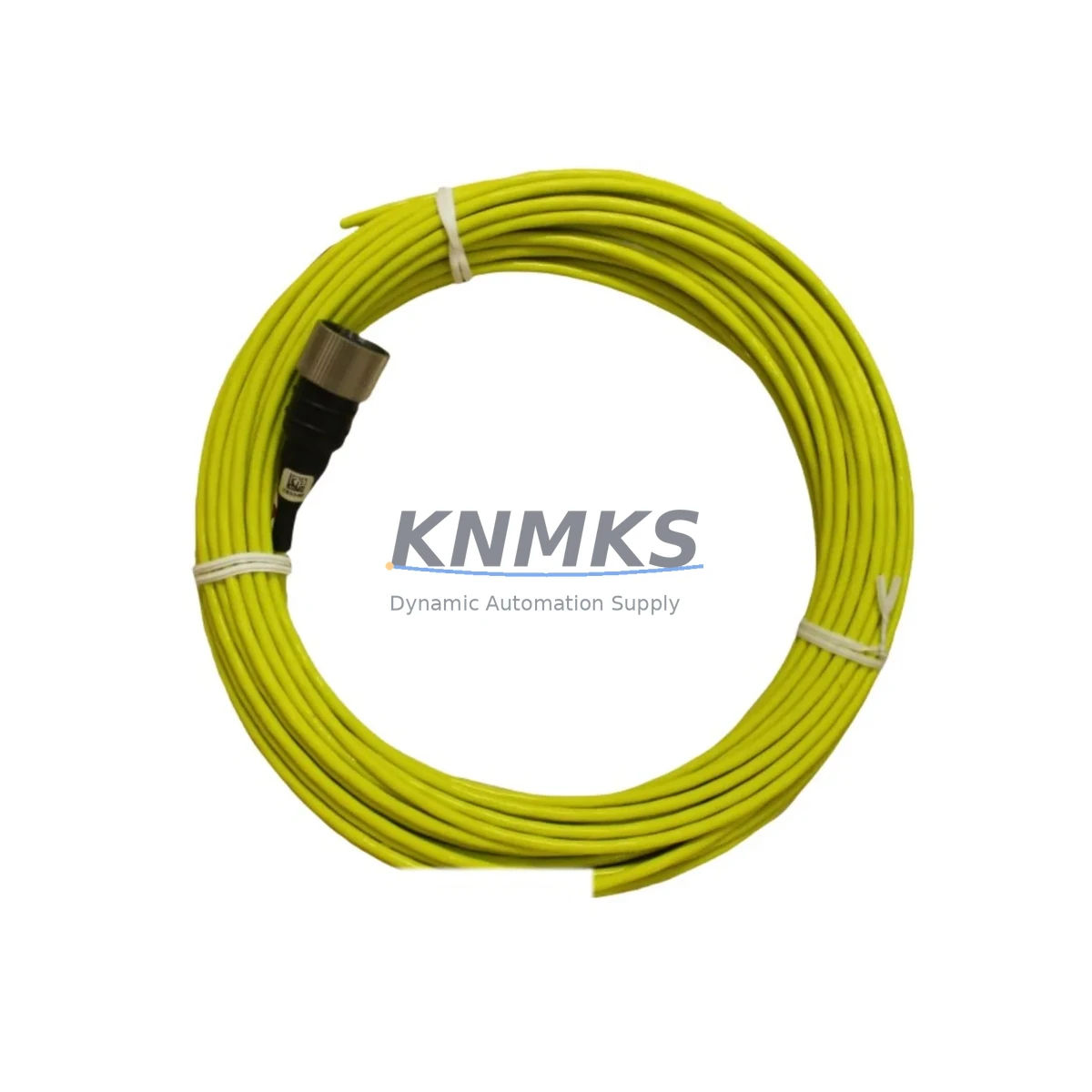

Bently Nevada CB2W100-250 Spare Interconnect Cable 3500

Overview

Bently Nevada CB2W100-250 Spare Interconnect Cable for 3500 Series: Maintenance-Proven Spare for Factory Uptime

The Bently Nevada CB2W100-250 is a factory-original interconnect cable engineered for the 3500 Series machinery protection system — one of the most widely deployed continuous monitoring platforms in rotating equipment facilities worldwide. Whether you are managing a gas turbine train, a centrifugal compressor skid, or a steam turbine generator set, the CB2W100-250 plays a critical role in maintaining signal integrity between the 3500/20 rack power supply and associated I/O modules. Sourced directly from verified supply channels, each unit shipped by KNMKS undergoes pre-dispatch inspection to confirm connector integrity, cable shielding continuity, and dimensional compliance with Bently Nevada OEM specifications.

For maintenance engineers responsible for condition monitoring infrastructure, the CB2W100-250 is not a peripheral accessory — it is a load-bearing link in the vibration monitoring chain. A degraded or failed interconnect cable can introduce signal noise, trigger false alarms, or cause complete loss of channel data, any of which may force an unplanned shutdown or mask a genuine machinery fault. Keeping a verified spare on the shelf is the single most cost-effective step a reliability team can take to protect system availability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CB2W100-250 replacement is scheduled — whether during a planned outage or an emergency callout — experienced maintenance engineers treat the event as an opportunity to audit the surrounding control cabinet. The 3500 Series rack is a tightly integrated system, and a cable failure rarely occurs in isolation. Before closing the cabinet, the following components should be inspected or tested alongside the interconnect cable replacement:

The 3500/20 Rack Power Supply should be checked for output voltage stability and ripple, as a marginal power supply can accelerate connector wear and introduce ground loops that degrade cable performance over time. Adjacent 3500/15 Power Supply Input modules should be verified for correct fuse condition — blown or weakened fuses are a common co-failure mode when an interconnect cable has been subjected to transient overcurrent. The 3500/22M Transient Data Interface and any installed 3500/40M Proximitor/Seismic Monitor modules should have their front-panel indicators reviewed for latched alerts that may have been masked by the cable fault.

On the signal side, inspect the 3500/92 Communication Gateway module for Modbus or OPC-DA communication health — a degraded interconnect can introduce latency or data dropouts that appear as communication faults rather than hardware failures. If the rack communicates with a System 1 Evolution software platform, verify that all channel tags are returning valid engineering unit values after the cable swap. For cabinets that include 3500/05 System Monitor modules, confirm that the system health watchdog has reset cleanly following the repair.

Procurement engineers should note that the CB2W100-250 is a consumable-class spare with a recommended stocking quantity of two units per monitored machine train. For facilities operating multiple 3500 Series racks, a consolidated spare parts list that includes the CB2W100-250 alongside rack power supplies, I/O module fuses, and communication gateway firmware media will significantly reduce mean time to repair across the site.

Site Replacement Workflow

Replacing the CB2W100-250 in a live 3500 Series rack requires a structured approach to avoid introducing new faults during the repair. Begin by documenting the current system status in System 1 or the local HMI — capture any active alerts, bypassed channels, and communication states before de-energizing the affected rack section. If the rack supports hot-swap on the affected slot, follow the Bently Nevada hot-swap procedure; otherwise, coordinate with operations to place the monitored machine in a safe state before proceeding.

Disconnect the existing CB2W100-250 by releasing the locking connector tabs at both termination points. Inspect the mating connectors on the rack backplane and the target module for bent pins, corrosion, or debris before installing the replacement cable. Route the new cable following the original cable path to maintain EMI shielding effectiveness and avoid mechanical stress on the connectors. After seating both connectors, restore power and verify that all channels return to normal status within the expected settling time — typically under 30 seconds for analog vibration channels.

For facilities transitioning from legacy Bently Nevada 7200 Series or 3300 Series monitoring systems to the 3500 platform, the CB2W100-250 is a native 3500 component and is not backward-compatible with earlier rack architectures. Confirm rack generation before ordering to avoid installation delays. KNMKS maintains stock of both current and legacy Bently Nevada interconnect and signal cable assemblies to support multi-generation fleet maintenance programs.

Spare Parts Support FAQ

Q1: Is the CB2W100-250 an original Bently Nevada part or an aftermarket substitute?
The CB2W100-250 supplied by KNMKS is sourced from verified OEM supply channels and meets original Bently Nevada dimensional and electrical specifications. Each unit is inspected prior to shipment for connector integrity and cable continuity. We do not supply uncertified aftermarket substitutes for safety-critical monitoring system components.

Q2: What is the recommended inventory strategy for the CB2W100-250?
For facilities with three or more 3500 Series racks, we recommend maintaining a minimum of two CB2W100-250 units in the site spare parts store. For single-rack installations, one unit on the shelf is the minimum acceptable position. Given the cable’s role in power and signal distribution within the rack, a stockout during an unplanned outage can extend downtime by days if the part must be sourced and shipped under emergency conditions.

Q3: How do I verify compatibility before installation?
Confirm that your rack includes a 3500/20 or compatible power supply module and that the cable termination points match the CB2W100-250 connector profile. If you are unsure of your rack configuration, provide your rack serial number or module part numbers to KNMKS sales and we will confirm compatibility before shipment. We do not charge restocking fees for parts returned due to compatibility mismatches identified before installation.

Q4: What does the support terms confirmed by quotation cover, and what is the long-term supply outlook?
The support terms confirmed by quotation cover manufacturing defects, connector failure under normal operating conditions, and cable shielding integrity. It does not cover damage resulting from incorrect installation, overcurrent events, or mechanical abuse. Regarding long-term supply: KNMKS maintains a standing inventory program for 3500 Series consumable spares including the CB2W100-250, and we actively source from multiple verified channels to protect against OEM discontinuation. Customers with annual maintenance contracts can request priority allocation to guarantee availability for planned outage windows.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

CB2W100-250
3500 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada CB2W100-250
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
