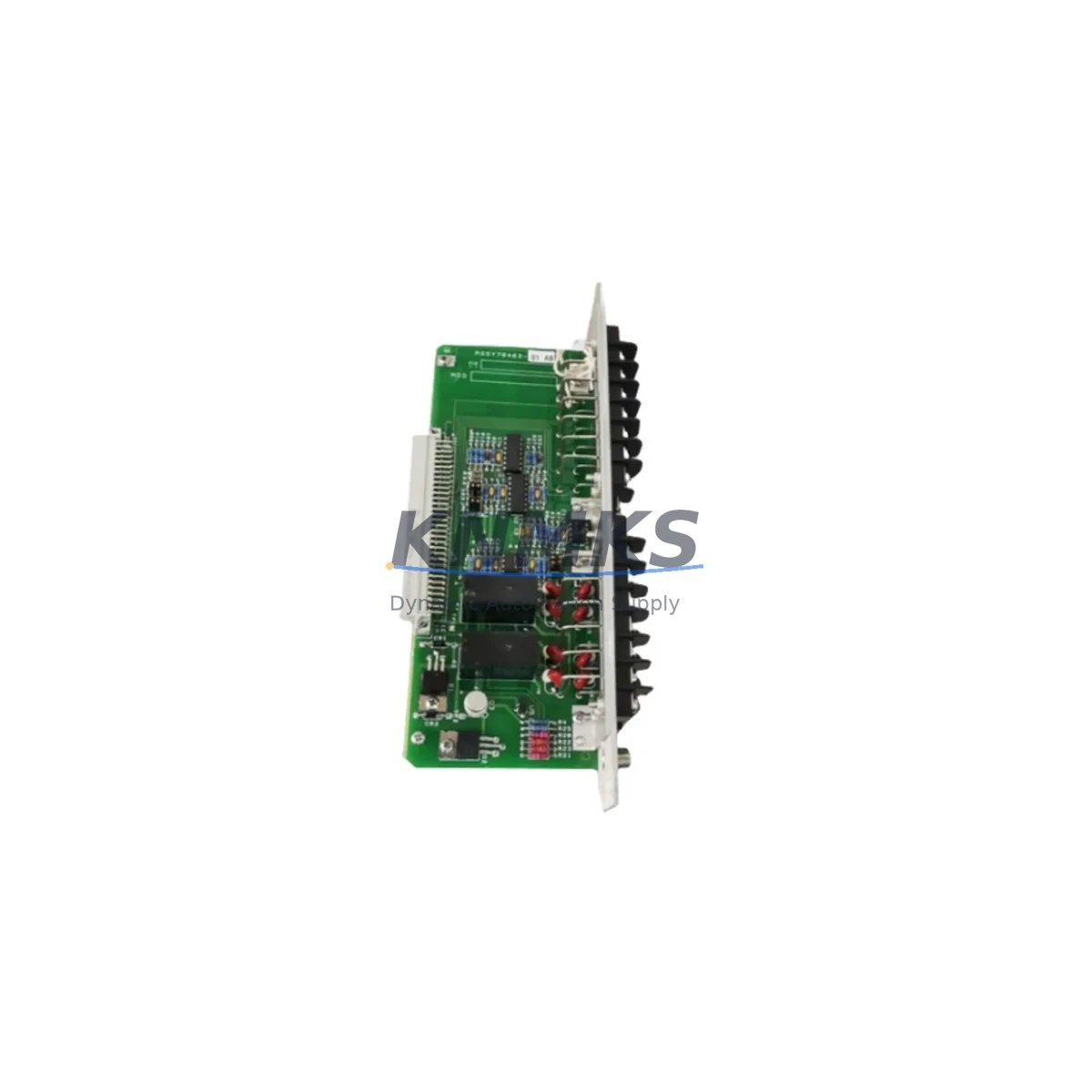

Bently Nevada ASSY78462-01AB Fail-Safe Relay Output Module

Overview

Bently Nevada ASSY78462-01AB Fail-Safe Relay Output Module: Fault Protection for Critical Industrial Reliability

In high-stakes industrial environments — petrochemical plants, power generation facilities, offshore platforms, and continuous process manufacturing — the integrity of a machinery protection system is non-negotiable. The Bently Nevada ASSY78462-01AB is a relay output module designed for the 3500 Series Machinery Protection System, engineered to deliver fail-safe trip relay outputs that protect rotating equipment from catastrophic damage. When a vibration monitor, proximity probe, or accelerometer detects an abnormal condition, it is this module that executes the critical shutdown command — reliably, without hesitation, and without false trips.

Maintenance engineers and reliability teams working with Bently Nevada 3500 racks understand that every component in the protection chain must perform to specification. The ASSY78462-01AB provides relay contact outputs that interface directly with turbine trip solenoids, compressor shutdown circuits, and motor protection relays. Its fail-safe design ensures that a loss of power or internal fault drives the relay to the de-energized (safe) state, preventing uncontrolled equipment runaway in the event of module failure. This is not a convenience feature — it is a fundamental safety architecture requirement in SIL-rated protection loops.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The ASSY78462-01AB does not operate in isolation. In a properly engineered 3500 Series protection rack, it works in concert with a full suite of monitoring and interface modules. When planning a replacement or spare parts audit, maintenance engineers should simultaneously inspect the Bently Nevada 3500/20 Rack Interface Module, which manages communication between the rack and the host DCS or safety system. A degraded rack interface can cause spurious trips or missed alarms even when the relay output module itself is functioning correctly.

The 3500/15 Power Supply Module is another critical companion component. Relay output modules depend on stable, clean DC power from the rack power supply. Aging capacitors, loose terminal connections, or a power supply operating near its thermal limit can introduce voltage ripple that destabilizes relay coil operation, leading to contact chatter or delayed trip response. Inspecting and stocking a spare 3500/15 alongside the ASSY78462-01AB is standard practice in high-availability protection strategies.

For sites running proximity probe monitoring on turbines or compressors, the Bently Nevada 3500/40M Proximitor / Seismic Monitor feeds vibration and position data that ultimately drives the relay output. If the relay module is being replaced due to a spurious trip event, the 3500/40M should be recalibrated and its probe gap voltages verified before returning the machine to service. Similarly, the 3500/42M Proximitor / Seismic Monitor used in dual-channel configurations should be cross-checked for consistent alarm and danger setpoints.

In control cabinets subject to high electromagnetic interference — common in motor control centers, variable frequency drive enclosures, and arc furnace environments — the integrity of the signal cable shielding and terminal block grounding between the field probes and the 3500 rack must be verified. Unshielded or improperly grounded signal paths can introduce noise that mimics vibration events, causing nuisance trips. Replacing the relay output module without addressing upstream signal integrity issues will not resolve the root cause.

Finally, for sites where the 3500 rack communicates with a Bently Nevada System 1 Evolution software platform or a third-party DCS via Modbus or Ethernet, the communication module firmware version should be confirmed compatible with the replacement relay output module revision. Firmware mismatches in mixed-revision racks have been known to cause configuration errors that prevent proper alarm acknowledgment.

Critical Industrial Safety Applications

The ASSY78462-01AB relay output module is deployed across the most demanding industrial sectors where unplanned equipment failure carries severe safety and financial consequences.

In petrochemical and refinery operations, the 3500 Series protects high-speed centrifugal compressors and steam turbines driving critical process trains. A relay output module failure in this context can mean the difference between a controlled shutdown and a catastrophic mechanical failure with potential fire or explosion risk. Operators in these facilities maintain a minimum of two spare relay output modules per critical machine train.

In power generation plants — both thermal and combined-cycle — the 3500 rack monitors generator shaft vibration, bearing temperatures, and differential expansion. The ASSY78462-01AB provides the final trip output to the turbine trip solenoid valve. Its fail-safe architecture ensures that even a complete rack power loss results in a safe turbine trip rather than an uncontrolled overspeed event.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives operate in environments with extreme vibration, dust ingress, and wide temperature swings. The relay output module must maintain contact integrity under these conditions without false trips that halt production, or missed trips that allow bearing failures to progress to catastrophic damage.

In water and wastewater treatment, high-service pumps and blower trains protected by Bently Nevada systems rely on the relay output module to execute shutdown commands when bearing wear or imbalance is detected. Continuous operation of these systems is critical to public health infrastructure, making reliable spare parts availability a regulatory and operational priority.

In metallurgical and steel production facilities, rolling mill drives and continuous casting equipment operate under extreme load cycles. The ASSY78462-01AB’s surge-protected relay contacts withstand the high-energy switching transients common in these environments, maintaining protection system integrity throughout the production campaign.

Safety and Quality FAQ

Q1: What support terms is provided with the ASSY78462-01AB?
Every ASSY78462-01AB supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support terms support includes technical consultation, replacement coordination, and documentation of the fault for your maintenance records.

Q2: How is the module tested before shipment?
Each unit undergoes pre-shipment functional testing that verifies relay contact continuity, coil energization response, fail-safe de-energization behavior, and insulation resistance. Test records are available upon request. Modules that do not meet original Bently Nevada performance specifications are not shipped.

Q3: Is the ASSY78462-01AB compatible with all 3500 Series rack configurations?
The ASSY78462-01AB is designed for the standard Bently Nevada 3500 rack backplane. Compatibility should be confirmed against your specific rack configuration, firmware revision, and system software version before installation. KNMKS technical support can assist with compatibility verification based on your rack serial number and system documentation.

Q4: Can KNMKS support long-term supply agreements for this module?
Yes. KNMKS maintains ongoing inventory of Bently Nevada 3500 Series modules and can support 12 to 36-month supply agreements for critical spare parts programs. Long-term agreements include priority allocation, price stability, and dedicated account management to ensure your protection system spares are always available when needed.
