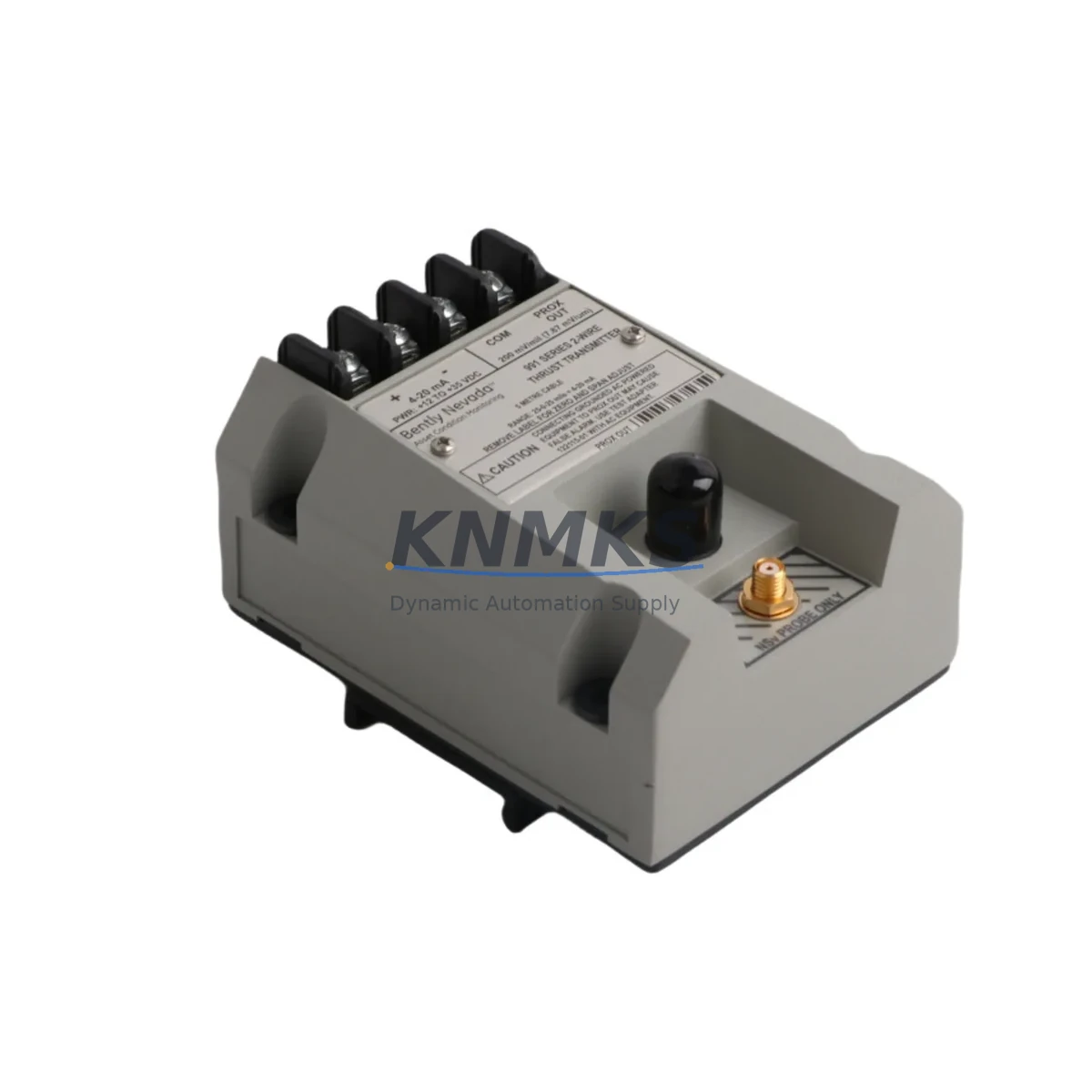

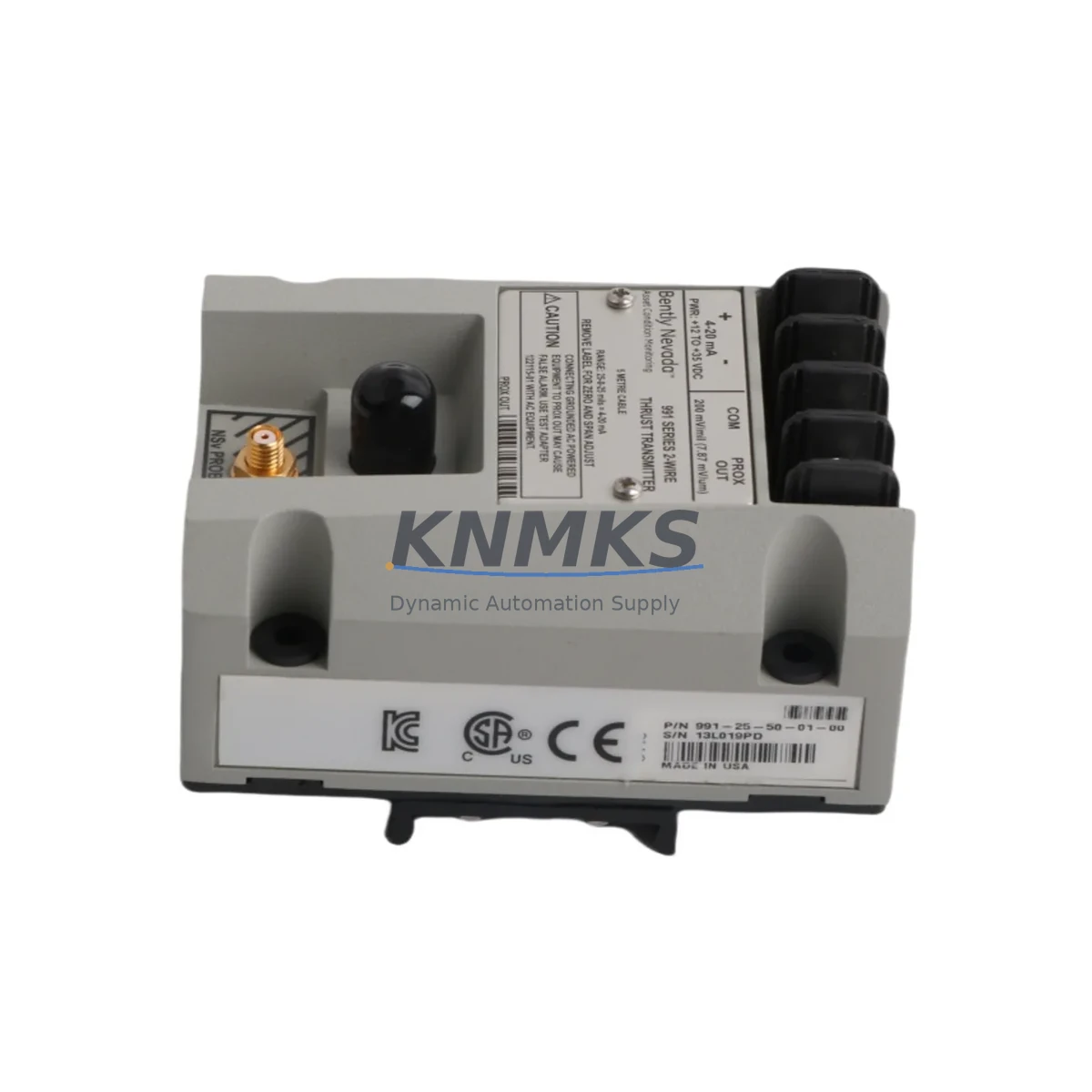

Bently Nevada 991-25-50-01-01 Fail-Safe Thrust Position Monitor

Overview

Bently Nevada 991-25-50-01-01 Fail-Safe Thrust Position Monitor: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 991-25-50-01-01 is a precision axial thrust position monitor engineered for continuous, fail-safe operation in the most demanding industrial control environments. As part of Bently Nevada’s proven 991 Series machinery protection platform, this unit delivers real-time axial displacement measurement with the signal integrity, surge immunity, and environmental robustness required for critical rotating equipment protection — including compressors, turbines, pumps, and gearboxes operating under high load, high vibration, and elevated temperature conditions.

In continuous production facilities where unplanned downtime carries severe operational and financial consequences, the 991-25-50-01-01 functions as a first-line defense against catastrophic thrust bearing failure. Its fail-safe output architecture ensures that any loss of signal, power interruption, or sensor fault drives the output to a defined safe state — preventing false clearances that could allow a machine to continue running under dangerous axial displacement conditions. This behavior is fundamental to SIL-compliant safety instrumented systems (SIS) and critical interlock loops where a missed trip can result in equipment destruction or personnel hazard.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable axial thrust monitoring does not operate in isolation — it is one node in a tightly integrated machinery protection architecture. In a typical critical rotating equipment control cabinet, the 991-25-50-01-01 works in concert with a suite of complementary protection and conditioning components to ensure end-to-end signal integrity and safe shutdown capability.

The monitor interfaces directly with Bently Nevada 3300 XL 8mm Proximitor probes or equivalent eddy-current displacement sensors, which provide the raw gap voltage signal representing axial shaft position. This signal is conditioned and processed by the 991-25-50-01-01 before being transmitted as a 4–20 mA loop signal to the Bently Nevada 3500/42M Proximitor / Seismic Monitor or a compatible safety PLC input card. In installations where the control cabinet is located at distance from the machine train, Bently Nevada 3500/20 Rack Power Supply modules provide stable, isolated DC power to the monitoring rack, preventing power-rail noise from corrupting position measurements.

For installations in hazardous areas or high-EMI environments — such as those adjacent to large variable frequency drives (VFDs), motor control centers (MCCs), or high-voltage switchgear — Pepperl+Fuchs or MTL Zener barriers and galvanic isolators are commonly deployed in series with the 991-25-50-01-01 signal path. These devices clamp transient energy and provide galvanic separation between the field instrument and the control room, protecting both the monitor and the downstream safety PLC from surge events that could cause spurious trips or, worse, masked faults. In cabinets where thermal management is a concern, Rittal or Pfannenberg cabinet cooling units maintain ambient temperature within the monitor’s rated operating range, preventing thermal drift in the analog output that could be misinterpreted as a position change.

Where the 991-25-50-01-01 feeds into a Triconex or Emerson DeltaV SIS safety logic solver, the 4–20 mA signal is typically read through a redundant analog input module with line fault detection. This configuration ensures that a wiring fault — open circuit, short circuit, or ground fault — is immediately detected and alarmed, rather than silently degrading the safety function. The combination of the 991-25-50-01-01’s fail-safe output behavior and the SIS’s line monitoring capability creates a defense-in-depth protection layer that satisfies IEC 61511 requirements for SIL 1 and SIL 2 safety instrumented functions.

Critical Industrial Safety Applications

The Bently Nevada 991-25-50-01-01 is deployed across a broad spectrum of critical industrial sectors where rotating equipment reliability is non-negotiable and the consequences of thrust bearing failure are severe.

In petrochemical and refinery applications, this monitor protects high-speed centrifugal compressors in ethylene crackers, hydrogen recycle loops, and LNG liquefaction trains. Axial thrust excursions in these machines — caused by process upsets, surge events, or seal failures — can destroy a compressor in seconds. The 991-25-50-01-01 provides the early warning and automatic trip capability that prevents a process upset from becoming a catastrophic mechanical failure and potential fire or explosion hazard.

In power generation facilities, including gas turbine combined-cycle plants and steam turbine generators, axial position monitoring is a mandatory protection function under OEM and insurance requirements. The 991-25-50-01-01 integrates into turbine protection panels alongside vibration monitors and speed sensors, providing the thrust position channel required for a complete machinery protection system. Its compatibility with Bently Nevada 3500 Series racks makes it a direct fit for existing protection architectures without requiring panel redesign.

In mining and mineral processing environments — where large ball mills, SAG mills, and slurry pumps operate under extreme mechanical loads in dusty, wet, and vibration-intensive conditions — the 991-25-50-01-01’s robust housing and EMI-hardened signal path ensure reliable position measurement even when adjacent equipment generates significant electrical noise. Unplanned downtime in a mine concentrator can cost tens of thousands of dollars per hour; the fail-safe monitoring capability of this unit directly supports the continuous availability targets that mining operations demand.

In water and wastewater treatment plants, large vertical turbine pumps and centrifugal blowers rely on axial position monitoring to detect impeller wear and bearing degradation before they progress to failure. The 991-25-50-01-01 supports predictive maintenance programs by providing a continuous, calibrated position signal that can be trended over time, enabling maintenance teams to schedule bearing replacements during planned outages rather than responding to emergency failures.

In metallurgical and steel production facilities, rolling mill main drives, blast furnace blowers, and continuous caster pinch roll drives operate in environments characterized by extreme heat, heavy vibration, and aggressive electrical interference from large DC drives and arc furnaces. The 991-25-50-01-01’s thermal tolerance and surge-hardened design make it a reliable choice for these demanding applications, where conventional instrumentation often fails prematurely.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 991-25-50-01-01?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional performance deviations from the published specification. If the unit fails to perform its axial thrust position monitoring function within the rated operating parameters during the confirmed support period, we will repair or replace it at no charge. The confirmed support period begins from the date of shipment and applies to units used within their rated environmental and electrical limits.

Q2: What pre-shipment testing is performed on each unit?
Every 991-25-50-01-01 undergoes functional verification testing prior to shipment. This includes power-on verification, analog output calibration check across the measurement range, fail-safe output behavior confirmation (output drives to fail-safe state on simulated fault), and visual inspection for physical damage. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for critical safety applications.

Q3: Is the 991-25-50-01-01 compatible with existing Bently Nevada 3500 Series protection racks?
Yes. The 991-25-50-01-01 is designed for direct compatibility with Bently Nevada 3500 Series monitoring racks and is also compatible with 3300 XL Series Proximitor probes and signal conditioning infrastructure. It can be installed as a direct replacement for end-of-life or damaged units in existing protection panels without requiring rack reconfiguration or software changes in most standard installations. For SIS-integrated installations, verify the analog input module’s fail-safe detection settings match the unit’s fail-low output behavior.

Q4: Can you support long-term or blanket supply for critical spare parts programs?
Yes. We maintain standing inventory of the 991-25-50-01-01 and related Bently Nevada 991 Series components to support planned maintenance programs, turnaround spares kits, and critical spare parts strategies. Blanket purchase orders and scheduled release agreements are available for customers who require guaranteed stock availability over a 12–24 month horizon. Contact our team to discuss volume pricing, lead time commitments, and consignment stock options for your facility’s spare parts program.
