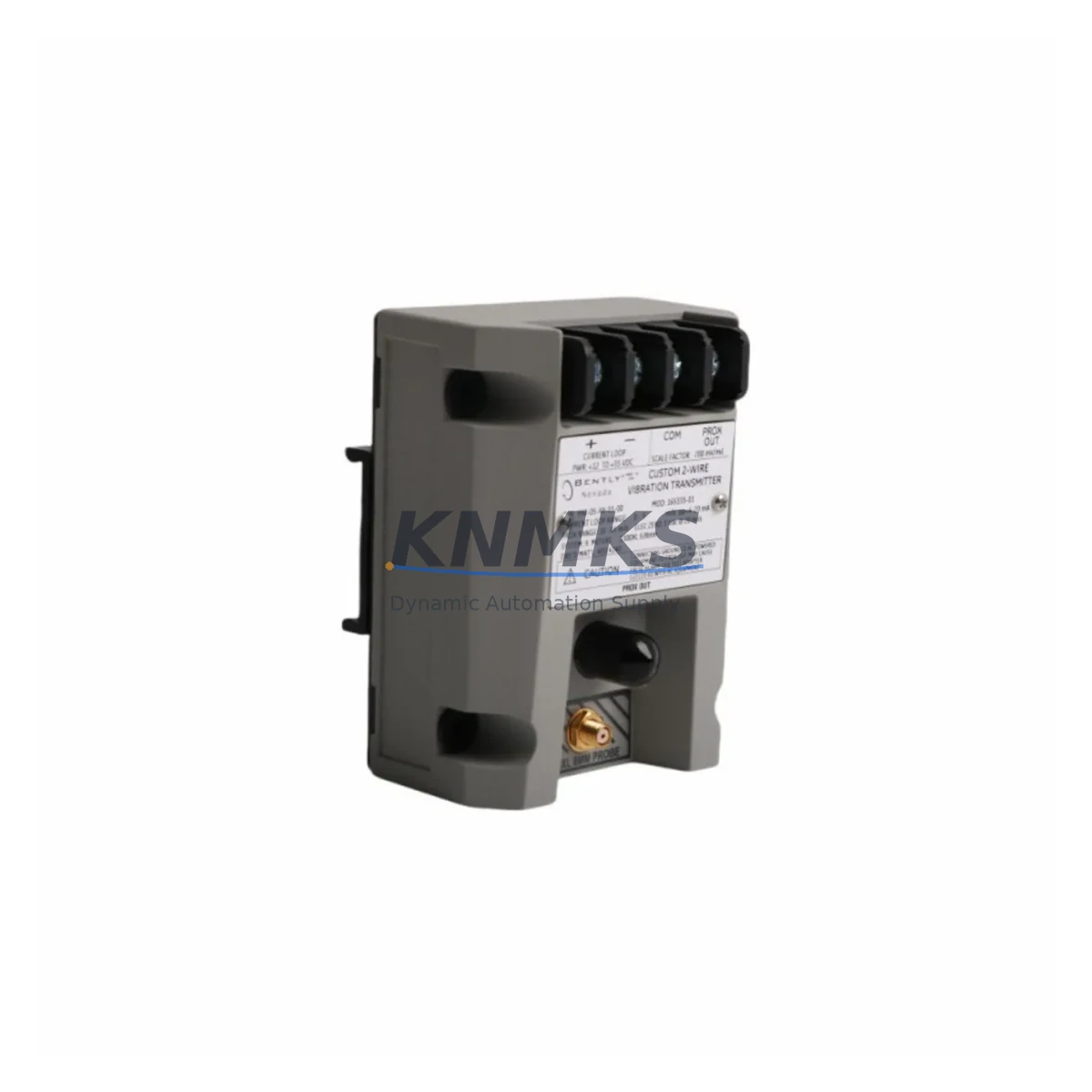

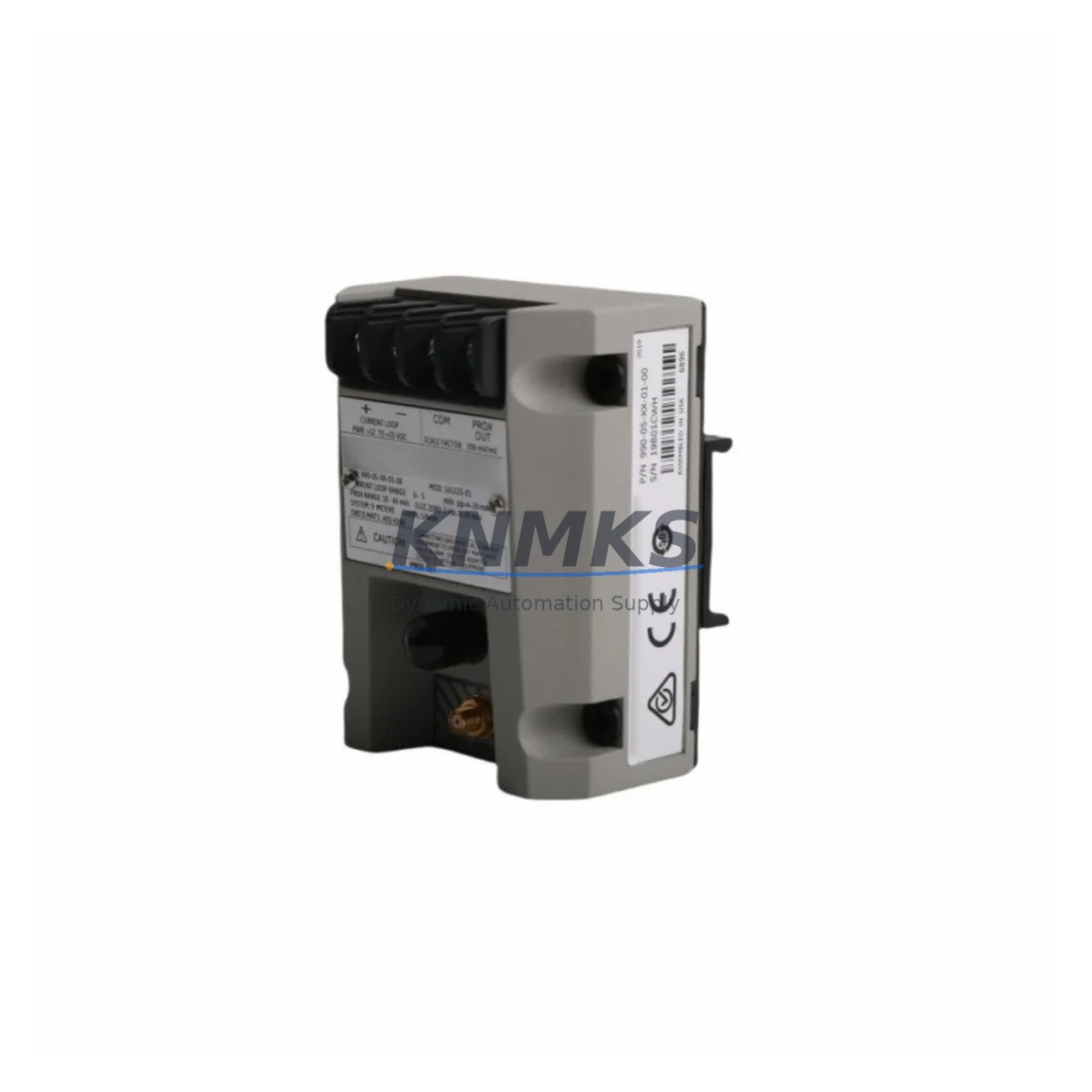

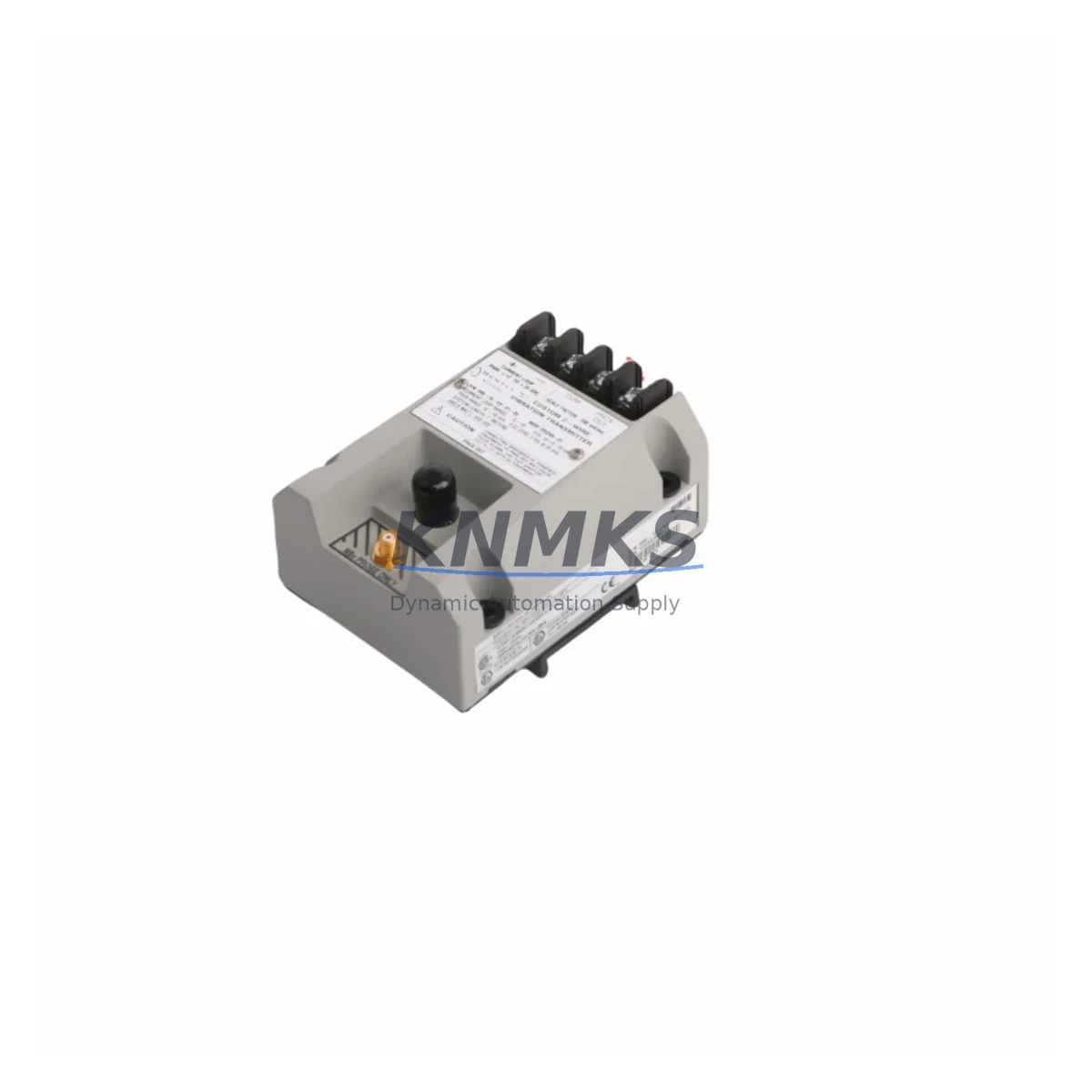

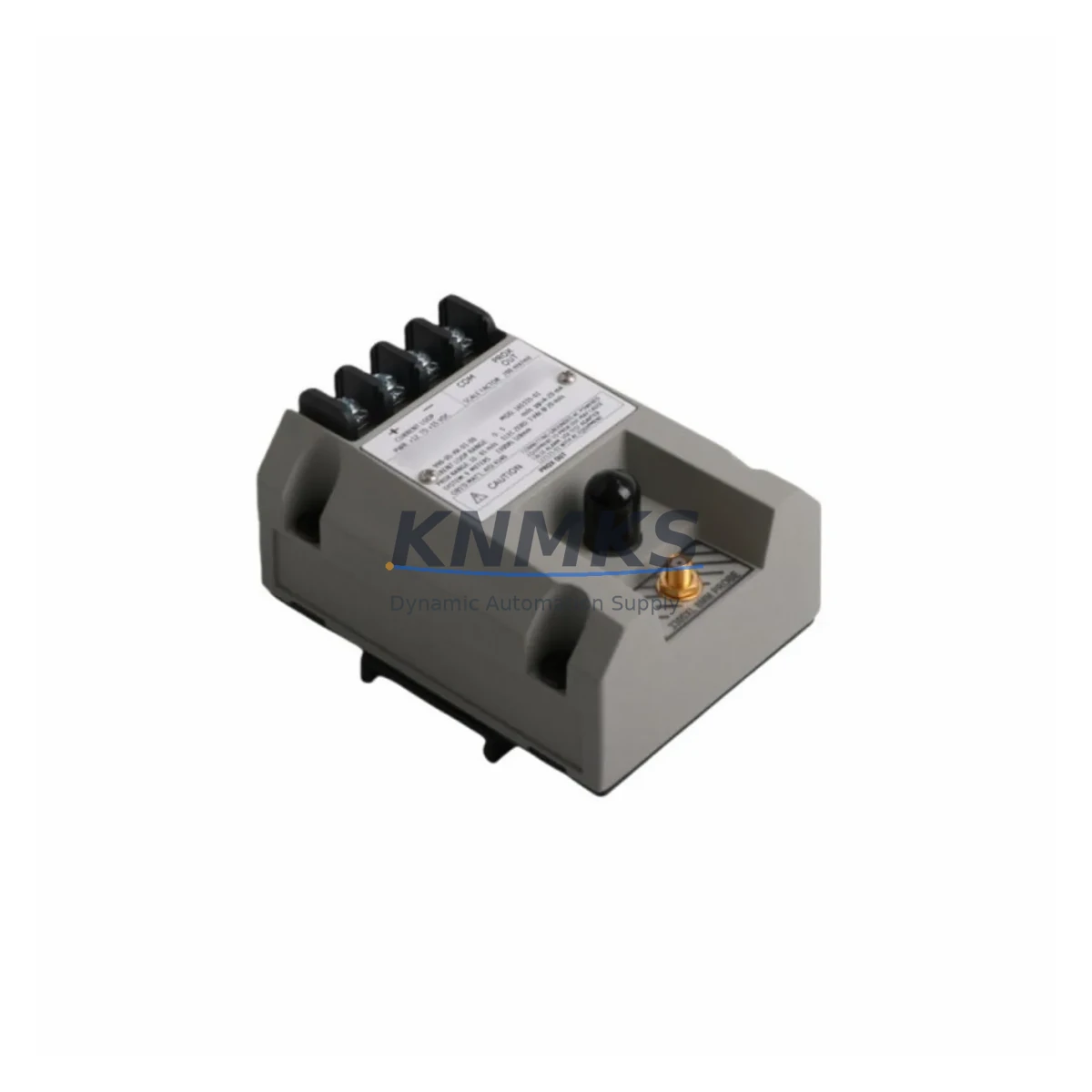

Bently Nevada 990-10-XX-01-05 Migration-Ready Vibration Transmitter

Overview

Bently Nevada 990-10-XX-01-05 Migration-Ready Vibration Transmitter: Legacy System Retrofit & Upgrade Guide

The Bently Nevada 990-10-XX-01-05 (MOD: 163930-01) is a migration-ready vibration transmitter engineered for seamless integration into existing 990 Series monitoring architectures and broader legacy control system environments. As industrial facilities face increasing pressure to modernize aging machinery protection systems, this transmitter serves as a critical bridge between discontinued hardware and current-generation platforms — enabling engineers to extend operational life, reduce unplanned downtime, and maintain continuous vibration monitoring without a full system overhaul.

Whether you are replacing a failed unit in a turbine protection rack, upgrading a compressor monitoring loop, or migrating from an obsolete Bently Nevada 3300 Series installation to the 990 Series framework, the 990-10-XX-01-05 delivers the signal conditioning, output compatibility, and mechanical form factor required for a controlled, low-risk retrofit. Its 4–20 mA analog output integrates directly with existing DCS input cards, safety PLCs, and SCADA historian channels without requiring signal reconfiguration at the control room level.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the replacement module arrives on site. Engineers planning to integrate the 990-10-XX-01-05 into an existing machinery protection system should conduct a thorough pre-installation audit covering power budget, terminal mapping, rack slot inventory, and signal loop integrity.

Start with the power supply module feeding the 990 Series rack. Many aging installations run their 24 VDC bus at or near capacity, and adding a replacement transmitter — even a like-for-like swap — requires confirming that the existing Bently Nevada power supply unit can sustain the additional loop current without voltage droop. If the rack is already at capacity, a supplementary DIN-rail power supply may need to be provisioned before the transmitter swap proceeds.

Terminal block wiring is the next critical checkpoint. The 990-10-XX-01-05 uses the standard 990 Series terminal layout, but field wiring from the proximity probe driver — typically a Bently Nevada 3300 XL 8mm or 11mm driver — must be verified for correct polarity, shield continuity, and cable length compliance. Excessive cable runs between the driver and transmitter can introduce signal attenuation that affects vibration amplitude accuracy, particularly at high-frequency measurement ranges.

For facilities migrating from older 3300 Series monitoring racks to the 990 Series platform, the backplane interface and module addressing scheme differ significantly. The 990 Series uses a different slot-based addressing model, and any DCS or safety PLC input channel mapped to the old rack address must be updated in the control system configuration. Failure to remap these addresses before commissioning will result in the DCS reading stale or incorrect vibration data — a critical risk in turbine and compressor protection applications.

HMI screen updates are equally important. Operators relying on a Wonderware, FactoryTalk, or Ignition-based HMI to monitor shaft vibration trends will need their display tags remapped to the new transmitter’s analog input channel. This is often overlooked during fast-track retrofits and can result in operators monitoring a dead channel while the live signal goes unobserved.

For installations where the 990-10-XX-01-05 is being added alongside a Bently Nevada 3500 Series rack expansion — for example, to extend vibration monitoring to additional bearing positions — the I/O module addressing within the 3500 framework must be configured to accept the 4–20 mA input from the 990 transmitter via an appropriate signal conditioning interface. A signal isolator or barrier may be required if the 3500 rack and the 990 transmitter share a common ground reference with the field instrumentation loop.

Finally, if the retrofit involves replacing a transmitter within a SIL-rated safety loop, the entire loop — including the Bently Nevada 3500/42M proximity monitor or equivalent safety monitor — must be proof-tested after the swap to confirm that the safety function remains intact and that the new transmitter’s response time and output accuracy meet the SIL requirements documented in the Safety Requirements Specification.

Downtime Control During System Migration

Minimizing production downtime during a vibration transmitter replacement requires a structured hot-swap or controlled-outage strategy. For non-safety-critical monitoring loops, many facilities elect to perform the swap during a scheduled maintenance window with the machine running at reduced load, using the DCS bypass function to suppress the vibration alarm while the transmitter is being replaced. This approach preserves production continuity but requires strict procedural controls to ensure the bypass is removed and the alarm reinstated immediately after commissioning.

For safety-critical loops — particularly those protecting high-speed turbines or centrifugal compressors — a controlled machine shutdown is the only acceptable approach. In these cases, the replacement 990-10-XX-01-05 should be bench-tested and pre-configured before the outage window begins. Bench testing should include loop current verification at 4 mA (zero-scale), 12 mA (mid-scale), and 20 mA (full-scale) using a precision current source, confirming that the transmitter output is within ±0.1 mA of the expected value across the full measurement range.

Original program logic in the DCS or safety PLC does not need to be modified for a like-for-like transmitter replacement, provided the analog input channel address and engineering unit scaling remain unchanged. However, if the retrofit involves a channel reassignment — for example, moving the vibration signal from one DCS I/O card to another due to rack reconfiguration — the program logic must be updated and a full functional test performed before the machine is returned to service.

Commissioning documentation should capture the as-found and as-left gap voltage readings from the proximity probe, the transmitter output current at the operating gap, and the DCS historian tag value at the time of commissioning. This baseline data is essential for future predictive maintenance trending and for demonstrating compliance with machinery protection standards such as API 670.

Retrofit Support FAQ

Q1: Is the 990-10-XX-01-05 a direct drop-in replacement for all 990 Series vibration transmitter variants?
The 990-10-XX-01-05 (MOD: 163930-01) is a direct replacement for units sharing the same MOD number and terminal configuration. Before ordering, cross-reference the MOD number on the existing unit’s nameplate. Variants with different MOD numbers may have different output ranges or terminal assignments and should be verified against the Bently Nevada 990 Series product matrix prior to installation.

Q2: What commissioning steps are required after installing the replacement transmitter?
After physical installation and terminal reconnection, perform a gap voltage check at the proximity probe tip to confirm the probe-driver-transmitter chain is operating within the specified linear range (typically –10 VDC ±20%). Then verify the 4–20 mA output at the DCS input card using a calibrated loop calibrator. Finally, confirm that the DCS historian is logging the correct engineering unit value and that all vibration alarms are reinstated and functional before returning the machine to service.

Q3: Can the 990-10-XX-01-05 be used in a SIL 2 safety loop?
The 990-10-XX-01-05 is a standard vibration transmitter and is not independently SIL-certified. For SIL 2 applications, the complete safety loop — including the proximity probe, driver, transmitter, and the Bently Nevada 3500 Series safety monitor — must be assessed as a system. Consult the Safety Manual for the 3500/42M or equivalent safety monitor and perform a proof test after any component replacement to confirm the SIL rating of the loop is maintained.

Q4: What is the support terms coverage and how is stock availability confirmed?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing including loop current verification and output linearity check. Stock availability is confirmed at the time of order; for urgent replacement requirements, contact our sales team directly to confirm lead time and arrange expedited dispatch.
