Bently Nevada 84147-01 Fail-Safe I/O Terminal Board

Overview

Bently Nevada 84147-01 Fail-Safe I/O Terminal Board: Critical Fault Protection for Industrial Machinery Control

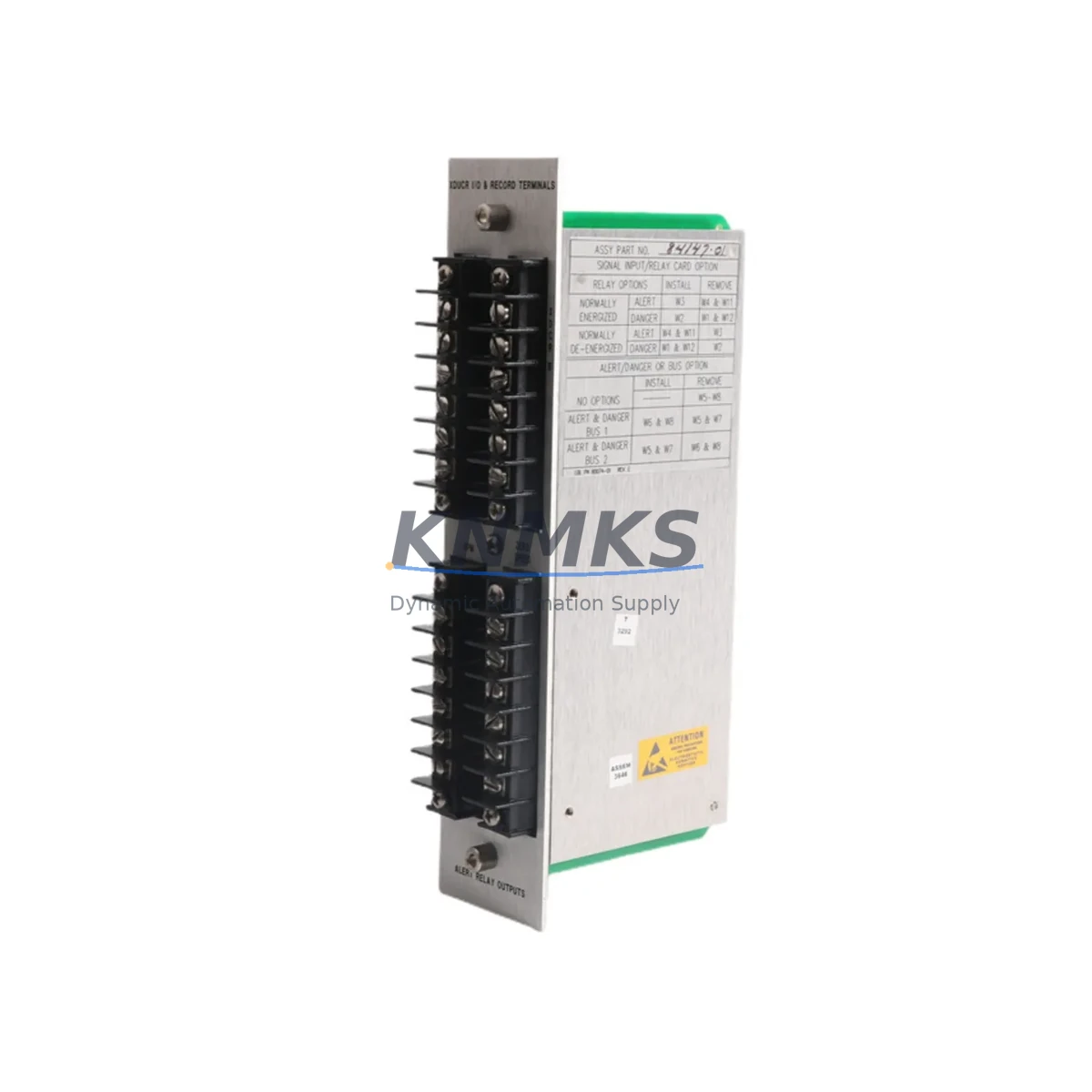

The Bently Nevada 84147-01 is a ruggedized I/O Terminal Board engineered for the 3500 Series Machinery Protection System. Designed to operate continuously in demanding industrial environments, this terminal board serves as the critical signal interface between field sensors and the protection rack — ensuring that vibration, position, and process data are transmitted with zero tolerance for signal loss or misrouting. In high-stakes applications where an undetected fault can trigger unplanned shutdowns, equipment damage, or personnel hazards, the 84147-01 delivers the fail-safe reliability that modern industrial safety architectures demand.

Unlike generic terminal boards, the 84147-01 is purpose-built for the Bently Nevada 3500 platform, guaranteeing full electrical and mechanical compatibility with modules such as the 3500/22M Transient Data Interface, 3500/42M Proximitor/Seismic Monitor, and 3500/15 Power Supply. This native compatibility eliminates signal conditioning mismatches that can introduce measurement drift, false trips, or missed alarms — all of which represent unacceptable risks in continuous-process industries.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the Bently Nevada 84147-01 terminal board does not operate in isolation — it is the connective tissue that binds the entire protection architecture together. When paired with the Bently Nevada 3500/15 Dual Power Supply, the system achieves redundant power delivery that eliminates single-point power failure as a shutdown risk. Voltage fluctuations, surge events, and momentary grid disturbances that would otherwise corrupt sensor readings are absorbed at the power layer before they can propagate to the I/O interface.

Signal integrity at the terminal board level is further protected when the cabinet design incorporates proper cable segregation and shielded wiring practices consistent with the Bently Nevada 3500/92 Communication Gateway architecture. In plants where Modbus, FOUNDATION Fieldbus, or Ethernet/IP communication links carry real-time protection data to the DCS or SCADA layer, any signal anomaly at the terminal board can cascade into false alarms or missed trips at the supervisory level. The 84147-01’s low-impedance terminal design minimizes this risk.

For cabinets operating in environments with heavy motor drive activity, arc flash potential, or proximity to high-voltage switchgear, the terminal board’s EMI-hardened construction works in concert with external surge protection devices — such as those in the Phoenix Contact TRABTECH series — to maintain clean signal paths even under severe electromagnetic stress. Similarly, in high-temperature enclosures where ambient cabinet temperatures can exceed 50°C, the 84147-01’s thermal tolerance ensures that I/O signal mapping remains stable without requiring active cooling upgrades.

When a protection module such as the 3500/40M Proximitor/Seismic Monitor or 3500/44M Aeroderivative Turbine Monitor requires field replacement, the 84147-01 terminal board allows hot-swap module changes without disconnecting field wiring — a critical advantage in continuous-process plants where even a brief wiring interruption can trigger a spurious trip. This design philosophy directly reduces maintenance-induced downtime, one of the most common and costly sources of unplanned production loss.

Critical Industrial Safety Applications

The Bently Nevada 84147-01 I/O Terminal Board is deployed across the most demanding continuous-process and safety-critical industries worldwide:

Petrochemical & Refining: In compressor trains, turbine-driven pumps, and reactor agitators, the 84147-01 provides the reliable signal interface that keeps rotating machinery protection active 24/7. Any signal interruption at the terminal board level in these applications risks both catastrophic equipment failure and process safety incidents. The board’s fail-safe design ensures that a wiring fault defaults to a safe, alarm-generating state rather than a silent failure.

Power Generation: Steam turbines, gas turbines, and large generator sets rely on the 3500 Series protection system to monitor shaft vibration, axial displacement, and differential expansion. The 84147-01 ensures that the dozens of transducer signals feeding into the protection rack are correctly terminated, shielded, and routed — maintaining the measurement accuracy that turbine OEM protection setpoints demand.

Mining & Mineral Processing: Ball mills, SAG mills, and large conveyor drive systems operate in environments with extreme dust loading, moisture ingress, and mechanical vibration. The 84147-01’s robust terminal construction withstands these conditions while maintaining reliable connectivity between proximity probes, accelerometers, and the 3500 rack — preventing the signal degradation that leads to missed bearing failure warnings.

Water & Wastewater Treatment: Large pump stations and blower systems in water treatment facilities require continuous vibration monitoring to prevent catastrophic pump failures that would disrupt municipal water supply. The 84147-01 supports long-term, maintenance-free operation in the humid, chemically aggressive environments typical of these facilities.

Metallurgy & Steel: Rolling mills, continuous casters, and large induction furnace drives generate intense electromagnetic interference. The 84147-01’s EMI-hardened terminal design maintains signal integrity in these environments, ensuring that the protection system responds accurately to real machinery faults rather than electrical noise artifacts.

Port & Marine: Shipboard propulsion systems, offshore platform compressors, and port crane drives require protection systems that function reliably under constant vibration, salt-laden air, and wide temperature swings. The 84147-01 meets these environmental demands while providing the signal reliability that marine classification societies and offshore safety regulations require.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the Bently Nevada 84147-01?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional faults that arise under normal operating conditions consistent with Bently Nevada 3500 Series installation guidelines. If the terminal board fails to perform its specified I/O signal routing function within the confirmed support period, we provide replacement or repair at no additional cost. Support requests are processed within 5 business days of fault confirmation.

Q2: What pre-shipment testing is performed on the 84147-01?
Every 84147-01 unit undergoes functional verification testing prior to dispatch, including terminal continuity checks, insulation resistance verification, and visual inspection for mechanical damage. Units sourced from authorized distribution channels are tested against Bently Nevada factory acceptance criteria. A test report is available upon request for critical safety applications.

Q3: Is the 84147-01 compatible with all 3500 Series monitor modules?
The 84147-01 is designed for specific 3500 Series monitor modules. Compatibility depends on the monitor type (e.g., 3500/40M, 3500/42M, 3500/44M). Please confirm your monitor module part number before ordering. Our technical team can verify compatibility based on your rack configuration and field wiring requirements — contact us at [email protected] with your system details.

Q4: Can long-term supply continuity be guaranteed for the 84147-01?
Yes. We maintain dedicated inventory of the Bently Nevada 84147-01 to support both immediate replacement needs and planned maintenance programs. For plants with multiple 3500 Series racks, we recommend establishing a consignment stock arrangement to eliminate lead-time risk during critical maintenance windows. Contact our team to discuss volume pricing and reserved stock agreements.
