Bently Nevada 84145-01 Migration-Ready Seismic Relay

Overview

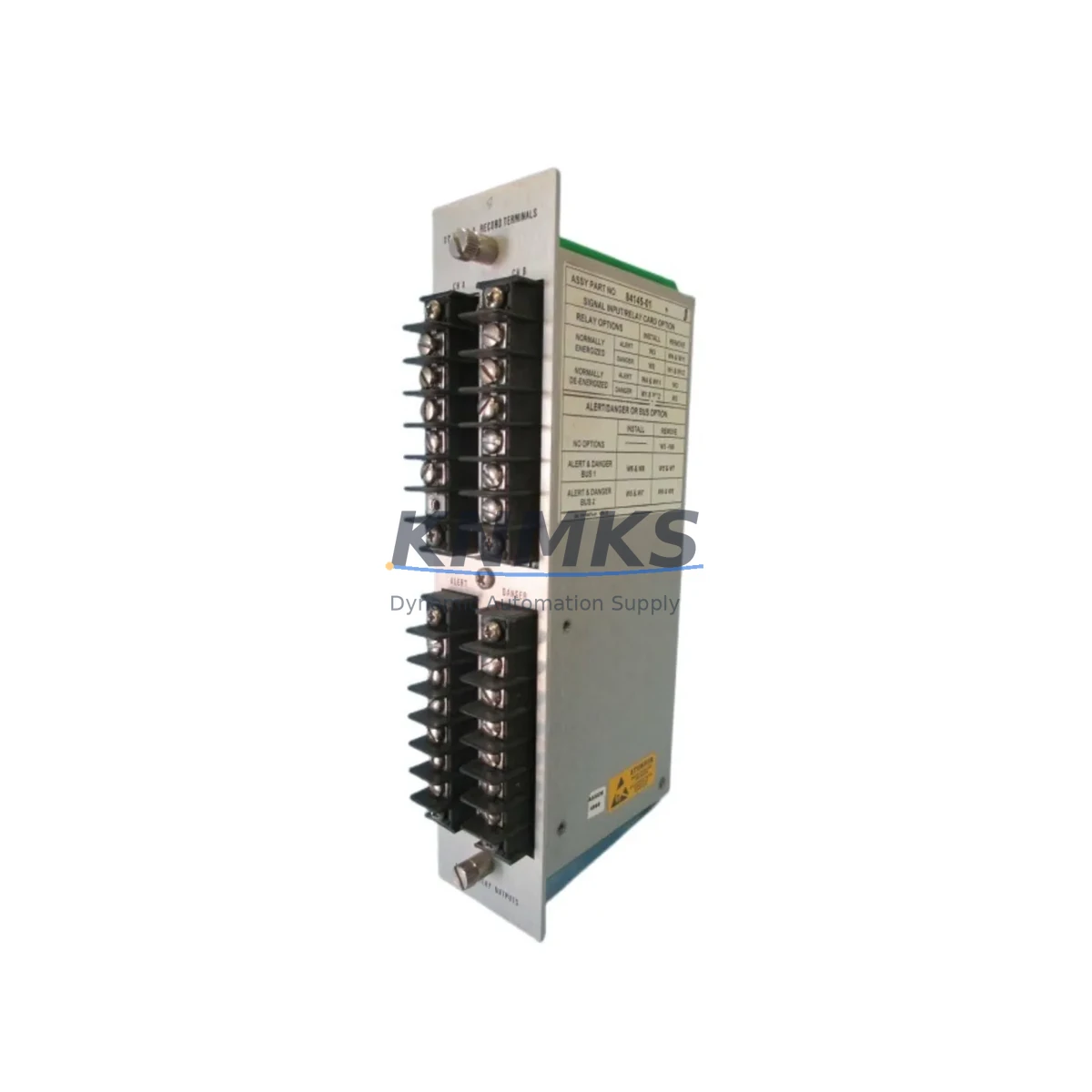

Bently Nevada 84145-01 Migration-Ready Seismic Relay for Legacy Control Systems

The Bently Nevada 84145-01 is a dual epoxy seismic relay module designed for the 3500 Series vibration monitoring platform. As legacy machinery protection systems approach end-of-life or face discontinued spare parts availability, the 84145-01 serves as a verified drop-in replacement that preserves existing wiring topology, rack slot assignments, and relay output logic without requiring reprogramming of the host monitoring system.

Industrial facilities operating rotating equipment — including turbines, compressors, pumps, and fans — rely on the 3500 Series for continuous vibration and seismic event detection. When the original 84145-01 module fails or becomes unavailable through OEM channels, unplanned downtime and extended procurement lead times create significant operational risk. Our inventory of the 84145-01 is sourced, inspected, and function-tested to ensure immediate availability and reliable field performance.

Before installing a replacement 84145-01, engineers should confirm the rack power budget within the 3500 Rack (typically a 3500/05 or 3500/15 power supply unit) to ensure adequate capacity for the relay module’s operating draw. Terminal wiring on the I/O module side must be verified against the original loop drawing, particularly for the seismic transducer input signal range and relay contact ratings. The backplane interface of the 3500 Series uses a proprietary slot-based architecture, so physical slot addressing and module jumper configuration should be cross-checked against the system configuration file before power-up.

Program logic compatibility is a critical step in any 3500 Series retrofit. The 84145-01 relay outputs are typically mapped to the 3500/92 Communication Gateway or interfaced with a DCS or safety PLC via hardwired relay contacts. If the plant control system uses a Modbus or Ethernet/IP link through the 3500/92, the relay channel mapping in the gateway configuration must be validated to ensure alarm and trip signals are correctly routed after module replacement. HMI screens displaying seismic channel status should also be reviewed to confirm tag bindings remain intact following the swap.

For facilities undertaking a broader migration from legacy Bently Nevada hardware to a modernized monitoring architecture, the 84145-01 is frequently replaced or supplemented alongside the 3500/40M proximitor/seismic monitor, the 3500/22M transient data interface, and the 3500/32 4-channel relay module. These modules share the same rack infrastructure and communication backbone, allowing phased replacement without full system shutdown. In cases where the existing 3500 rack is being decommissioned entirely, the 84145-01’s relay output wiring can often be re-terminated to a modern safety relay or a 3500-compatible I/O marshalling panel with minimal field modification.

Installation space confirmation is essential when retrofitting within an existing control cabinet. The 84145-01 occupies a standard 3500 Series single-slot position. Cabinet depth, cable management clearance, and ventilation spacing should be verified before scheduling the replacement window. Firmware version compatibility between the 84145-01 and the rack’s system monitor module (such as the 3500/20 or 3500/20M) should be confirmed using Bently Nevada’s module compatibility matrix to avoid initialization errors on first power-up.

Commissioning after replacement should follow a structured sequence: visual inspection of terminal connections, power-on self-test verification via the system monitor, relay output continuity check, and a live seismic signal injection test using a portable calibrator to confirm trip and alarm setpoints are active and correctly transmitted to the control room. Downtime for a single-module swap in a prepared environment typically ranges from two to four hours, including documentation and loop test sign-off.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 84145-01 within an active plant environment requires coordinated planning across multiple system layers. The seismic relay module does not operate in isolation — it is part of an integrated machinery protection chain that includes the 3500/40M proximitor/seismic monitor for signal conditioning, the 3500/32 4-channel relay module for trip output expansion, and the 3500/92 communication gateway for DCS integration. Each of these components must be assessed for compatibility before the replacement window is opened.

Power supply capacity is the first checkpoint. The 3500/05 or 3500/15 rack power supply must have sufficient headroom to support the 84145-01 alongside all other installed modules. A rack power audit using the 3500 Series power budget worksheet is recommended, particularly in fully populated racks where margin may be limited.

Terminal wiring adaptation is the second critical area. The 84145-01 uses a standard I/O terminal block that mates with the rack’s field wiring termination. If the original module’s terminal block is damaged or corroded, a replacement terminal block should be sourced simultaneously to avoid delays during the maintenance window. Signal isolation between the seismic transducer and the relay module input should be verified, and a signal isolator or barrier may be required if the field cable run exceeds recommended lengths or passes through electrically noisy environments.

For facilities also upgrading their HMI or SCADA layer, the relay output signals from the 84145-01 are typically hardwired to a DCS I/O card or a safety PLC digital input. Confirming the DCS tag database and alarm management configuration before the swap prevents post-installation discrepancies in the control room display. If a programming cable is needed to reconfigure the 3500 System Monitor after module replacement, the 3500 Series RS-232 configuration cable should be on hand during commissioning.

Downtime Control During System Migration

Minimizing downtime during a 84145-01 replacement requires pre-staging all replacement components, verifying the replacement module against the system configuration file before the maintenance window begins, and preparing a rollback plan in case of unexpected initialization issues.

The original program logic stored in the 3500 System Monitor is not affected by a single relay module swap, provided the replacement module is configured to the same slot address and jumper settings as the original. This means the host DCS or safety PLC program does not require modification, and HMI tag bindings remain valid throughout the replacement process.

To further reduce risk, the replacement 84145-01 should be bench-tested prior to installation using a portable relay test set to verify contact operation and seismic input response. This pre-commissioning step allows the field team to confirm module functionality before the equipment is taken offline, compressing the on-site replacement window to the minimum required for physical swap and loop test sign-off.

Field continuity is maintained by coordinating with the control room to place the affected monitoring channel in bypass mode during the swap interval, ensuring that a single-channel outage does not trigger a spurious trip on the protected equipment. Bypass procedures should follow the plant’s management of change (MOC) protocol and be documented in the maintenance record.

Retrofit Support FAQ

Q: Is the 84145-01 a direct drop-in replacement for the original Bently Nevada module?
A: Yes. The 84145-01 is designed as a slot-compatible replacement for the 3500 Series rack. Verify jumper configuration and slot address settings match the original module before installation. No rack or wiring modification is required in standard replacement scenarios.

Q: What commissioning steps are required after installing the 84145-01?
A: After physical installation, perform a power-on self-test via the 3500 System Monitor, conduct a relay output continuity check, and complete a seismic signal injection test to confirm alarm and trip setpoints are active. Document all test results per your plant’s maintenance protocol.

Q: How is the 84145-01 wired to the existing field termination?
A: The module uses the standard 3500 Series I/O terminal block interface. Re-terminate field wiring per the original loop drawing. Confirm seismic transducer input signal range and relay contact ratings match the replacement module specifications before energizing.

Q: What support terms and availability does KNMKS provide for the 84145-01?
A: All 84145-01 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. Each module is function-tested prior to dispatch. In-stock units are available for immediate shipment. Contact [email protected] or +86 18359268345 for lead time and quantity availability.
