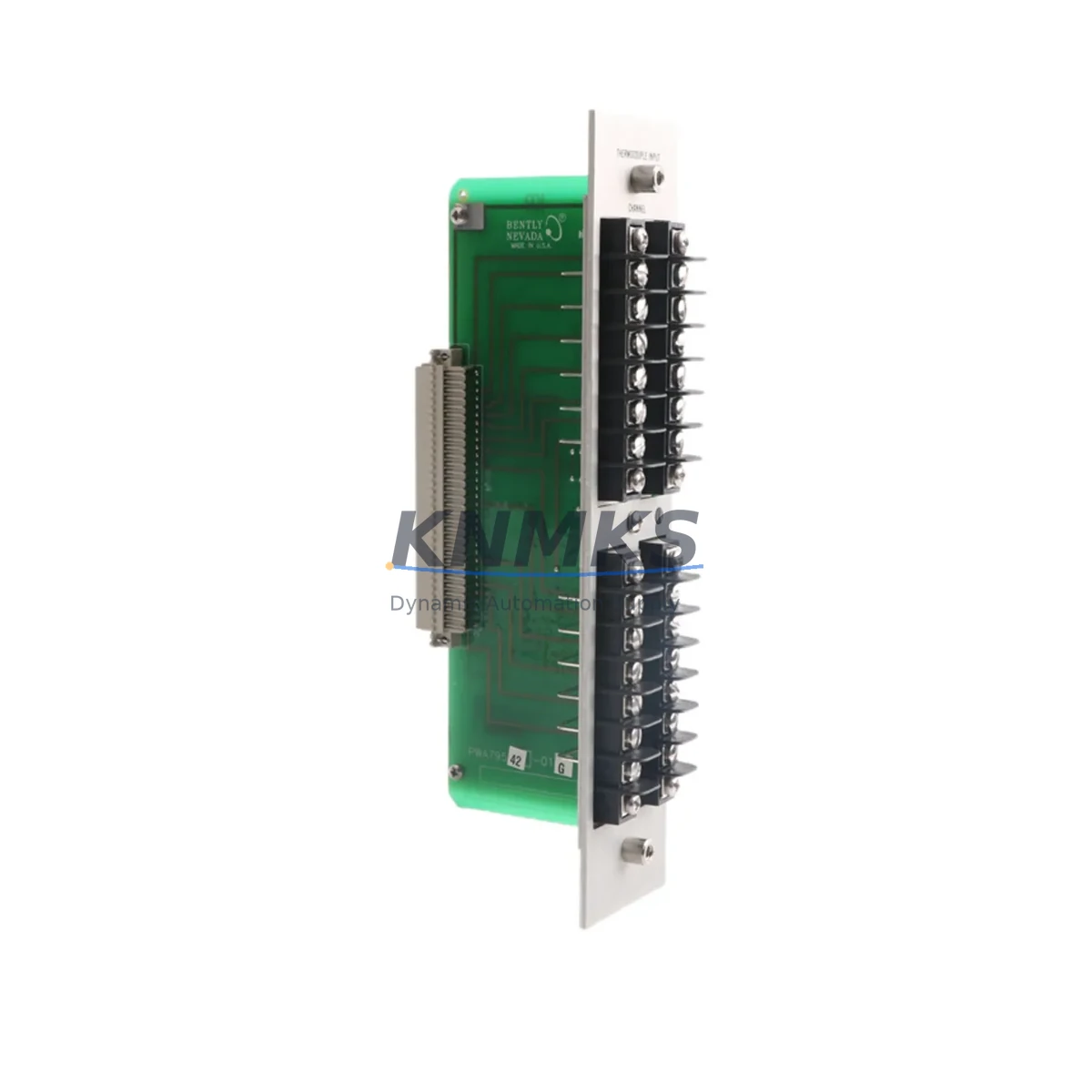

Bently Nevada 82367-01 Fail-Safe Temperature Module

Overview

Bently Nevada 82367-01 Fail-Safe Temperature Module: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 82367-01 is a precision temperature monitoring module engineered for the Bently Nevada 3500 Series machinery protection system — one of the most widely deployed continuous monitoring platforms in heavy industry. Designed to deliver fail-safe performance in demanding control environments, the 82367-01 provides stable, accurate temperature signal acquisition even under conditions of high electromagnetic interference, power fluctuation, mechanical vibration, and extreme ambient temperature variation.

In critical industrial facilities — including petrochemical plants, power generation stations, mining operations, and continuous process manufacturing — unplanned downtime caused by temperature monitoring failures can result in catastrophic equipment damage, safety incidents, and significant production losses. The 82367-01 addresses these risks directly by providing a hardened, reliable interface between field temperature sensors and the 3500 rack-based monitoring system, ensuring that thermal anomalies are detected and acted upon before they escalate into failures.

This module is built to reduce the risk of control interruption, signal drift, false trips, power surge damage, communication anomalies, and unplanned shutdowns — making it a cornerstone component in any safety-conscious control cabinet architecture.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 82367-01 does not operate in isolation — its full protective value is realized when deployed as part of a coordinated control cabinet architecture. In a typical 3500 Series protection rack, the temperature module works alongside the Bently Nevada 3500/20 Rack Interface Module, which manages system power distribution and communication integrity across all installed cards. Power quality within the cabinet is further stabilized by dedicated DC power supply modules such as the Bently Nevada 3500/15 Power Supply, which provides regulated, redundant power to prevent voltage sag or surge from propagating into sensitive monitoring circuits.

For vibration and dynamic measurement channels in the same protection system, the Bently Nevada 3500/40M Proximitor / Seismic Monitor and 3500/42M Proximitor / Seismic Monitor modules complement the 82367-01 by covering shaft displacement and casing vibration — together forming a comprehensive machinery health monitoring loop. In safety instrumented system (SIS) architectures, the temperature data from the 82367-01 is often fed into a Triconex Safety Controller or equivalent SIL-rated logic solver to trigger protective shutdown sequences when thermal thresholds are exceeded.

For field wiring protection against lightning-induced surges and ground faults — particularly in outdoor substations, pump stations, and compressor skids — surge protection devices installed at the cabinet entry point work in tandem with the 82367-01’s onboard transient suppression to create a multi-layer defense against electrical disturbances. This layered approach is essential in petrochemical and power generation environments where a single unprotected surge event can disable an entire monitoring rack.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In continuous process plants, the 82367-01 monitors bearing and winding temperatures on critical rotating equipment including compressors, pumps, and turbines. Early detection of thermal anomalies enables operators to initiate controlled shutdowns before catastrophic bearing failure or motor burnout occurs, protecting both personnel and capital assets.

Power Generation: Steam turbines and gas turbines in power plants operate under extreme thermal loads. The 82367-01 provides the reliable temperature signal acquisition required to maintain turbine protection systems in a state of continuous readiness, ensuring that over-temperature trips are executed accurately and without false activation.

Mining and Mineral Processing: In underground and surface mining operations, control equipment is exposed to dust, moisture, and vibration. The 82367-01’s robust construction and sealed signal conditioning circuitry maintain measurement accuracy in these harsh environments, reducing the risk of missed alarms on conveyor drives, crushers, and hoisting equipment.

Water and Wastewater Treatment: Pump stations and blower systems in water treatment facilities require continuous monitoring to prevent motor overheating. The 82367-01 integrates seamlessly into existing 3500 Series racks to extend temperature protection to these critical utility assets.

Metallurgy and Steel Production: High-temperature, high-vibration environments in steel mills and smelters place extreme demands on monitoring hardware. The 82367-01’s thermal tolerance and surge-hardened inputs make it suitable for deployment in these severe-duty applications where standard instrumentation would fail prematurely.

Port and Marine Applications: Shipboard machinery protection systems and port crane drives benefit from the 82367-01’s compact form factor and compatibility with the 3500 Series platform, enabling consistent temperature monitoring in mobile and marine-grade control enclosures.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 82367-01?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified temperature monitoring function within the confirmed support period, KNMKS will provide a replacement or repair at no additional cost. Support requests are processed promptly to minimize any impact on your production continuity.

Q2: What outgoing inspection and testing is performed before shipment?
Every 82367-01 unit undergoes a full functional test prior to dispatch. This includes verification of signal input response, alarm output function, communication backplane interface, and power consumption within specification. A test record is available upon request. This ensures that the module arrives at your facility ready for immediate installation and commissioning.

Q3: Is the 82367-01 compatible with all Bently Nevada 3500 Series racks?
The 82367-01 is designed for use within the Bently Nevada 3500 Series machinery protection system and is compatible with standard 3500 Series rack configurations. Compatibility with specific rack revisions and firmware versions should be confirmed against your existing system documentation. KNMKS technical support can assist with compatibility verification prior to purchase.

Q4: Can KNMKS support long-term supply and emergency replacement requirements?
Yes. KNMKS maintains stock of the 82367-01 and related 3500 Series components to support both planned maintenance programs and emergency replacement scenarios. For facilities operating critical machinery where downtime is not acceptable, we recommend establishing a consignment or buffer stock arrangement. Contact our sales team at [email protected] or +86 18359268345 to discuss supply agreements tailored to your operational requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

82367-01
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 82367-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
