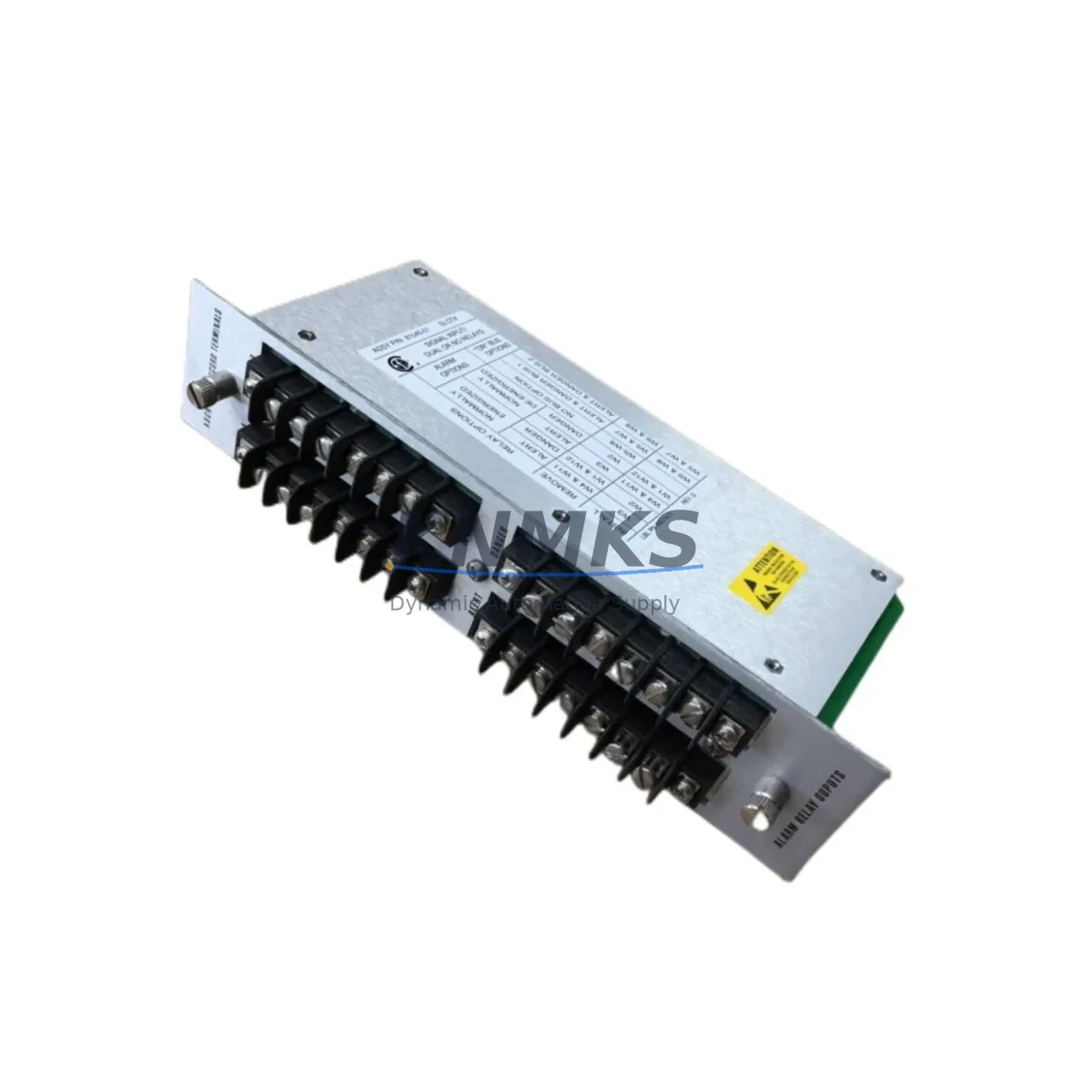

Bently Nevada 81545-01 Fail-Safe Signal Alarm Module

Overview

Bently Nevada 81545-01 Fail-Safe Signal Alarm Module: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 81545-01 is a precision-engineered Signal Input/Alarm Output Module designed for the Bently Nevada 3500 Series machinery protection system — one of the most trusted platforms in continuous industrial monitoring. Built to operate reliably in demanding environments including high electromagnetic interference (EMI), heavy vibration, elevated temperatures, and moisture-laden atmospheres, this module delivers the fail-safe performance that critical control loops demand.

In industries where unplanned downtime carries severe operational and safety consequences — petrochemical processing, power generation, mining, metallurgy, and water treatment — the 81545-01 serves as a cornerstone component in alarm and trip logic architectures. Its signal input conditioning and alarm output capabilities ensure that abnormal machinery states are detected, processed, and acted upon with minimal latency and maximum reliability, even under adverse field conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the Bently Nevada 81545-01 within a control cabinet requires a holistic approach to signal integrity and fault containment. In a typical 3500 Series rack configuration, the 81545-01 works in close coordination with the Bently Nevada 3500/22M Transient Data Interface and the 3500/42M Proximitor/Seismic Monitor to form a complete vibration and position monitoring chain. Signal conditioning at the module level ensures that transducer outputs — whether from proximity probes, accelerometers, or velocity sensors — are accurately interpreted before alarm thresholds are evaluated.

Power stability within the cabinet is equally critical. The Bently Nevada 3500/15 Power Supply Module provides regulated, redundant DC power to the rack, protecting the 81545-01 and adjacent modules from voltage sags, surges, and transient spikes that are common in heavy industrial environments near large motor drives or arc furnaces. Pairing the 81545-01 with a 3500/05 System Rack and a dedicated 3500/20 Rack Interface Module enables centralized communication and alarm management, reducing the risk of communication anomalies that could mask a developing machinery fault.

For installations in high-EMI zones — such as near variable frequency drives, high-voltage switchgear, or large transformer banks — supplementary shielding and proper grounding of the 3500 Series I/O cable assemblies are essential. The 81545-01’s internal signal isolation architecture minimizes ground loop interference, preserving alarm output accuracy even when cabinet grounding is imperfect. In safety-critical interlock loops, the module’s deterministic alarm response time supports integration with emergency shutdown (ESD) systems and safety instrumented systems (SIS) that require fast, reliable trip signals.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments such as crude distillation units, compressor trains, and reactor cooling loops, the 81545-01 monitors rotating machinery health in real time. Its alarm output feeds directly into the plant’s distributed control system (DCS) or safety instrumented system, triggering protective actions before bearing failures, shaft misalignment, or rotor imbalance escalate into catastrophic events. The module’s resistance to hydrocarbon vapor atmospheres and high ambient temperatures makes it well-suited for outdoor and semi-enclosed installations.

Power Generation: Steam turbines, gas turbines, and large generator sets demand continuous vibration and axial position monitoring. The 81545-01 provides the alarm output reliability needed to protect these assets during load transients, startup sequences, and grid disturbance events. Its stable signal processing under fluctuating power conditions ensures that protection systems remain armed even during grid faults or generator excitation anomalies.

Mining and Mineral Processing: Ball mills, SAG mills, conveyor drives, and slurry pumps operate in environments characterized by extreme vibration, heavy dust, and wide temperature swings. The 81545-01’s robust construction and EMI-resistant signal path maintain alarm integrity in these conditions, supporting predictive maintenance programs that reduce unplanned stoppages in ore processing circuits.

Water and Wastewater Treatment: High-reliability pump stations and blower systems in water treatment facilities require continuous monitoring to prevent service interruptions. The 81545-01 supports alarm architectures that alert operators to developing faults in pump bearings and motor windings, enabling scheduled maintenance rather than emergency repairs.

Metallurgy and Steel Production: Rolling mills, continuous casting lines, and electric arc furnace auxiliaries generate intense electromagnetic noise. The 81545-01’s signal isolation and alarm output stability ensure that machinery protection systems remain effective in these high-interference environments, protecting assets that are central to production throughput.

Port and Marine Applications: Crane drives, ship propulsion systems, and offshore platform machinery benefit from the 81545-01’s ability to operate reliably in humid, salt-laden, and vibration-intensive environments, where signal drift and false alarms can have serious operational and safety consequences.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the Bently Nevada 81545-01?
The 81545-01 is covered by a 12-month quality support terms from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides replacement support and failure analysis documentation upon request.

Q2: Is the module tested before shipment?
Yes. Every 81545-01 unit undergoes functional testing prior to dispatch, verifying signal input response, alarm output switching, and communication integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 81545-01 compatible with existing 3500 Series racks and software?
The 81545-01 is designed for direct compatibility with the Bently Nevada 3500 Series rack infrastructure, including standard and enhanced rack configurations. It is supported by Bently Nevada System 1 and compatible condition monitoring software platforms. For specific firmware or rack revision compatibility questions, our technical team can advise based on your existing system configuration.

Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain dedicated inventory of the 81545-01 to support both planned maintenance schedules and emergency replacement requirements. Our sourcing network ensures continued availability for installed base support, minimizing the risk of extended downtime due to parts shortages. Contact our sales team for volume pricing and scheduled delivery arrangements.
