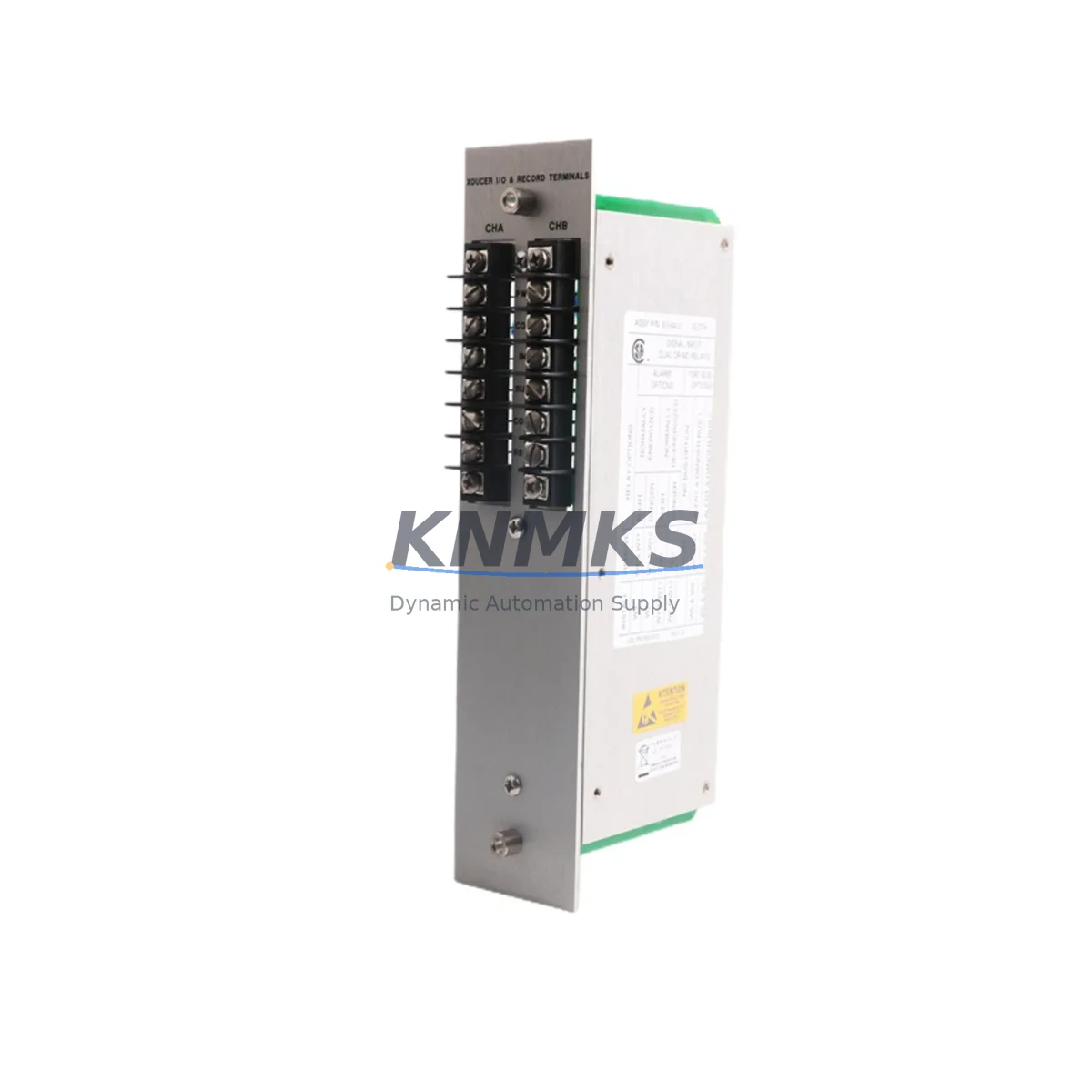

Bently Nevada 81544-01 Migration-Ready Monitor

Overview

Bently Nevada 81544-01 Migration-Ready Monitor: Legacy System Retrofit & Upgrade

The Bently Nevada 81544-01 is a vibration monitor module designed for the 3500 Series Machinery Protection System. As industrial facilities face increasing pressure to modernize aging control infrastructure, the 81544-01 serves as a critical migration-ready replacement for discontinued or end-of-life monitor modules within the 3500 platform. Whether you are executing a full control cabinet upgrade, extending the service life of an existing protection system, or replacing a failed unit during an unplanned outage, the 81544-01 provides a verified drop-in solution that preserves your existing wiring, rack architecture, and program logic.

The 3500 Series platform remains widely deployed across rotating machinery protection applications in oil & gas, power generation, petrochemical, and heavy manufacturing environments. Many facilities continue to operate legacy 3500 racks alongside newer DCS or PLC-based control systems, making backward-compatible spare parts like the 81544-01 essential for sustaining operational continuity without committing to a full platform migration.

Before installing the 81544-01 as a replacement, engineers should confirm the following: rack slot compatibility within the existing 3500/05 Power Supply chassis, transducer input wiring at the I/O terminal block, channel configuration via the Bently Nevada System 1 software or rack configuration utility, OK relay output wiring, and any firmware version dependencies tied to the host rack’s communication gateway module. In systems where the 81544-01 interfaces with a 3500/92 Communication Gateway for Modbus or Ethernet/IP data output, the gateway firmware version must be verified to ensure register mapping compatibility with the replacement module.

For facilities running mixed-generation protection architectures — for example, a 3500 rack feeding vibration data into a Rockwell ControlLogix or Siemens S7-300 PLC via a communication bridge — the 81544-01 replacement process must also account for any tag remapping or HMI screen updates required in the supervisory layer. Operators should document existing alarm setpoints, danger thresholds, and OK relay logic before removing the original module to ensure identical configuration is restored after installation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 81544-01 into a legacy protection system requires a structured retrofit plan that addresses both hardware and software layers. Begin by auditing the existing 3500 rack configuration: identify all occupied slots, confirm the 3500/05 Power Supply capacity against the total module load, and document the backplane address assignments for each installed monitor card. If the rack is operating near its power budget, adding or replacing modules may require a power supply capacity review before proceeding.

At the I/O level, verify that the existing transducer wiring — typically from Bently Nevada 3300 XL or compatible proximity probes — is correctly landed on the terminal block. Probe gap voltage, sensitivity, and signal conditioning parameters must be re-entered into the replacement module’s configuration to match the original calibration. Any deviation in these parameters will affect vibration amplitude readings and may trigger nuisance alarms or mask genuine machinery faults.

For facilities where the 3500 system feeds data upstream to a DCS historian or SCADA platform, the communication path through the 3500/92 Communication Gateway must be validated after module replacement. Confirm that the Modbus register map or Ethernet/IP tag structure remains intact and that the supervisory system is receiving valid data from the replaced channel. In some legacy installations, the gateway module itself may be a candidate for concurrent replacement if it is running outdated firmware that limits compatibility with newer network infrastructure.

Where the control cabinet also houses associated components such as a 3500/15 Power Supply Monitor, 3500/22M Transient Data Interface, or relay output modules, the retrofit plan should confirm that these adjacent modules are not affected by the slot removal and re-insertion process. Backplane communication interruptions during hot-swap or cold-swap procedures should be documented and communicated to the operations team to avoid false trip events during the replacement window.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any 3500 Series module replacement. For critical rotating machinery — compressors, turbines, pumps — even brief protection system gaps carry significant risk. The recommended approach is to schedule the 81544-01 replacement during a planned maintenance window, with the machinery either shut down or placed in a controlled bypass state under a formal Management of Change (MOC) procedure.

Before removing the original module, export the full rack configuration from the Bently Nevada configuration utility and save it to a secure location. This configuration file contains all channel parameters, alarm setpoints, transducer types, and relay logic — it is the fastest path to restoring the system to its pre-replacement state if any issue arises during commissioning. If the original module is still partially functional, capture a live data snapshot to use as a baseline for post-installation verification.

After installing the 81544-01, load the saved configuration file, verify all channel OK statuses, confirm probe gap voltages are within specification, and perform a bump test or signal injection test to validate that the vibration channel is responding correctly before returning the machinery to service. Document the as-left configuration and retain the test report as part of the maintenance record. Our 81544-01 units ship with a functional test report confirming pre-shipment verification, reducing the risk of receiving a non-functional replacement and shortening the on-site commissioning cycle.

For facilities managing multiple 3500 racks across a plant, a phased replacement strategy — addressing the highest-criticality machines first — allows the maintenance team to build familiarity with the replacement procedure before tackling lower-priority assets. Maintaining a small buffer stock of 81544-01 modules on-site further reduces exposure to extended lead times in the event of an unplanned failure.

Retrofit Support FAQ

Q1: Is the 81544-01 a direct drop-in replacement for other 3500 Series vibration monitor modules?
The 81544-01 is designed for the 3500 Series rack architecture and occupies a standard single-width slot. Compatibility with specific adjacent modules and rack configurations should be confirmed against the original system documentation. Our technical team can assist with cross-reference verification prior to shipment.

Q2: What commissioning steps are required after installing the 81544-01?
After physical installation, reload the rack configuration file using the Bently Nevada configuration utility, verify probe gap voltages on all active channels, confirm OK relay status, and perform a signal validation test. Alarm setpoints and danger thresholds must be restored to match the original configuration before returning the system to service.

Q3: How is the 81544-01 tested before shipment?
Each unit undergoes a functional test prior to shipment. A test report is available upon request and documents the pre-shipment verification results. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q4: What is the typical lead time and stock availability?
The 81544-01 is maintained availability confirmed by RFQ for immediate shipment. Global shipping is available with standard and expedited options. For urgent requirements or bulk orders, contact our sales team directly to confirm current inventory levels and delivery timelines.
