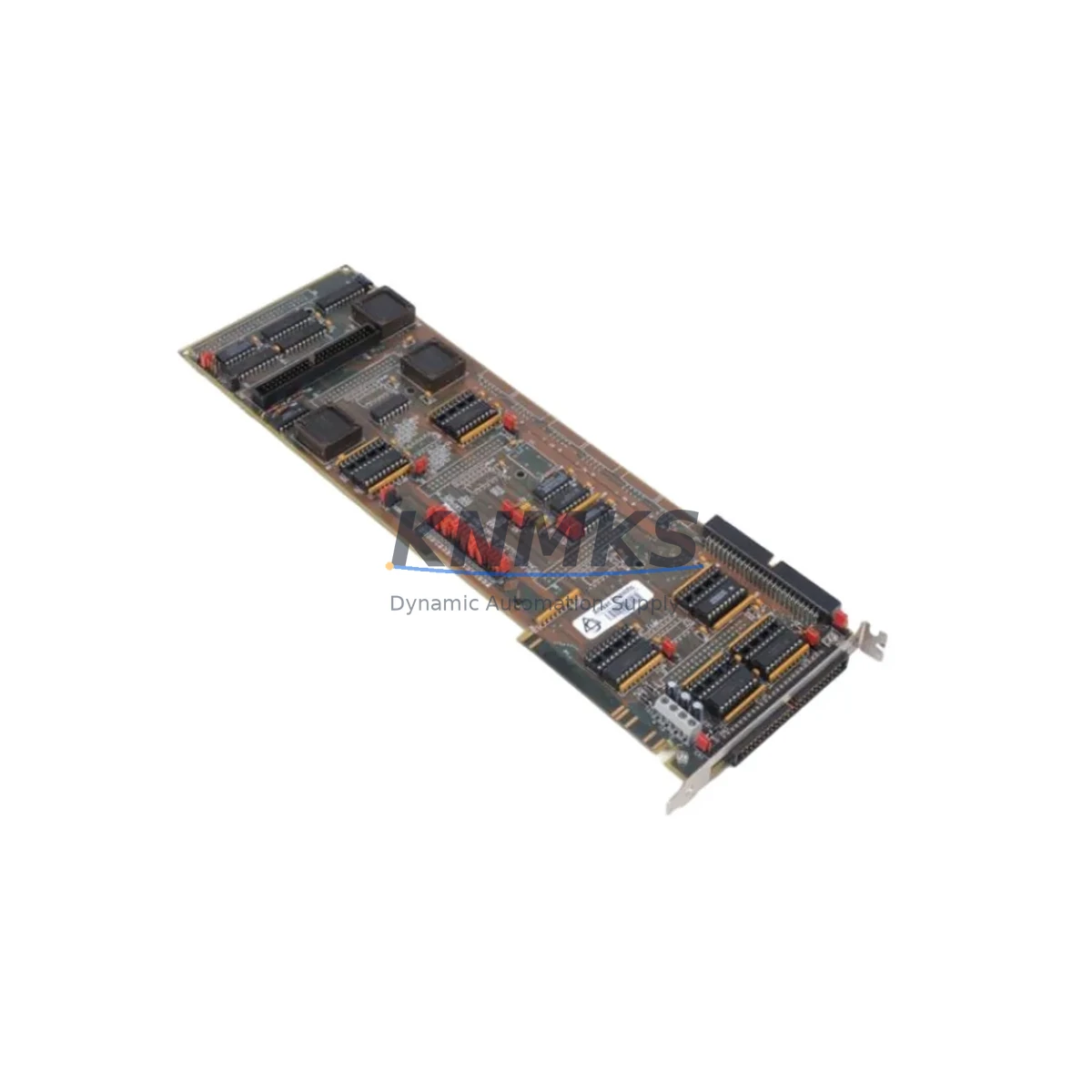

Bently Nevada 602193-502 Maintenance-Proven Spare Part

Overview

Bently Nevada 602193-502 Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 602193-502 is a critical I/O Interface Module within the 3500 Series Machinery Protection System (MPS) — one of the most widely deployed continuous machinery monitoring platforms in rotating equipment facilities worldwide. Designed for long-service environments including turbines, compressors, pumps, and generators, this module serves as the signal bridge between field transducers and the 3500 rack’s monitoring and relay logic. When this component degrades or fails, the entire protection loop for the associated machine train is compromised, making rapid, verified replacement essential to restoring safe and compliant operation.

At KNMKS, every 602193-502 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation. Our inventory is maintained to support both emergency breakdown replacements and planned annual maintenance cycles, with long-term supply agreements available for multi-site operations requiring consistent spare parts coverage over 12–36 month horizons.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 602193-502 I/O Interface Module is rarely an isolated task. In a 3500 Series MPS rack, this module interfaces directly with the 3500/15 Power Supply Module, which must be inspected for output voltage stability and ripple before the new I/O module is commissioned. Technicians should also verify the condition of the 3500/20 Rack Interface Module, as backplane communication faults can be misdiagnosed as I/O module failures. If the rack hosts a 3500/22M Transient Data Interface, confirm that its configuration and communication links remain intact after the swap.

On the field wiring side, inspect all terminal blocks and shielded signal cables connected to the I/O module’s transducer inputs. Degraded cable shielding or loose terminations on proximitor/Seismic transducer cables are a common source of spurious alarms following module replacement. If the protection system includes a 3500/32 4-Channel Relay Module, verify relay output continuity and setpoint configuration after the I/O module is restored to service.

For facilities running integrated DCS or safety systems, confirm that the 3500 System Communication Gateway (Modbus or OPC interface) re-establishes data exchange with the plant historian or DCS after the module replacement. Annual maintenance schedules should also include inspection of the 3500 rack’s internal fuse holders and any external signal isolators or surge protection devices installed on transducer wiring, as these components share the same failure environment as the I/O module and are frequently overlooked during corrective maintenance.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the 602193-502, document all active alarm and danger setpoints via the System 1 software or the rack’s front-panel display. Export the rack configuration file as a backup. Confirm that the replacement unit’s firmware revision is compatible with the installed rack software version.

Step 2 — Safe Isolation: Coordinate with operations to place the monitored machine in a safe state or bypass the protection channel per your site’s Management of Change (MOC) procedure. Do not remove the module under live rack power without confirming bypass status — the 3500 Series supports hot-swap on select modules, but I/O interface modules should be replaced with the affected channel bypassed to prevent spurious trips.

Step 3 — Module Swap: Remove the faulty 602193-502 by releasing the front-panel locking tabs. Insert the replacement module and ensure full backplane engagement. Restore transducer wiring connections and verify terminal torque to manufacturer specification.

Step 4 — Recommissioning: Power the rack and confirm that the replacement module is recognized by the rack interface. Reload the saved configuration if required. Verify all channel readings against known reference values (e.g., gap voltage, vibration baseline) before removing the bypass and returning the machine to protected operation.

Step 5 — Documentation: Record the replaced module’s serial number, installation date, and post-replacement readings in your CMMS. Update your spare parts inventory to trigger reorder of a replacement 602193-502 to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the 602193-502 compatible with all 3500 Series rack configurations?
The 602193-502 is designed for the Bently Nevada 3500 Series MPS platform. Compatibility depends on the specific rack slot assignment and firmware revision of your installed system. We recommend providing your rack configuration details when ordering so our technical team can confirm slot and firmware compatibility before shipment.

Q2: What pre-shipment testing is performed on each unit?
Every 602193-502 dispatched from KNMKS undergoes functional verification including power-on self-test, I/O signal path continuity, and communication interface checks. A test report is available upon request. Units are packaged in anti-static, shock-protected materials to maintain integrity during international transit.

Q3: Can KNMKS support long-term or multi-site spare parts agreements for the 3500 Series?
Yes. KNMKS offers 12–36 month supply agreements for the 602193-502 and related 3500 Series components, including power supply modules, relay modules, and rack interface modules. These agreements include reserved inventory allocation, priority dispatch, and fixed pricing to support multi-site maintenance programs and annual shutdown planning.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the module’s rated specifications. KNMKS provides direct support terms support — contact [email protected] for RMA processing and technical assistance.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

602193 502
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 602193 502
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
