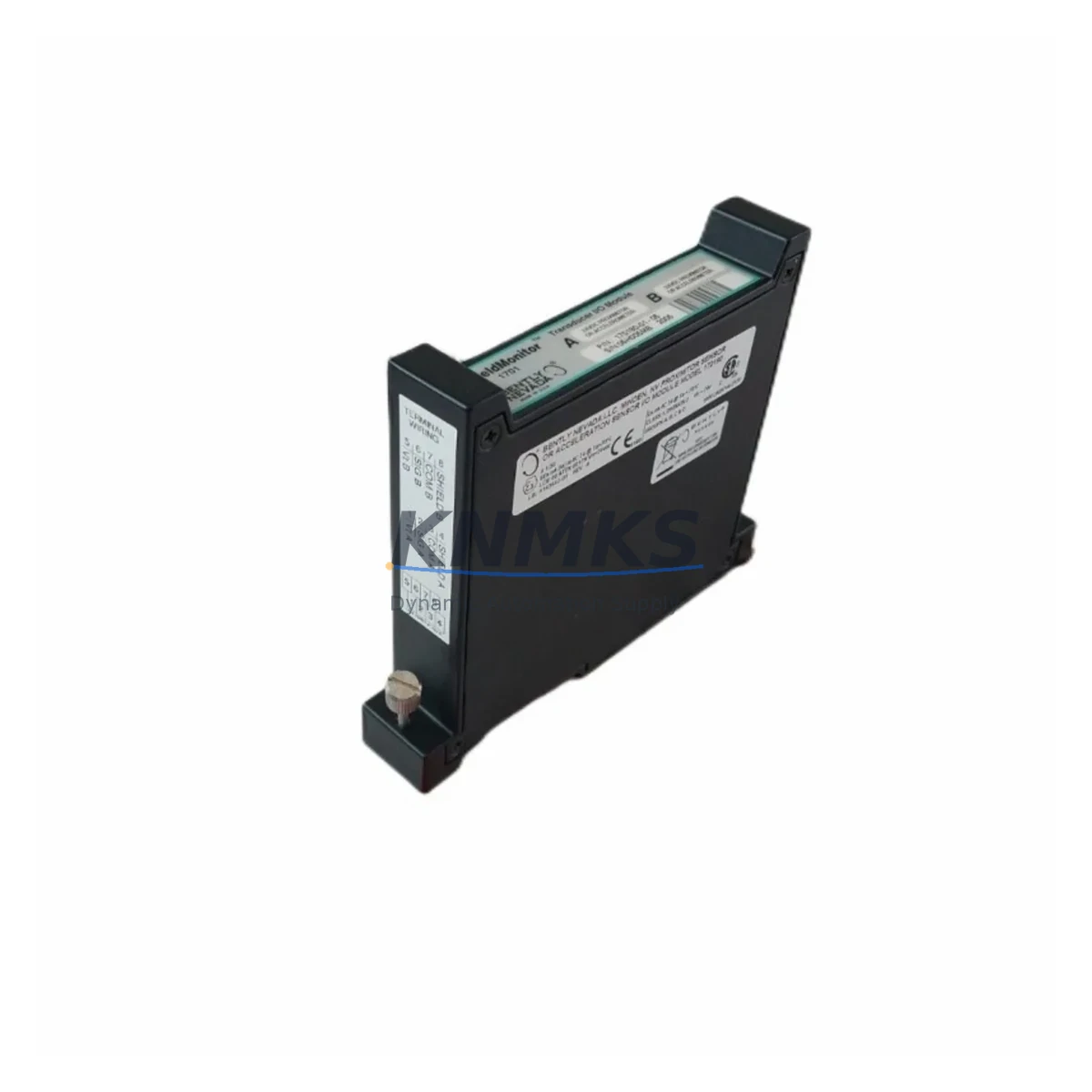

Bently Nevada 4170180-01-05 Fail-Safe Transducer I/O

Overview

Bently Nevada 4170180-01-05 Fail-Safe Transducer I/O: Critical Industrial Field Reliability

The Bently Nevada 4170180-01-05 is a precision Transducer I/O Module engineered for the 3500 Series machinery protection system — one of the most trusted continuous vibration monitoring platforms deployed across petrochemical, power generation, mining, and heavy manufacturing facilities worldwide. Designed to operate reliably in the harshest industrial environments, this module serves as a critical interface between field-mounted transducers and the 3500 rack’s processing infrastructure, ensuring that every vibration, position, and dynamic pressure signal is captured, conditioned, and transmitted without interruption.

In continuous production environments where unplanned downtime carries six-figure-per-hour cost implications, the integrity of the transducer I/O path is non-negotiable. The 4170180-01-05 is built to sustain fail-safe signal conditioning even under conditions of high electromagnetic interference, ground loop noise, cable capacitance variation, and supply voltage fluctuation — all common challenges in rotating machinery protection cabinets. Its internal architecture supports stable signal paths that resist drift, ensuring that proximity probe outputs, velocity sensor signals, and accelerometer inputs are faithfully represented at the monitor card level without false trips or missed alarms.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 4170180-01-05 does not operate in isolation — its reliability is maximized when integrated within a well-engineered 3500 Series protection cabinet. In a typical rotating machinery protection architecture, this Transducer I/O Module works in concert with the Bently Nevada 3500/22M Transient Data Interface to capture high-resolution transient events during startup and coast-down, providing engineers with the data needed to distinguish mechanical faults from electrical anomalies. Alongside the 3500/42M Proximitor I/O Module, it ensures that radial vibration and axial position signals from proximity probes are correctly routed and conditioned before reaching the monitor cards.

Power integrity within the cabinet is maintained by the Bently Nevada 3500/15 Power Supply Module, which provides regulated, isolated DC power to all rack-mounted cards including the 4170180-01-05. In environments with significant power line disturbances — common in petrochemical plants and steel mills — a stable power supply is the first line of defense against spurious trips and signal corruption. For communication-intensive installations where the 3500 rack interfaces with a DCS or SCADA platform via Modbus or Ethernet, the 3500/92 Communication Gateway Module ensures that alarm states and vibration data are transmitted reliably without introducing latency or data loss into the protection loop.

In safety-instrumented system (SIS) environments, the 4170180-01-05 is often deployed alongside Bently Nevada 3500/53 Overspeed Detection Modules to form a comprehensive turbine protection strategy. When a speed exceedance event is detected, the overspeed module triggers a controlled shutdown while the Transducer I/O Module continues to log vibration data through the event — providing post-trip analysis capability that is essential for root cause investigation and regulatory compliance reporting.

Critical Industrial Safety Applications

The Bently Nevada 4170180-01-05 is deployed across a wide range of critical industrial sectors where machinery protection is directly linked to personnel safety, environmental compliance, and production continuity.

In petrochemical and refinery facilities, this module protects compressors, pumps, and turbines operating in hazardous classified areas. Continuous vibration monitoring via the 3500 Series system enables early detection of bearing wear, rotor imbalance, and seal degradation — allowing maintenance teams to schedule corrective action before a failure escalates into a process safety event. The module’s resistance to hydrogen sulfide-laden atmospheres and high-humidity environments makes it particularly suited to offshore platforms and onshore gas processing units.

In power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — the 4170180-01-05 supports turbine-generator protection systems where shaft vibration limits are defined by OEM specifications and regulatory standards. Any signal dropout or measurement error at the transducer I/O level can result in either a missed alarm (allowing damage to progress) or a spurious trip (causing costly generation loss). The fail-safe architecture of this module minimizes both failure modes.

In mining and mineral processing operations, where crushers, mills, and conveyor drives operate under extreme mechanical loading and dust exposure, the 3500 Series system with the 4170180-01-05 provides the vibration baseline data needed to implement condition-based maintenance programs. This reduces reliance on time-based overhaul schedules and extends the operational life of critical rotating assets.

In water treatment and desalination plants, pump protection is critical to maintaining continuous water supply. The module’s stable signal conditioning ensures that pump vibration alarms are triggered accurately, preventing both dry-run damage and cavitation-induced failures. In metallurgical and port handling facilities, where large motors and gearboxes are subject to shock loading and variable speed operation, the 4170180-01-05 provides the measurement integrity needed to support both protection and performance optimization strategies.

Safety and Quality FAQ

Q1: Does the 4170180-01-05 come with a support terms confirmed by quotation?
Yes. Every Bently Nevada 4170180-01-05 unit supplied by KNMKS is backed by a full support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support terms support includes technical consultation and replacement coordination to minimize your site downtime.

Q2: What pre-shipment testing is performed on this module?
Each unit undergoes comprehensive functional verification prior to dispatch, including signal path continuity checks, channel isolation testing, and power supply compatibility validation against 3500 Series rack specifications. Test records are available upon request for quality assurance documentation purposes.

Q3: Is the 4170180-01-05 compatible with all 3500 Series rack configurations?
The 4170180-01-05 is designed for integration within the Bently Nevada 3500 modular rack architecture. Compatibility depends on rack revision, firmware version, and the specific monitor cards installed. KNMKS technical support can assist with compatibility verification based on your existing rack configuration and installed base documentation.

Q4: Can KNMKS support long-term and emergency supply requirements for this module?
Yes. KNMKS maintains multi-region stock of the 4170180-01-05 and related 3500 Series components to support both planned maintenance schedules and emergency replacement scenarios. Fast global dispatch is available, with expedited shipping options for critical plant situations. Long-term supply agreements can be arranged for facilities with recurring spare parts requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

4170180-01-05
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 4170180-01-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
