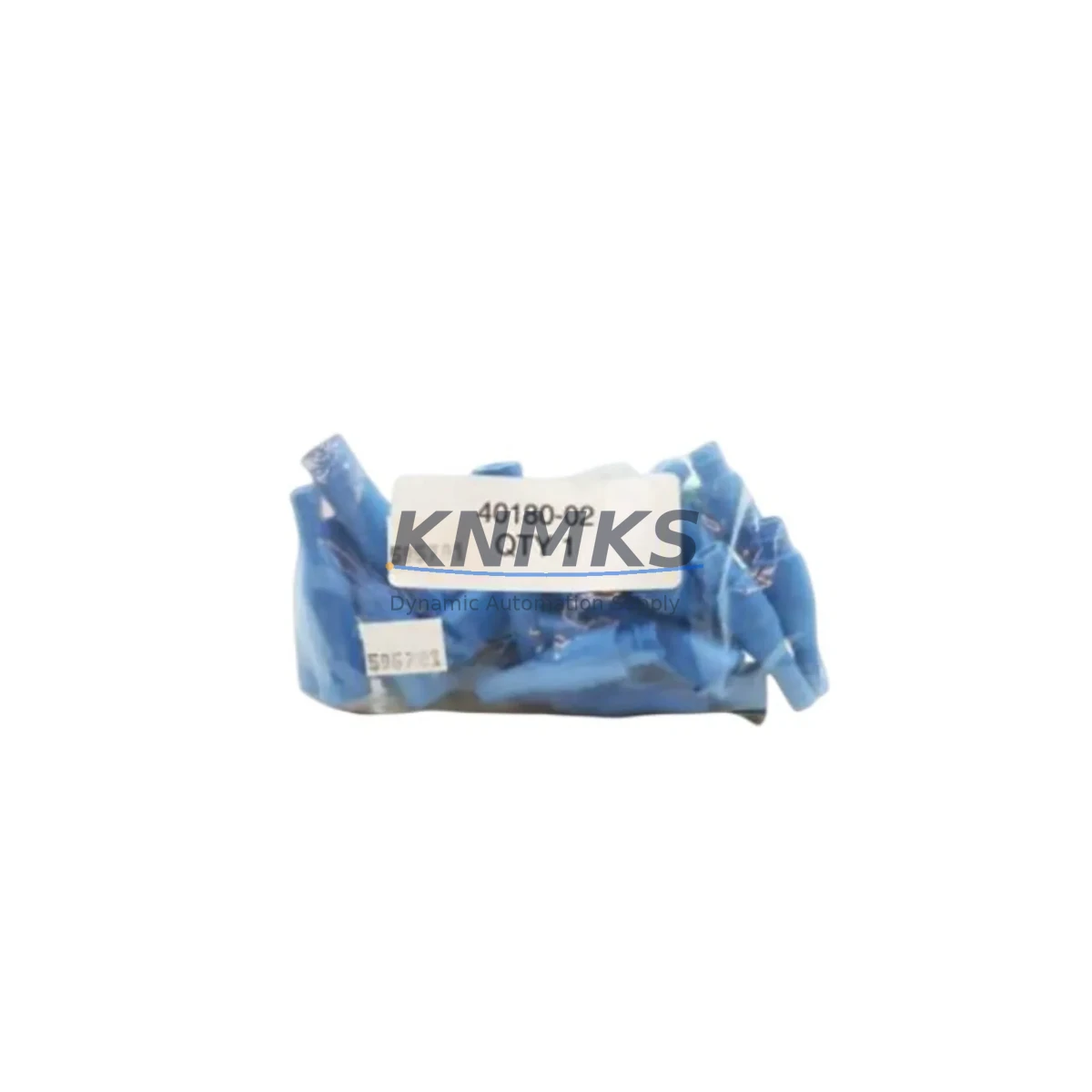

Bently Nevada 40180-02 Fail-Safe Connector for Industrial Control

Overview

Bently Nevada 40180-02 Fail-Safe Connector for Industrial Control Reliability

The Bently Nevada 40180-02 is a ruggedized, fail-safe connector protector engineered for the 3300 and 3500 Series proximity probe systems — the industry benchmark for continuous machinery protection and vibration monitoring in critical industrial facilities. Designed to operate reliably in the most demanding field environments, the 40180-02 addresses the core vulnerabilities that cause unplanned shutdowns: signal drift, connector corrosion, EMI-induced noise, mechanical vibration, moisture ingress, and intermittent contact failure.

In continuous production environments — petrochemical plants, power generation stations, mining operations, metallurgical facilities, and marine installations — a single unreliable connector in the vibration monitoring loop can cascade into a missed alarm, a false trip, or a catastrophic machinery failure. The 40180-02 eliminates this risk by providing a mechanically secure, electrically stable interface between the proximity probe extension cable and the monitoring system input. Its construction is optimized for high electromagnetic interference (EMI) zones, dusty and humid enclosures, high-temperature control cabinets, and sites subject to continuous mechanical vibration.

For facilities running Bently Nevada 3500/22M transient data interface modules or 3500/42M proximitor I/O modules, the 40180-02 is the correct field-replacement connector that maintains signal integrity from probe tip to rack input — preserving the sub-micron displacement resolution that these monitors depend on. When paired with Bently Nevada 330130 or 330180 Series extension cables, the 40180-02 ensures a continuous, low-impedance signal path that resists the capacitive loading and ground loop issues common in large motor-drive control cabinets.

In safety-instrumented systems and critical interlock loops — such as turbine overspeed protection, compressor surge control, and pump high-vibration shutdown — the reliability of every field connection is a safety-of-function requirement, not merely a maintenance preference. The 40180-02 supports these applications by maintaining consistent contact resistance across the full operating temperature range, preventing the micro-arcing and signal interruption that can cause nuisance trips or, more dangerously, masked faults.

Control cabinet protection strategy must account for the full signal chain. Alongside the 40180-02 connector, a complete protection architecture for a rotating machinery monitoring panel typically includes Bently Nevada 3500/15 power supply modules for clean, regulated rack power; 3500/20 rack interface modules for system communication integrity; and appropriate surge protection devices on all field cable entries to guard against lightning-induced transients and switching surges from adjacent variable-frequency drives. Where cabinets are located in high-humidity or coastal environments, conformal-coated PCB assemblies and sealed connector interfaces — such as those provided by the 40180-02 — are the first line of defense against insulation resistance degradation.

KNMKS maintains verified in-stock inventory of the 40180-02 and related Bently Nevada 3300/3500 Series components, sourced through established industrial supply channels. Each unit undergoes pre-shipment inspection covering dimensional conformance, contact integrity, and insulation resistance before dispatch. A support terms confirmed by quotation is provided on all supplied components, covering manufacturing defects and premature failure under normal operating conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection panel built around the Bently Nevada 3500 rack requires more than a single reliable component — it demands a coordinated, fail-safe architecture across the entire signal and power chain. The 40180-02 connector secures the field-side interface, while the Bently Nevada 3500/15 power supply ensures the rack receives clean, regulated DC power free from the ripple and transient spikes generated by adjacent motor starters and VFDs. The 3500/20 rack interface module maintains communication integrity between the monitoring rack and the plant DCS or safety PLC, ensuring that alarm and trip signals are transmitted without latency or data corruption.

For the field cable runs — often spanning tens of meters through cable trays shared with power conductors — Bently Nevada 330130 Series extension cables provide the correct characteristic impedance and shielding continuity required by the proximitor system. At the cabinet entry point, transient voltage surge suppressors rated for the local fault energy level protect the monitoring inputs from lightning strikes and switching transients. In high-vibration environments such as compressor trains or large centrifugal pumps, all connector interfaces including the 40180-02 should be inspected and torque-verified during each planned maintenance window to prevent intermittent contact faults that are difficult to diagnose during operation.

Critical Industrial Safety Applications

The Bently Nevada 40180-02 is deployed across a wide range of critical industrial safety applications where continuous, uninterrupted vibration monitoring is a process safety requirement:

Petrochemical & Refining: Reactor feed compressors, process gas turbines, and boiler feed pumps operating under API 670 machinery protection requirements rely on 3500 Series monitors with correctly specified field connectors to maintain continuous overspeed and high-vibration interlock functionality.

Power Generation: Steam turbine-generator sets and gas turbine auxiliaries in power plants require vibration monitoring systems that remain operational through load transients, grid disturbances, and planned outages. The 40180-02 ensures probe signal continuity during these events.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme vibration, dust, and moisture. Ruggedized connectors rated for these conditions prevent the signal interruptions that can mask developing bearing faults.

Water & Wastewater Treatment: High-service pumps and blower trains in water treatment facilities operate continuously with minimal maintenance access. Reliable field connectors reduce the risk of false trips that disrupt water supply and require emergency manual intervention.

Metallurgy & Steel: Rolling mill drives, continuous casters, and induction furnace auxiliaries generate intense electromagnetic interference. The EMI-shielded construction of the 40180-02 maintains signal integrity in these environments.

Marine & Offshore: Shipboard propulsion auxiliaries and offshore platform compressors require connectors that resist salt spray, humidity, and continuous mechanical vibration — all conditions the 40180-02 is designed to withstand.

Safety and Quality FAQ

Q1: What support terms is provided with the Bently Nevada 40180-02?
A: KNMKS provides a support terms confirmed by quotation covering manufacturing defects and premature failure under normal operating conditions. Support requests are supported with replacement or refund, subject to inspection of the returned component.

Q2: What pre-shipment testing is performed?
A: Each 40180-02 unit undergoes dimensional conformance verification, contact integrity inspection, and insulation resistance testing before dispatch. A test record is available upon request for quality-critical applications.

Q3: Is the 40180-02 compatible with both 3300 and 3500 Series Bently Nevada systems?
A: Yes. The 40180-02 is designed for use with Bently Nevada 3300 and 3500 Series proximity probe systems and is compatible with standard 330130 and 330180 Series extension cables. Confirm your probe and cable configuration before ordering if your installation uses non-standard assemblies.

Q4: Can long-term supply be guaranteed for maintenance and spare parts programs?
A: KNMKS maintains ongoing inventory of Bently Nevada 3300/3500 Series components including the 40180-02. For planned maintenance programs, scheduled spare parts orders and blanket purchase arrangements are available — contact [email protected] to discuss your requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

40180-02
3500 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 40180-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
