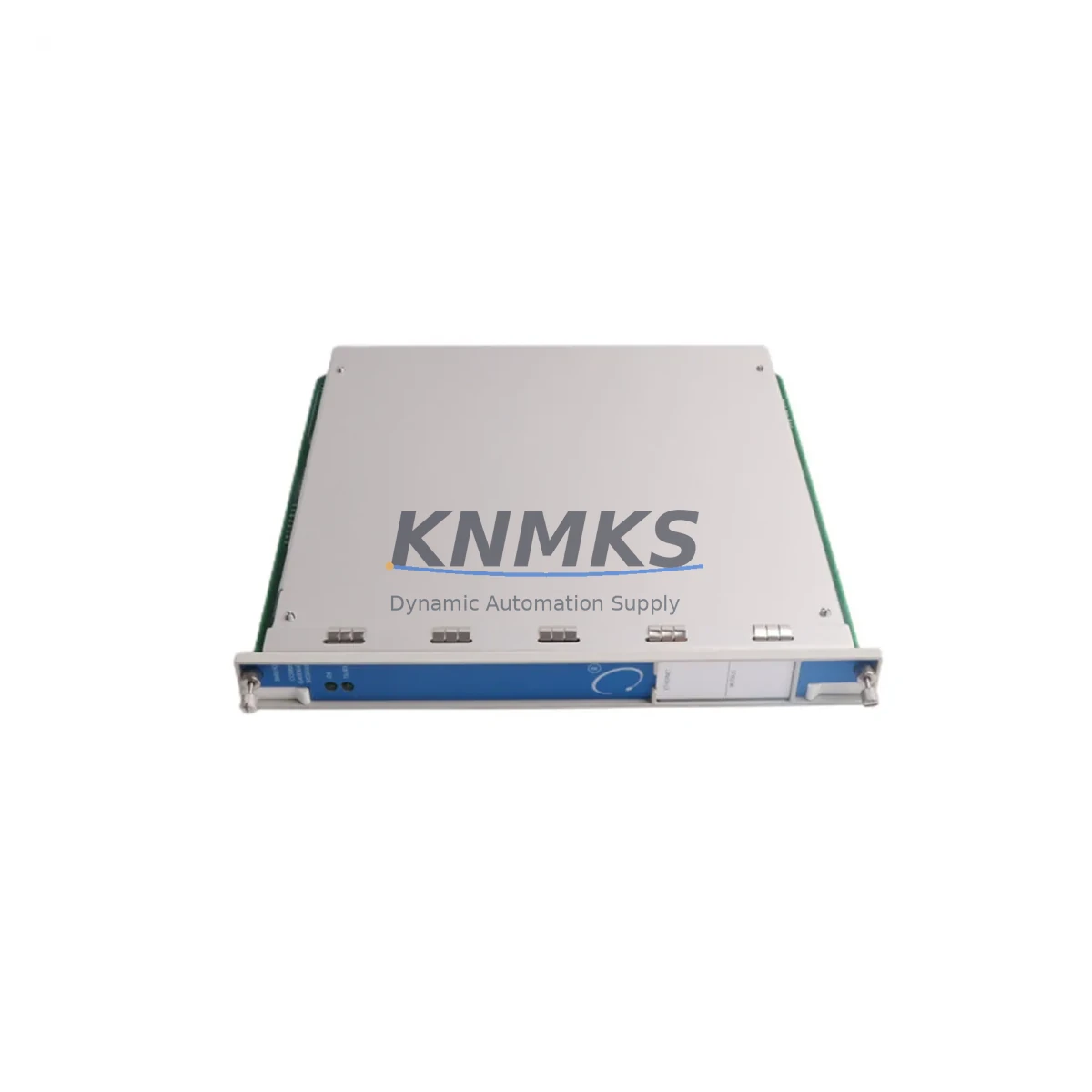

Bently Nevada 3500/92 136180-01 Fail-Safe Modbus Gateway

Overview

Bently Nevada 3500/92 136180-01 Fail-Safe Modbus Gateway: Fault-Protected Communication for Critical Industrial Control Reliability

The Bently Nevada 3500/92 136180-01 Modbus Gateway Module is an essential communication bridge within the Bently Nevada 3500 Series machinery protection system, purpose-engineered for continuous, fail-safe data transmission between vibration monitoring racks and plant-level DCS or PLC control architectures. In high-stakes industrial environments — where unplanned downtime translates directly into production loss, equipment damage, or personnel risk — the 3500/92 136180-01 delivers the communication integrity and fault tolerance that critical control cabinets demand.

Designed for deployment in petrochemical plants, power generation facilities, mining operations, metallurgical processing lines, water treatment stations, and heavy marine installations, this gateway module ensures that real-time machinery health data — vibration amplitude, phase, gap voltage, and alarm states — is reliably transmitted via Modbus RTU or Modbus TCP/IP protocols without signal drift, communication dropout, or protocol translation errors. Its robust hardware design addresses the full spectrum of field hazards: high electromagnetic interference (EMI), voltage surges, conducted noise, ambient temperature extremes, mechanical vibration, and condensation-prone enclosures.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 3500/92 136180-01 Modbus Gateway does not operate in isolation — it functions as the communication backbone connecting the entire 3500 Series rack to the plant control layer. Its reliability depends on, and contributes to, the integrity of every adjacent module in the protection chain.

The Bently Nevada 3500/15 Power Supply Module (e.g., 127610-01 or 022-0062-01) provides the stable, filtered DC bus that the gateway and all rack modules depend on. Redundant power supply configurations eliminate single-point power failure as a communication disruption source — a critical design requirement in continuous process plants. Alongside it, the Bently Nevada 3500/20 Rack Interface Module (RIM) manages rack-level I/O arbitration and system configuration, ensuring that gateway communication parameters remain synchronized with the overall protection system state.

For vibration and position measurement inputs feeding the gateway’s Modbus data registers, the Bently Nevada 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor modules provide the raw transducer signal conditioning — converting eddy-current proximity probe signals into calibrated gap, 1X, and 2X vibration vectors that the 3500/92 then makes available to the DCS or SCADA layer. In high-vibration environments such as compressor trains, turbine pedestals, or pump skids, these monitor modules must maintain signal accuracy under mechanical shock and thermal cycling — conditions the 3500 Series platform is specifically rated to withstand.

Where the control cabinet also integrates safety instrumented system (SIS) functions, the Bently Nevada 3500/33 16-Channel Relay Module provides hardwired trip relay outputs that operate independently of the Modbus communication path — ensuring that a communication fault on the 3500/92 gateway never compromises the hardwired safety shutdown logic. This architecture reflects the defense-in-depth principle: communication and safety trip functions remain decoupled, so a network anomaly, Modbus timeout, or PLC communication failure cannot mask a genuine machinery danger condition.

For installations in high-EMI environments — near variable frequency drives (VFDs), large motor starters, or arc furnace control panels — shielded RS-485 cabling, proper cable segregation, and ferrite suppression on communication lines complement the gateway’s built-in isolation to maintain data integrity. The 3500/92 136180-01 is designed to tolerate the conducted and radiated interference levels typical of heavy industrial switchgear rooms without requiring additional external signal conditioning.

Critical Industrial Safety Applications

The Bently Nevada 3500/92 136180-01 is deployed across the most demanding continuous-process and safety-critical industries:

Petrochemical & Refinery: In compressor trains, reactor agitators, and pump skids, the gateway transmits real-time vibration and position data to the DCS, enabling operators to detect bearing degradation, rotor imbalance, and seal wear before they escalate to unplanned shutdown or catastrophic failure. Integration with the plant DCS via Modbus allows alarm rationalization and trip setpoint management from a centralized control room.

Power Generation: Steam turbine and gas turbine protection systems rely on the 3500/92 to bridge the machinery protection rack with the plant SCADA or turbine control system. Continuous shaft vibration and eccentricity data feeds predictive maintenance algorithms, reducing forced outage frequency and extending major inspection intervals.

Mining & Mineral Processing: In ball mills, SAG mills, crushers, and conveyor drive trains, the gateway supports condition monitoring integration in environments characterized by extreme dust loading, high ambient temperature, and severe mechanical vibration — conditions that would compromise lesser communication hardware.

Water & Wastewater Treatment: Large pump stations and blower installations use the 3500/92 to monitor rotating equipment health, with Modbus integration enabling remote monitoring from SCADA systems across geographically distributed facilities.

Metallurgy & Steel: Rolling mill drives, continuous casters, and blast furnace blowers operate in environments with intense electromagnetic interference from high-current bus systems. The galvanic isolation and EMI immunity of the 3500/92 gateway maintain communication integrity where standard industrial Ethernet or RS-485 devices would experience data corruption or communication loss.

Marine & Offshore: Shipboard propulsion systems and offshore platform compressors require machinery protection systems certified for marine environmental conditions. The 3500 Series platform, with the 3500/92 gateway, supports integration with vessel management systems via Modbus, providing engine room operators with continuous machinery health visibility.

Safety and Quality FAQ

Q1: What support terms coverage applies to the Bently Nevada 3500/92 136180-01?
All units supplied carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support requests are supported with replacement or repair, and our technical team provides application guidance throughout the confirmed support period.

Q2: What outgoing inspection and testing is performed before shipment?
Every 3500/92 136180-01 unit undergoes full functional verification prior to dispatch, including power-on self-test, Modbus communication protocol validation (RTU and TCP/IP), register map integrity check, and visual inspection for physical condition. A test report is available upon request.

Q3: Is the 3500/92 136180-01 compatible with third-party DCS and SCADA systems?
Yes. The module implements standard Modbus RTU (RS-485) and Modbus TCP/IP protocols, which are universally supported by DCS platforms from Honeywell, Emerson DeltaV, ABB System 800xA, Siemens PCS 7, Yokogawa CENTUM, and all major SCADA software packages. No proprietary driver or license is required for basic Modbus integration.

Q4: Can long-term supply and replacement support be guaranteed for this module?
We maintain dedicated inventory of the Bently Nevada 3500/92 136180-01 and related 3500 Series modules to support both planned maintenance cycles and emergency replacement requirements. For facilities operating legacy 3500 Series racks, we provide ongoing spare parts supply with consistent lead times, reducing the risk of extended downtime due to component unavailability.
