Bently Nevada 3500/90 Migration-Ready Communication Gateway

Overview

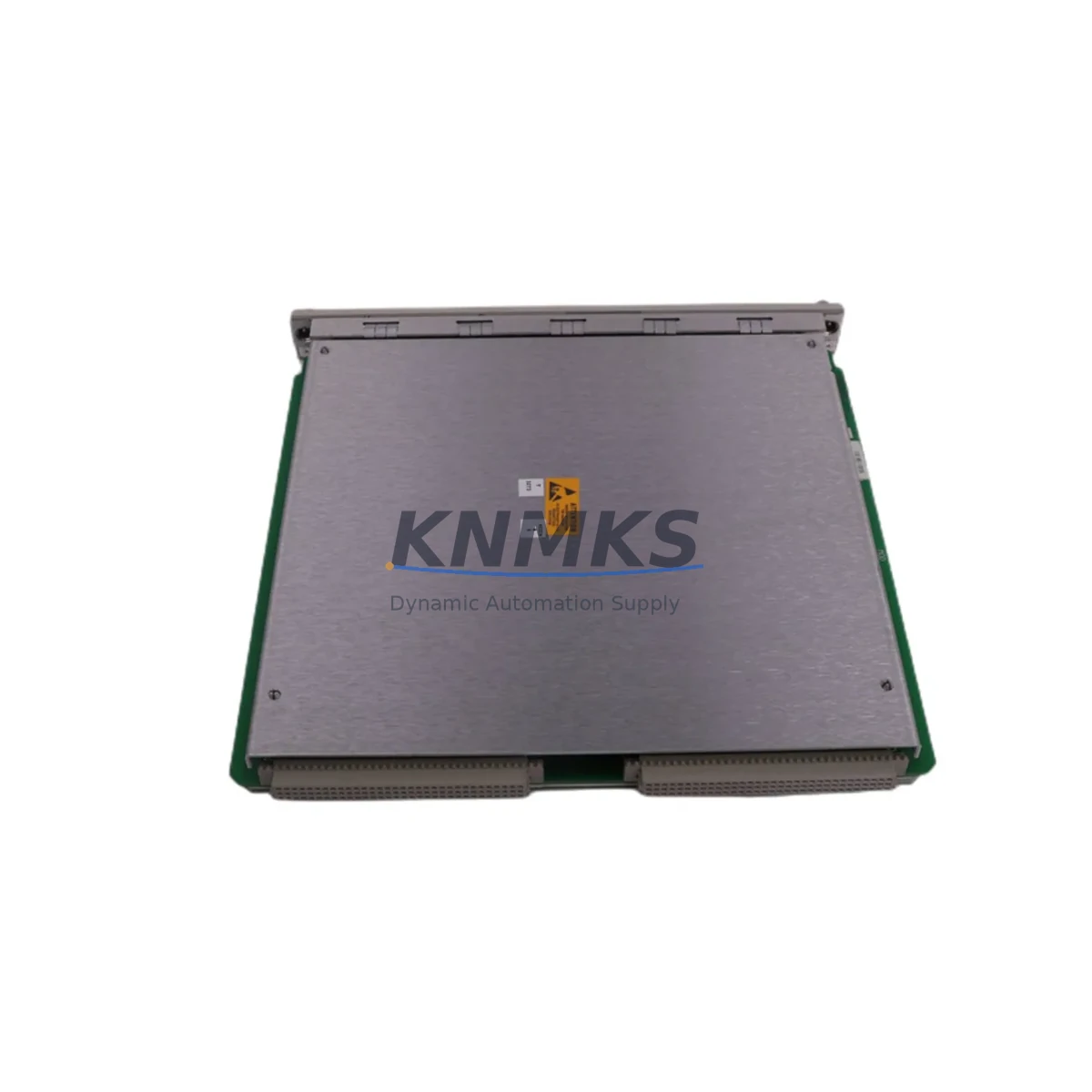

Bently Nevada 3500/90 Migration-Ready Communication Gateway for Legacy Control Systems

The Bently Nevada 3500/90 is a communication gateway module engineered for the 3500 Series machinery protection rack platform. As industrial facilities face increasing pressure to modernize aging condition monitoring infrastructure, the 3500/90 serves as a critical bridge between legacy Bently Nevada 3500 Series racks and contemporary DCS, SCADA, and PLC environments. Whether you are replacing a failed unit, extending the service life of an existing rack, or migrating communication protocols from proprietary serial links to Ethernet-based architectures, the 3500/90 provides a verified, drop-in compatible solution that minimizes engineering risk and reduces planned downtime.

Industrial sites operating rotating machinery — including compressors, turbines, pumps, and fans — rely on the 3500 Series platform for continuous vibration and process parameter monitoring. When communication modules within these racks reach end-of-life or fail unexpectedly, the consequences extend beyond the module itself: loss of real-time data to the control room, alarm suppression, and potential safety system degradation. Sourcing a verified replacement 3500/90 from available inventory is often the fastest path to restoring full system functionality without committing to a full platform migration.

Before installing a replacement 3500/90, engineers should confirm several key parameters. Power supply capacity within the 3500 rack must be verified against the total module load, particularly if the rack also houses I/O modules such as the 3500/40M Proximitor/Seismic Monitor or the 3500/42M Proximitor/Seismic Monitor, which draw significant current from the rack backplane. The 3500/20 Rack Interface Module (RIM) governs overall rack communication arbitration and must be confirmed compatible with the firmware revision of the replacement 3500/90 prior to installation.

Terminal wiring on the 3500/90 follows the standard 3500 Series I/O module connector format. Technicians should document existing wiring assignments from the original module before removal, as communication port pinouts — including RS-232, RS-485, and Ethernet RJ-45 connections — must be replicated exactly on the replacement unit. Backplane slot addressing should also be verified: the 3500/90 must occupy the correct slot position as defined in the rack configuration stored in the 3500/22M Transient Data Interface or equivalent configuration module, and any slot reassignment requires a corresponding update in System 1 or the site’s condition monitoring software.

Program and configuration compatibility is a frequent concern during 3500/90 replacement. The module stores communication parameters including Modbus register maps, TCP/IP addressing, and protocol gateway settings. These configurations should be exported from the existing module using Bently Nevada’s rack configuration software before the unit is removed. If the original module is non-functional, configuration data may need to be reconstructed from site documentation or re-entered manually. HMI screens and SCADA tag mappings that reference 3500/90 Modbus addresses must be validated after the replacement is installed and commissioned to ensure alarm setpoints and process variable displays remain accurate.

For facilities undertaking broader control cabinet upgrades, the 3500/90 replacement is often performed in parallel with related work on the 3500/15 Power Supply Module and rack frame inspection. Where communication protocol migration is the primary objective — for example, transitioning from legacy serial Modbus RTU to Modbus TCP/IP over Ethernet — the 3500/90’s dual-protocol gateway capability allows the new Ethernet link to be commissioned and verified before the serial link is decommissioned, reducing the risk of communication loss during cutover. This staged approach is particularly valuable in continuous-process environments where control system downtime directly impacts production output.

All 3500/90 units supplied by KNMKS are sourced from verified supply channels, functionally tested prior to shipment, and covered by a support terms confirmed by quotation. Units are available from stock for fast global dispatch, supporting both emergency replacement and planned maintenance schedules.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful 3500/90 retrofit projects begin with a structured pre-installation audit. The rack’s 3500/15 Power Supply Module should be load-tested to confirm it can support the full complement of installed modules, including any recently added I/O cards. In racks where the 3500/40M Proximitor/Seismic Monitor or 3500/42M Proximitor/Seismic Monitor modules are installed alongside the 3500/90, total backplane current draw must be calculated and compared against the power supply’s rated output to avoid marginal operating conditions that could cause intermittent faults.

The 3500/20 Rack Interface Module plays a central role in retrofit planning. It manages the communication arbitration between the 3500/90 gateway and the individual monitor modules in the rack. Any firmware update applied to the 3500/90 replacement must be validated for compatibility with the installed RIM firmware version. Mismatched firmware revisions are a common source of post-installation communication errors that can be mistaken for hardware faults.

Where the retrofit scope extends to the control cabinet level, engineers should also assess the condition of the 3500/22M Transient Data Interface and any associated signal conditioning hardware. If the site is simultaneously upgrading its DCS or SCADA platform, the Modbus register map exported from the original 3500/90 should be reviewed against the new system’s tag database to identify any address conflicts or deprecated variable references before the new communication link is activated.

For sites using a programming cable to access the 3500 rack configuration port during commissioning, confirm that the cable pinout and communication parameters (baud rate, parity, stop bits) match the replacement module’s factory defaults. Configuration software version compatibility should also be verified before attempting to upload or modify rack configuration files.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500/90 replacement requires a disciplined pre-outage preparation process. Before the maintenance window opens, the site team should complete a full export of the existing rack configuration, document all active Modbus register assignments, photograph or record all terminal wiring connections, and confirm that a tested replacement unit is on-site and ready for installation.

Where process conditions allow, a staged cutover approach is recommended. The new 3500/90 can be pre-configured offline using the exported configuration data, reducing the time the rack spends in a degraded communication state during the physical swap. Once the replacement module is installed and powered, the Ethernet and serial communication links should be verified sequentially — first confirming basic connectivity, then validating individual Modbus register reads against expected process values, and finally confirming that all SCADA and HMI alarm displays are functioning correctly before returning the system to normal operation.

Original program logic stored in the site’s DCS or PLC is not affected by a 3500/90 module replacement, provided that the Modbus register map is restored accurately. However, any changes to TCP/IP addressing — for example, if the replacement module is assigned a different IP address than the original — must be reflected in the SCADA system’s device configuration and in any firewall or network switch port assignments that reference the original address. Maintaining a detailed change log throughout the retrofit process supports post-commissioning verification and provides a reference for future maintenance activities.

Retrofit Support FAQ

Q: Is the 3500/90 a direct replacement for all earlier Bently Nevada 3500 Series communication modules?
A: The 3500/90 is designed for the 3500 Series rack platform and is compatible with standard backplane slot positions. However, slot assignment and firmware compatibility should be verified against the specific rack configuration before installation. Contact our technical team with your rack serial number and existing module firmware version for confirmation.

Q: What commissioning steps are required after installing a replacement 3500/90?
A: After physical installation, restore the exported Modbus register map and TCP/IP configuration, verify communication link status via the module’s diagnostic LEDs, validate Modbus register reads from the SCADA or DCS, and confirm that all HMI alarm displays and process variable tags are functioning correctly. A full functional test against the site’s acceptance criteria should be completed before returning the system to normal operation.

Q: How are units tested before shipment?
A: All 3500/90 units supplied by KNMKS undergo functional testing prior to dispatch, including communication port verification and power-on self-test validation. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and are units available from stock?
A: KNMKS maintains inventory of the 3500/90 to support both emergency replacement and planned maintenance requirements. In-stock units are available for fast global dispatch. Contact [email protected] or +86 18359268345 to confirm current availability and shipping options for your location.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
