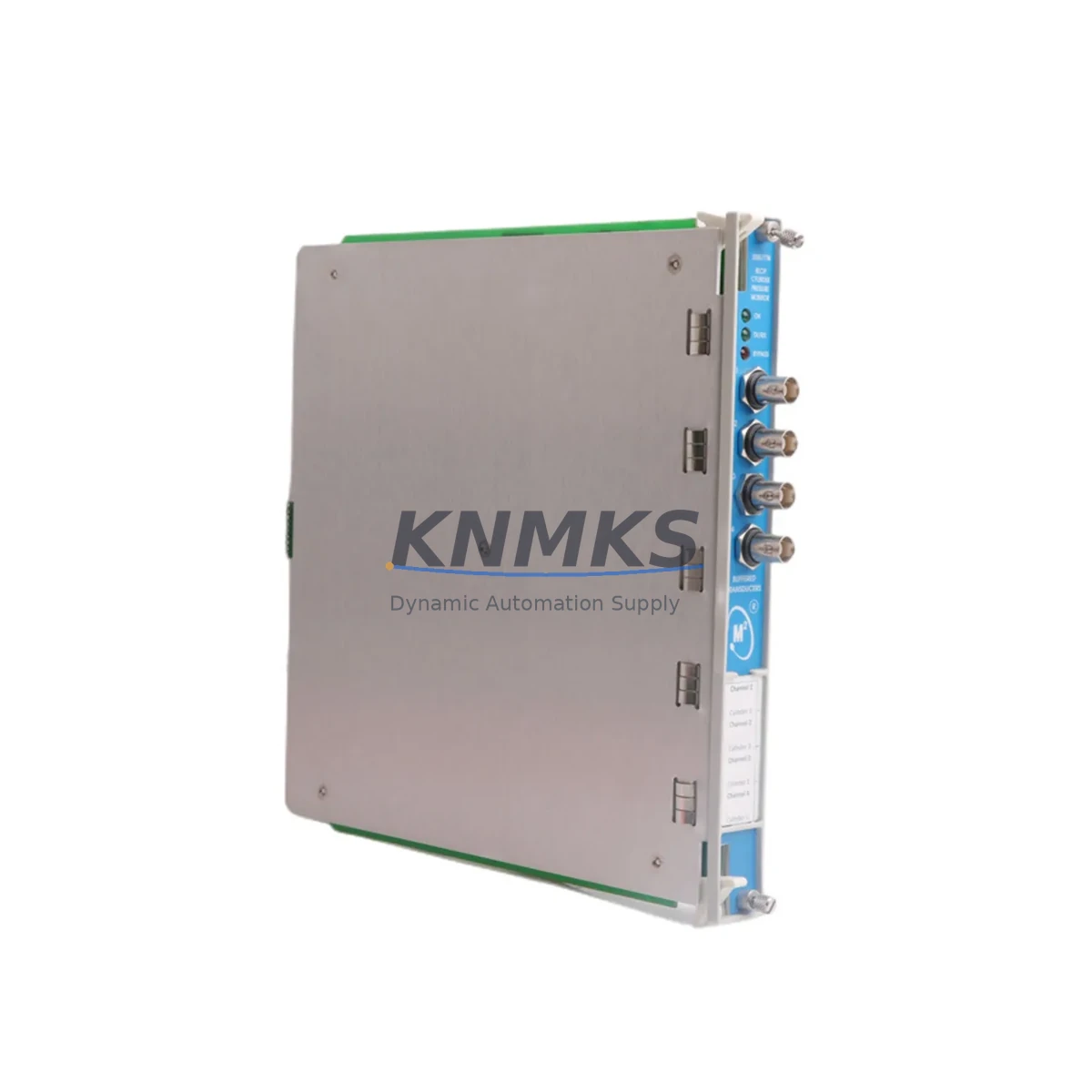

Bently Nevada 3500/77M 140734-07 Migration-Ready Recip Monitor

Overview

Bently Nevada 3500/77M 140734-07 Migration-Ready Recip Monitor for Legacy Control Systems

The Bently Nevada 3500/77M 140734-07 is a Reciprocating Machinery Cylinder Pressure Monitor module designed for the Bently Nevada 3500 Series machinery protection platform. As legacy reciprocating compressor monitoring systems reach end-of-life or face discontinued spare part availability, the 3500/77M 140734-07 serves as a verified drop-in replacement for existing 3500 rack installations — enabling engineers to extend system life, restore monitoring integrity, and defer full platform migration without rewriting control logic or rewiring field instrumentation.

This module monitors cylinder pressure waveforms in reciprocating compressors and engines, providing critical protection against rod load reversals, valve failures, and pressure deviations. It integrates directly into the standard 3500 Series backplane, communicating over the rack’s internal data bus to the 3500/20 Rack Interface Module and upstream DCS or SCADA systems via Modbus RTU, Modbus TCP, or the Bently Nevada proprietary TDI protocol — depending on the communication gateway module installed in the same rack.

For facilities operating aging 3500 racks alongside newer control infrastructure, the 3500/77M 140734-07 eliminates the need to replace the entire monitoring rack. Engineers can slot this module into the existing chassis alongside other active 3500 Series modules such as the 3500/40M Proximitor/Seismic Monitor or the 3500/42M Proximitor/Seismic Monitor, preserving existing wiring, sensor calibration data, and alarm setpoints stored in the rack configuration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or discontinued 3500/77M 140734-07 in an operating plant requires careful pre-outage planning to avoid extended downtime and configuration loss. Before the replacement window, engineers should export the full rack configuration using Bently Nevada Rack Configuration Software or System 1 Evolution, capturing all channel parameters, alarm setpoints, OK relay logic, and transducer scale factors. This configuration file is the single most critical asset during a module swap — without it, re-commissioning requires manual re-entry of all parameters, significantly extending the maintenance window.

On the hardware side, verify that the 3500/15 Power Supply Module in the rack has sufficient capacity to support the 3500/77M alongside all other installed modules. Overloaded power supplies are a common root cause of intermittent module faults in aging racks. If the rack is also running a 3500/60 Temperature Monitor or additional I/O expansion modules, recalculate total current draw before installation.

Terminal wiring for the cylinder pressure transducers should be documented and photographed before disconnection. The 3500/77M 140734-07 uses a standard I/O terminal block; however, field wiring polarity, shielding termination, and transducer excitation voltage must be confirmed against the original loop drawings. If the existing transducers are legacy piezoelectric types, verify signal conditioning compatibility with this module revision.

For facilities planning a broader control system upgrade — such as migrating from a standalone 3500 rack to an integrated System 1 Evolution platform or a DCS-connected architecture — the 3500/77M 140734-07 can serve as a bridge module, maintaining cylinder pressure monitoring continuity while other rack slots are progressively upgraded. In this scenario, the 3500/92 Communication Gateway or 3500/93 Ethernet Communication Module becomes essential for routing live data to the new DCS historian or SCADA layer without interrupting field sensor loops.

If the retrofit also involves HMI updates, ensure that the Modbus register map for the 3500/77M is correctly mapped in the new HMI tag database. Alarm display logic, trend historian tags, and operator screen layouts tied to cylinder pressure channels must be validated against the new module’s register assignments before the system is returned to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500/77M 140734-07 replacement depends on three factors: pre-staged hardware, a pre-exported rack configuration file, and a clear commissioning sequence agreed upon by the maintenance and operations teams before the outage begins.

With the replacement module on-site and tested, a typical slot swap can be completed within a planned maintenance window of 2–4 hours, including configuration upload, channel verification, and alarm function test. The original program logic in the DCS or PLC controlling the compressor train is not affected by the module replacement — the 3500 rack operates as an independent protection layer, and its Modbus or TDI output to the DCS remains on the same register addresses after configuration restore.

To protect field control continuity during the swap, coordinate with the control room to place the affected compressor cylinder channels in bypass or maintenance override mode before removing the module. This prevents spurious shutdown trips from the OK relay during the hot-swap window. Restore all bypasses only after the new module has passed its channel OK status check and alarm relay function test.

For sites with redundant monitoring architectures, the 3500/77M 140734-07 replacement can often be performed without a full compressor shutdown by leveraging the redundant protection channel during the swap window — provided the site’s safety management system permits single-channel operation for the duration of the maintenance activity.

All units supplied by KNMKS are functionally tested prior to shipment. A test report confirming channel OK status, alarm relay operation, and communication link verification is available upon request, reducing on-site commissioning risk and supporting your site’s management of change documentation.

Retrofit Support FAQ

Q1: Is the 3500/77M 140734-07 a direct replacement for my existing 3500/77M unit?
Yes. The 140734-07 revision is a slot-compatible replacement for earlier 3500/77M revisions installed in standard 3500 Series racks. After installation, re-upload your saved rack configuration file to restore all channel parameters, alarm setpoints, and OK relay logic. If you do not have a saved configuration, contact our technical team — we can assist with parameter reconstruction based on your original loop drawings and transducer specifications.

Q2: What commissioning steps are required after installation?
After seating the module and restoring rack power, upload the rack configuration file via Rack Configuration Software or System 1. Verify channel OK status indicators, confirm alarm setpoint values on each cylinder pressure channel, perform an alarm relay function test, and validate Modbus or TDI communication to your DCS or SCADA system. Document all steps in your site’s management of change record before returning the compressor to service.

Q3: Can this module be used if my 3500 rack firmware is an older version?
Firmware compatibility depends on the rack’s current software revision. We recommend confirming the installed firmware version via the 3500/20 Rack Interface Module before ordering. In most cases, the 140734-07 revision is compatible with standard 3500 rack firmware releases. If a firmware update is required, this should be planned as a separate activity within the same maintenance window to avoid configuration conflicts.

Q4: What support terms and stock availability does KNMKS provide?
All 3500/77M 140734-07 units supplied by KNMKS carry a support terms confirmed by quotation covering functional performance under normal operating conditions. Units are availability confirmed by RFQ and ready for same-week shipment. A functional test report is available upon request. For volume orders or urgent replacement requirements, contact our sales team directly to confirm lead time and reserve stock.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

BENTLY NEVADA
Bently Nevada

Model / Series

3500/77M 140734-07
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: BENTLY NEVADA 3500/77M 140734-07
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
