Bently Nevada 3500/72M 176449-08 Migration-Ready Rod Drop Monitor

Overview

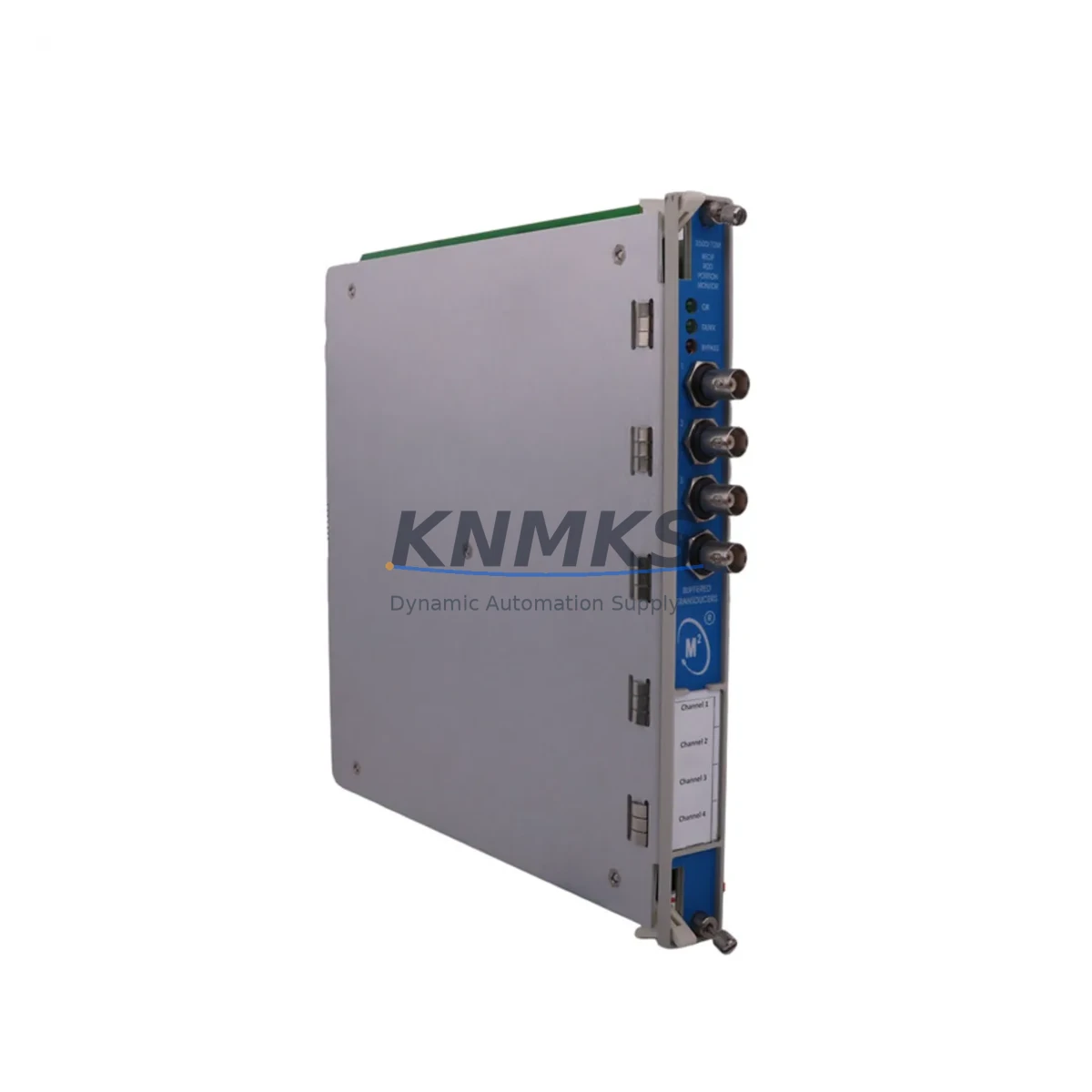

Bently Nevada 3500/72M 176449-08 Migration-Ready Rod Drop Monitor for Legacy Control Systems

The Bently Nevada 3500/72M 176449-08 is a rod drop monitor module designed for integration into the 3500 Series modular monitoring rack. As aging machinery protection systems approach end-of-life or face discontinued spare parts availability, this module serves as a direct migration-ready replacement for legacy rod drop monitoring configurations. Whether you are executing a planned control system upgrade, recovering from an unplanned failure, or extending the service life of an existing 3500 rack, the 3500/72M 176449-08 provides a verified drop-in solution with minimal engineering rework.

Before committing to a replacement, engineers should confirm several critical parameters. Power supply capacity within the existing 3500 rack must be validated — the 3500/15 Power Supply module should be checked for available headroom, particularly in densely populated racks where multiple I/O and communication modules share the same backplane bus. Terminal wiring from the field transducers must be mapped against the module’s input channel configuration to ensure signal polarity, cable shielding, and connector pinout are preserved during the swap.

Backplane slot addressing is another key consideration. The 3500/72M occupies a defined slot position within the rack, and the module address must be correctly configured in System 1 or the applicable condition monitoring software to avoid channel mapping conflicts. If the legacy installation used an earlier revision of the 3500/72 without the “M” designation, firmware compatibility between the new module and the existing rack controller — typically the 3500/22M Transient Data Interface or the 3500/20 Rack Interface Module — should be verified before energizing the system.

HMI screen updates are frequently overlooked during rod drop module replacements. If the plant uses a dedicated vibration monitoring display or integrates 3500 rack data into a DCS via the 3500/92 or 3500/93 communication gateway modules, the channel tag assignments and alarm setpoints must be re-validated after module installation. Communication link integrity — whether Modbus RTU, Ethernet/IP, or Profibus — should be confirmed with a loop test before returning the machine to service.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 3500/72M 176449-08 into an existing machinery protection system requires a structured approach to component sequencing. In most legacy installations, the rod drop monitor works alongside proximity transducers, signal conditioners, and the rack’s central processing resources. During planning, engineers should account for the 3500/20 Rack Interface Module as the primary communication bridge between the monitoring rack and the plant DCS or SCADA layer. If the existing rack uses an older 3500/20 revision, a firmware update may be required to support the 3500/72M’s full feature set.

For installations where I/O expansion is part of the modernization scope, the 3500/40M Proximitor/Seismic Monitor or the 3500/42M Proximitor/Seismic Monitor may be installed in adjacent rack slots to extend channel coverage without requiring a new rack enclosure. Signal isolation between the rod drop channels and adjacent vibration channels should be confirmed to prevent cross-talk, particularly in high-vibration environments such as reciprocating compressor trains.

Where the control cabinet layout imposes physical constraints, installation space for the 3500/72M must be confirmed against the rack’s available slot count. The module’s physical dimensions conform to the standard 3500 Series card format, but adjacent modules — including the 3500/15 Power Supply and any installed 3500/93 Ethernet communication modules — must not obstruct the module’s front-panel connectors or indicator LEDs. A pre-installation dimensional check against the existing rack drawing is recommended.

Downtime Control During System Migration

Minimizing unplanned downtime during a rod drop monitor replacement requires pre-staging the 3500/72M 176449-08 with its configuration loaded and verified offline before the maintenance window begins. Using Bently Nevada’s System 1 software, the module’s channel configuration, alarm thresholds, and rack address can be pre-programmed and saved to a configuration file, allowing the on-site technician to restore the full monitoring setup within minutes of physical installation.

To protect existing program logic and control continuity, the DCS or PLC receiving rod drop status signals from the 3500 rack should be placed in manual override or bypass mode for the affected channels during the swap. This prevents spurious trips or false alarms from propagating to the safety instrumented system or the machine’s shutdown logic while the module is unpowered. Once the 3500/72M is seated and powered, a channel-by-channel functional test — including simulated rod drop signal injection — should be completed before releasing the bypass and returning the machine to automatic protection mode.

All replacement modules are pre-tested prior to shipment. In-stock units are available for immediate dispatch, supporting urgent maintenance scenarios where extended downtime is not acceptable. A support terms confirmed by quotation cover the module against manufacturing defects from the date of delivery.

Retrofit Support FAQ

Q: Is the 3500/72M 176449-08 a direct replacement for the earlier 3500/72 without the “M” suffix?
A: In most cases, yes. The 3500/72M is the current production revision of the rod drop monitor for the 3500 Series rack. However, firmware compatibility with the installed 3500/20 or 3500/22M rack controller should be verified before installation, as older rack revisions may require a firmware update to fully support the 3500/72M feature set.

Q: What wiring changes are required when replacing the legacy rod drop module?
A: Terminal wiring from the field proximity transducers typically carries over without modification, as the 3500/72M uses the same terminal block format as earlier 3500 Series I/O modules. Confirm cable shielding continuity and signal polarity before powering the module. If the existing wiring uses a junction box or signal isolator, verify that the isolator’s output range is compatible with the 3500/72M’s input specifications.

Q: How is the module configured after installation?
A: Configuration is performed via Bently Nevada System 1 software connected to the rack through the 3500/20 Rack Interface Module or the 3500/22M Transient Data Interface. Channel addresses, alarm setpoints, and communication parameters are set in software and stored in non-volatile memory on the module. A full rack configuration backup is recommended before and after the replacement.

Q: What does the support terms confirmed by quotation cover?
A: The support terms covers manufacturing defects and functional failures under normal operating conditions for 12 months from the date of delivery. Pre-shipment testing is performed on all units. For support requests or technical support, contact [email protected] or call +86 18359268345.
