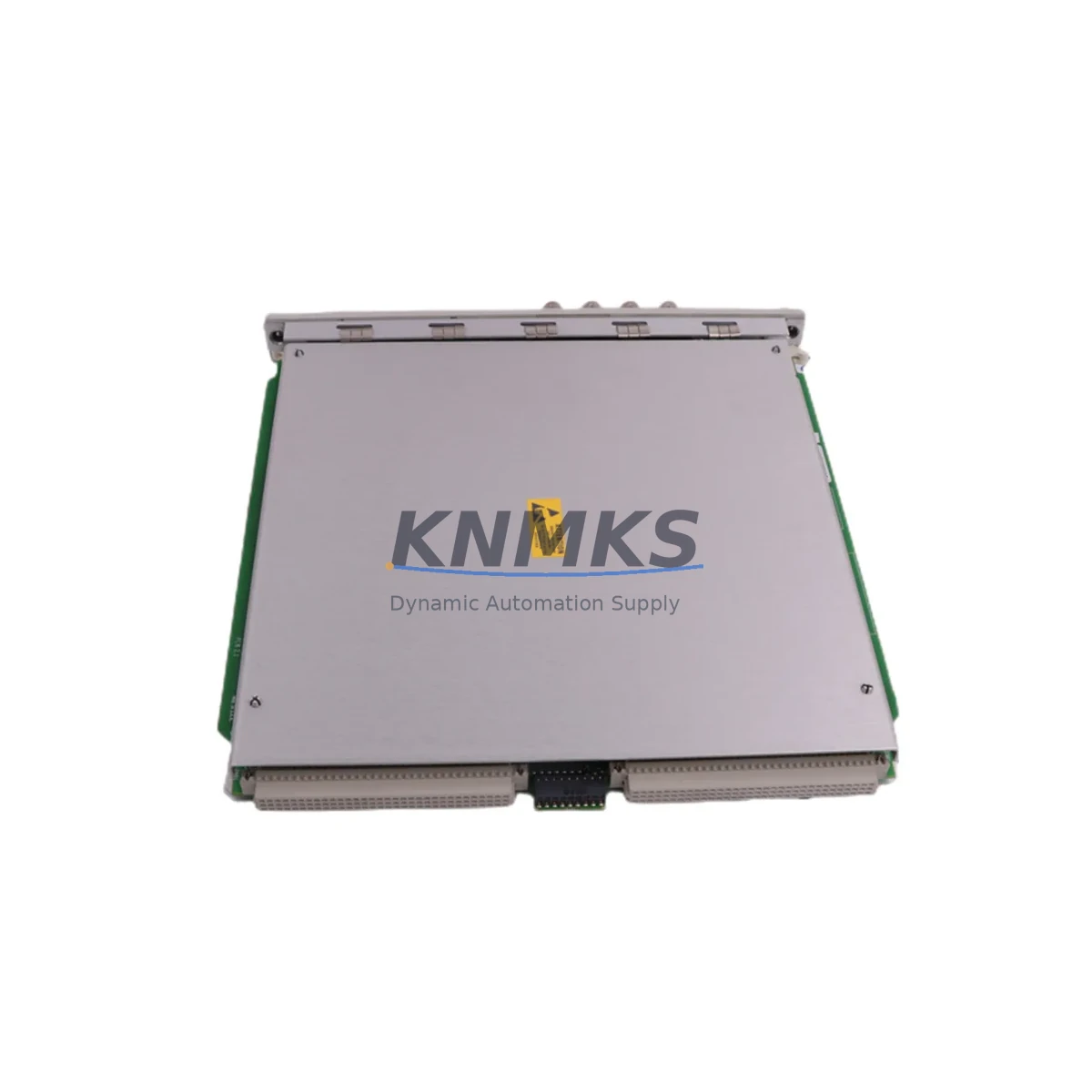

Bently Nevada 3500/70M Fail-Safe Seismic Velocity Monitor

Overview

Bently Nevada 3500/70M Fail-Safe Seismic Velocity Monitor: Mission-Critical Machinery Protection

The Bently Nevada 3500/70M is a dual-channel seismic velocity monitoring module engineered for continuous, fail-safe operation in the most demanding industrial environments. As part of the industry-standard Bently Nevada 3500 Series machinery protection system, the 3500/70M delivers real-time vibration velocity measurement and alarm/trip output for rotating and reciprocating equipment — ensuring that unplanned shutdowns, mechanical failures, and safety incidents are detected and mitigated before they escalate.

In continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical complexes, port machinery, and marine propulsion systems — even a brief control interruption can result in catastrophic equipment damage, process loss, or personnel hazard. The 3500/70M is purpose-built to eliminate these risks by providing reliable, high-accuracy seismic velocity signals that feed directly into safety interlock logic, DCS alarm management, and emergency shutdown (ESD) systems.

Its robust signal conditioning architecture suppresses electromagnetic interference (EMI) and radio-frequency interference (RFI) — critical in high-voltage switchgear rooms, variable frequency drive (VFD) environments, and heavy motor control centers where signal drift and false trips are persistent threats. The module maintains measurement integrity across wide temperature ranges and in the presence of dust, moisture, and mechanical vibration, making it equally reliable in outdoor compressor stations and enclosed turbine halls.

When integrated into a complete Bently Nevada 3500 rack, the 3500/70M works in concert with complementary modules such as the 3500/22M Transient Data Interface for waveform capture, the 3500/42M Proximitor/Seismic Monitor for combined proximity and seismic measurement, and the 3500/15 Power Supply for redundant, regulated rack power. Together, these components form a cohesive machinery protection architecture that guards against shaft displacement, bearing wear, rotor imbalance, and structural resonance — all within a single, standardized 19-inch rack enclosure.

For control cabinet integrators and field engineers, the 3500/70M simplifies wiring and commissioning. Its front-panel indicators provide immediate visual status of channel health, alarm state, and trip condition — reducing diagnostic time during planned maintenance windows and unplanned fault investigations. The module’s buffered output signals are compatible with external data acquisition systems, historian platforms, and SCADA interfaces, enabling seamless integration into plant-wide condition monitoring strategies.

Power supply stability within the control cabinet is equally critical to measurement reliability. Pairing the 3500/70M with a dedicated Bently Nevada 3500/15 Power Supply Module or an external 24 VDC UPS ensures that transient voltage surges, brownouts, and power cycling events do not corrupt measurement baselines or trigger spurious trips. In high-EMI environments, additional surge protection devices and shielded cabling — routed away from power conductors — further enhance signal fidelity and long-term module reliability.

Every 3500/70M unit supplied by KNMKS undergoes pre-shipment functional verification, including channel response testing, alarm setpoint confirmation, and output signal validation. This ensures that the module arrives ready for installation without requiring extensive bench calibration, minimizing commissioning time and reducing the risk of field failures during initial startup.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the Bently Nevada 3500/70M requires careful selection of complementary modules to ensure complete coverage of all failure modes. The 3500/42M Proximitor/Seismic Monitor extends protection to shaft radial and axial displacement, providing early warning of bearing degradation and rotor instability that seismic velocity alone may not capture at low rotational speeds. For transient event capture and waveform analysis, the 3500/22M Transient Data Interface records high-resolution vibration data during startups, coastdowns, and fault events — invaluable for root-cause analysis and predictive maintenance programs.

Rack power integrity is maintained by the Bently Nevada 3500/15 Power Supply, which provides regulated, redundant DC power to all modules in the rack. In facilities with unstable grid power or frequent switching transients — common in heavy industrial sites — supplementing the rack power supply with an external 24 VDC UPS or surge protection device prevents measurement baseline corruption and protects module electronics from voltage spikes. The 3500/20 Rack Interface Module (RIM) manages communication between the rack and host systems, supporting Modbus, Ethernet, and other industrial protocols for seamless DCS and SCADA integration.

For applications requiring temperature monitoring alongside vibration — such as motor bearing housings, gearbox casings, and pump seal chambers — integrating a Bently Nevada 3500/60 Temperature Monitor into the same rack provides a unified, correlated view of machine health. This multi-parameter approach enables condition-based maintenance decisions that reduce both over-maintenance costs and the risk of run-to-failure events in critical rotating equipment.

Critical Industrial Safety Applications

The Bently Nevada 3500/70M is deployed across the full spectrum of heavy industry wherever rotating or reciprocating machinery must be protected against vibration-induced failure:

Petrochemical & Refining: Compressors, pumps, and turbines in hydrocarbon processing plants operate continuously under high load and temperature. The 3500/70M provides the seismic velocity monitoring required by API 670 machinery protection standards, triggering automatic shutdown before bearing failure or seal damage can cause a process release or fire hazard.

Power Generation: Steam turbines, gas turbines, and large generator sets in thermal and combined-cycle power plants rely on seismic velocity monitoring for both operational safety and regulatory compliance. The 3500/70M integrates directly into turbine control and ESD systems, providing the trip signals required to protect multi-million-dollar assets and maintain grid stability.

Mining & Mineral Processing: Ball mills, SAG mills, crushers, and conveyor drive systems in mining operations are subject to extreme mechanical loads and high-vibration environments. The 3500/70M’s robust signal conditioning ensures reliable measurement even in the presence of strong structural vibration and electrical noise from large motor drives.

Water & Wastewater Treatment: High-capacity pumping stations and blower systems in water infrastructure require continuous, unattended monitoring. The 3500/70M enables remote alarm and trip management, reducing the need for frequent manual inspections while ensuring that pump failures are detected before they cause service interruptions.

Metallurgy & Steel: Rolling mills, continuous casters, and large fans in steel plants operate in high-temperature, high-dust environments. The 3500/70M’s environmental robustness and EMI immunity make it the preferred choice for machinery protection in these challenging conditions.

Safety and Quality FAQ

Q1: What support terms does the Bently Nevada 3500/70M carry?
All 3500/70M units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides remote diagnostic support throughout the confirmed support period to minimize downtime in the event of a fault.

Q2: What pre-shipment testing is performed on each unit?
Every 3500/70M undergoes a structured functional verification process before dispatch, including dual-channel input response testing, alarm and trip setpoint confirmation, buffered output signal validation, and visual inspection for physical integrity. This ensures that each module is operationally verified and ready for installation upon arrival.

Q3: Is the 3500/70M compatible with existing Bently Nevada 3500 Series racks?
Yes. The 3500/70M is designed for direct installation into any standard Bently Nevada 3500 Series 19-inch rack. It is compatible with the 3500/15 Power Supply, 3500/20 Rack Interface Module, and all standard 3500 Series I/O and termination modules. No rack modifications are required for standard installations.

Q4: Can long-term supply and spare parts availability be guaranteed?
KNMKS maintains dedicated inventory of Bently Nevada 3500 Series modules, including the 3500/70M, to support both planned maintenance programs and emergency replacement requirements. We provide reliable lead times and can accommodate blanket orders for customers with ongoing spare parts programs. Contact our sales team to discuss inventory reservation and long-term supply agreements.
