Bently Nevada 3500/70M 176449-09 Spare Part for Factory Uptime

Overview

Bently Nevada 3500/70M 176449-09 Spare Part for Factory Uptime

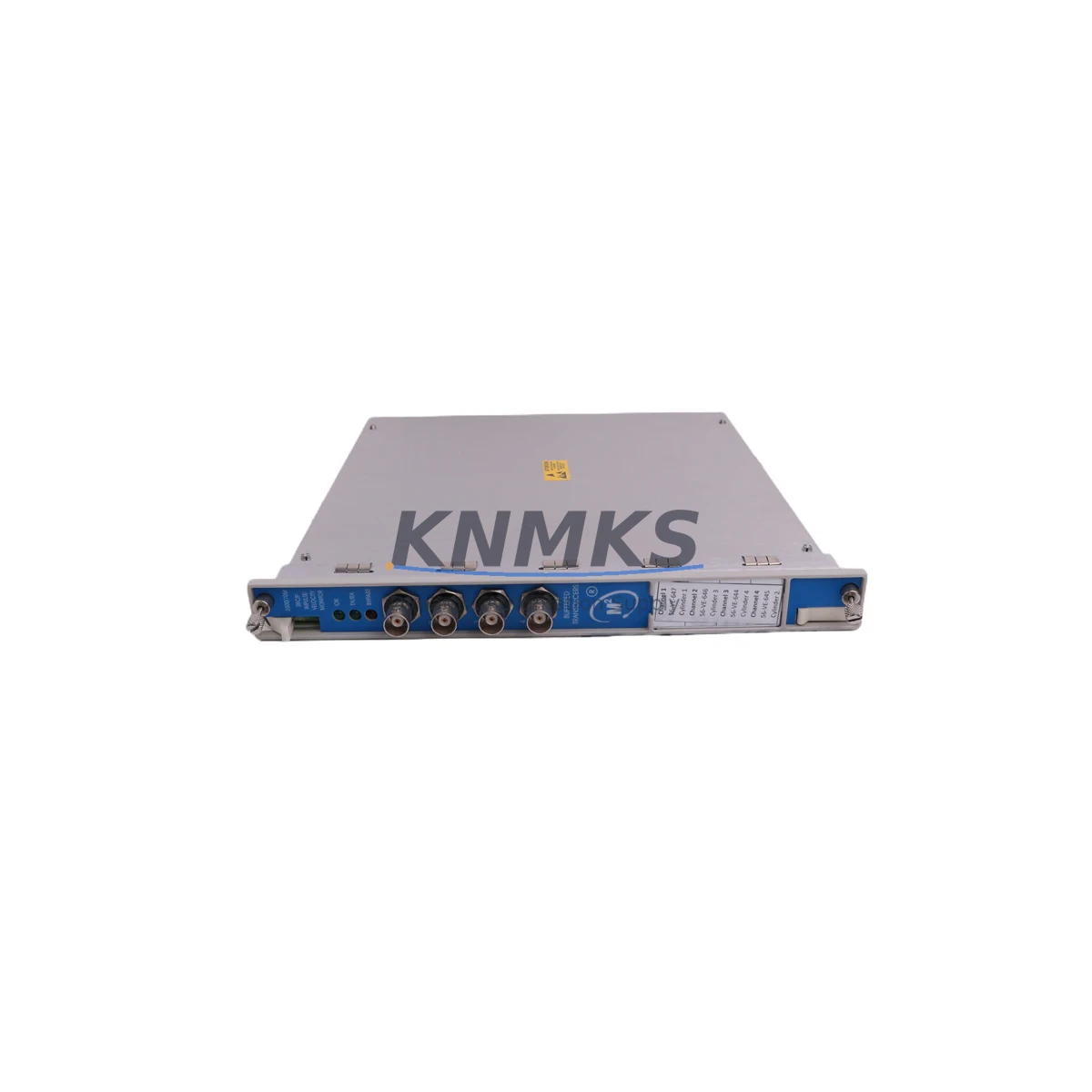

The Bently Nevada 3500/70M (Part No. 176449-09) is a dual-channel velocity monitor module designed for continuous machinery protection within the 3500 Series Modular Protection System (MPS). Engineered for long-cycle industrial deployment, this module monitors shaft and casing velocity signals in rotating machinery — including turbines, compressors, pumps, and motors — providing real-time alarm and trip outputs that safeguard critical assets from vibration-induced failures.

For maintenance engineers managing aging DCS or PLC-integrated protection systems, holding a verified spare of the 3500/70M 176449-09 is a non-negotiable element of any uptime strategy. Unplanned downtime caused by a failed velocity monitor can cascade into extended production losses, especially in continuous-process industries where machinery protection systems are interlocked with emergency shutdown logic. Sourcing a pre-tested, original-specification replacement in advance eliminates the procurement lead-time risk that often extends outages by days or weeks.

Each unit supplied by KNMKS undergoes functional verification prior to dispatch, covering channel response, relay output integrity, and rack communication handshake with the 3500 backplane. A support terms confirmed by quotation is included as standard, covering defects in materials and workmanship under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the 3500/70M 176449-09 during scheduled or corrective maintenance, a disciplined scope of work extends beyond the module itself. Maintenance engineers should treat the replacement as an opportunity to audit the full velocity monitoring loop and adjacent protection circuits.

Begin with the 3500/15 or 3500/15E Power Supply Module — verify output voltage stability and check for capacitor aging indicators, as a degraded power supply is a common root cause of intermittent monitor faults that are misdiagnosed as sensor or module failures. Next, inspect the 3500/20 or 3500/22M Communication Gateway Module to confirm that rack-to-DCS communication is intact and that the replacement module is correctly recognized by the system configuration software (System 1 or Rack Configuration Software).

Velocity transducer wiring should be checked at the 3500/32 4-Channel Relay Module terminal connections and at the field junction box. Verify shield continuity, check for ground loops, and confirm that cable routing is separated from high-voltage power conductors. If the installation uses signal isolators or barriers between the transducer and the monitor input, inspect these components for drift or insulation breakdown — a degraded isolator can introduce noise that triggers nuisance alarms even with a healthy monitor module.

For systems integrated with a Bently Nevada 3500/42M Proximitor / Seismic Monitor in adjacent rack slots, confirm that the rack configuration has not been altered and that slot assignments remain consistent with the system documentation. Mismatched slot configurations after a module swap are a frequent source of post-maintenance alarm anomalies.

Finally, review the 3500/05 System Rack backplane connectors for corrosion or mechanical wear, particularly in high-humidity or coastal environments. A clean, torque-verified backplane connection is essential for reliable module communication and relay output performance. Procurement engineers should consider stocking the 3500/70M 176449-09 alongside the 3500/15 power supply and at least one 3500/32 relay module to cover the most common single-point failure scenarios in a 3500 Series protection rack.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed module part number (176449-09) against the rack configuration printout. Do not rely solely on the physical label — verify against the System 1 device list or rack configuration file to ensure the replacement module matches the configured channel count and measurement type.

Step 2 — Safe isolation: Coordinate with the control room to inhibit alarms and trips on the affected channels before extraction. Document the inhibit action in the maintenance log. For TMR (Triple Modular Redundant) rack configurations, follow the manufacturer’s hot-swap procedure to avoid spurious trip outputs during module removal.

Step 3 — Module extraction and inspection: Remove the 3500/70M 176449-09 from the rack slot. Inspect the backplane connector pins for damage or contamination. Clean with approved contact cleaner if required before inserting the replacement unit.

Step 4 — Replacement insertion and configuration: Insert the new 3500/70M 176449-09 and secure the front panel latch. Power the rack and allow the module to complete its self-test sequence. Use Rack Configuration Software to download the existing configuration to the new module — do not assume factory defaults are compatible with the installed transducer type and alarm setpoints.

Step 5 — Functional verification: Apply a known velocity signal (or use the module’s internal test function if available) to verify alert and danger relay outputs at the configured setpoints. Confirm DCS/PLC receipt of the OK status signal before removing the alarm inhibit.

Step 6 — Documentation: Record the replacement in the equipment history file, including the new module serial number, configuration download confirmation, and functional test results. Retain the removed module for failure analysis if required.

Spare Parts Support FAQ

Q1: Is the 3500/70M 176449-09 compatible with both standard and TMR 3500 Series racks?
Yes. The 3500/70M 176449-09 is designed for use in standard single-rack and TMR (Triple Modular Redundant) 3500 Series configurations. However, TMR installations require specific configuration steps during replacement — always follow the Bently Nevada TMR replacement procedure and re-download the rack configuration file after insertion to ensure correct voting logic operation.

Q2: What pre-shipment testing does KNMKS perform on the 3500/70M 176449-09?
Each unit undergoes functional verification covering channel input response, relay output actuation at simulated alert and danger levels, and rack bus communication handshake. A test report is available upon request and is included with shipments to customers requiring documented traceability for maintenance records.

Q3: How should the 3500/70M 176449-09 be stored as a long-term spare?
Store in the original anti-static packaging in a climate-controlled environment (10°C to 40°C, relative humidity below 85% non-condensing). Avoid storage near strong magnetic fields or high-vibration areas. Inspect the module annually for connector pin condition and re-verify functionality before deployment if stored for more than 24 months.

Q4: What is the support terms coverage and what does it include?
KNMKS provides a support terms confirmed by quotation from the date of shipment, covering defects in materials and workmanship under normal operating conditions. The support terms covers repair or replacement at KNMKS’s discretion. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the module’s specified environmental ratings. Long-term supply agreements with extended support terms terms are available — contact [email protected] for details.
