Bently Nevada 3500/65-01-00 Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 3500/65-01-00 Maintenance-Proven Spare Part for Factory Uptime

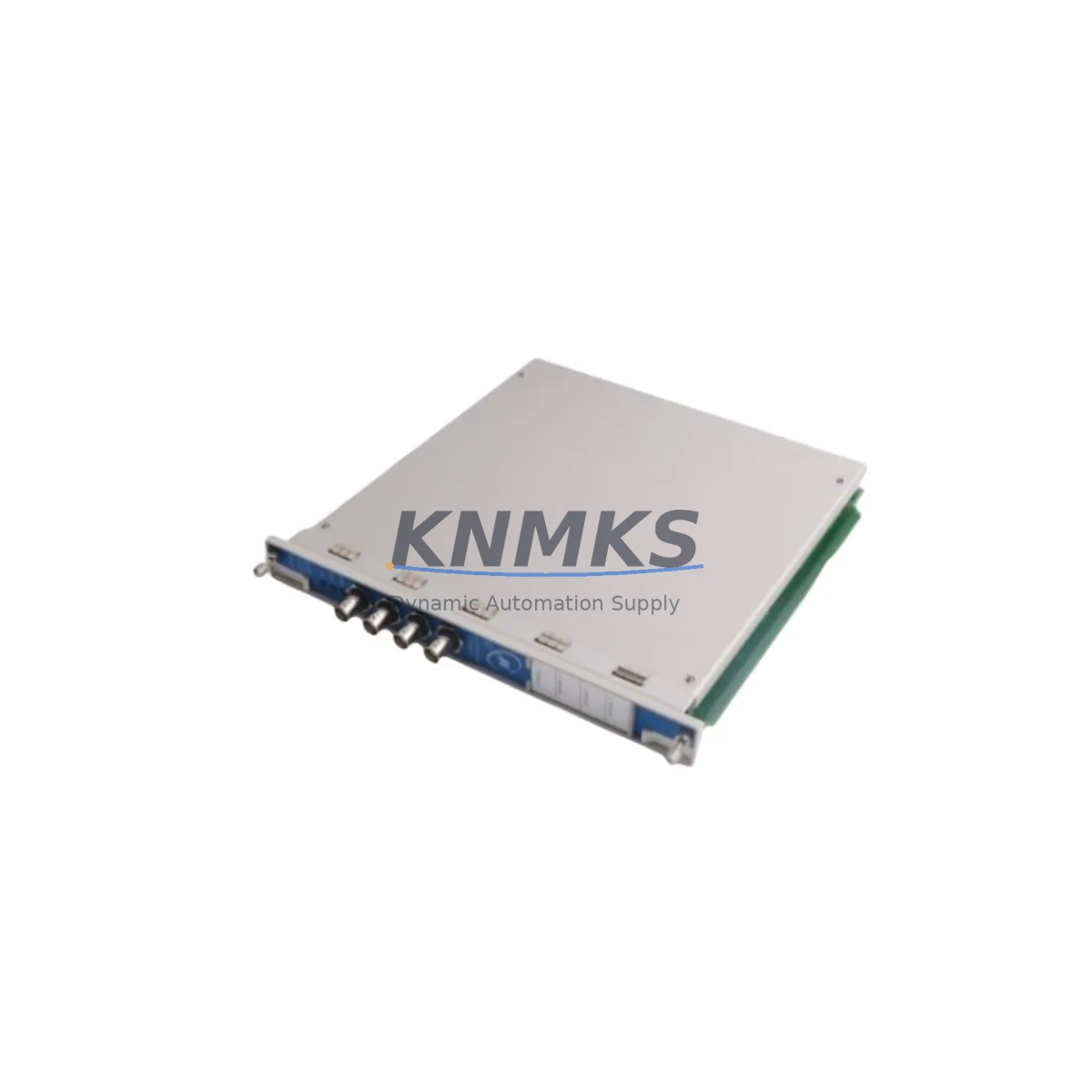

The Bently Nevada 3500/65-01-00 (also referenced as 3500/65 and 172103-01) is an original RTD & Isolated Tip Thermocouple I/O Module designed for the Bently Nevada 3500 Series machinery protection system. This module serves as a critical interface between temperature sensors and the 3500 rack’s monitoring infrastructure, enabling continuous thermal surveillance of rotating equipment including turbines, compressors, pumps, and motors. Maintaining a verified spare of the 3500/65-01-00 in your parts inventory is a fundamental requirement for any facility operating legacy or active 3500 Series racks, where unplanned downtime carries significant production and safety consequences.

For maintenance engineers and reliability teams, the 3500/65-01-00 is a high-priority line item in annual inspection schedules and emergency response kits. Its role in the thermal monitoring loop means that a failed or degraded module can mask critical temperature excursions, triggering either false shutdowns or — more dangerously — missed alarms. Procurement engineers sourcing this module should prioritize original, tested units with documented support terms coverage to avoid compatibility failures during emergency replacements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement or inspection of the 3500/65-01-00, a disciplined maintenance engineer will treat this module as part of a broader thermal monitoring circuit review — not an isolated swap. The module interfaces directly with the 3500 Series rack backplane, meaning the integrity of the backplane connectors and slot terminations should be inspected at the same time. Any oxidation, bent pins, or contamination on the backplane can cause intermittent channel faults that are difficult to distinguish from module failure.

The 3500/15 Power Supply Module is the upstream dependency for all I/O modules in the rack. Before condemning a 3500/65-01-00 for erratic readings, verify that the power supply output rails are within specification. A degraded power supply can produce voltage sag under load, causing temperature channel drift or false over-temperature alarms. Keeping a spare 3500/15 alongside the 3500/65-01-00 in your critical spares kit is a recognized best practice for 3500 Series installations.

Sensor-side verification is equally important. RTD and thermocouple inputs are susceptible to wiring degradation, connector corrosion, and shield grounding issues. During a 3500/65-01-00 replacement, inspect all field wiring terminations at the 3500 Series I/O terminal block and confirm that sensor lead resistance is within the module’s acceptable input range. Thermocouple cold junction compensation should also be verified after module swap to ensure accurate temperature offset correction.

For facilities running the 3500/22M Communication Gateway Module, confirm that the replacement 3500/65-01-00 is recognized by the rack’s configuration software (System 1 or Rack Configuration Software) after installation. Channel mapping and alarm setpoints stored in the gateway may require re-validation following a module change, particularly in TMR (Triple Modular Redundant) rack configurations where voting logic depends on consistent channel assignments across all three module slots.

Facilities operating mixed thermal and vibration monitoring in the same 3500 rack should also inspect adjacent 3500/40M Proximitor/Seismic Monitor modules and their associated signal cables during the same maintenance window. Shared rack resources — including the backplane, power distribution, and communication bus — mean that a fault event affecting one module type can produce secondary effects on neighboring I/O modules. A comprehensive inspection during a planned outage is always more cost-effective than multiple emergency interventions.

Finally, for sites with aging 3500 Series installations, consider maintaining a 3500/05 Rack Interface Module (RIM) as part of your long-term spares strategy. The RIM governs rack-level communication and configuration access; a failed RIM can render an otherwise functional rack inaccessible for remote monitoring and alarm management, compounding the impact of any I/O module fault.

Site Replacement Workflow

Replacing the 3500/65-01-00 in a live 3500 Series rack requires a structured approach to minimize downtime and avoid configuration loss. Begin by documenting the current channel configuration, alarm setpoints, and sensor assignments using Bently Nevada’s Rack Configuration Software before powering down the affected rack slot. In non-TMR racks, this typically requires a brief monitoring gap; in TMR configurations, the replacement can often be performed with the rack in a degraded voting state, maintaining protection on the remaining two channels.

Remove the module by releasing the front-panel ejector levers and sliding the card out of the backplane slot. Inspect the replacement 3500/65-01-00 for shipping damage and verify the revision level matches or supersedes the removed unit. Insert the new module firmly until the backplane connector is fully seated, then secure the ejector levers. Power the slot and confirm the module’s status LED indicates normal operation before reconnecting field wiring.

After installation, reload the saved channel configuration and perform a point-by-point sensor verification — applying a known RTD resistance or thermocouple millivolt signal to each input channel and confirming the displayed temperature matches the expected value within the module’s specified accuracy. This step is non-negotiable for safety-critical applications and should be documented in the site maintenance record. Once verification is complete, restore alarm setpoints and confirm that the 3500/22M gateway is reporting all channels correctly to the plant DCS or historian.

For sites migrating from older 3500/65 variants to the 3500/65-01-00, confirm that the updated module’s firmware revision is compatible with the installed rack firmware. Bently Nevada periodically releases firmware updates that affect channel behavior and communication protocol handling; consulting the module’s release notes before deployment prevents unexpected compatibility issues in mixed-revision racks.

Spare Parts Support FAQ

Q1: Is the 3500/65-01-00 compatible with all 3500 Series rack configurations, including TMR?
Yes. The 3500/65-01-00 is designed for use in both standard and Triple Modular Redundant (TMR) 3500 Series racks. In TMR configurations, three modules occupy dedicated slots for voting redundancy. Confirm slot assignment and firmware revision compatibility with your rack’s configuration file before installation to ensure correct voting behavior is maintained.

Q2: What pre-shipment testing is performed on the 3500/65-01-00 before delivery?
Each unit undergoes functional verification prior to shipment, including power-on self-test, channel input response testing across the RTD and thermocouple input ranges, and backplane connector integrity inspection. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Test records are available upon request for quality-critical procurement.

Q3: How should the 3500/65-01-00 be stored as a long-term spare?
Store the module in its original anti-static packaging in a climate-controlled environment (10°C to 40°C, relative humidity below 85% non-condensing). Avoid storage near strong electromagnetic fields or corrosive atmospheres. For long-term inventory (12–36 months), perform a power-on functional check annually to confirm the module remains operational before it is needed for an emergency replacement. Long-term supply agreements are available to ensure consistent access to verified stock.

Q4: Can the 3500/65-01-00 replace the earlier 3500/65 (172103-01) without reconfiguration?
In most installations, the 3500/65-01-00 is a direct functional replacement for the earlier 3500/65 (172103-01). However, minor firmware differences between revisions may affect channel calibration offsets or communication behavior in specific rack firmware versions. Always reload and re-verify the channel configuration after substitution, and consult the Bently Nevada module release notes for revision-specific compatibility notes before deploying in safety-critical applications.
